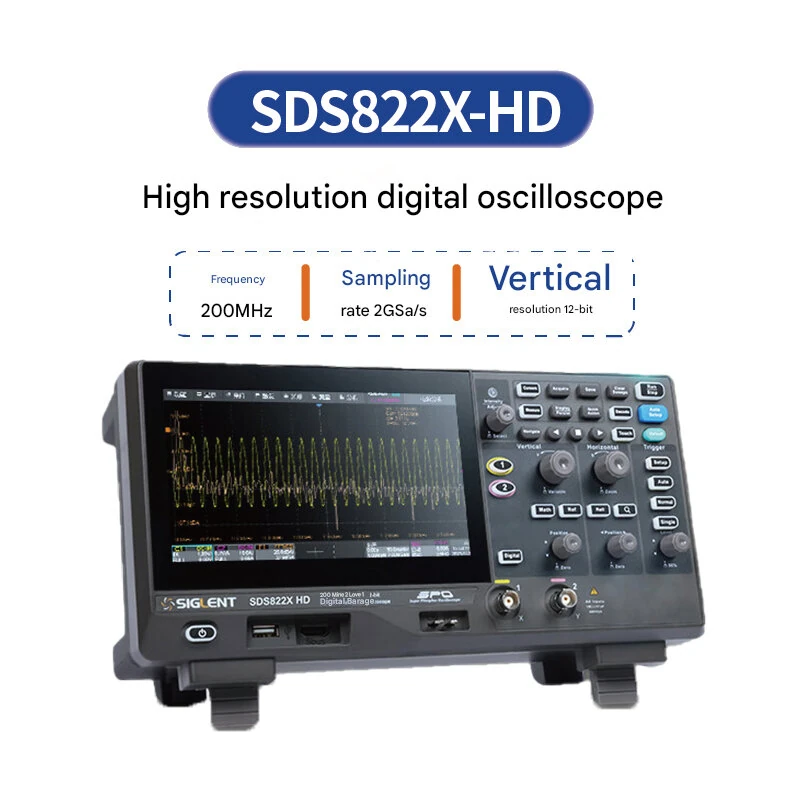

SIGLENT SDS822X HD Oscilloscope | 200MHz 12-bit 2GSa/s | 2 Channels 100Mpts
Product Description
Specifications:
| Analog channels | 2 |
| Bandwidth | 200 MHz |
| Vertical resolution | 12-bit |
| Sample rate (Max.) | One channel mode: 2 GSa/s, Two channel mode: 1 GSa/s, Four channel mode: 500 MSa/s |
| Memory depth (Max.) | One channel mode: 100 Mpts/ch, Two channel mode: 50 Mpts/ch, Four channel mode: 25 Mpts/ch |
| Waveform capture rate (Max.) | Normal mode: 120,000 wfm/s; Sequenc mode: 500,000 wfm/s |
| Trigger type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial |
| Serial trigger and decode (Standard) | I2C, SPI, UART, CAN, LIN |

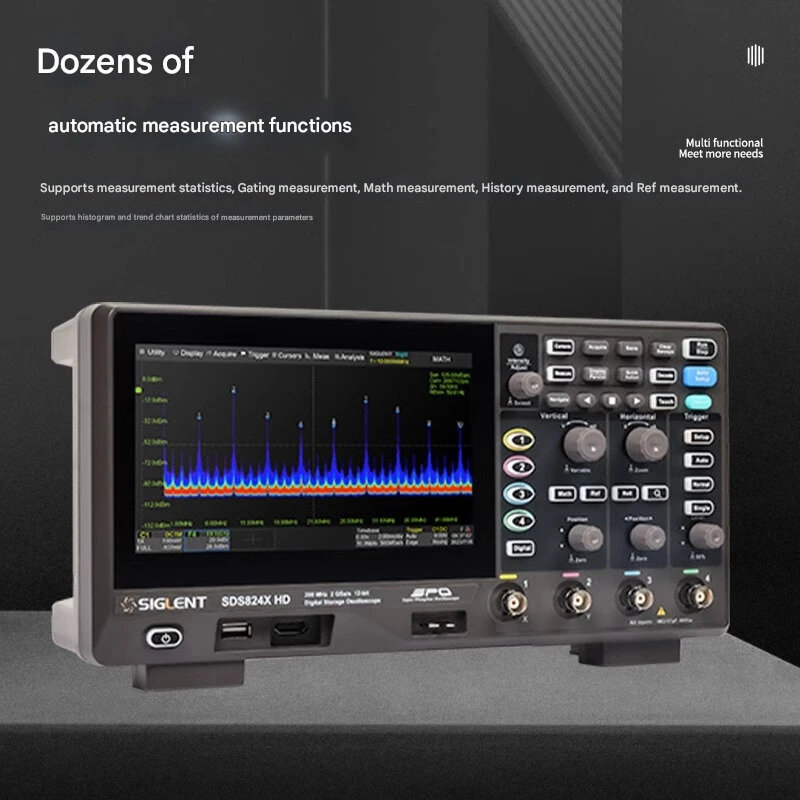

| Measurement | 50+ parameters, statistics, histogram, trend, and track supported |
| Math | 4 traces 2 Mpts FFT, Filter, +, -, x, ??, ??dt, d/dt, ??, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MinHold, ERES, Average. Supports formula editor |
| Data analysis | Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis |
| Digital channel (optional) | 16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts |
| USB AWG module (option) | One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output |
| I/O | USB 2.0 Host x2, USB 2.0 Device, 10 M / 100 M LAN, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (SIGLENT MSO) |
| Probe (Standard) | Passive probe PP215 for each channel |
| Display | 7 TFT-LCD with capacitive touch screen (1024??600) |
| Input Voltage & Frequency | 100 ~ 240 Vrms 50/60 Hz |
| Power consumption | 80 W max., 40 W typical, 4 W typical in standby mode |
| Dimensions | Length ?? Height ?? Width = 312 mm ?? 151 mm ?? 132.6 mm (including knobs and supporting legs) |
| Weight | Net Weight 2.6 kg, Gross Weight 3.8 kg |
Features:

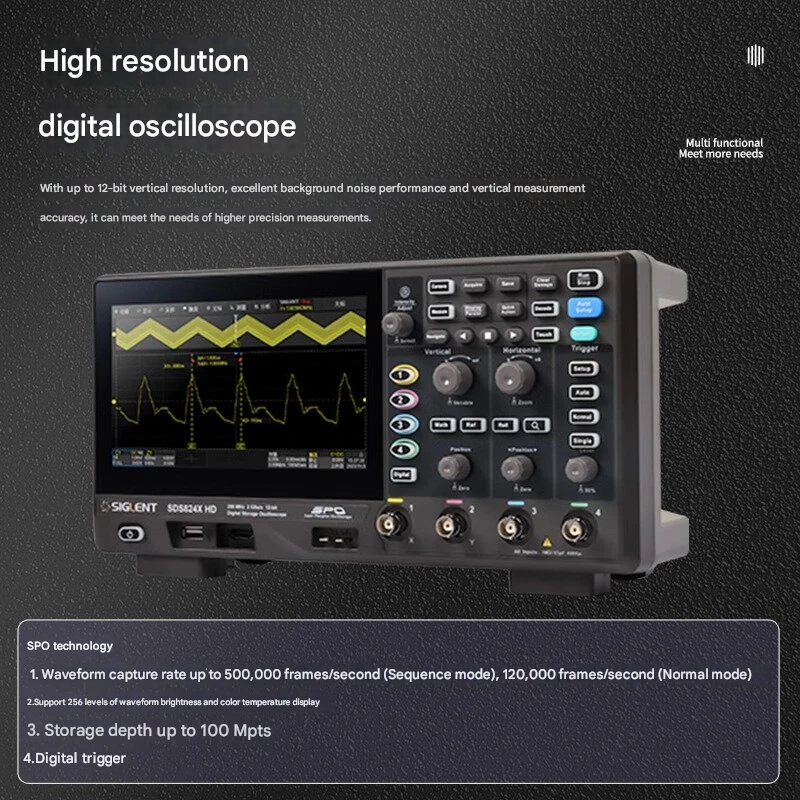

1. High-Resolution Display:
The 7-inch TFT-LCD capacitive touchscreen with 1024x600 resolution provides an intuitive interface and clear visualization of complex signals.
2. Superior Waveform Capture Rate:

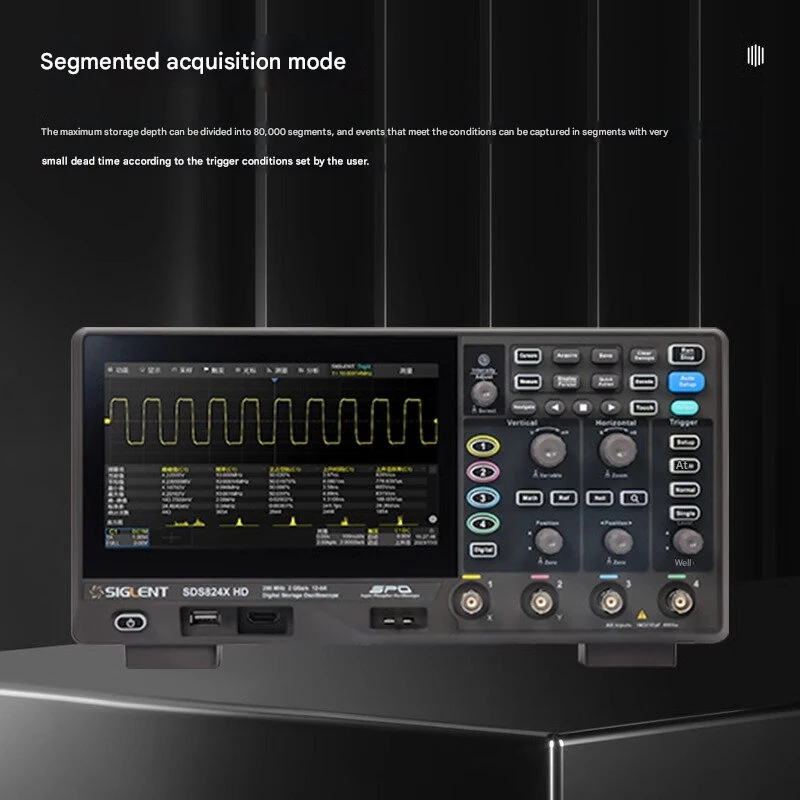

Experience rapid, reliable signal acquisition with a waveform capture rate of up to 120,000 wfm/s in normal mode and 500,000 wfm/s in sequenc mode.
3. Advanced Analysis Functions:
Utilize a comprehensive suite of analysis tools, including Bode plot, Power Analysis, and a High-Speed hardware-based Mask Test function to streamline your testing process.
4. Intelligent Trigger System:
The digital trigger system supports a wide variety of triggers, including Edge, Slope, Pulse width, Window, and more, enhancing flexibility and accuracy in capturing signals.
5. Extensive Memory Depth:
Achieve greater accuracy in long signal recordings with memory depths of up to 100 Mpts in single-channel mode, ensuring no detail is missed.
Package Included:
1 x Digital Oscilloscope SIGLENT SDS822X HD
1 x USB Cable
1 x Quick Start Guide
2 x Passive Probe
1 x Power Cord
1 x Adapter
