NanoVNA SAA2 GS-400 V2 | 4 Inch 3GHz Antenna Analyzer with Bluetooth & LCD
$147.00
$180.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:NanoVNA V2 3GHz is based on the LGPL license agreement, based on the design of OwOComm, and has developed and produced a vector network analyzer that is more convenient to carry and use. The vector network analyzer used for *SAA-2/NanoVNA uses a user interface similar to that used for NanoVNA, but uses a different technical architecture. The network analyzer for SAA-2 / NanoVNA V2 will not load the initial calibration data at startup, and will not automatically insert the calibration data after the user changes the frequency. After each startup and frequency change, you must recalibrate or recall the calibration data. Please read the instructions carefully before use to avoid damage to the equipment.
Features:
1. Use 0.5ppm TCXO: In order to ensure the frequency accuracy of high frequency measurement using 0.5ppm TCXO network analyzer.2. It uses an exquisite aluminum alloy shielded shell, with a reasonable structure and convenient operations, which can fully protect the internal precision circuit and has a more reasonable definition of the external interface.3. High-performance calibration kit: The network analyzer is equipped with a high-performance calibration kit to ensure that the calibration SWR is less than 1.03 when it reaches 3GHz.4. Good amplitude and phase stability: 2 customized high-performance SS405 SMA RF cables can provide good amplitude and phase stability.5. Updated to crystal two-color LED indicator6. Using the Type-c data cable, the performance of connecting to the computer is better.7. Easy to carry: Equipped with plastic outer packaging, the network analyzer is easier to carry and store.
Specification:
Model: GS-400 V2 ProFrequency range: 50kHz-3GHzFrequency tolerance: less than 2ppmFrequency stability: less than 0.5ppmSystem dynamic range (calibration): 70dB (1.5GHz), 60dB (3GHz)S11 noise floor (calibration): -50dB (1.5GHz), -40dB (3GHz)Scanning speed: 100 points/secDisplay: about 4.0 inches LCD TFT, (320RGBx480 resolution and 65Kcolor)USB interface: USB interface: USB Type-CCommunication mode: CDC (serial)Power supply: USBCharging current: 1ABattery: 2000mAh lithium ionBattery connector: JST-XH 2.0mm scanning point (on the device): 201Scan point (USB): 1024Port 2 return loss (1.5GHz): 20dBtypPort 2 return loss (3GHz): 13dB smallerProduct size: 142 x 75x 23mm /(5.1 x2.9x0.9in)Product weight: 208g/(7.4oz.av)Packing size: 250??142??40mm /(9.7* 5.6 * 2in)Package weight: 470g (17 ounces average)
Package Included:
1 x GS-400 V2 Pro vector network analyzer host1 x Type-C USB data cable2 x SMA cable straight-through connector1 x SMA simple calibration setting is open OPEN1 x SMA simple calibration setting SHORT1 x SMA simple calibration kit will LOAD1 x SMA female connector to female connector1 x N female adapter SMAN/SMA-KJ

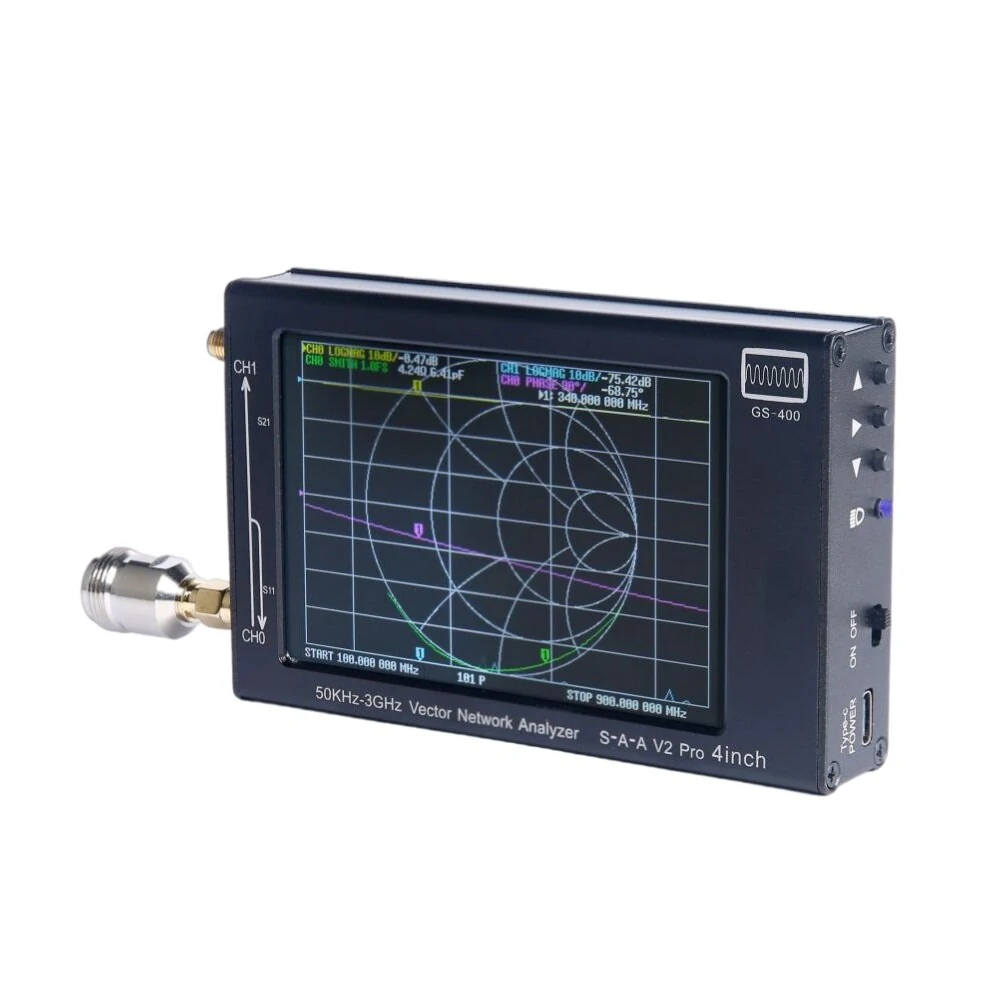

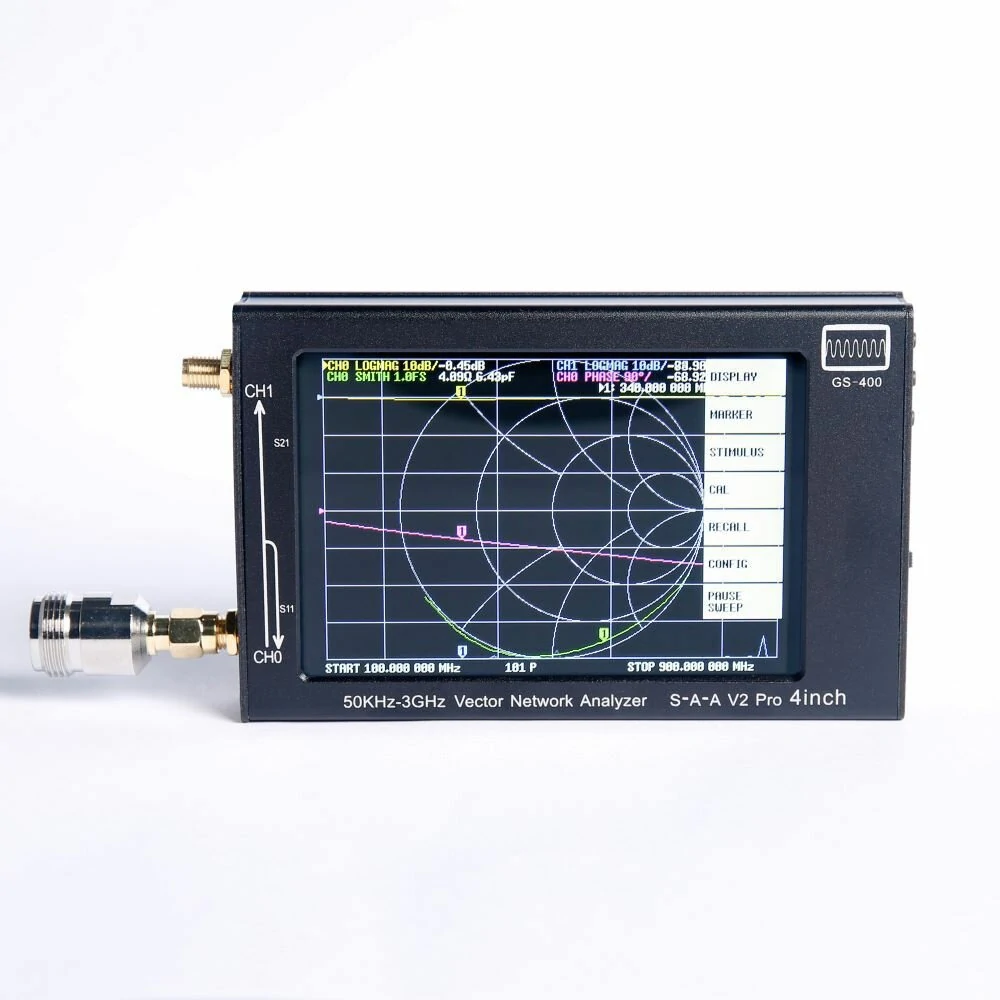

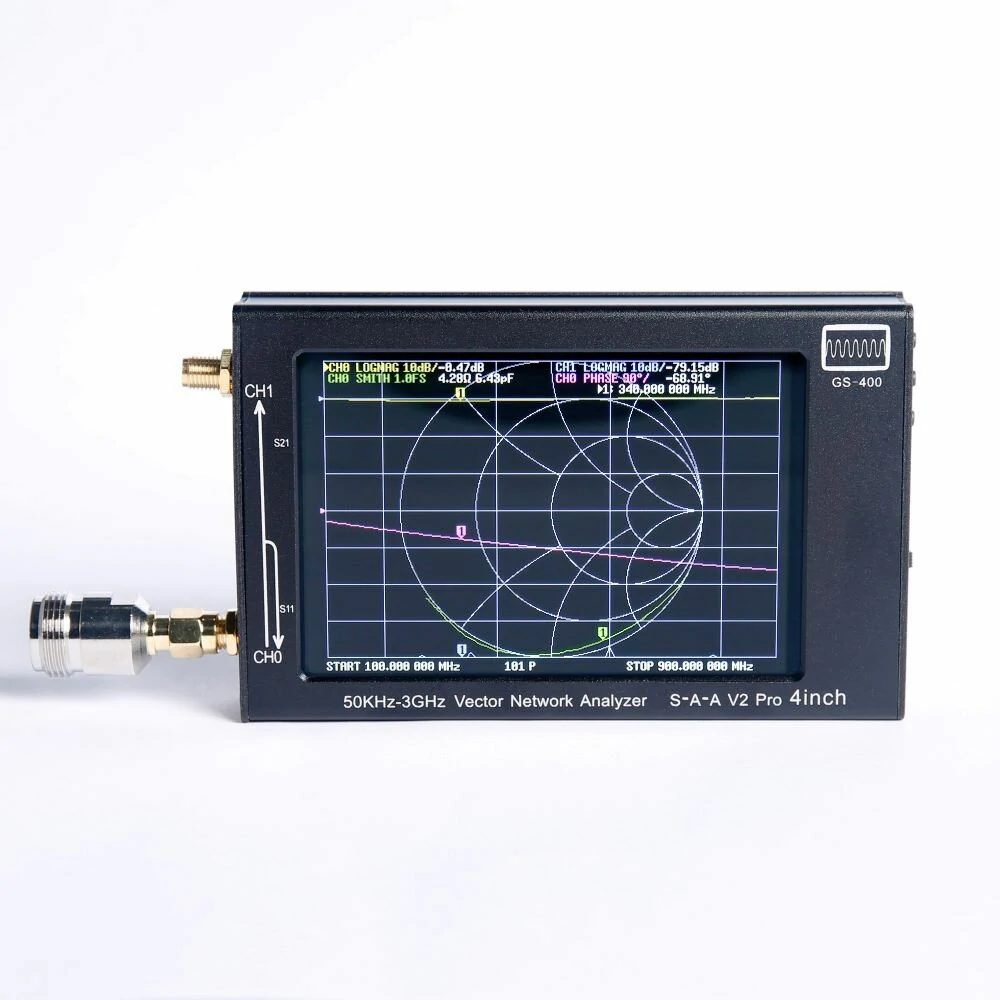

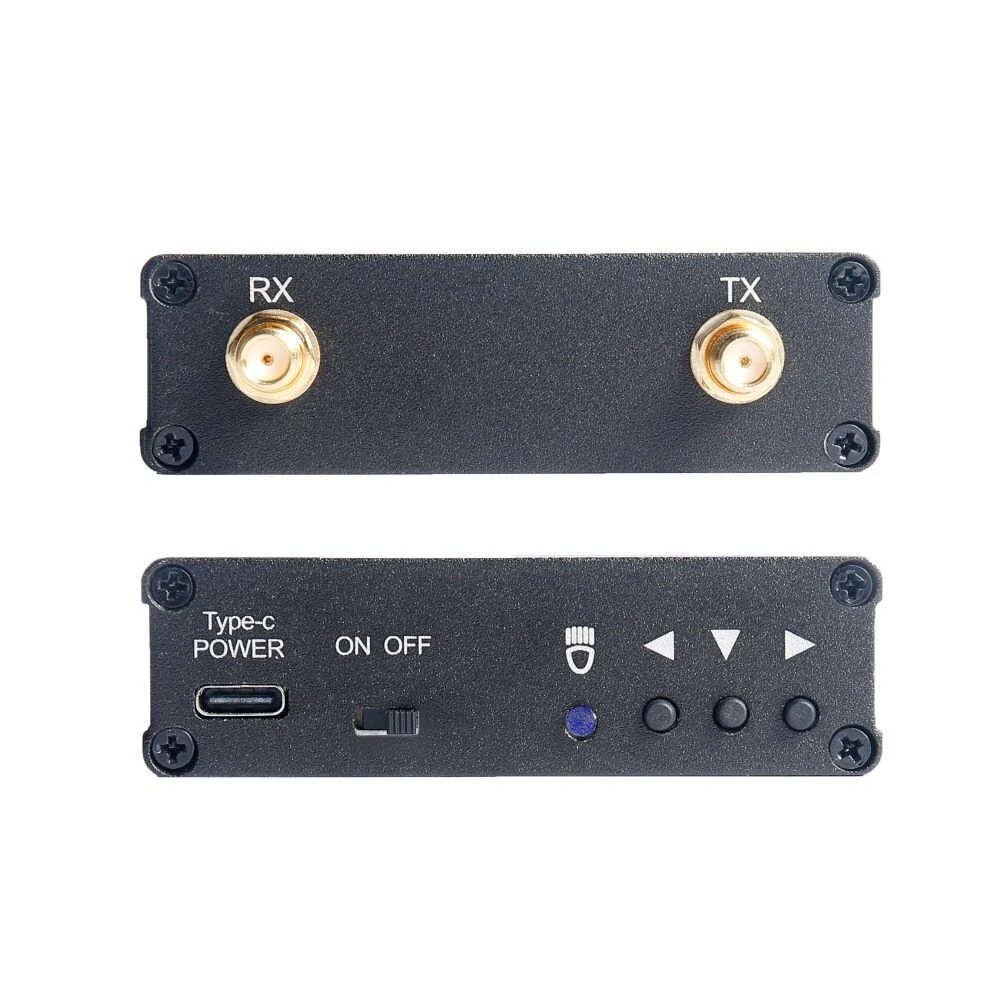

Details Pictures:
