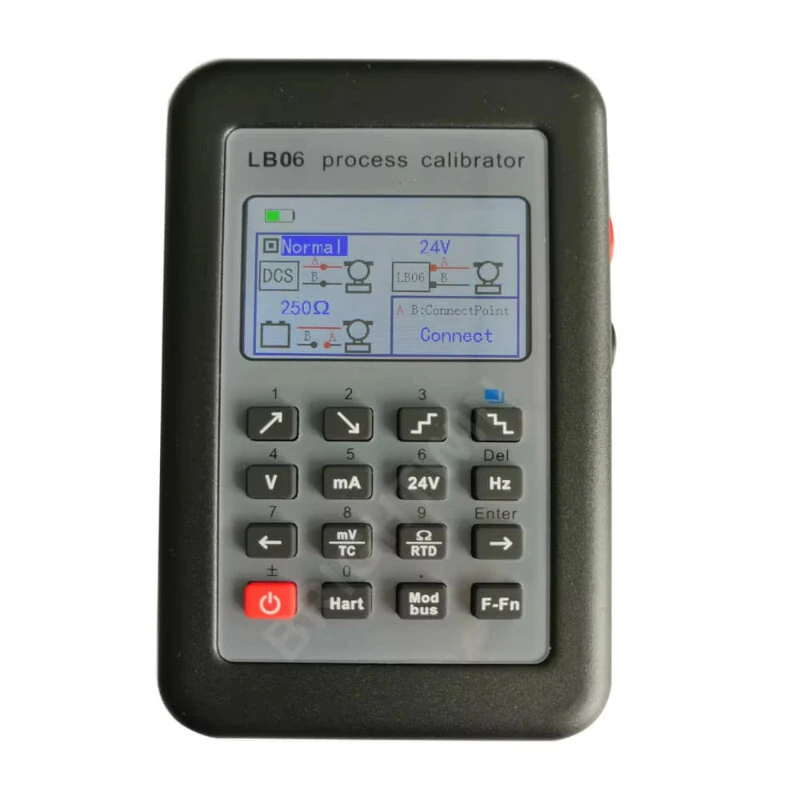

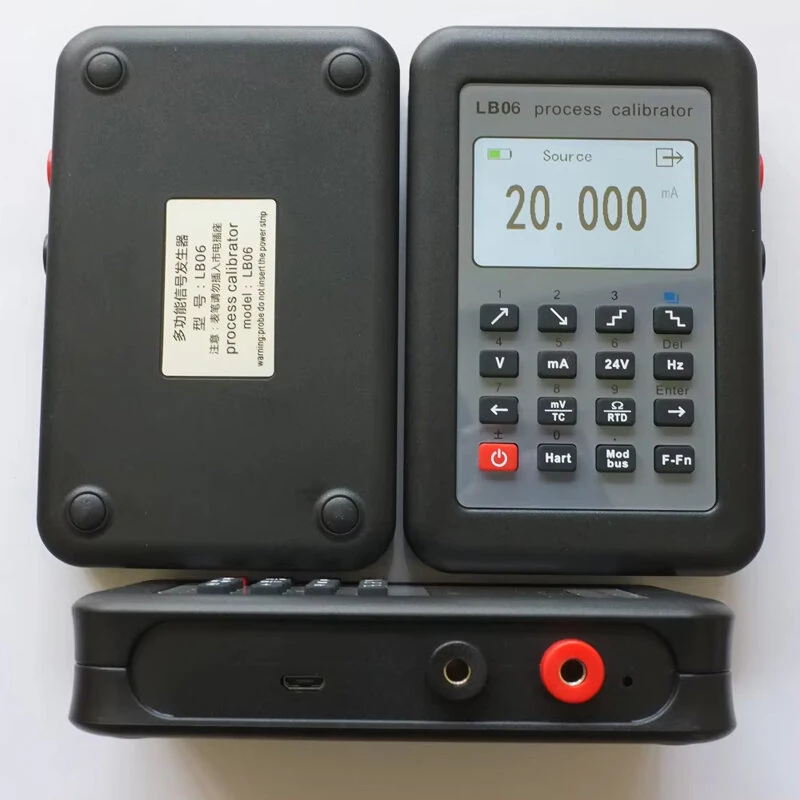

LB06 MODBUS HART Communicator | Process Calibrator for RTU, PT100, TC, 4-20mA, 0-10V

Product Description

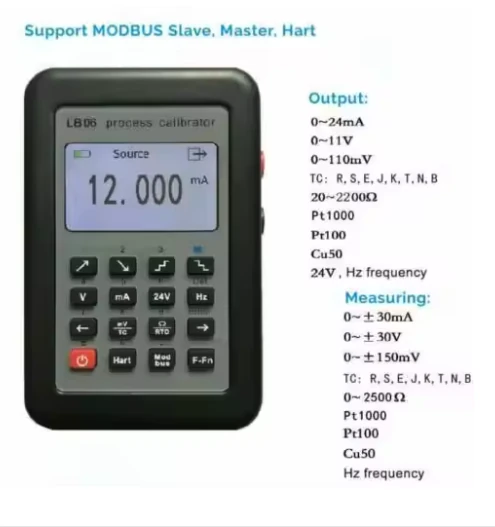

Specifications:

- Precision: 0.025% + 1/2 digits

- Pocket Size: 120x76x30mm

- Output Simulation:

- Current: 0/4-20mA source/passive

- Voltage: 0-11V, 0-110mV

- Resistance: 20-400??

- Thermocouple Types: R, E, S, K, J, B, T, N

- RTD Types: PT1000, PT100, CU50

- Frequency

- 24V outputs

- Measurement Range:

- Voltage: 0-30V, 0-150mV

- Resistance: 0-999.9??

- Current: 0-24mA

- Thermocouple Types: R, E, S, K, J, B, T, N

- RTD Types: PT100, Pt1000, CU50

- Frequency

- 24V

Features:

1. High Precision and Stability: With an accuracy of 0.025% + 1/2 digits, this calibrator guarantees reliable and consistent signal simulations and measurements.

2. Compact and Portable: Its pocket-sized design (120x76x30mm) makes it easy to carry and use on-the-go, saving both energy and cost.

3. Versatile Output and Measurement Options: Capable of simulating and measuring a wide range of signals including current, voltage, resistance, thermocouples, RTDs, and frequency, catering to a multitude of applications.

4. Comprehensive Interface Options: Equipped with MODBUS Master/Slave and Hart communicator/operator functions, this device seamlessly integrates with various industrial communication protocols.

5. User-Friendly Design: Featuring a high-resolution LCD with backlight for different lighting conditions, a battery capacity bar for status monitoring, and a fast response time for immediate results.

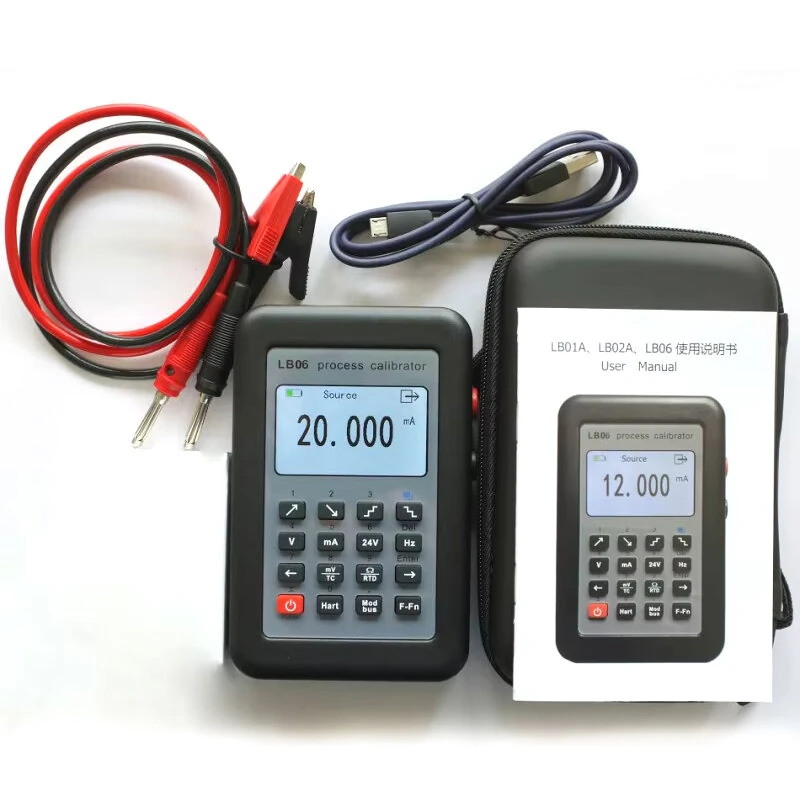

Package Included:

1 x Original BRT LB06 Portable Precision Process Calibrator

1 x Set of High Safety Standards Testing Pen Probe

1 x High Quality Type-C 2A USB Cable for Battery Re-charging

1 x High Quality Meter Bag

1 x Professional Brightwin Easy-to-understand User Manual
