MAX2870 Signal Generator | 23.5MHz-6000MHz PLL | Touch Screen LCD Display & PC Control

Product Description

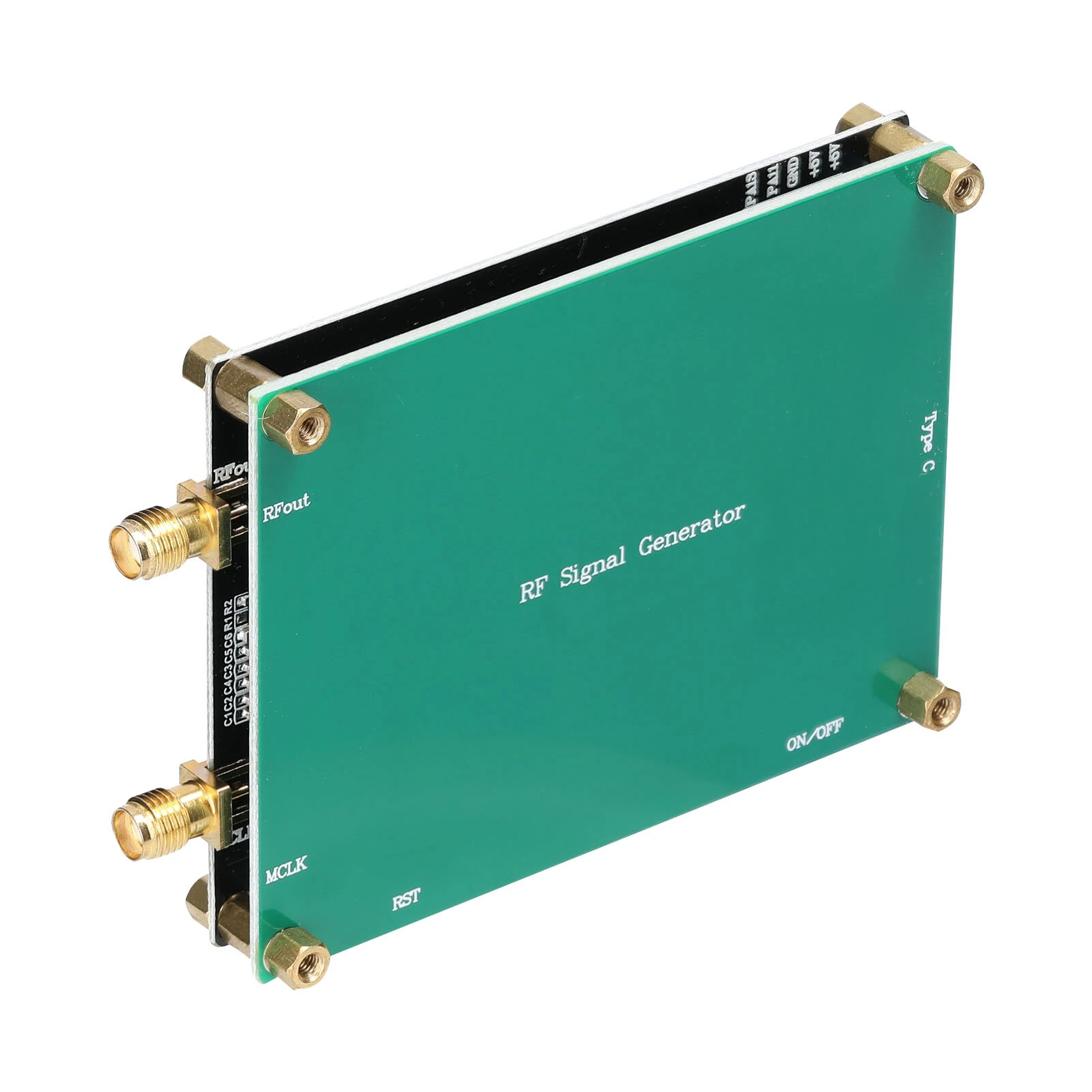

Note: The shipping color of the product is as shown in the figure below.


Description:
The MAX2870 is a wide band phase-locked loop (PLL) with integrated voltage controlled oscillators (VCOs) capable of operating in both integer-N and fractional-N modes.When coupled with an externals reference oscillator and loop filter, the MAX2870 constitutes a high working performance frequency synthesizer capable of synthesizing frequencies from 23.5MHz to 6000MHz while maintaining superior phase noise and spurious performance.Built-in multiple integrated VCOs covering(ranges from 3000MHz to 6000MHz) and output dividers(ranging from 1 to 128) which is used to implement clock output overing a wide frequency ranges.Compatible with 1.8V control logics.The onboard with default high precise 25MHz 0.5ppm TCXO, the internal VCO base frequency output frequency is ranging from 3-6GHz, below 3GHz is the base frequency division.It can be controlled by PC, output amplitude: -4 to 5dBm, 4-level screen controls.Equipped with two frequency output modes, you can choose dot frequency and sweeping frequency according to your demands.
Features:
Integer and fractional-N frequency division modes.Support manual or automatic VCO selection.3000MHz to 6000MHz fundamental VCO.Output binary buffers/dividers for extended frequency ranges:1/2/4/8/16/32/64/128;23.5MHz to 6000MHz.Fine performance PFD:105MHz in integer-N mode;50MHz in fractional-N mode.Reference frequency up to 200MHz.Operates from +3.0V to +3.60V supplys.Dual programmable outputs: -4dBm to +5dBm.Hardware and software shutdown controls.Compatible with 1.8V controls logics.
Applications:Clock GenerationPMAR/LMAR/Public Safety RadioTest and Measurement

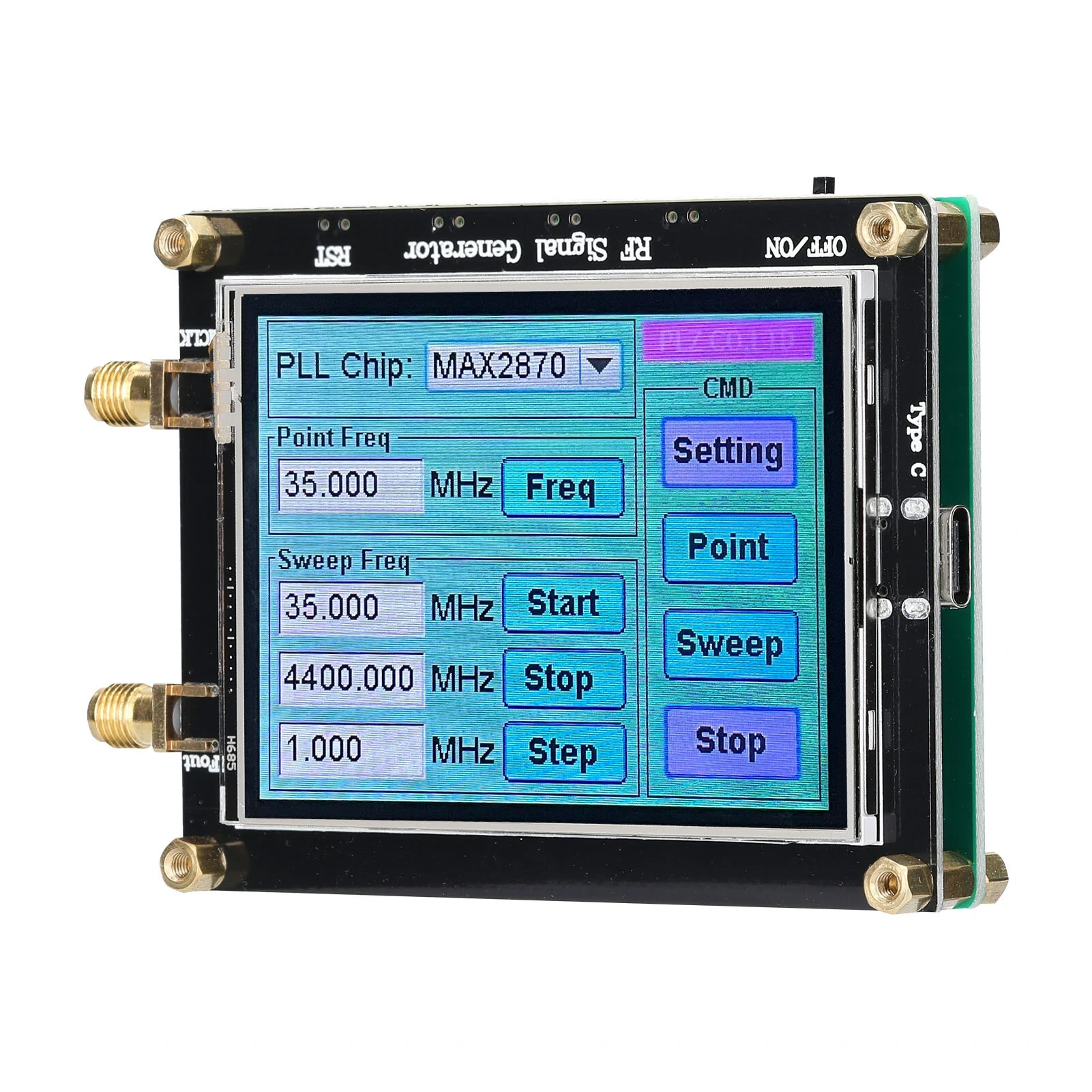

Module Features:Module power supply TYPE-C: [email protected].Output and external clock interface: SMA-K (inner screw inner hole).The onboard default high-precision 25MHz 0.5ppm TCXO (can also be replaced or connected to an external clock).Output frequency range: the fundamental frequency of the internal VCO is 3-6GHz, and the frequency below 3GHz is obtained from the fundamental frequency division.Output amplitude: -4 to 5dBm, 4 levels of screen control.Output frequency mode: point frequency, sweeping frequency optional screen control.Provide PC upper computer control program.
Specifications:
Name: Signal GeneratorModel: MAX2870Color: green

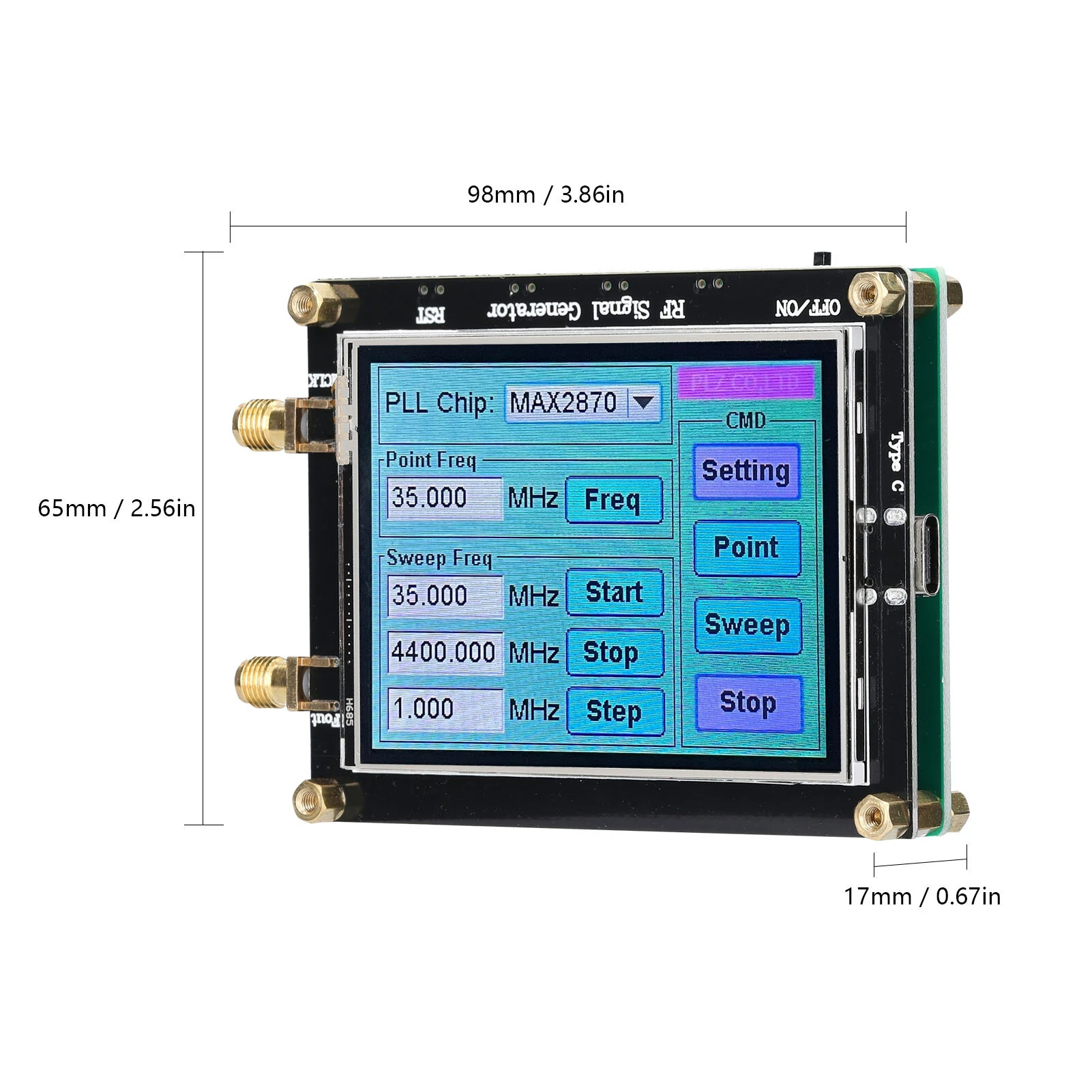

Material: printed circuit boardModule power supplys: ??5VCurrent: 0.2AOutput amplitude: -4 to 5dBmOutput frequency ranges: 23.5MHz-6000MHzWorking temperature ranges: -40?? to 85??Item size: 98 * 65 * 17mm / 3.86 * 2.56 * 0.67inItem weight: 87g / 3.07ouncePackage size: 125 * 102 * 40mm / 4.92 * 4.02 * 1.57inPackage weight: 117g / 4.13ounce
Package Includes:

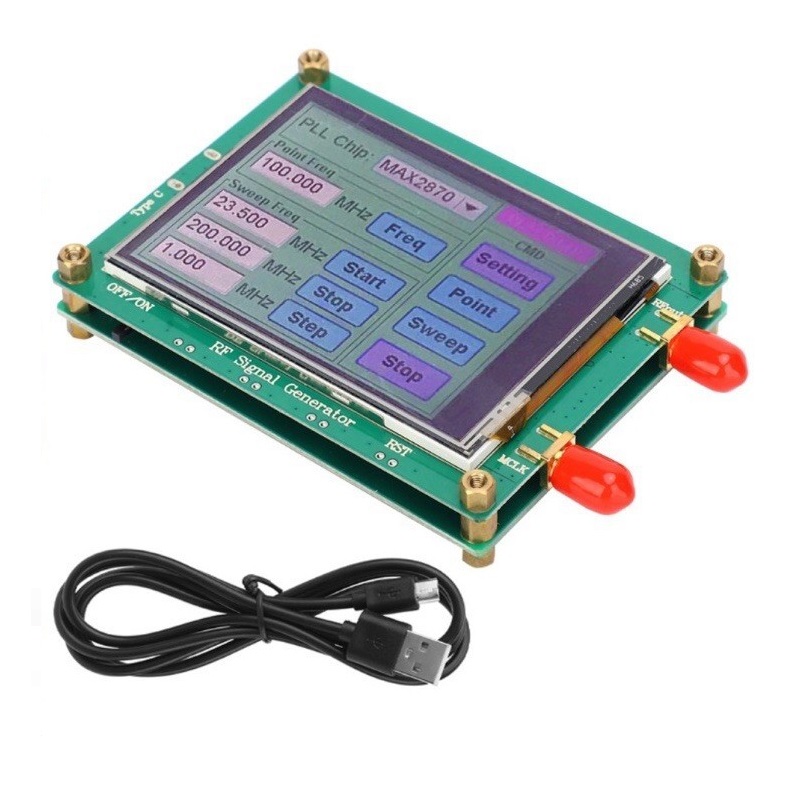

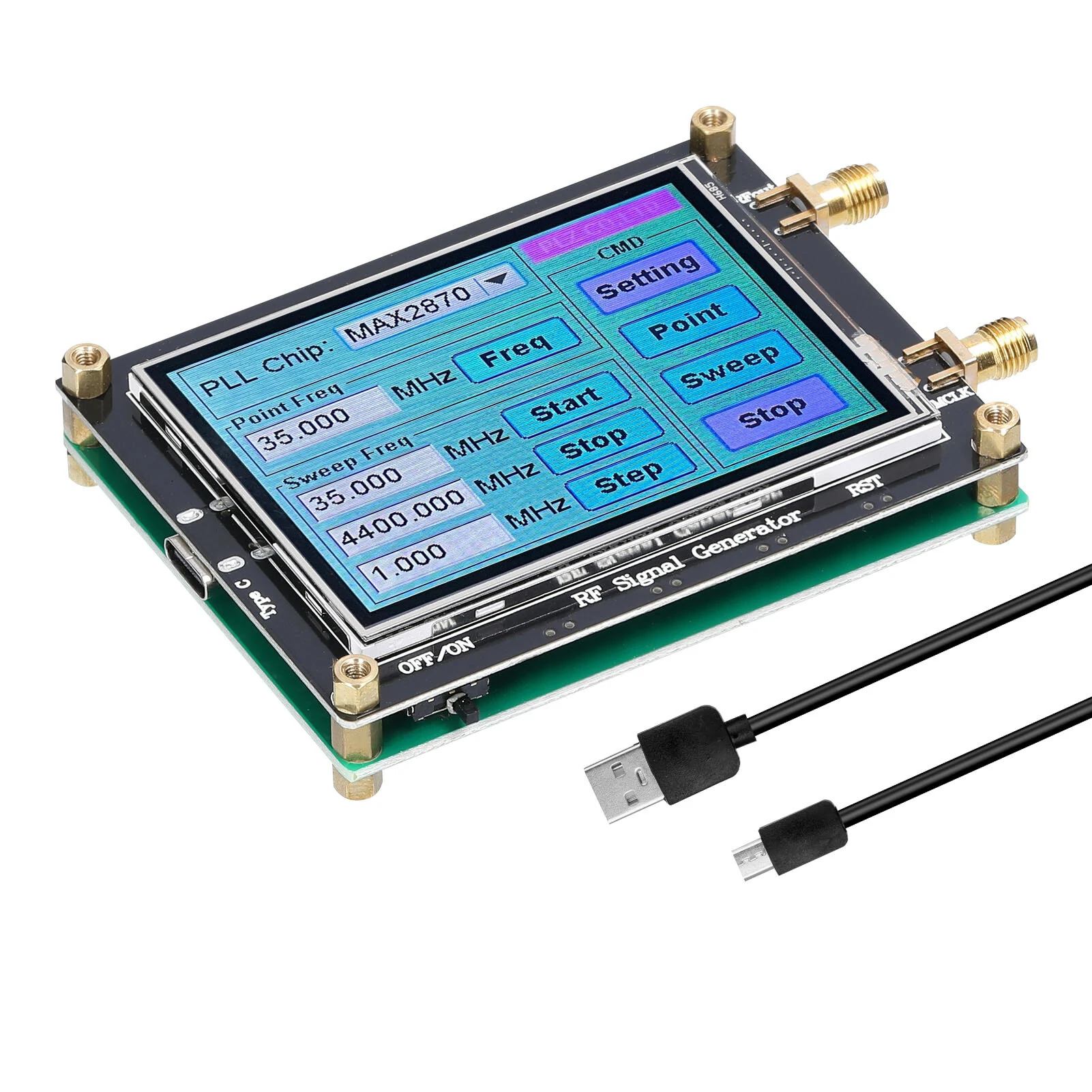

1 x RF Signal Source1 x USB Cable
>>Please click here to download the software<<
