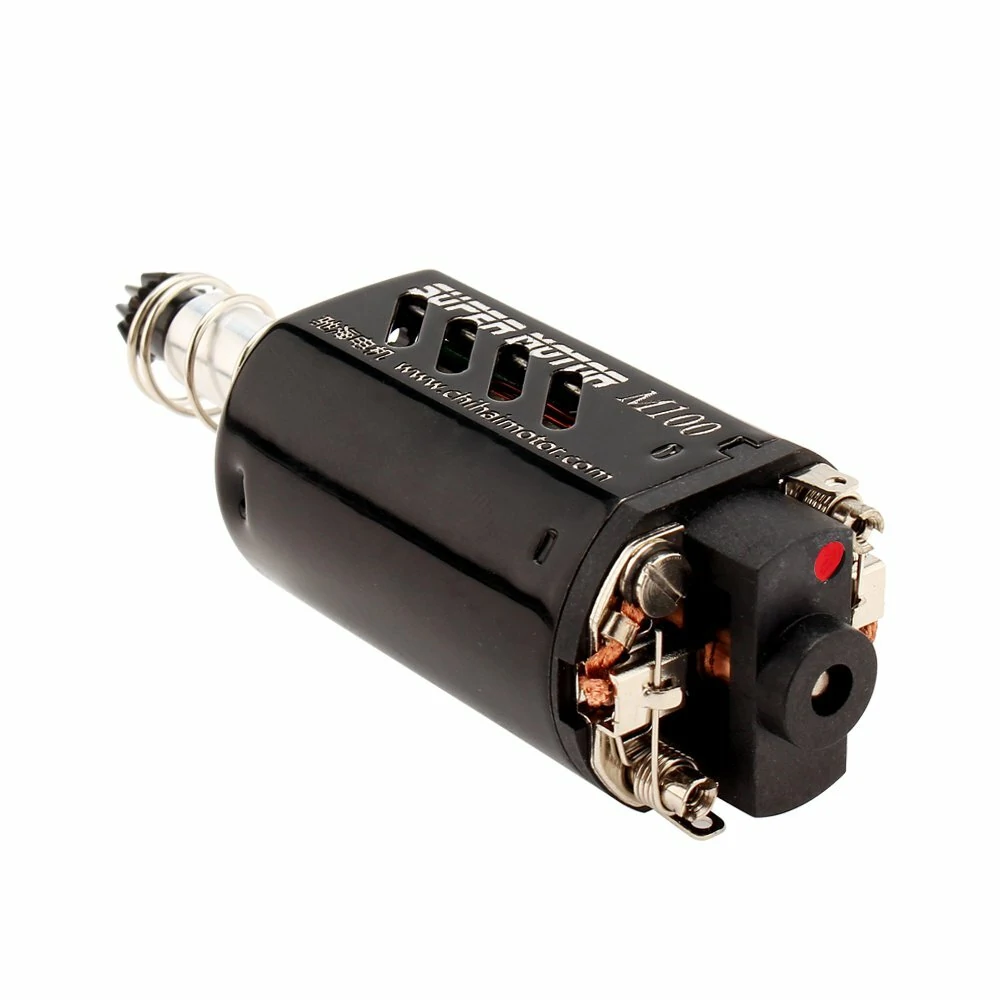

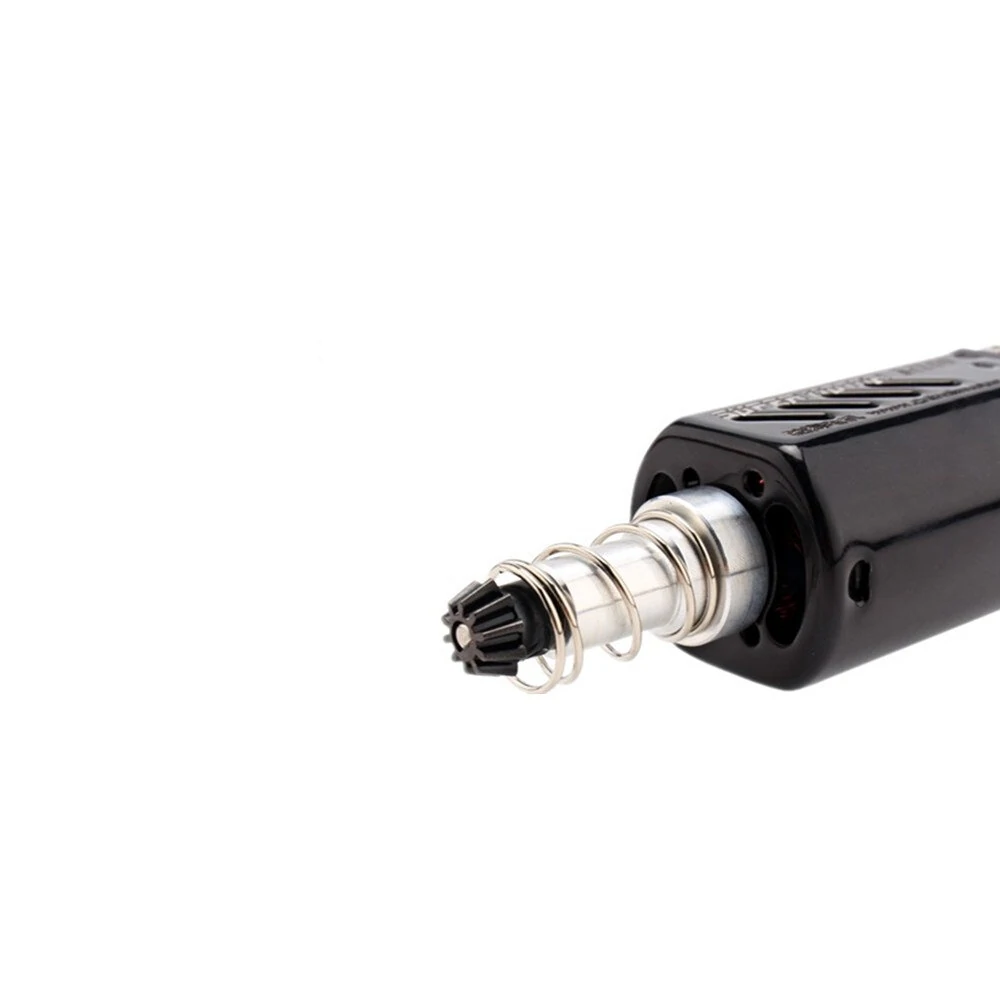

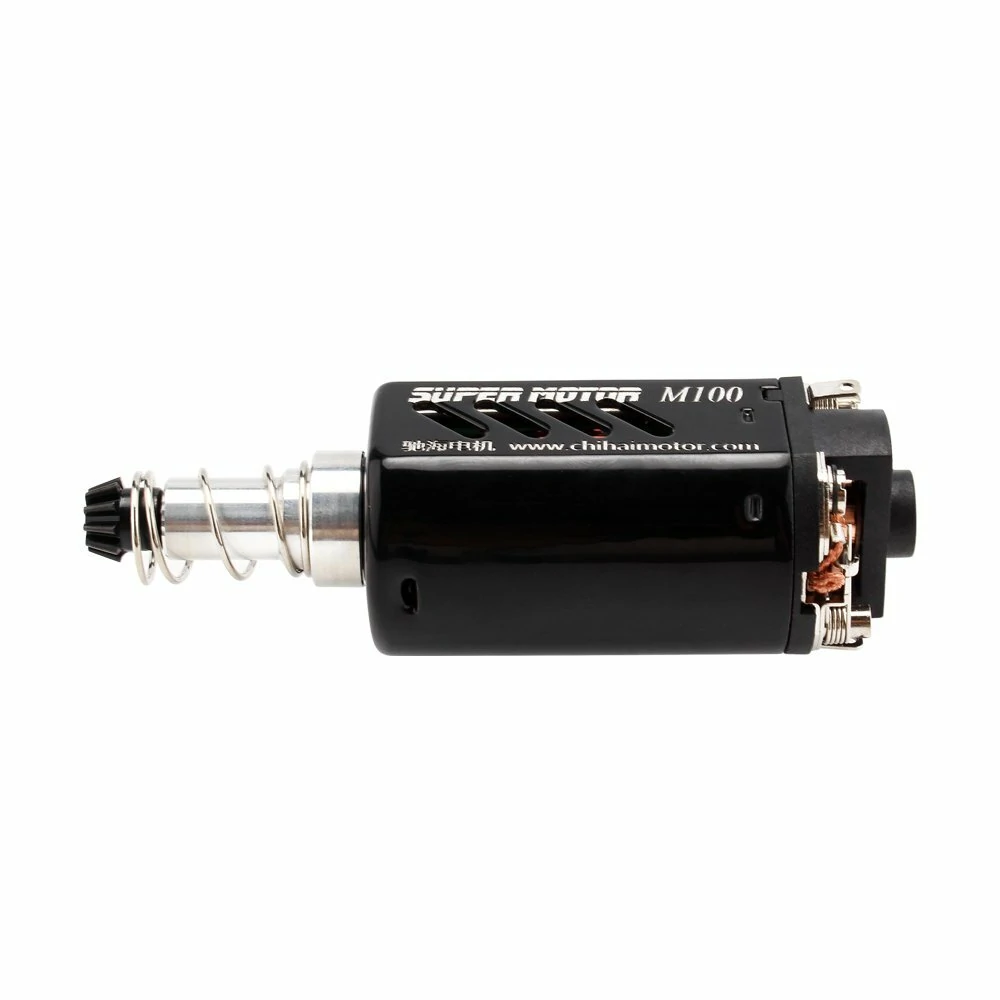

Chihai CHF-480SA-11340 High Speed Airsoft Motor | 34000rpm 11.1V Long Shaft
Product Description
Description:
CHF-480SA-11340 High-speed and High-torque Long Shaft Motor Double Ball Bearing Airsoft Motor for Jinming New Well
Specifications:
| Product Name | NdFeB strong magnetic high torque motor |
| Model | CHF-480SA-11340 |
| Magnetic Materials | Wet pressed magnetic |
| Appearance | Special PPS high temperature resistant plastic steel rear cove |
| Voltage | DC 11.1V |
| Speed | 34000rpm |
| Weight | 138g |
| Adaptation Type | JIN MING M4A1-J9 ACR-J10 Wacebox upgrade 480 motor insertion (Special motor brackets are required) Special wave box type: WARINTEREST JIQU HK416D/ KUBLAI BD556 JINGJI SLR/ NEW WELL M4 FB WAVE BOS FIGHTING BRO |
| Quantity | 1 Pcs ?? NdFeB strong magnetic high torque motor |
| NO LOAD | NO LOAD | AT STALL | A STALL |
| Speed | Current | Torque | Current |
| 34000 rpm | 2.30 A | 272mN.m | 109.06A |
AT MAX EFFICIENCY:
| Speed | Current | Torque | Output Power | Efficiency |
| 29689 rpm | 15.84 A | 136mN.m | 107.3W | 61.03483% |
AT MAX OUTPUT POWER:
| Speed | Current | Torque | Output Power | Efficiency |
| 17000 rpm | 55.68 A | 136mN.m | 242.2619W | 39.19% |
Features:
- Using MIM process, hardened steel D-hole gear.
- Wet-pressed ferrite magnet
- The motor is supported by upper and lower ball bearings, and the shaft sleeve is supported by 1 ball bearing.
- Tree wiring fixing modes, such as plug-in spring wiring, welding wiring, external screw fixing wiring.
- The body of the motor is equipped with heat dissipation holes to accelerate heat dissipation.
- Special PPS high temperature resistant plastic steel rear cove.
Package Included:
| 1 ?? | High torque motor |
