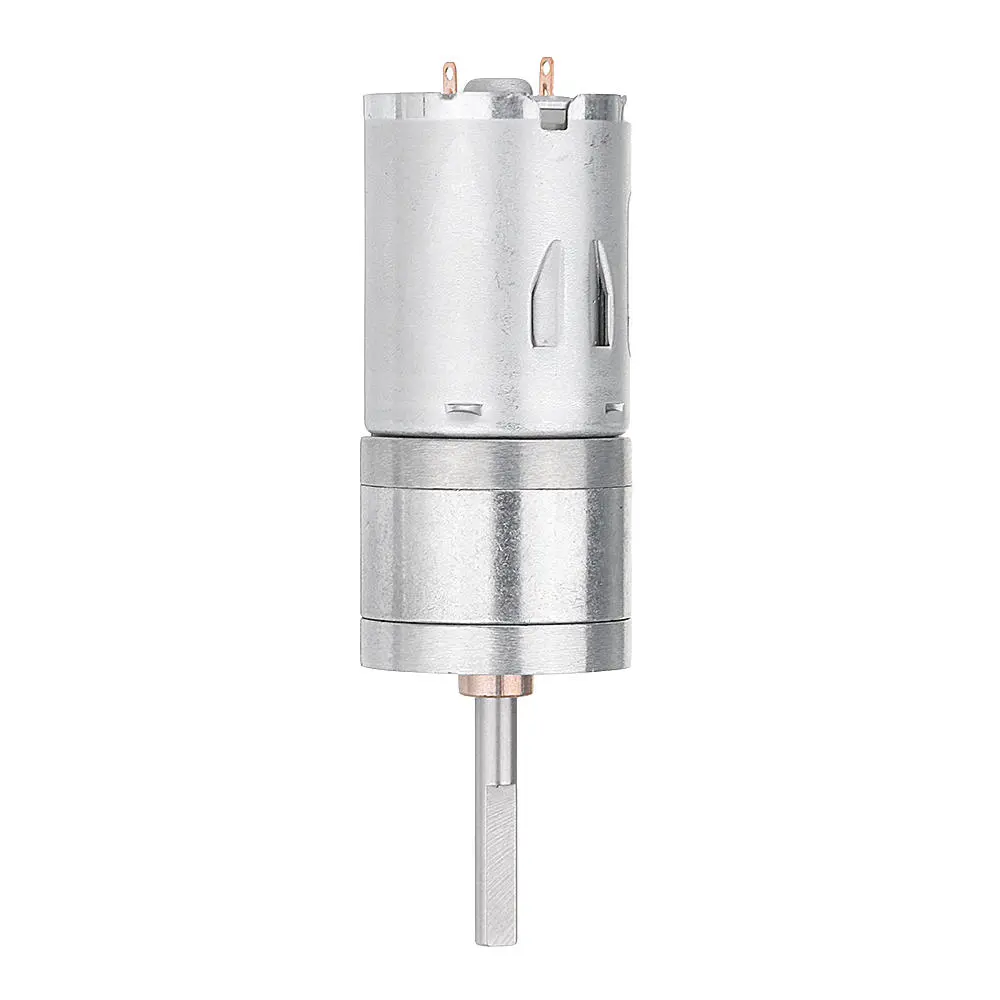

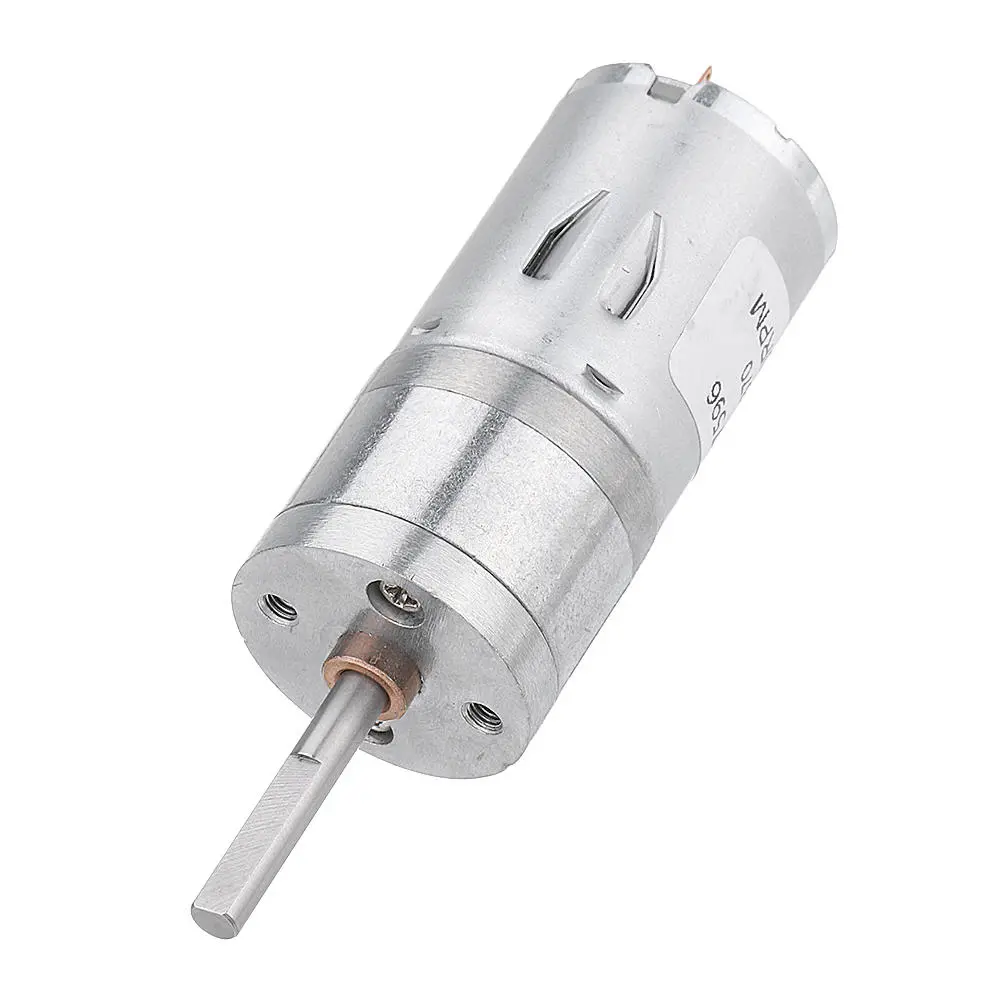

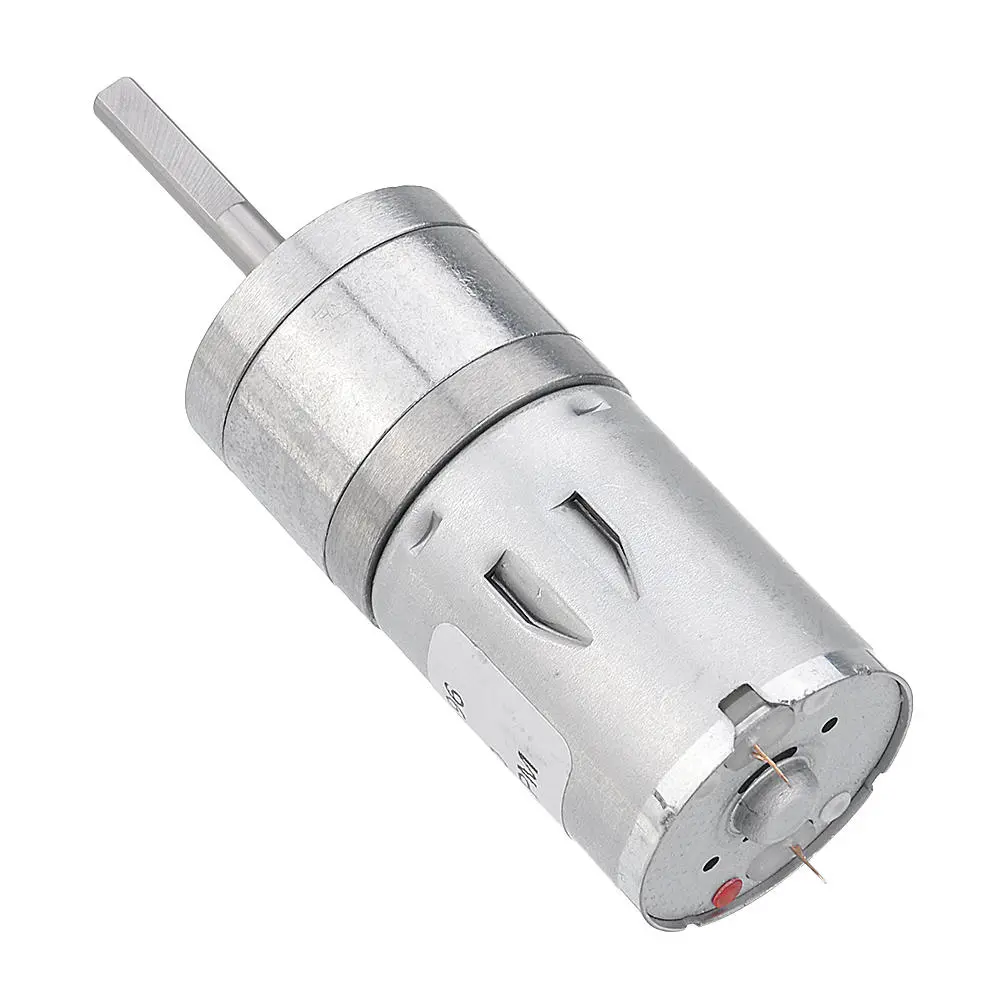

Machifit 25GA370 6V DC Micro Gear Motor | 25mm Extended Shaft | 25mm Size

Product Description

Descriptions:
Machifit 25GA370 DC 6V Micro Gear Reduction Motor 25mm Extended Shaft Gear Motor
Specifications: Brand: Machifit Material: Metal Voltage: DC 6V
Power: 3W Speed Regulation: Yes
Rotate In Both Two Sides: Yes
Size(approach):

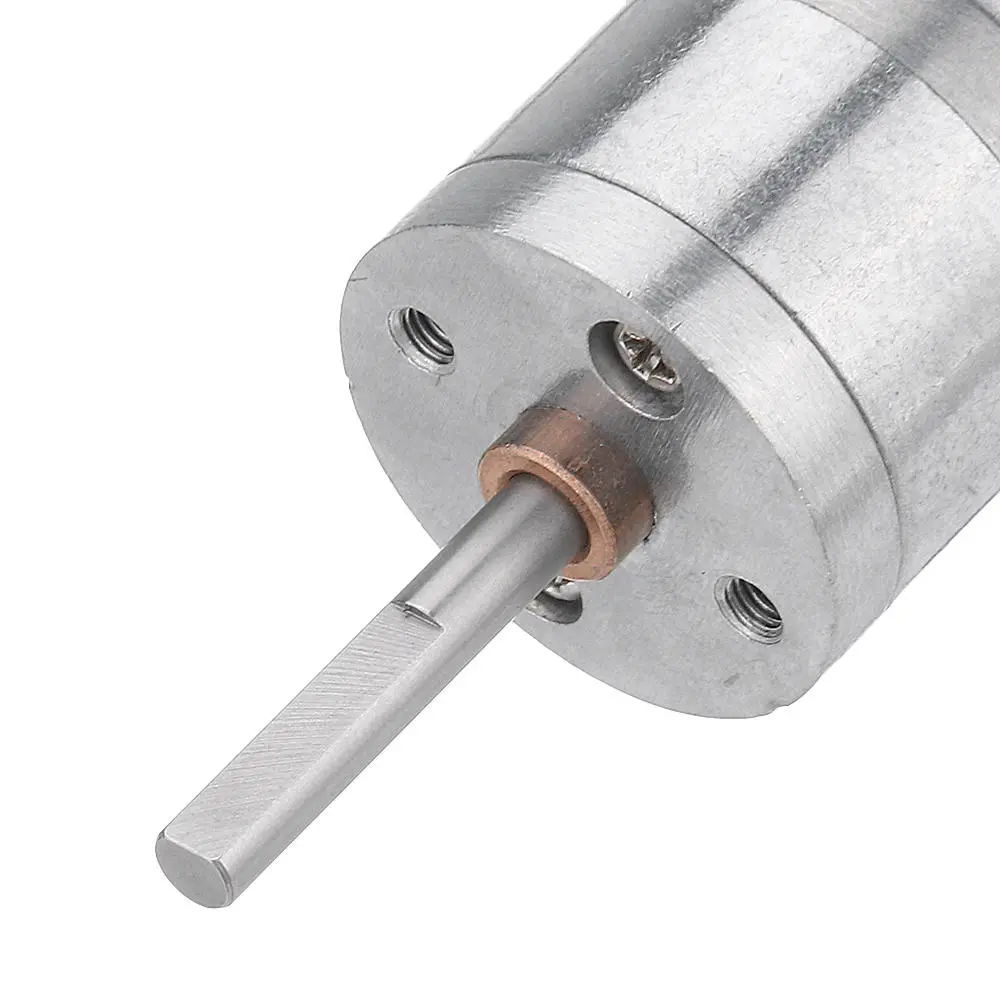

Output Shaft Dia.: 4mm
Output Shaft Length: 25mm
Motor: 50 x 24mm (without output shaft) Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.
Parameter:

Voltage	RATIO	No-load		Rated-load			Stall
		Current (A)	Speed(rpm) ??10%rpm	Torque (kg.cm)	Speed(rpm) ??10%rpm	Current (A)	Torque (kg.cm)	Current (A)	Weight	L Size
DC 6.0V	1:12	0.1	12	8.3	9	0.5	??	??	91	27
DC 6.0V	1:35	0.1	35	2.9	27	0.5	??	??	89	25
DC 6.0V	1:60	0.1	60	1.7	46	0.5	7.3	2.6	90	23
DC 6.0V	1:130	0.1	130	0.8	100	0.5	4.4	2.6	88	21
DC 6.0V	1:620	0.1	620	0.16	477	0.5	0.9	2.6	83	17.5

Features:

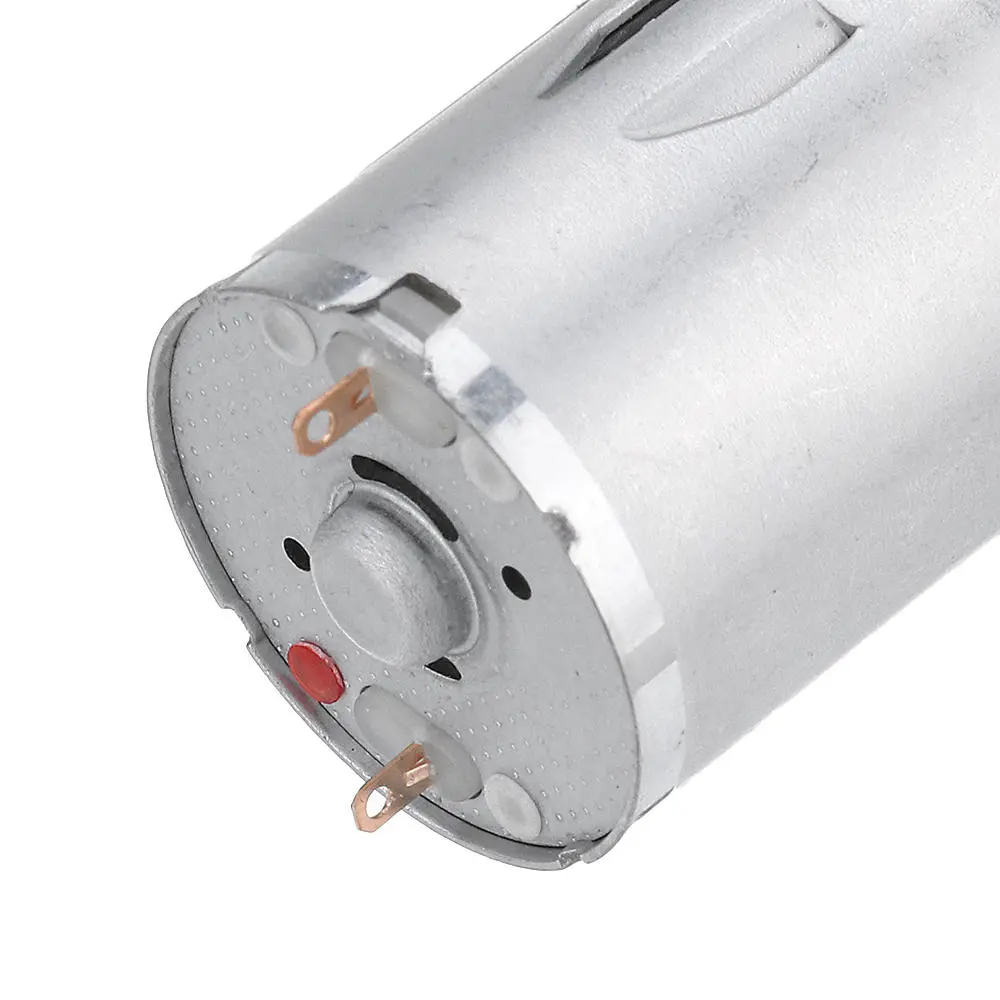

- All the gear of metal mechanism Wear resistance, strong resistance to torsion, smooth transmission, compact structure. - D-shaped double axis D-shaped double shaft, excellent thermal conductivity. - The terminal with red dot or "+" is connected to the positive side and the other side is connected to the negative pole, the motor rotates forward, and the positive and negative power supplies are reversed to reverse the motor. - Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included:
1 Pc x 6V Micro Reduction Gear Extended Shaft Motor
