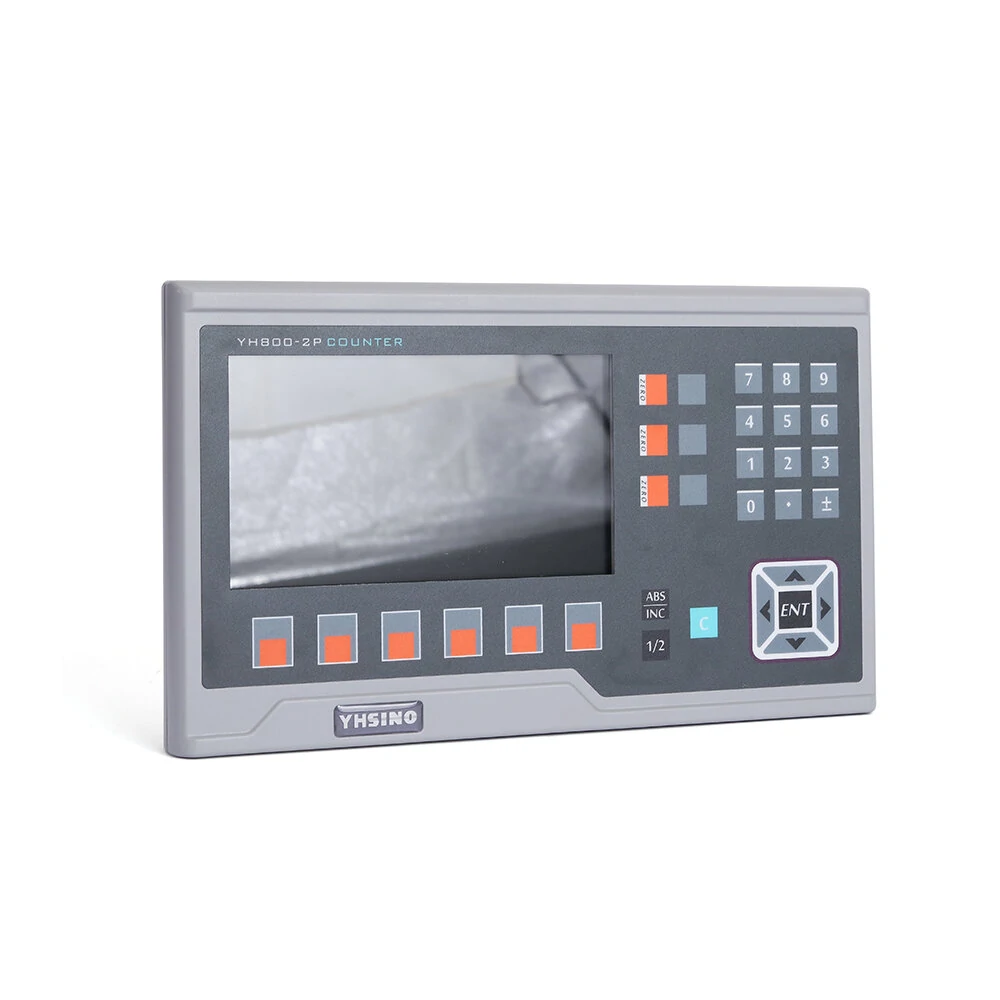

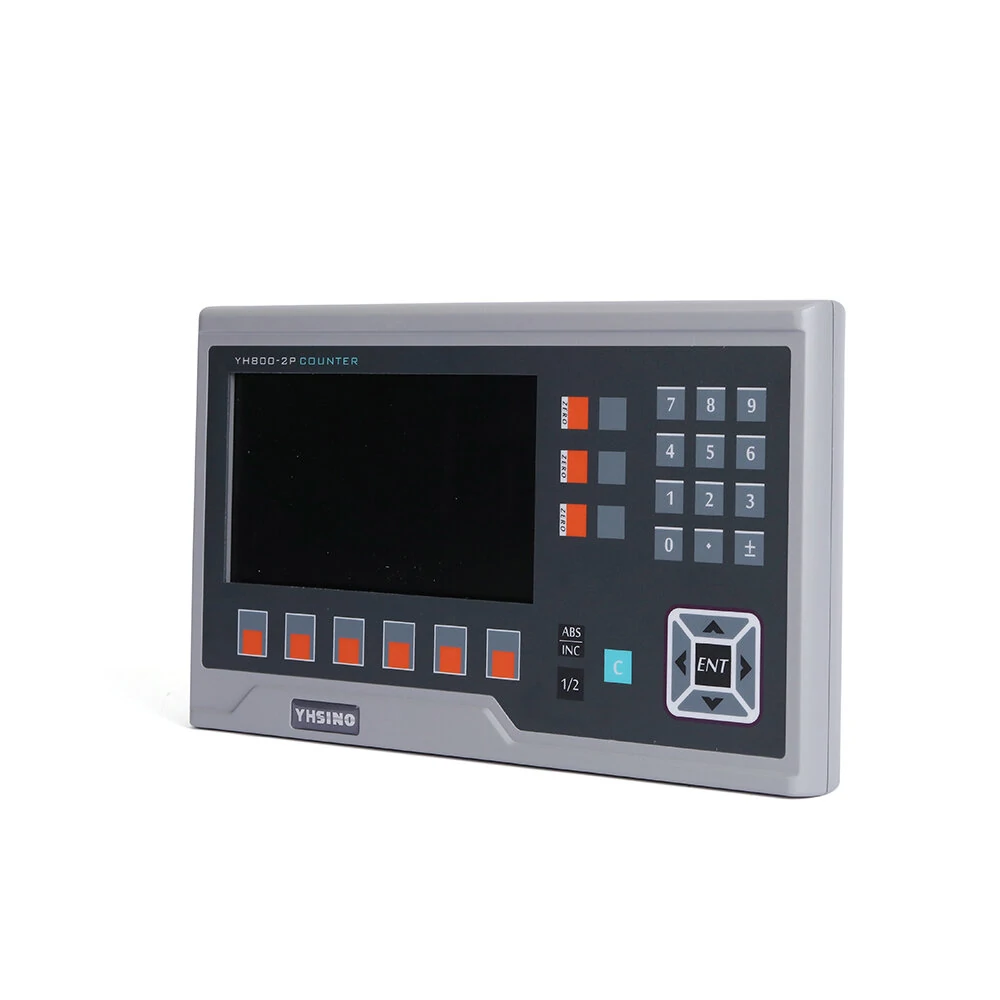

Machifit YHSINO 2-5 Axis CNC Digital Readout DRO | LCD Display for Milling
Product Description
Specification:
Brand | YHSINO |
Axis Number | 1 axis / 2 axis / 3 axis / 4 axis / 5 axis(optional) |
Voltage | AC 80V--260V; 50-60HZ |
Power | 15W |
Displaying | 7" true color LCD screen |
Working Temperature | -10??--60?? |
Storage Temperature | -30??--70?? |
Relative Humidity | <90%(25)> |
Input Signal | 5V TTL/ 5V RS422 |
Input signal Frequency | <50MHZ |
Resolution (Linear Encoder) | 0.1 um, 0.2 um, 0.5 um, 1 um, 2 um, 2.5 um, 5 um, 10 um, 20 um, 25 um, 50 um, 100 um |
Highest Resolution (Rotary Encoder) | <1000000ppr |
| Material | aluminum alloy |
Dimension | 295 * 175 * 65mm |
Support Language | Chinese, English, Thai, Hungarian, Ukrainian, Russian, Italian, Polish |
Fundamental Function:
1. Zero, Value Recovery
2. Imperial and Metric Conversion
3. Coordinate Inputting
4. 1/2 Function
5. ABS and INC Conversion
6. Power-off Memory
7. REF Function
8. 200 sets of SDM Coordinates
9. Compensation Function
10. Calculator
Special Function:
1. Grid Hole Function
2. Bolt Hole Function
3. Simple R Function
4. Smooth R Function
5. Pocket Function
6. Probe Measuring
7. Radiu and Diameter Conversion
8. Vectoring Function
9. Taper Measuring Function
10. Tool Offsets Function
11. EDM Function
12. Distance to Go 22
13. Signal Test Function
Note:
You can Click Here to view the product manual.
Package Included:
1 X | Digital Readout Display |
1 X | Power Cable |
1 Set X | Bracket and Accessories |
1 X | Manual |
