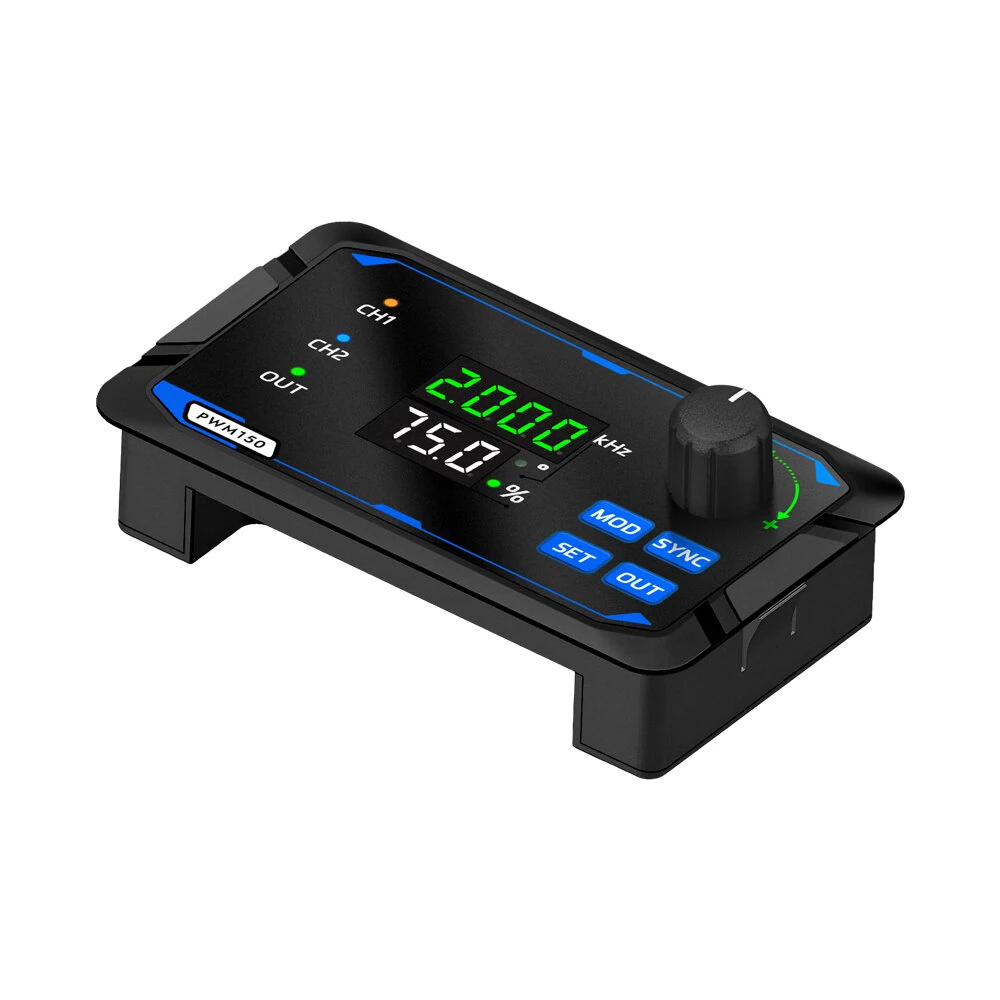

JUNCTEK Dual-Channel PWM Signal Generator | 1Hz-150kHz | Adjustable Duty Cycle & Phase

Product Description

Specifications:
Frequency Range: 1Hz - 150kHz
Duty Cycle: Adjustable from 0% to 100%, with 0.1% precision steps
Rise Time: 20 nanoseconds
Phase: 0?? - 360??, adjustable in 1?? increments, with sync mode support
Output Voltage: 5V - 24V DC, 0.2A maximum
Display: Dual screen - 4-digit green and 3-digit white LED
Power Supply: Requires 5V - 24V DC external power source
Size & Weight: 120mm ?? 80mm ?? 25mm; compact, lightweight design
Features:
1.Wide Frequency Range and High Precision
Easily adjust frequencies between 1Hz and 150kHz with fine-tuning steps as small as 0.1%, ensuring precise signal control for various applications.
2.Customizable Duty Cycle and Phase Settings
Adjust duty cycle from 0% to 100% and phase from 0?? to 360?? in 1?? increments, suitable for advanced servo motor control and synchronization tasks.
3.Ultra-Fast Rise Time
Features a minimal rise time of 20 nanoseconds for high-speed pulse generation, delivering consistent and smooth operation.

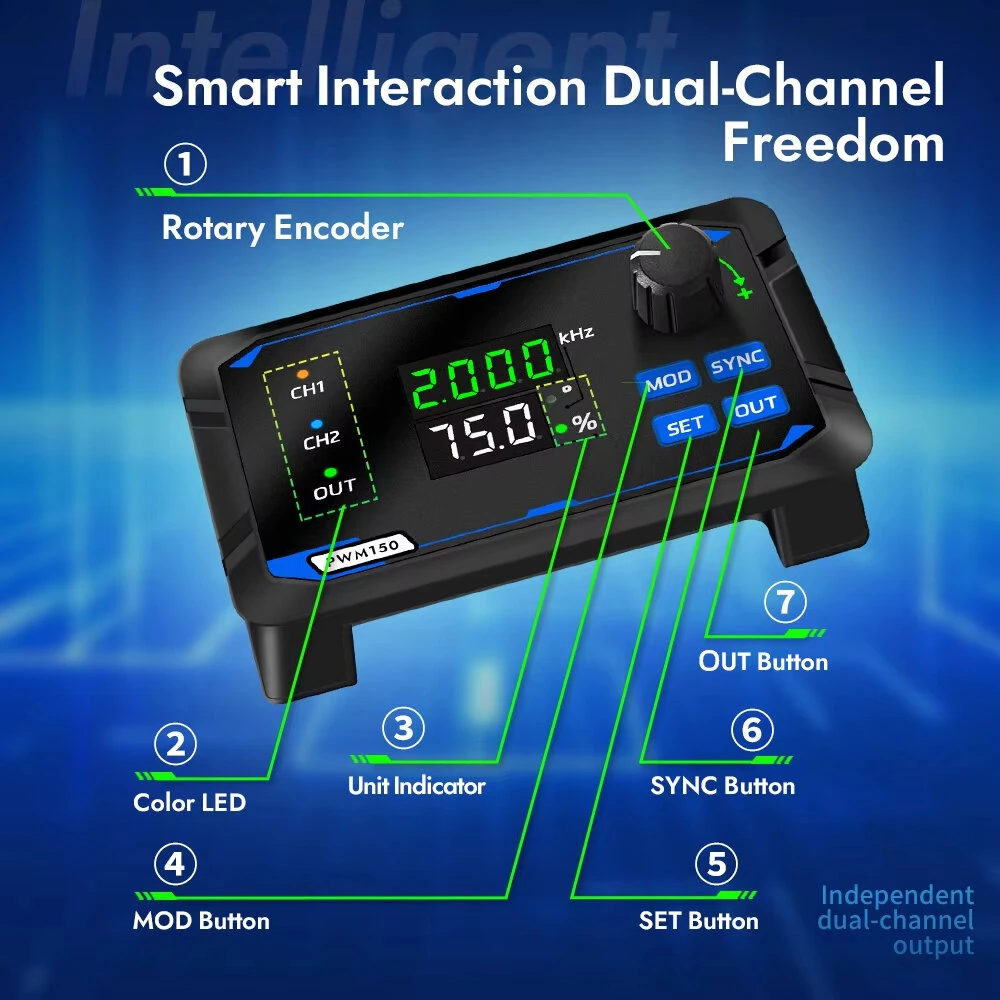

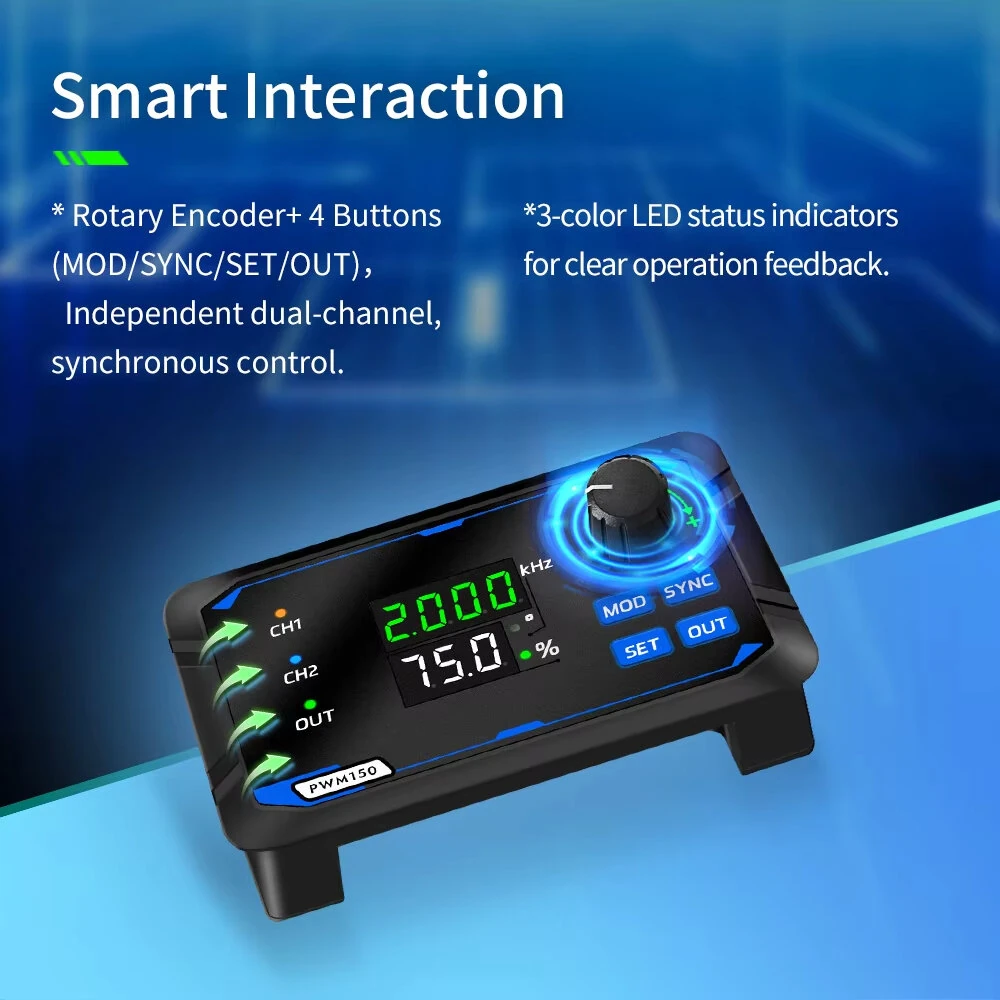

4.Dual LED Display for Real-Time Monitoring
Equipped with a bright and clear dual LED interface for accurate readings of frequency, duty cycle, and other parameters.
5.Compact and Portable Design
Its compact size (120mm ?? 80mm ?? 25mm) ensures it is easy to carry and install in various project setups without occupying much space.

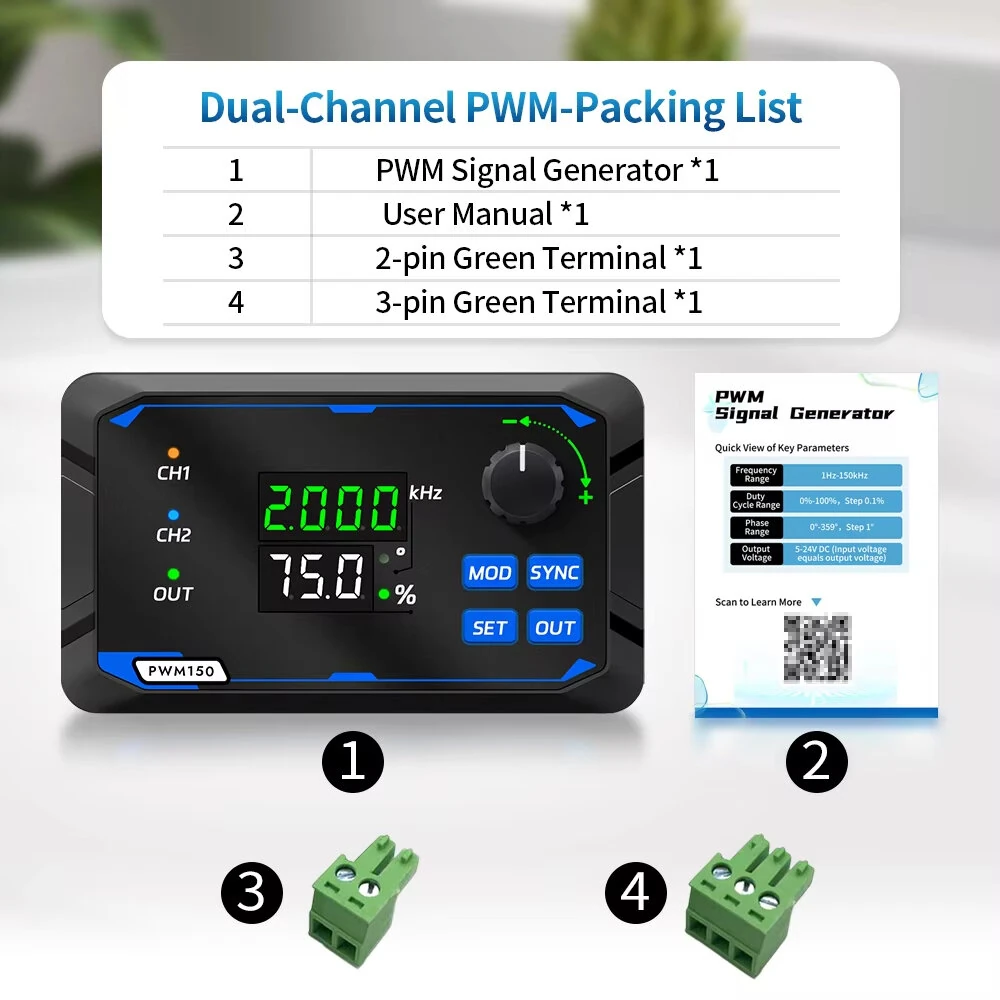

Package Included:
1 x Main Unit
1 x 3-Pin Green Terminal
1 x 2-Pin Green Terminal
1 x User Manual
