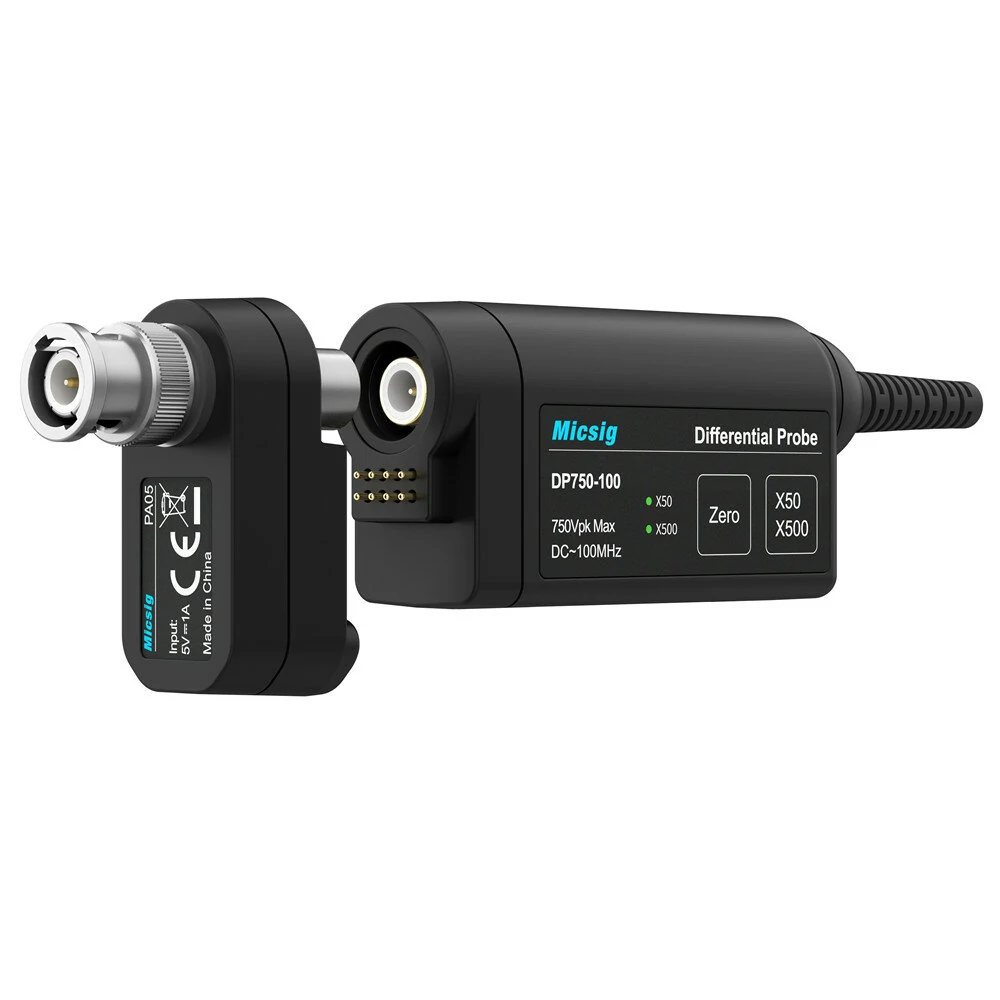

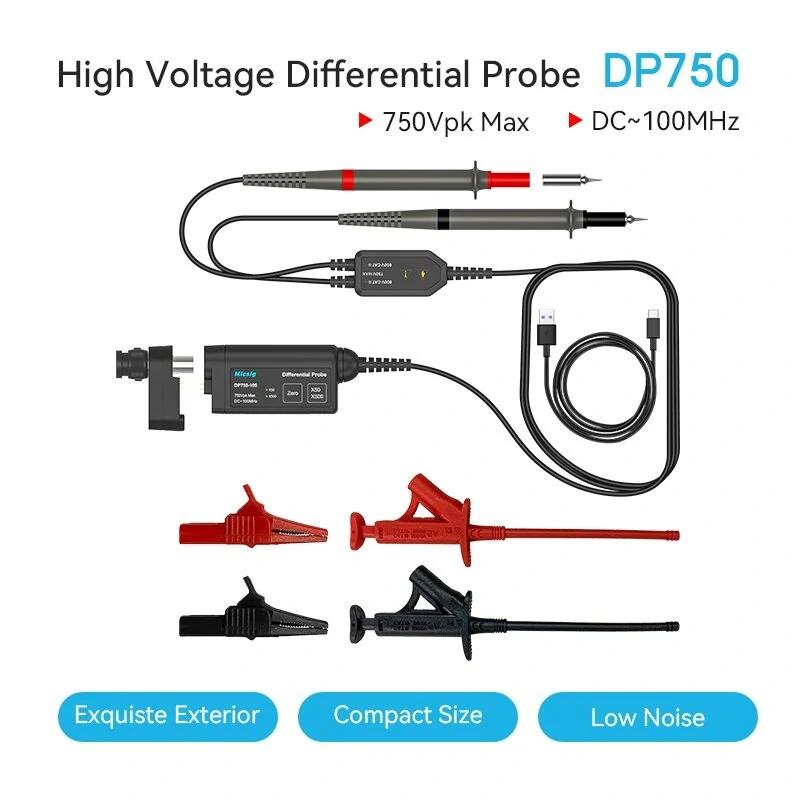

Micsig DP750-100 High Voltage Differential Probe | 100MHz 1000V | 50X/500X Attenuation
$240.00
$295.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:- High accuracy, low noise, exquisite appearance- Test leads & probe with built-in shielding function- One-press Zero calibration, overvoltage alarm- Integrated compact box design, no need to twist the wires to reduce interference- Support USB power supply, suitable for any brand of oscilloscope- Support direct power supply when connecting with Micsig UPI interface- Automatically match the attenuation ratio when using with Micsig latest Smart series oscilloscope
Specification:
Model: | DP750-100 |
Bandwidth: | 100MHz |
Rise time: | ??3.5ns |
Attenuation ratio: | 50X; 500X |
Gain Accuracy: | ??2% |
Differentialtest voltage (DC+AC PK) : | 50X: 75V 500X: 750V |
Common mode input voltage: | CAT II 1000V |
Input referred noise: | ??12mVrms (50X) ??120mVrms (500X) |
Common mode rejection ratio: | ?? 80dB (DC) ?? 80dB (100KHz) ?? 60dB (1MHz) |
Input Impedance: | Differential Input Impedance: 8M??||1.25pF Each input ground: 4M??II2.5pF |
Output voltage: | ??1.4V |
Power: | 1W |
Power supply: | DC 5V, USB powered |
Overrange alarm: | LED flashes |
size: | Power box: length: 80mm width: 37mm thickness: 22mm Signal box: length: 49mm width: 25mm thickness: 12.5mm |
Input cable length: | 33mm |
Output cable length: | 100mm |
Working temperature: | 0??-40?? |
Working humidity: | 10%-85% |

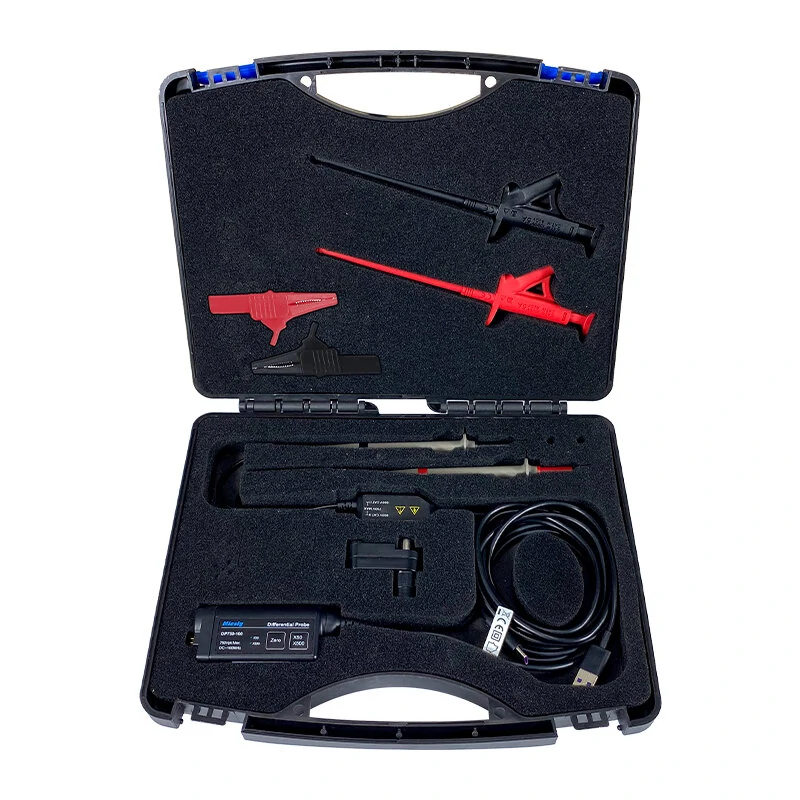

Package Includes:
1 x High Voltage Differential Probe DP750-100 kit1 x Set of Accessories1 x Suitcase
>>Please click here to download the English manual<<
