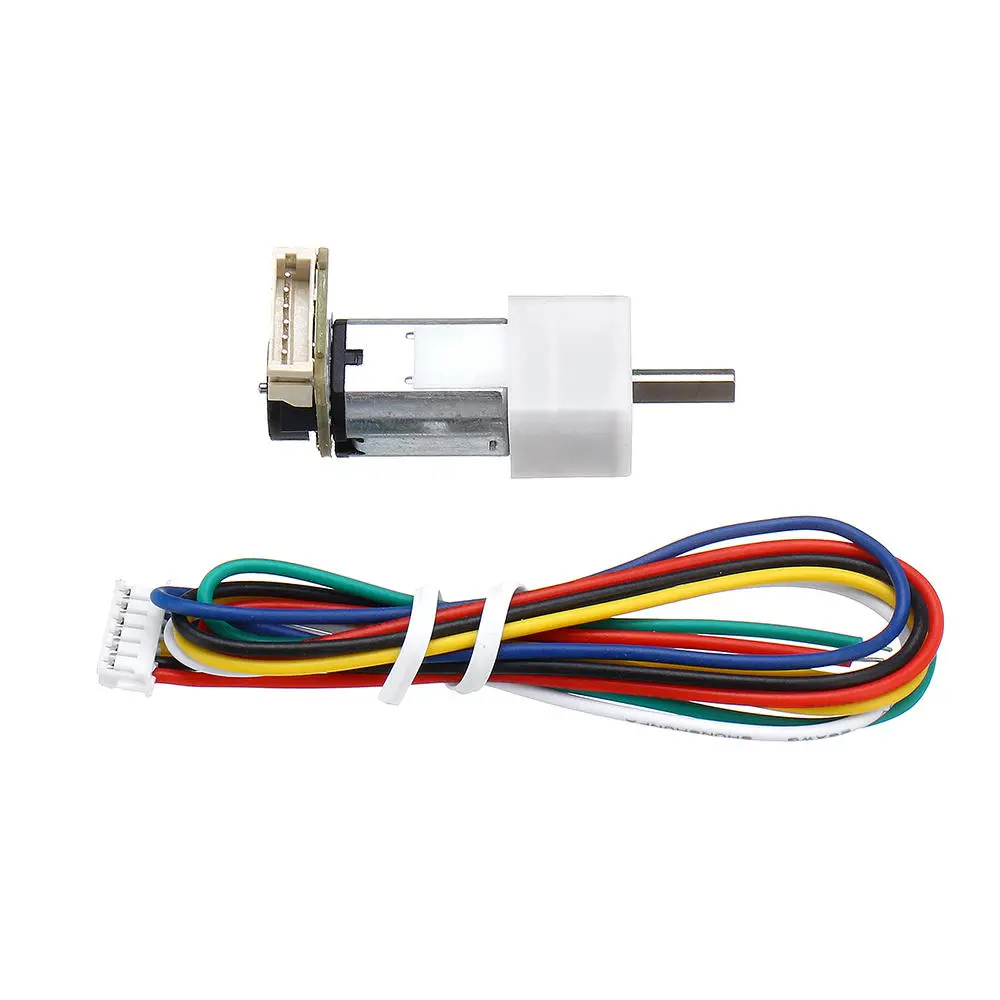

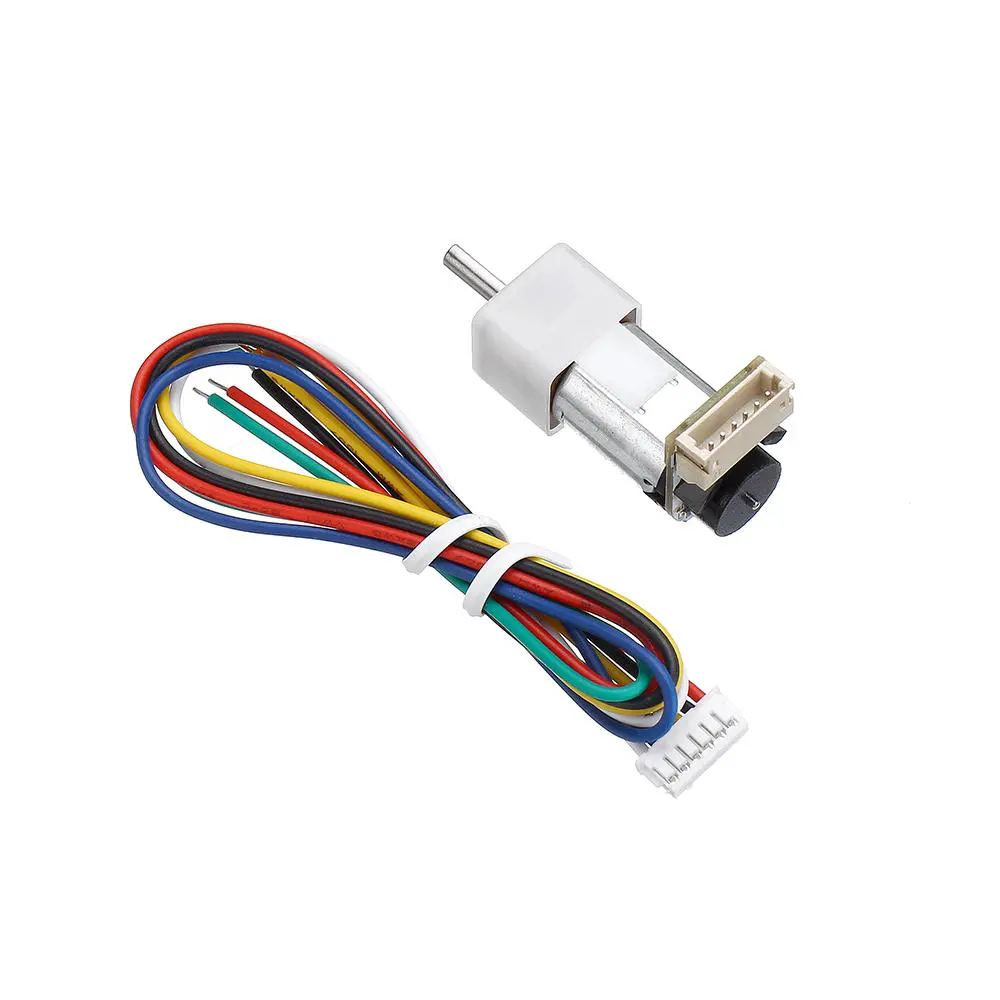

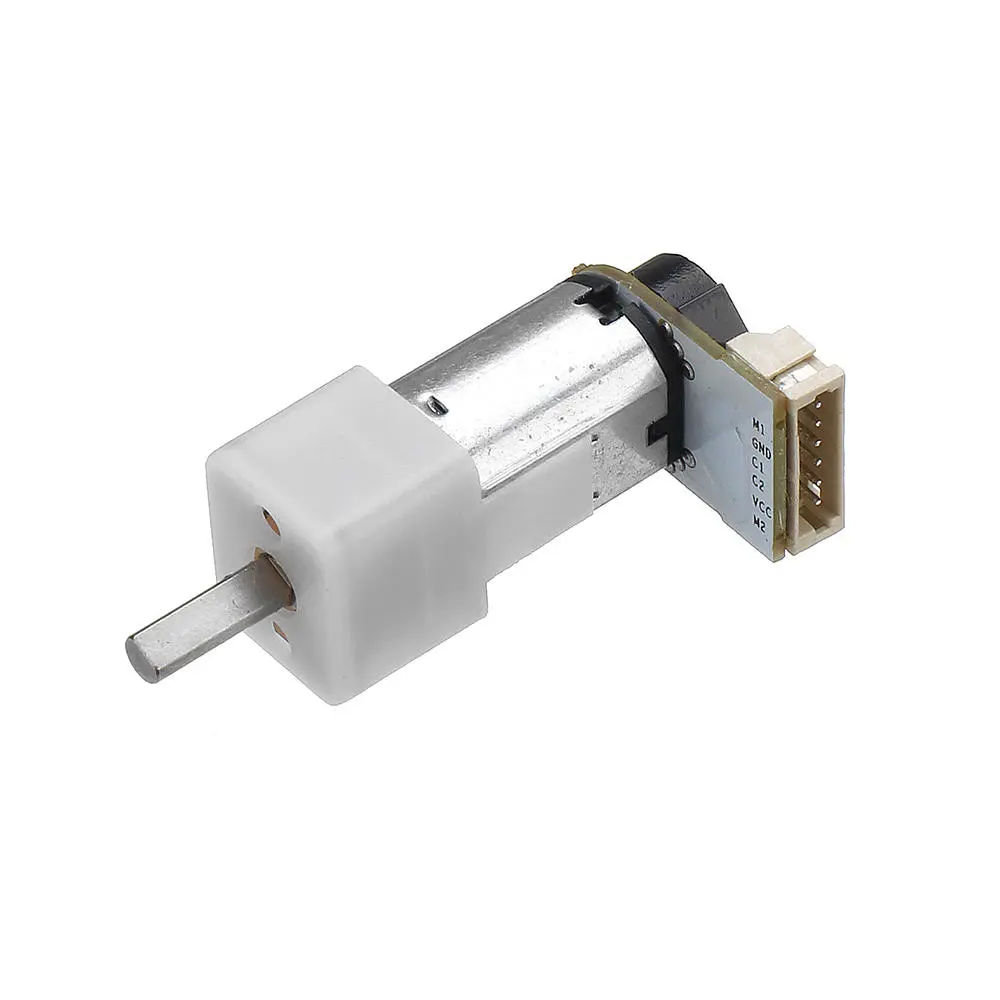

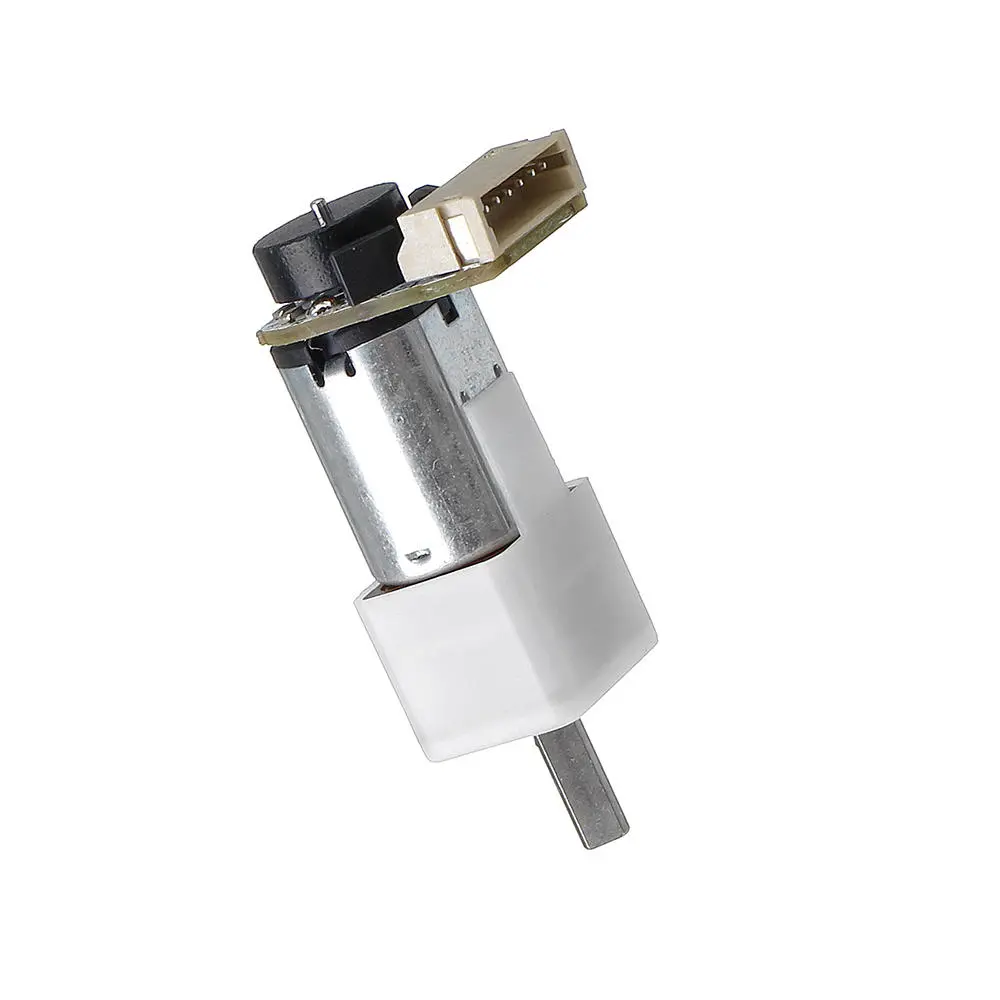

Chihai DC Gear Motor - 3V 31rpm | 6V 63rpm Encoder Motor

Product Description

Description:
Chihai DC 3V 31rpm 6V 63rpm Encoder Motor DC Gear Motor
Specification:
Model: CHF-GM12-N20VA-210-ABHL Power: 3V-0.1W 6V-0.44W Direction of rotation: CW-M1+ M2-/CCW-M1- M2+

Voltage	DC 3V	DC 6V
No-load current (mA)	??35	??45
No-load speed (rpm)+10%	31	63
Rated torque(g.cm)	500	1000
Rated-load speed (rpm)	19	40
Rated-load current (A)	??0.11	??0.22
Stall torque(kg.cm)	??1.2	??2.5
Stall current (A)	??0.2	??0.4

Features:
Wear resistance, strong resistance to torsion, smooth transmission, compact structure. Durable and long service life. Package Included:
1 x Encoder Motor
