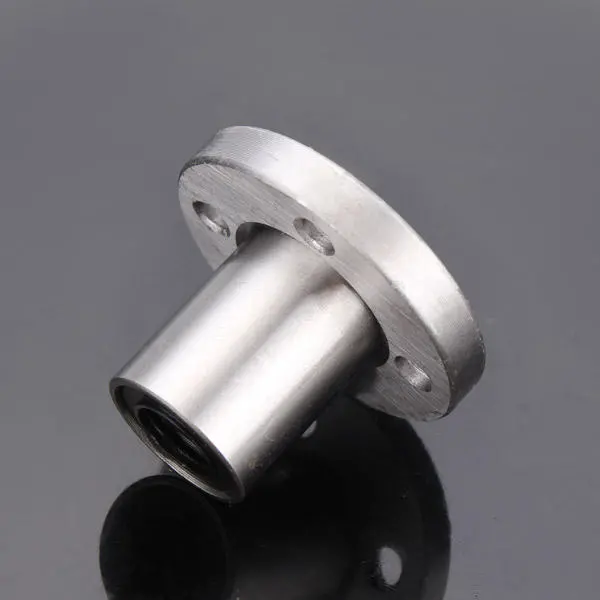

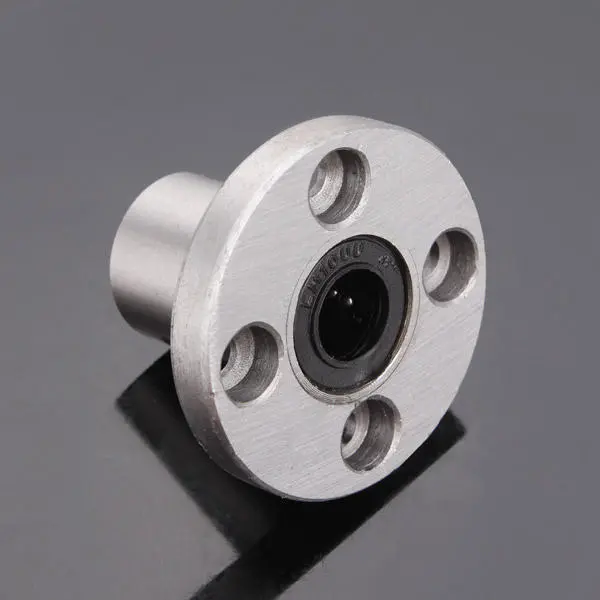

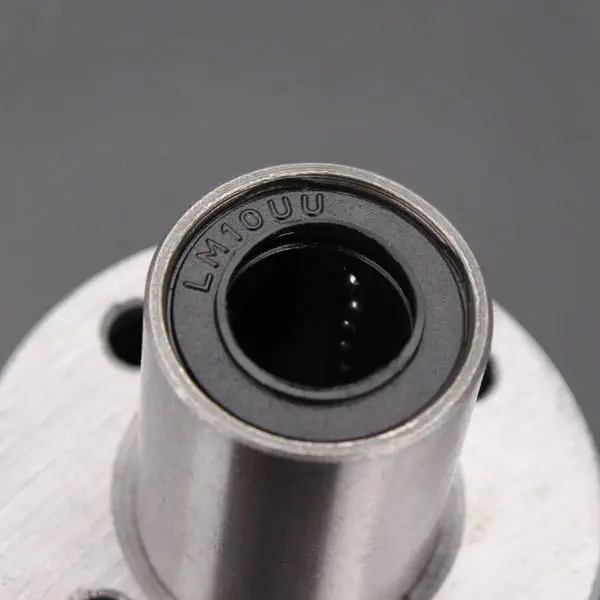

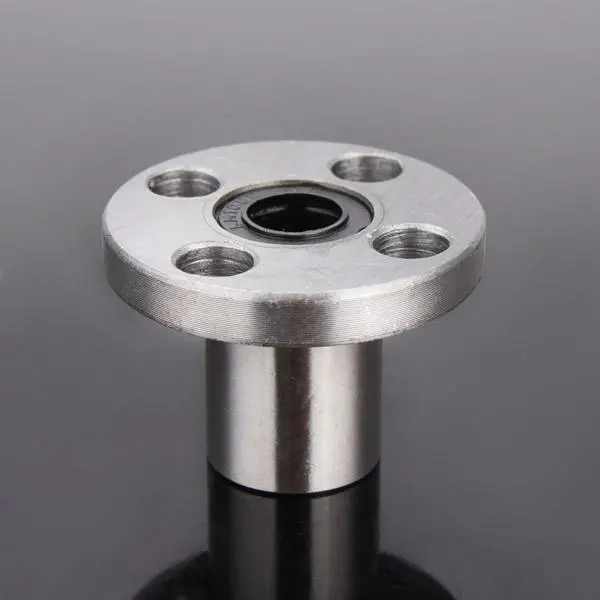

Machifit LMF10UU 10mm Round Flange Ball Linear Bearing CNC Parts

Product Description

Description:
Machifit LMF10UU 10mm Round Flange Linear Ball Bearing Linear Motion Bearing CNC Parts
Specification:
Type: Linear
Moder Number: LMF10
Inner Diameter: 10 mm
Material: ball bearing steel

Model No.	Number Of Ball Rows	Main Dimensions													Squareness	radial run-out	Basic Load Rating		Weight (g)
		Inscribed Circle Diameter		Outer Diameter		Length		Flange				Hole For Attachment
		dr (mm)	Tolerance	D (mm)	Tolerance	L (mm)	Tolerance	D1	K	H	??	d1	d2	h	0.012	0.012	Dynamic (C)	Static (Co)	0.066
LMF10	4	10	0-0.009	19	0-0.013	29	0-0.20	40	30	6	29	4.5	7.5	4.1			38	56

Feature:
These bearings are pre-lubricated with grease.
Linear bearing ball cage, hardened coat of both ends ring.
High strength, particularly suitable for automated devices. Products with high accuracy. Safe and reliable. Ball in the cage loop to run a smooth ball guide surface to ensure stability even if high-speed.
Usage:
Semiconductor manufacturing equipment, printed circuit board IC assembly equipment, robotic arm, precision measurement equipment, office automation
equipment, and other large-scale linear slide devices.
Package Included:
1x Flange Linear Ball Bearing
