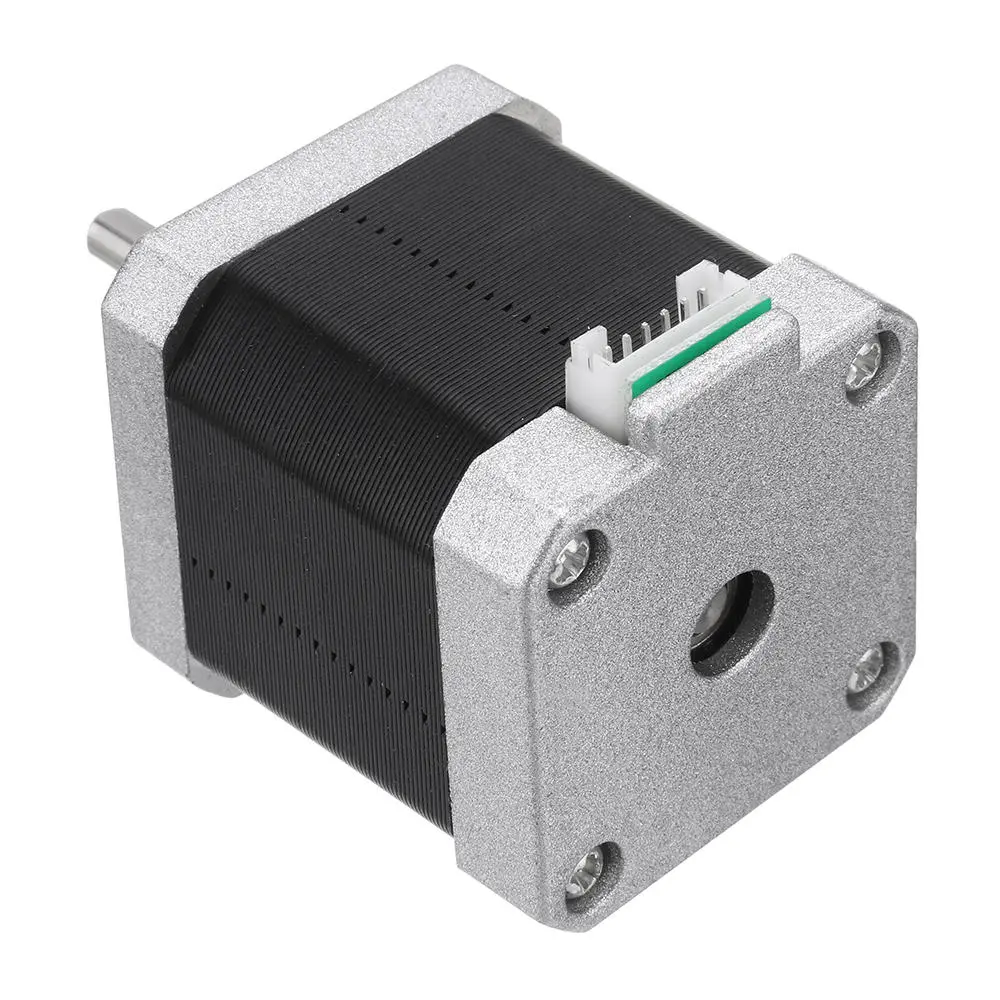

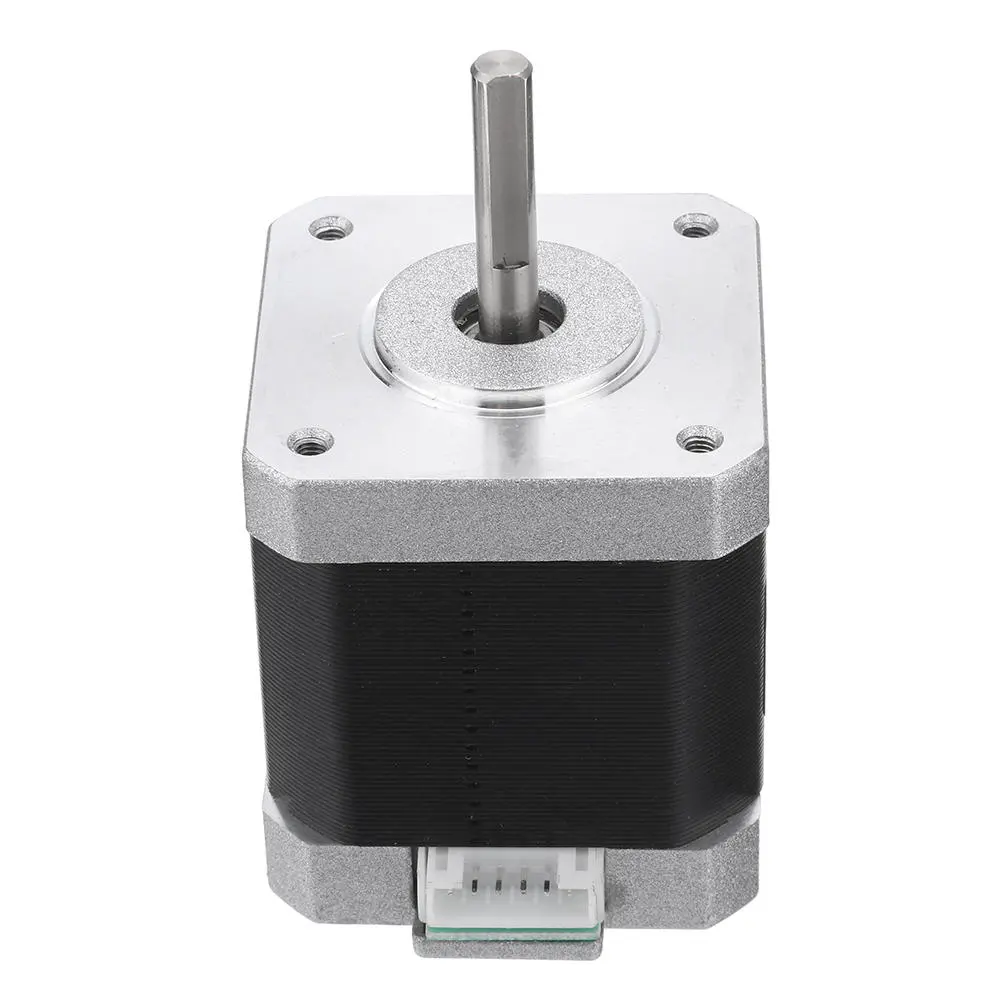

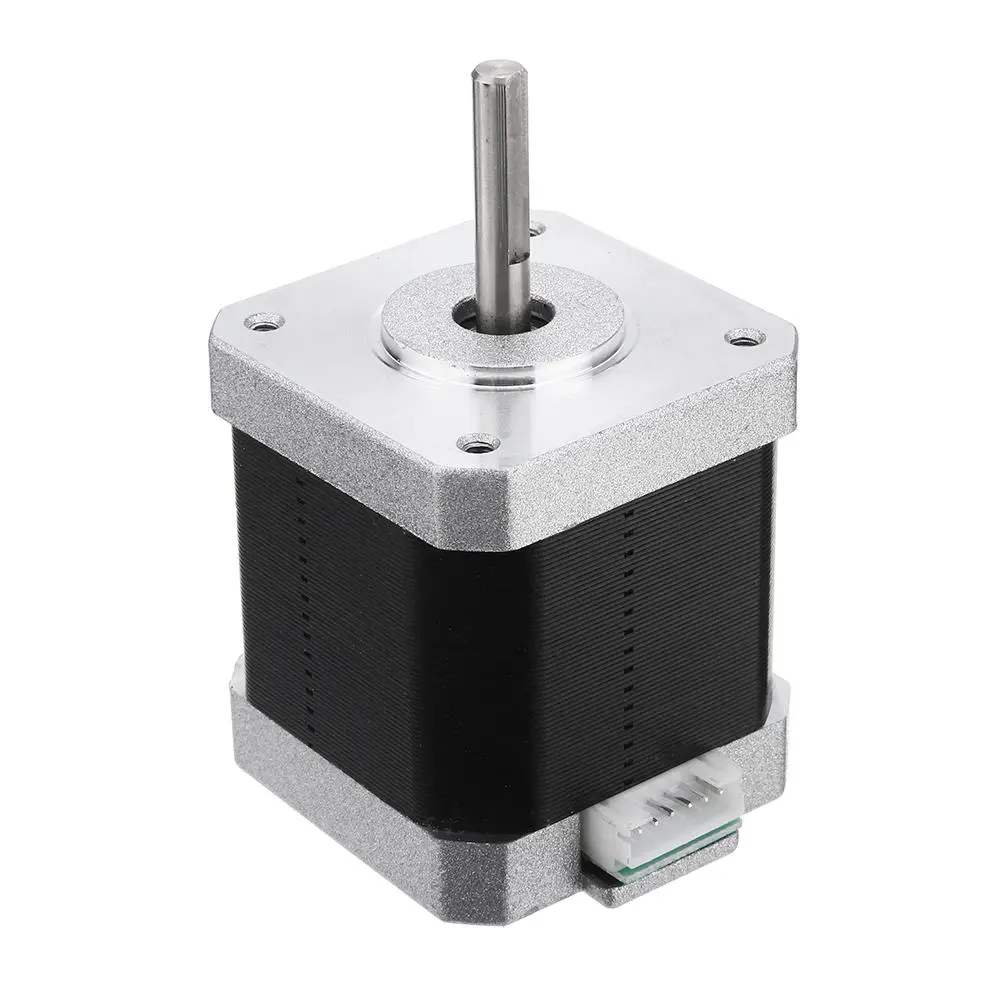

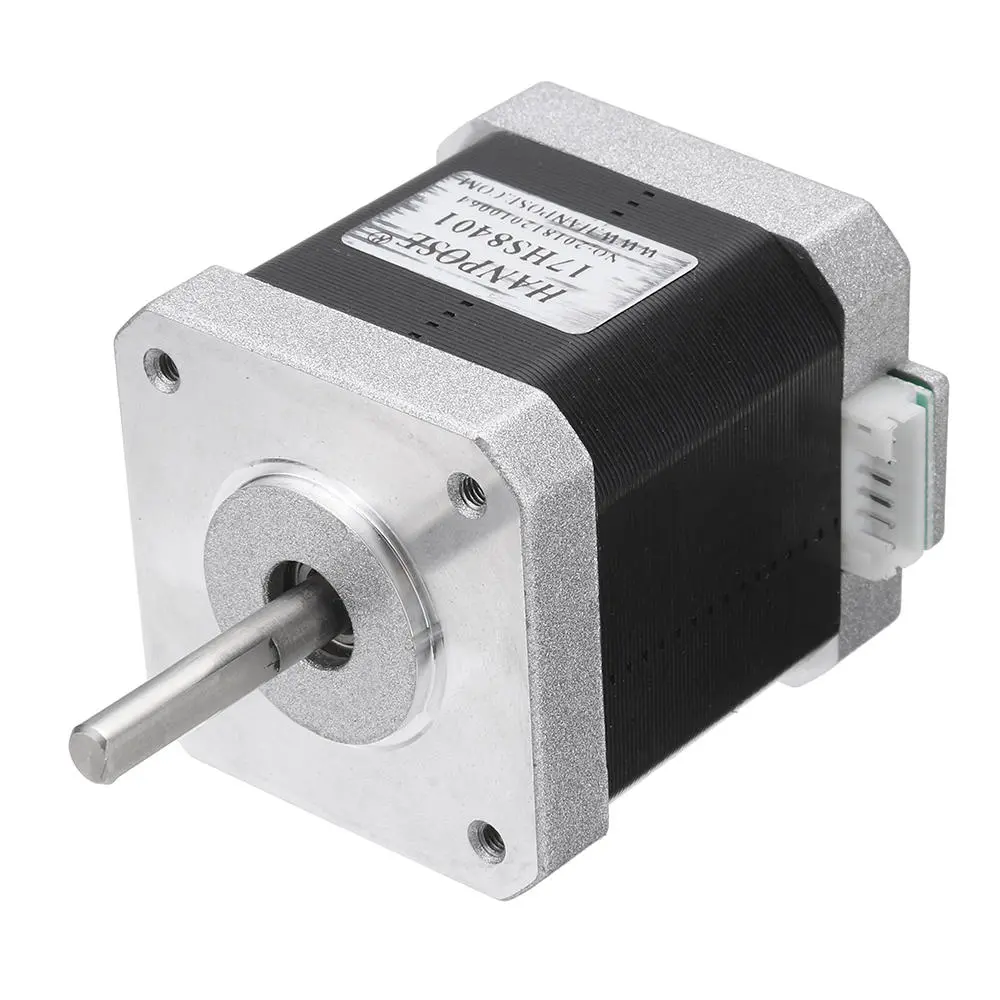

HANPOSE Nema 17 Stepper Motor | 48mm 1.8A 52N.cm | for CNC 3D Printer
$27.00
$33.58
-20% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:HANPOSE 17HS8401 48mm Nema 17 Stepper Motor 42 Motor 1.8A 52N.cm 4-lead for CNC 3D Printer
Certification: CE, ROSH, ISO, FCC
Specification:
| Model | 17HS8401 |
| Phase | 2 |
| Step Angle | 1.8?? |
| Motor Size | 42 x 48mm |
| Shaft | "D" shaft 21 x ??5mm |
| Outlet way | "4" plug line |
| Motor leads | Dupont line(1M) |
| Adapter drive | Two-phase step drive |
| Scope | 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. |
Electrical Specifications:
| Model No. | Step Angle | Motor Length | Rated Current | Resistance /Phase | Inductance /Phase | Holding Torque | Couple Relaxing | Inertia Of Rotor | Lead |
| ( ??) | (L)mm | (A) | (??) | (mH) | (N.cm) | (N.cm) | (G. cm2) | (No.) | |
| 17HS8401 | 1.8 | 48 | 1.8 | 1.8 | 3.2 | 52 | 2.6 | 68 | 4 |
General Specification:
| Precision angle step | ??5% (full step, no charge) |
| Resistance accuracy | ??10% |
| Precision inductance | ??20% |
| Temperature rise | 80deg Max (rated current, 2 phase on) |
| Ambient temperature | ( - 20??)-(+ 50??) |
| Insulation resistance | 100M?? Min, 500VDC |
| Insultion Force | 500VAC for a minute |
Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance. Package Included:
1 X 17HS8401 Stepper Motor
1 X 1M Dupont Line
More Details:
