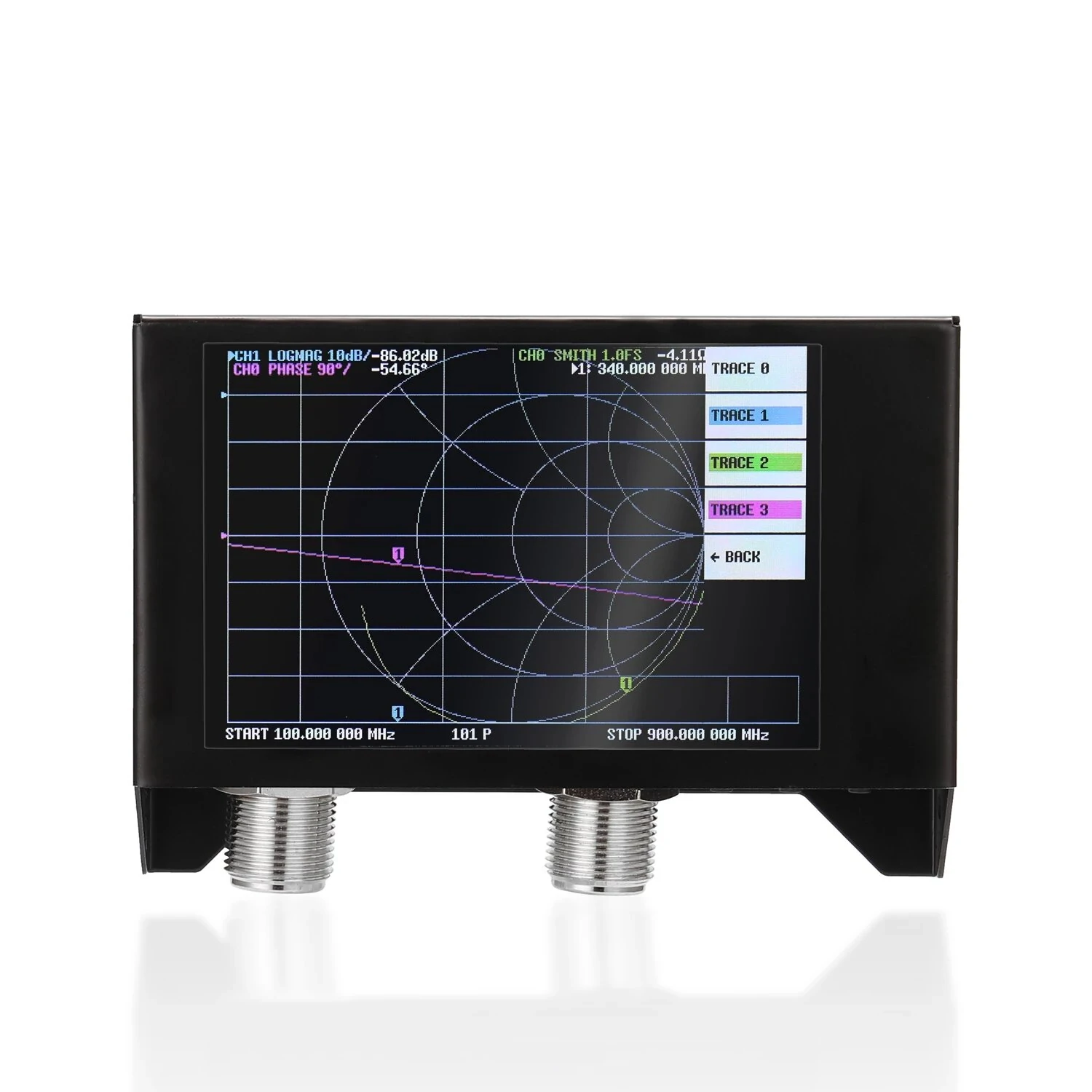

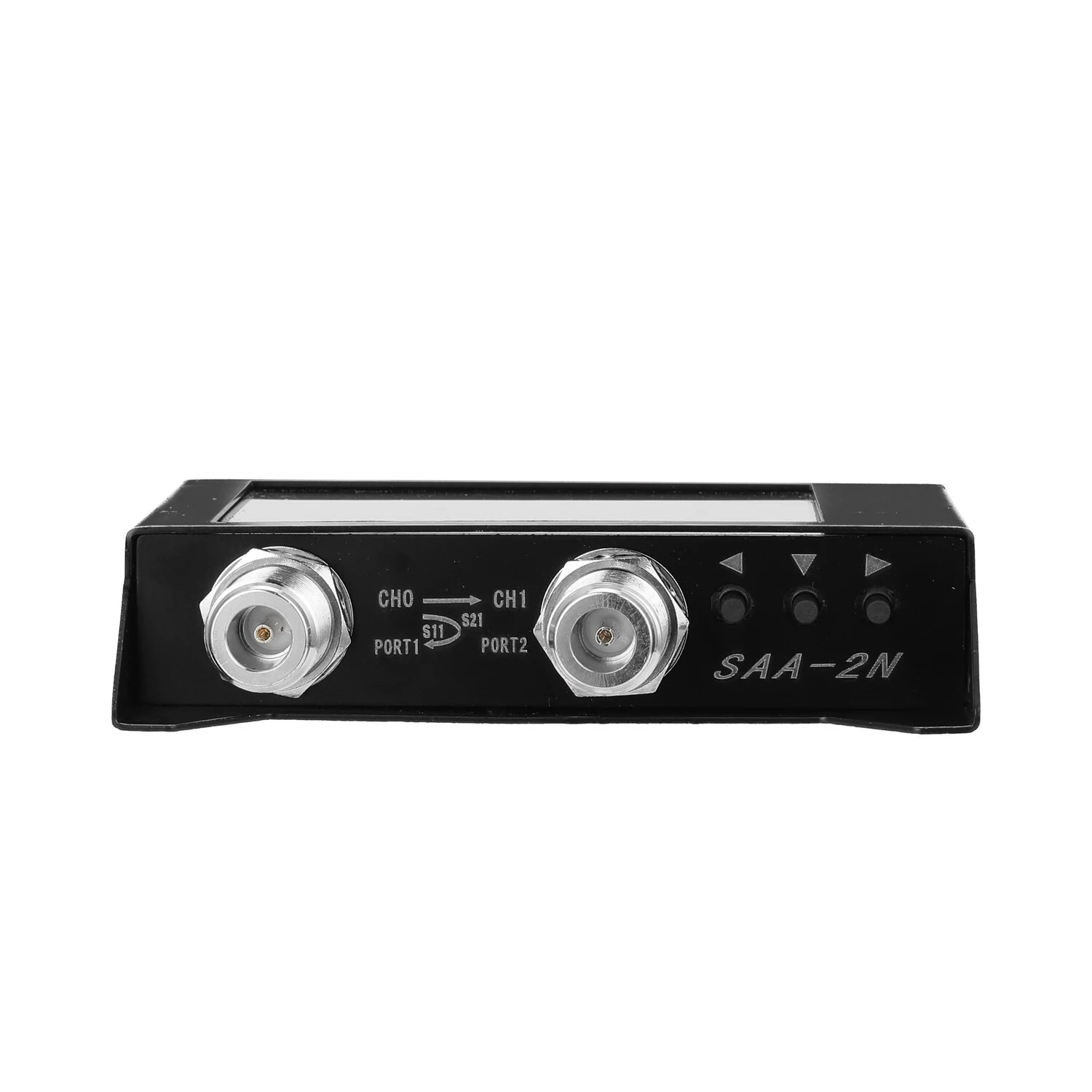

NanoVNA V2 3GHz Vector Network Analyzer Kit | 4Inch Display & 3000mAh Battery

Product Description

Specifications:
Frequency range: 50kHz - 3GHzFrequency tolerance : < 2ppmFrequency Stability: < 0.5ppmSystem dynamic range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)S11 noise floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)Sweep rate: 100 points/sDisplay: 3.95 inch, 320 x 480USB interface: Micro USBPower: USB, Maximum charge current 1ABattery:3000mAh lithium-ionBattery connector: JST-XH 2.54mmMaximum sweep points (on device): 201Maximum sweep points (USB): 1024Port 2 return loss (1.5GHz): 20dB typPort 2 return loss (3GHz): 13dB minVNA-QT software supported platforms: Linux, Windows (7+), 1MacIOS planned

SAA-2N NanoVNA V2.2 3GHz vector network analyzer, designed by OwOComm, under the LGPL license agreement, it is completely manufactured according to the v2_2 files issued by OwOComm at https://github.com/nanovna/S-A-A Development Department, in line with the original technical specifications designed by OwOComm. The SAA-2N/NanoVNA_V2.2 uses a similar user interface to the NanoVNA, but with a different technical architecture, the SAA-2N/NanoVNA_V2.2 does not load the initial calibration data at startup, and does not automatically interpolate the calibration data after the user changes the frequency, and must recalibrate or call back the calibration data after each startup and frequency change. Please read the user manual carefully before use to avoid damaging the device.
>>User Guide and Software<<
Package Includes:

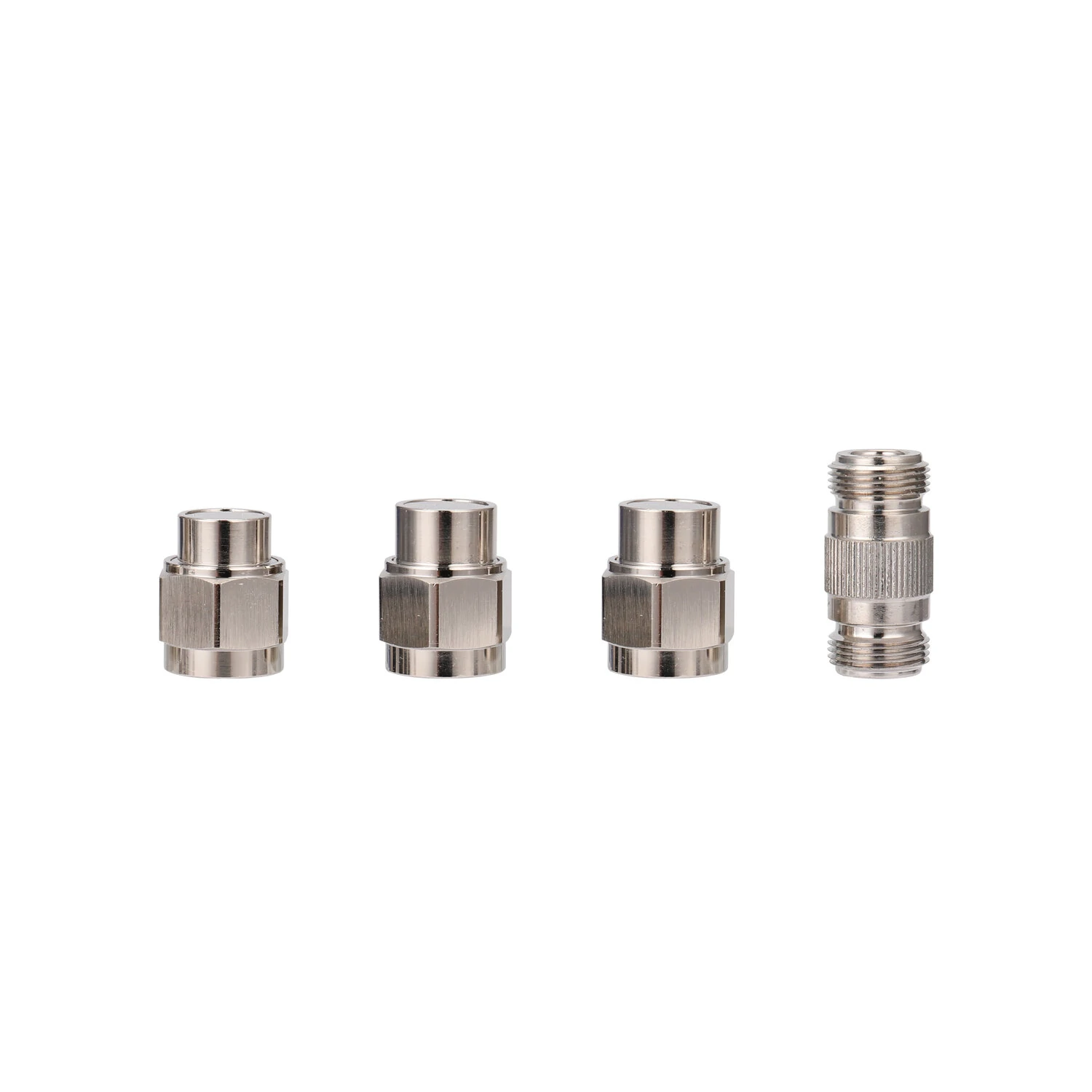

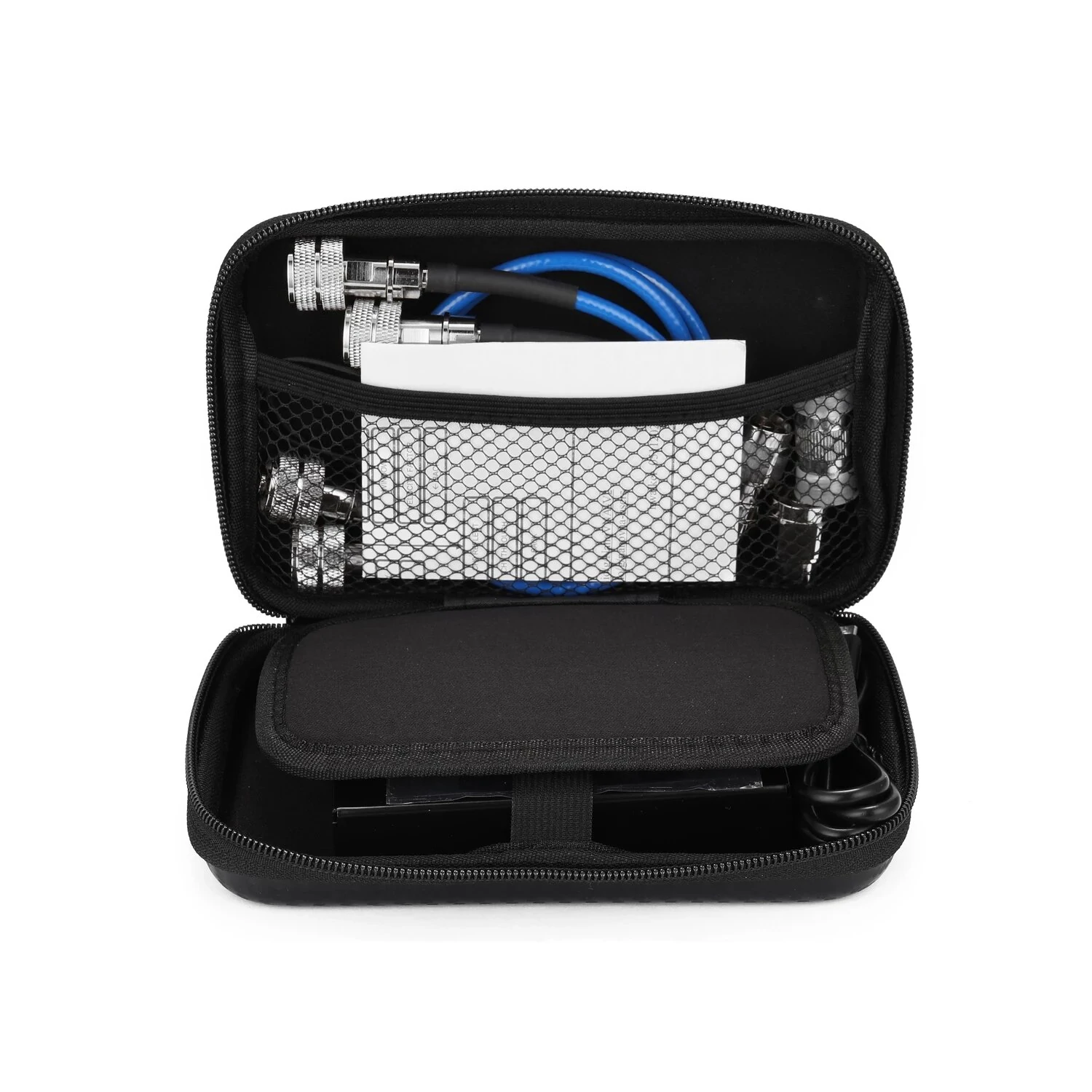

SAA-2N host (inside 3000mAh battery) x 1Micro USB data cable x150cm N-type male to male RG142-PUR RF cable x2N-type male calibration kit - OPEN x1N-type male calibration kit - SHORT x1N-type male calibration kit - LOAD x1N-type female to female connector x1Touch screen paddles and lanyard x1EVA storage bag x1
