Name: ET430B Digital LCR Meter | 10KHz Handheld Bridge | Capacitance Inductance Resistance
Brand: VQTool
SKU: TLT-B5A13F
Price: 146.00 USD
Availability: InStock

SKU: TLT-B5A13F

In Stock (999 available)

$146.00 $179.18 -19% OFF

Quantity:

Add to Cart Wishlist

Global Shipping

Easy Returns

Secure Payment

Product Description

ET43 series handheld bridge features 2.8?? TFT display screen, easy key operation and USB communication. Its high capacity lithium battery ensures long run. It can measure comprehensive parameters, and supports for screening and deviation measurement, with continuously adjustable output frequency. The basic precision reaches 0.2%.
Features:
? The measurement frequency reach to 100kHz, the 1Hz stepping can be adjusted continuously.
? DC resistance, electrolytic capacitance measurement
? Internal bias voltage output (10mV-500mV)
? Automatic identification of component measurement
? Support for screening and deviation measurement
? 2.8 inch TFT display, 4 half display
? USB communication interface
? Large capacity lithium battery power supply
? Support SCPI protocol
? Provide system settings, according to their own requirements configuration language, buzzer, screen brightness, etc.
? Basic measurement accuracy 0.2%, measurement speed can be adjusted
? Manual and automatic range
? Open circuit fault
Specification:

Model	ET430B	ET430		ET431		ET432		ET433
Measurement parameters	Main parameter:L/C/R/Z Secondary parameter:X/D/Q/??/ESR
Equivalent mode	Series, parallel
Mode of range	Manual, automatic
Measurement speed	Fast(4 times/s), medium(2 times /s), slow(1 times /s)
Configuration of the test terminal	3-terminal, 5-terminal
Correctionfunction	Short circuit, open circuit
Communication interface	Mini-USB(virtual serial port)
Frequency of test signal	100Hz, 120Hz, 1kHz, 10kH	100Hz, 120Hz, 1kHz, 10kHz, 40kHz, 100kHz	100Hz, 120Hz, 1kHz, 10kHz		100Hz, 120Hz, 1kHz, 10kHz, 40kHz, 100kHz		10Hz-100KHz adjustable, 1Hz stepping
Level of test signal	0.6Vrms		0.6Vrms,0.3Vrms, 0.1Vrms				0.1Vrms-0.7Vrms adjustable, 1mVrms stepping
Output impedance	100??
Highest accuracy (see accuracy indicators for details)	0.3%		0.2%
Electrolysis and capacitance mode	No		Yes
DCR mode	No		Yes
Internal bias	No		0-500mV adjustable, 1mV stepping
Scope of measurement	L:0-2000H C:0-20mF R:0-20M??

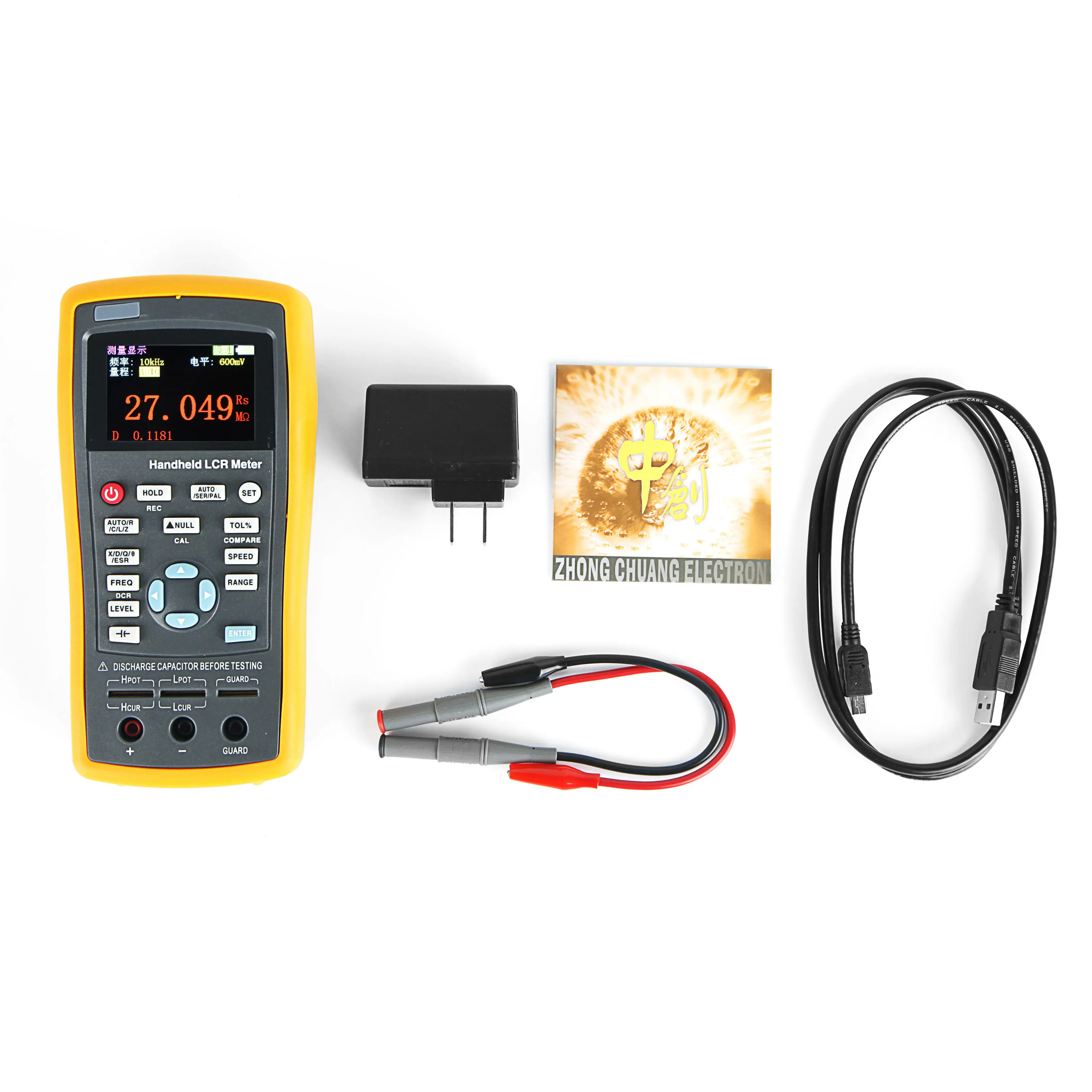

Package includes:
1 X ET430B LCR Meter
1 X USB Line
1 X US Plug (We will send you a plug adapter according to your country.) 1 X Test Cable
1 X English User Manual

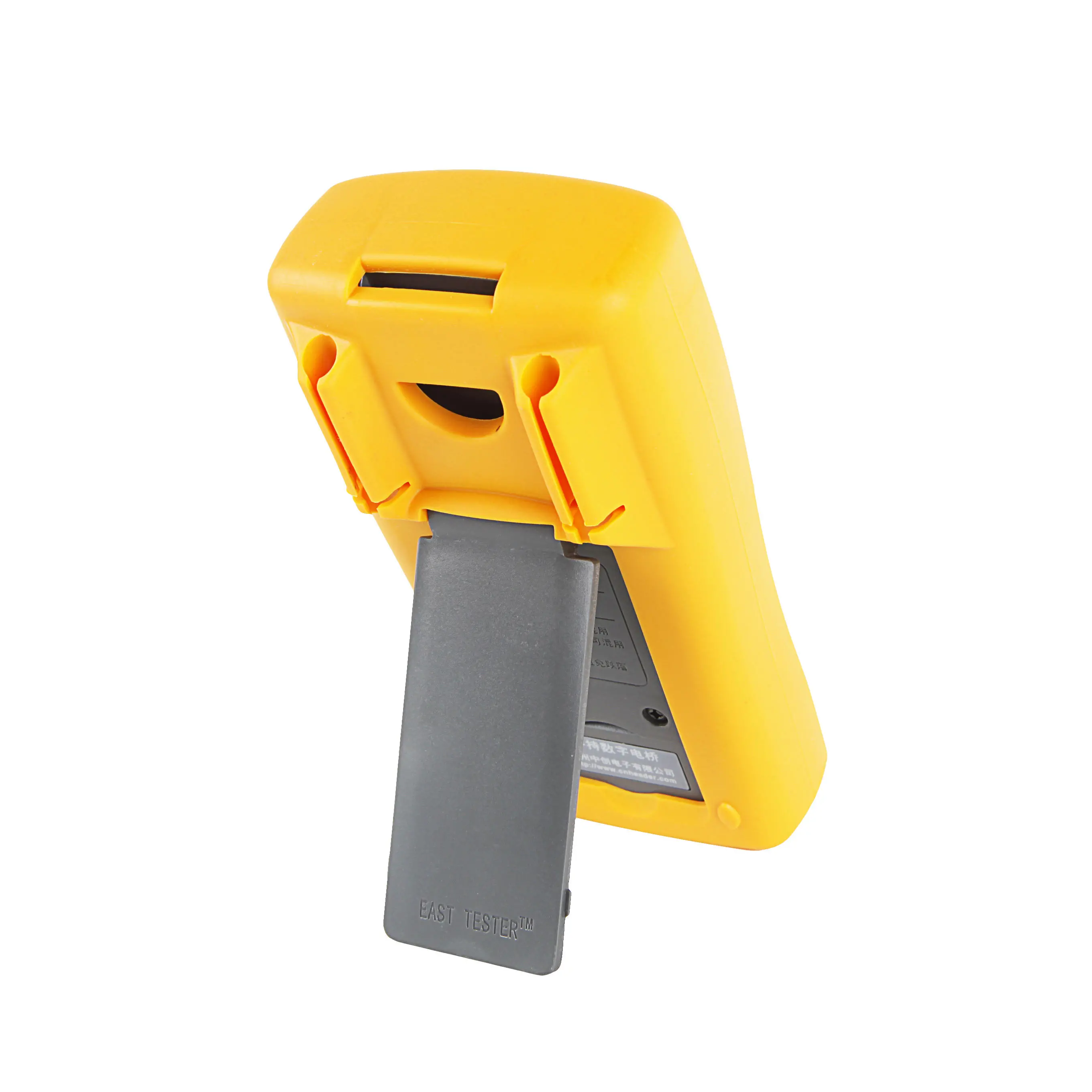

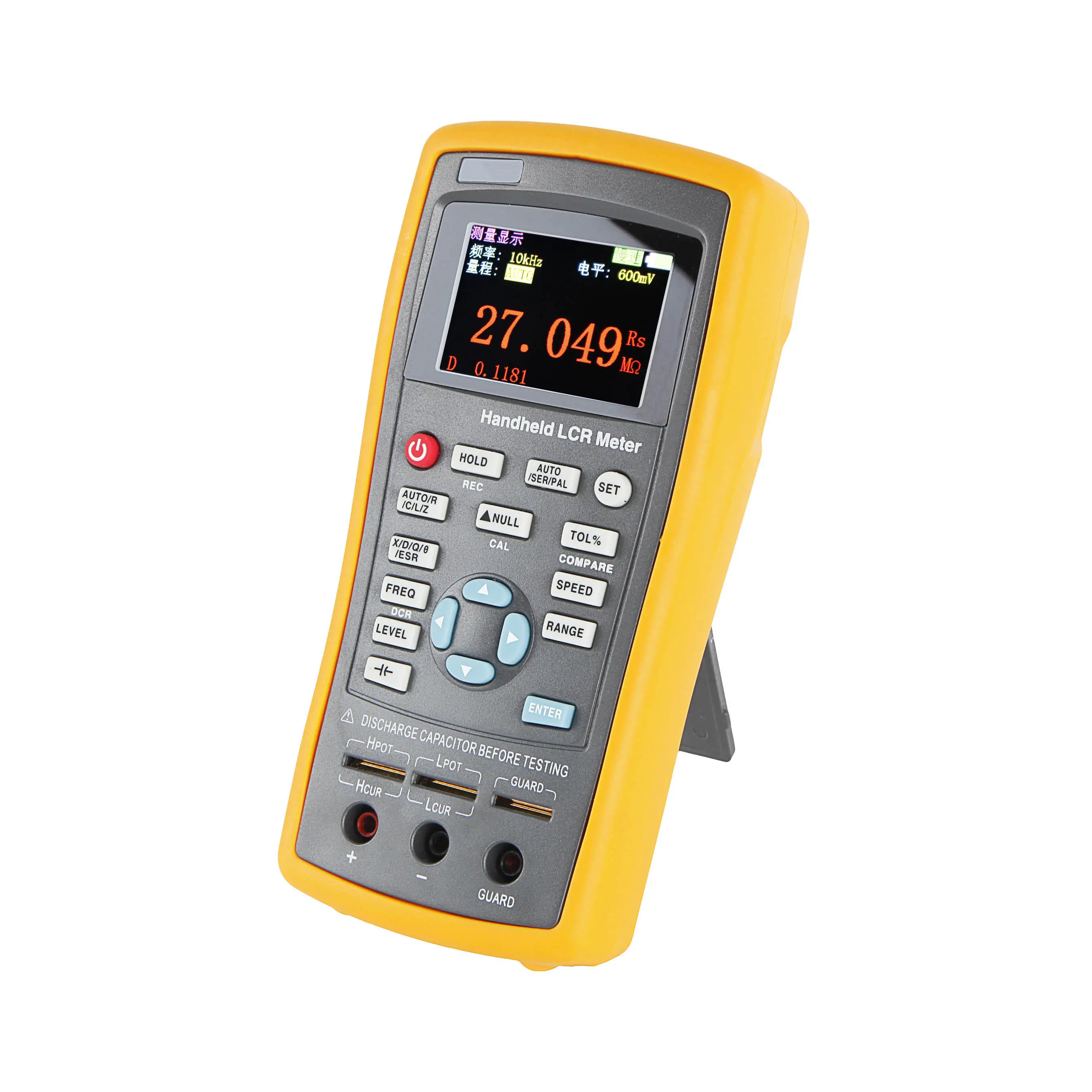

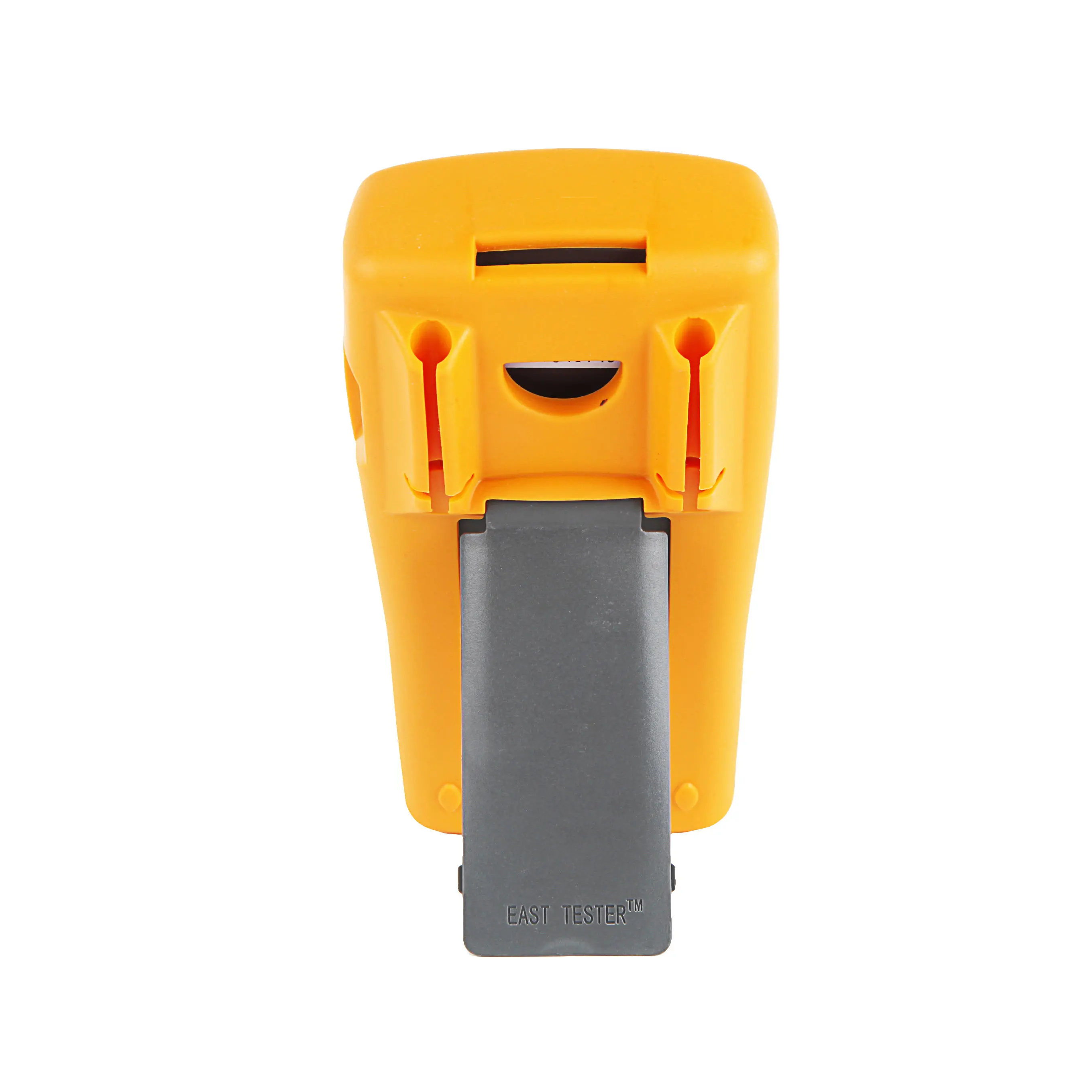

Details pictures:
