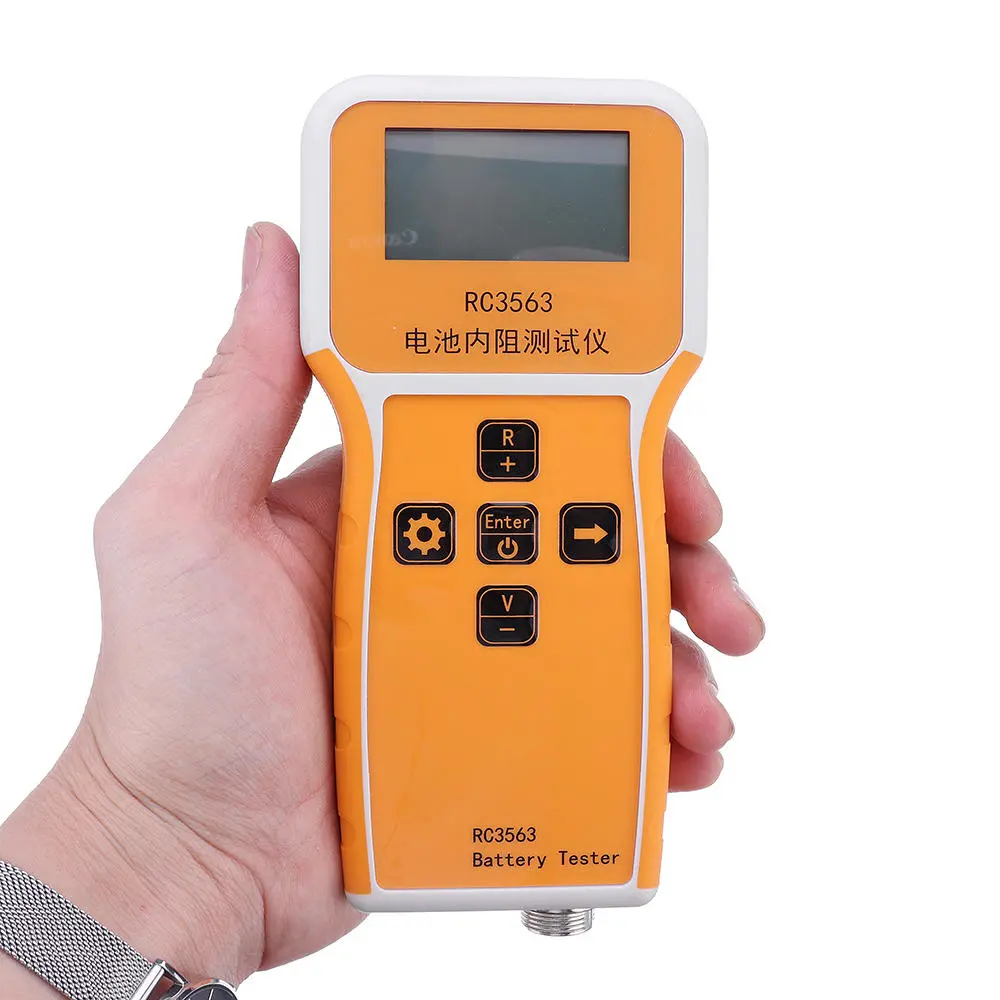

RC3563 Battery Internal Resistance Tester | Lithium Ni-Cr Lead Acid | Test Clips & Compartment
$75.00
$92.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:The battery internal resistance tester can measure internal resistance and voltage of the battery at the same time. The Kelvin four-wire test clamp is adapted in order to better avoid the influence of contact resistance and wire resistance, and more accurate measurement can be performed. This product adopts intelligent control, liquid crystal display, and simultaneous insertion of Kalman filter mathematical algorithm, which has the advantages of high precision, high efficiency, low cost, light weight, energy saving and environmental protection. Built-in 1000mAh lithium battery, 5V charging, Android mobile phone charger can be used, which is very convenient. This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. It can also be used to measure AC resistance of capacitors and resistors with low resistance and high precision. Specification:
Parameters: AC resistance, DC voltage Accuracy: R: 0.5% V: 0.5% Measurement Range: R: 0.01m?? ~ 200?? V: 0.001 V ~ ??75VDCV Signal Source: AC: 1kHz At 20m?? range: 50mA At 200m?? / 2?? range: 5mA At 20?? / 200?? range: 0.5mA Range:R: Automatic and Manual. 5 ranges,V: Automatic and Manual, 3 ranges Speed: 10 times/second Adjustment:Correction for resistance and voltage separately Factory Setting:Save factory information, restore factory state with one key Backlight:Can turn it on/off by entering setting menu Energy Saving Settings:30 minutes delay, it will be turned off automatically if no operation Application:Battery maintenance for mobile, computer, battery car; battery factories check and test Result Display:LCD display, direct reading Power Supply:Built-in lithium battery, Be suitable to use 5V 1A Android mobile phone charger Size: 166mm (Length) x 80mm (Width) x 28mm (Height) Weight: 173.5g Package included:

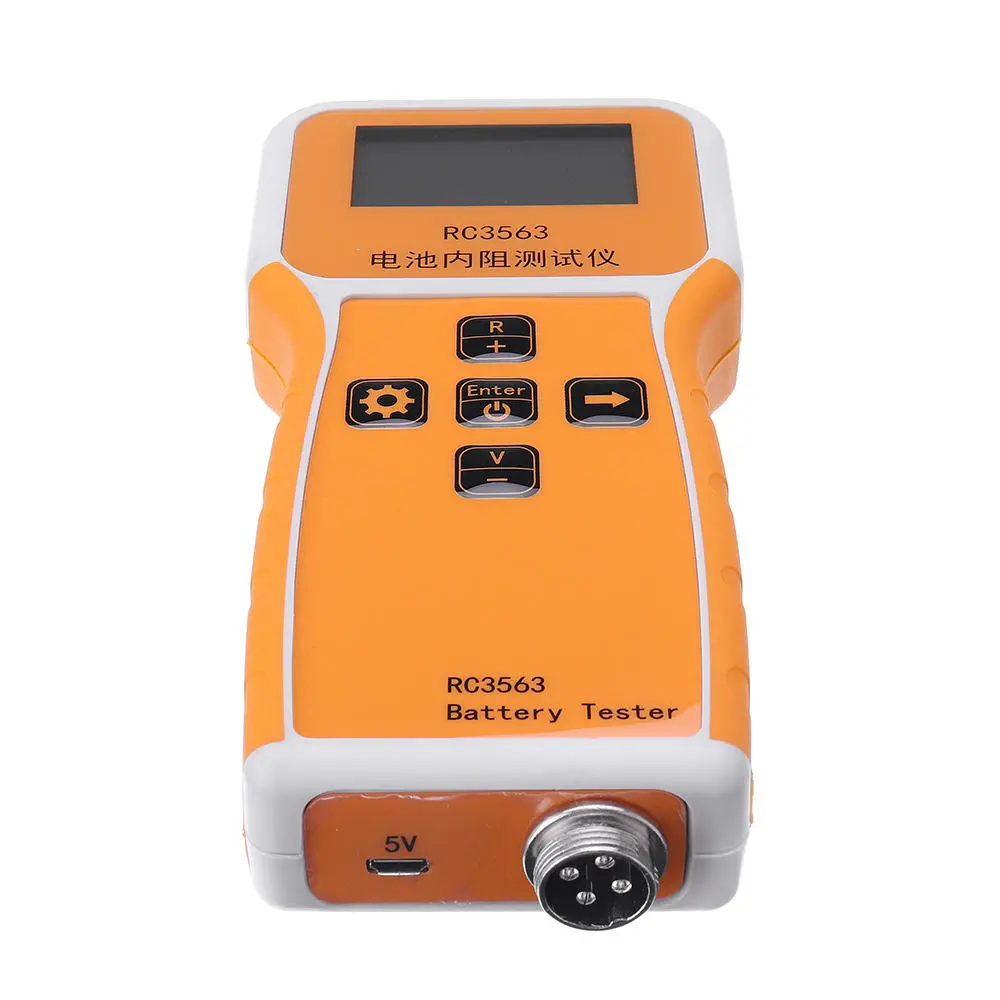

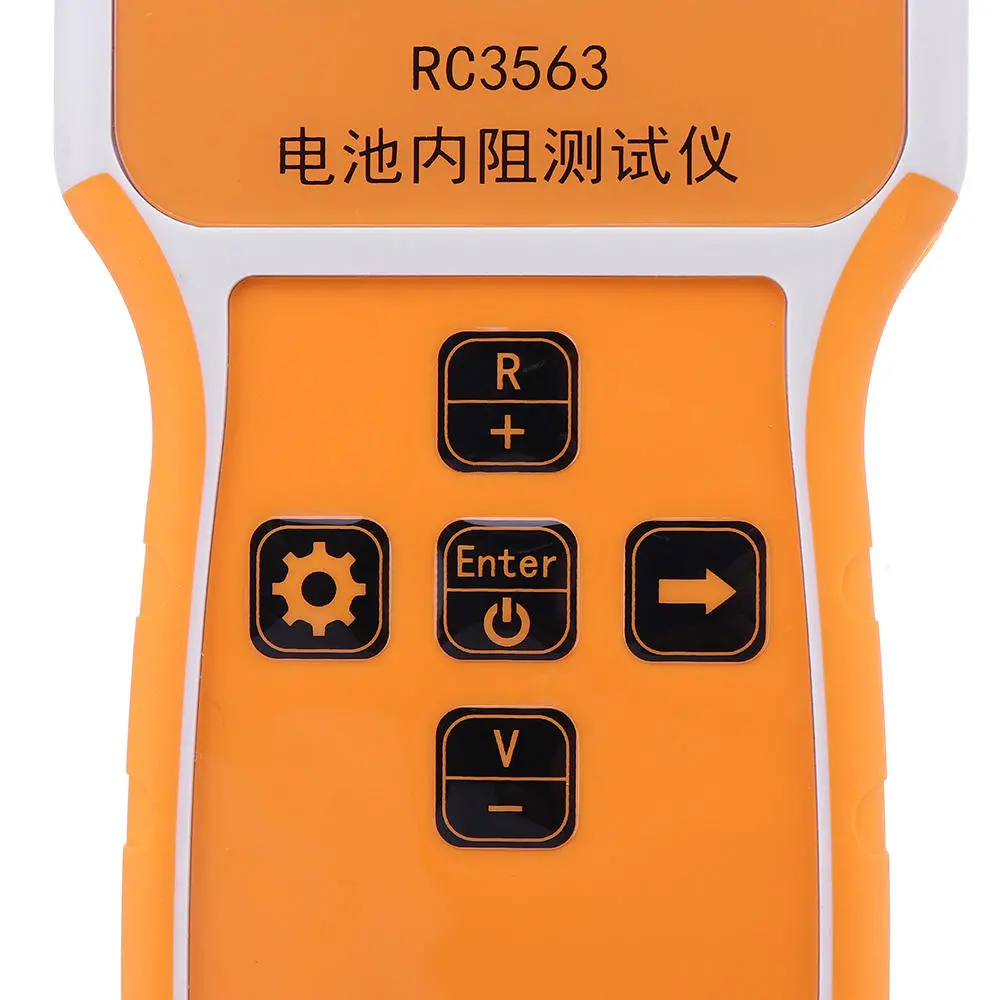

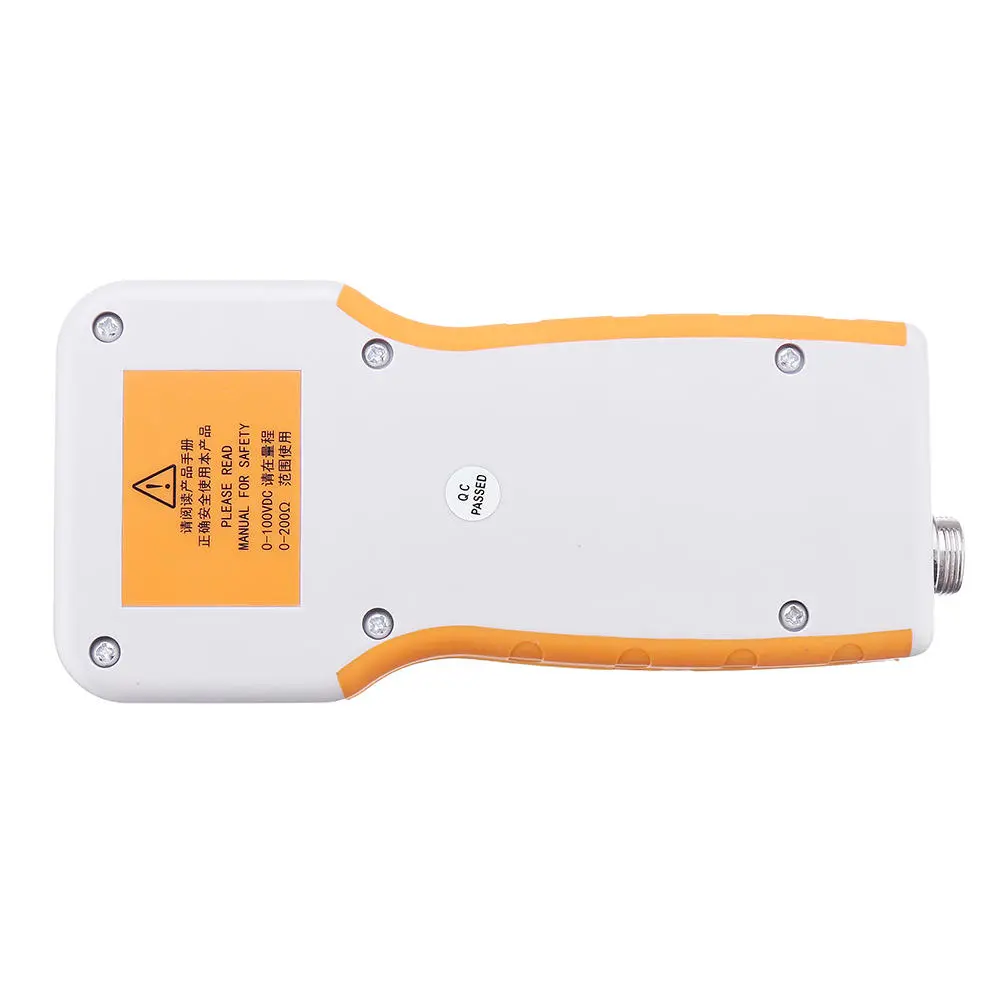

1 x Battery Tester 1 x Test Clips 1 x Fixture Details pictures:
