Machifit 24V Permanent Magnet Motor - 90/140 RPM Tubular Gear Reducer
$27.00
$33.58
-20% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

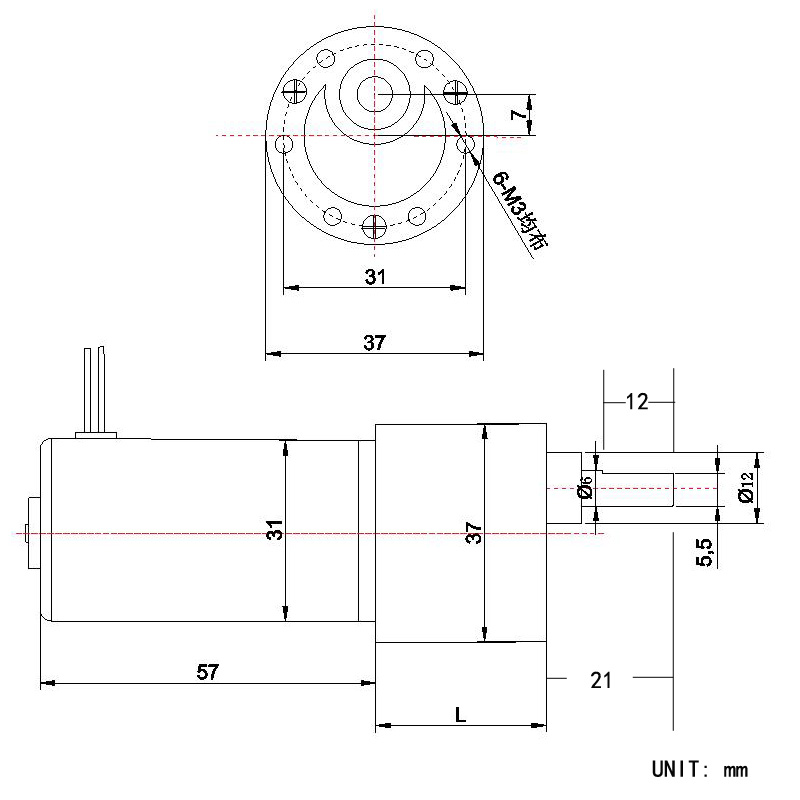

Description: 37GB-31ZY DC 24V 90/140rpm tubular permanent magnet motor Specifications: Type: 37GB-31ZY tubular permanent magnet motor Voltage: 24V Overall length: 80mm Shaft length: 23mm Lline length: 200mm Shaft diameter: 6mm| Voltage | 24V | 24V |
| No Load Speed (rpm) | 90 | 140 |
| No Load Current (A) | ??280 | ??280 |
| Load Speed (rpm) | 73 | 110 |
| Load Current (A) | ??1 | ??1 |
| Load Torque (Kg.cm) | 18 | 11.8 |
| Stall Toque (Kg.cm) | 35 | 27 |
| Stall Current (A) | 4.4 | 4.4 |
| Reducer Ratio (1:00) | 90 | 56 |
| L (mm) | 23 | 23 |
Features: 1. All-metal gear: Use all-metal gear material to make it more wear-resistant and extend service life. 2. D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time. 3. Pure copper wire winding: small resistance, strong electrical, so that the motor torque increased. 4. High torque, adjustable,low energy consumption, low noise, stable life, long life, positive and negative turn. Package Included: 1 X 37GB-31ZY motor More Details:
