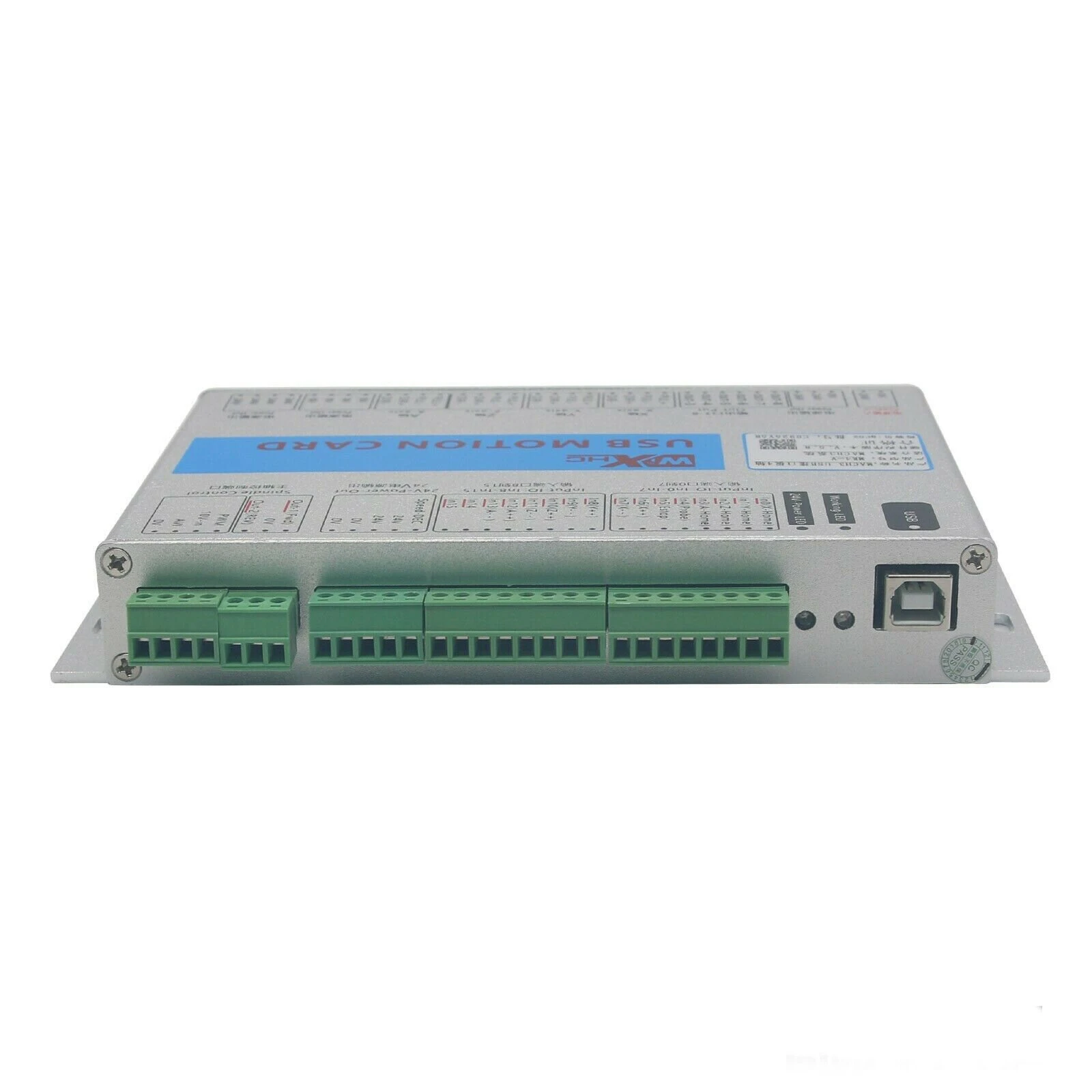

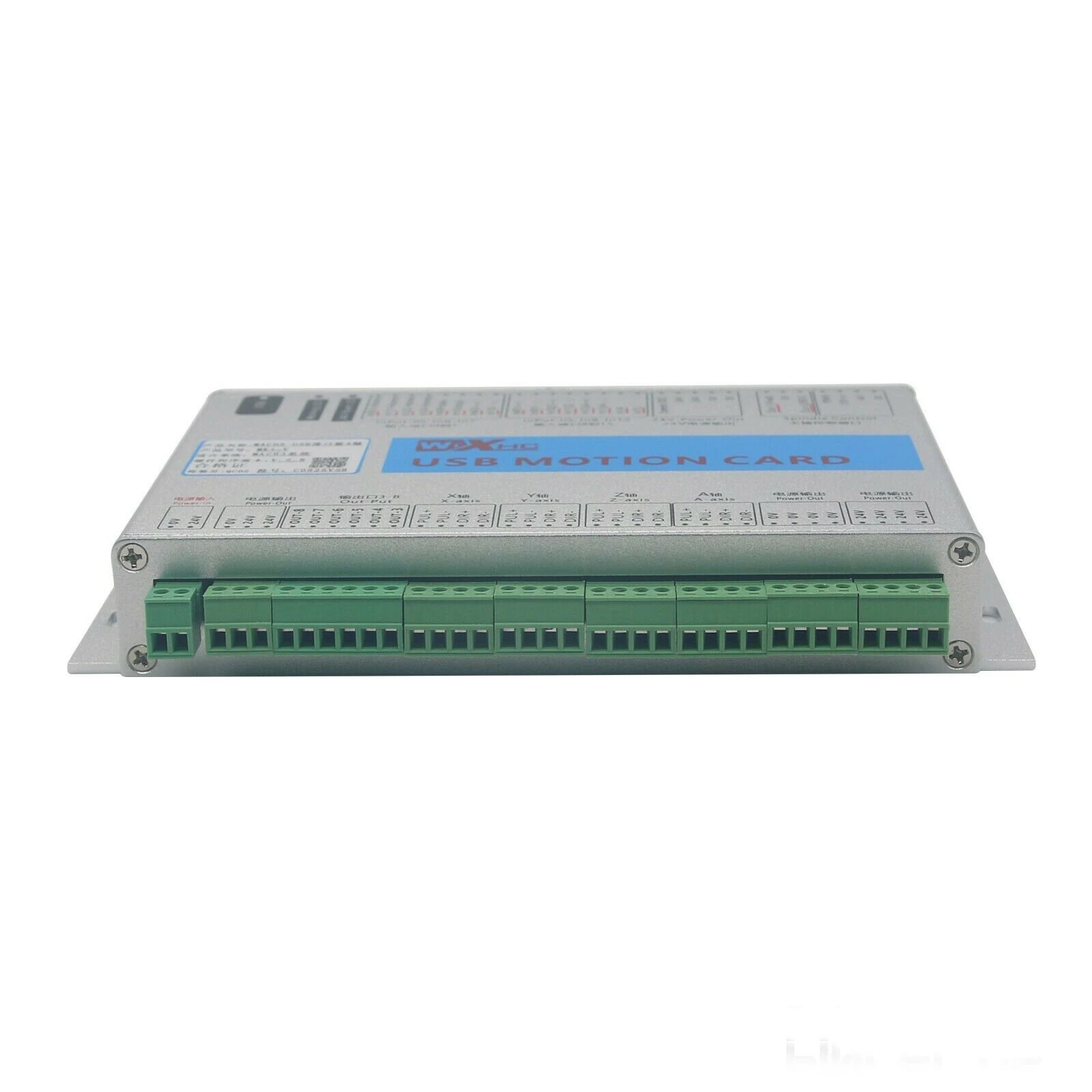

MACH3 USB Motion Control Card | 3/4/6 Axis CNC Board for MK3-V MK4-V MK6-V
Product Description
Description:
MK3-V MK4-V MK6-V CNC MACH3 USB Motion Control Card Board 3/4/6 Axis Motion Control Card

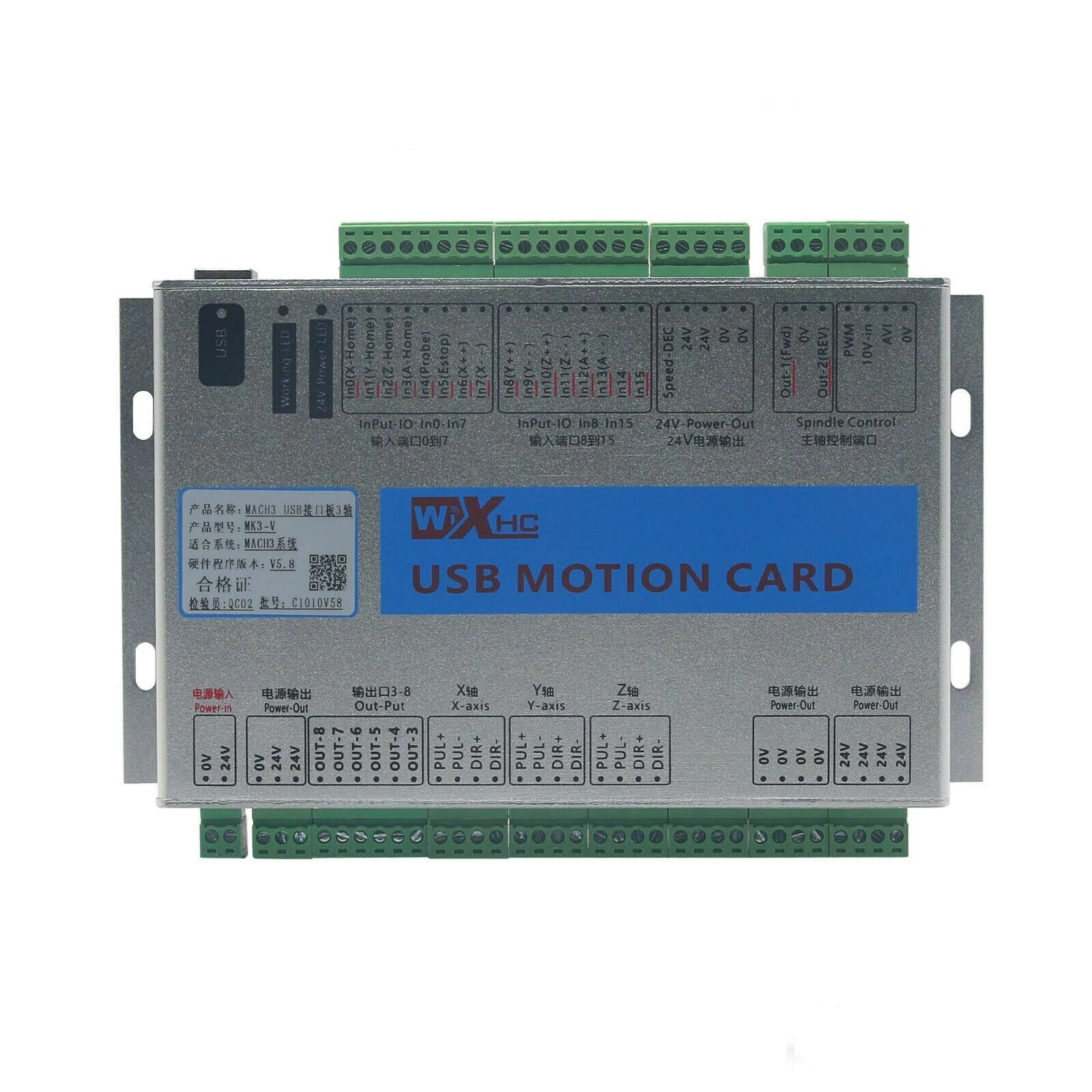

Specifications:
| Product Name | Mach3 USB 3 Axis Motion Control Card |
CPU | Dual-Processors, ARM+FPGA |
Axis output control | Drive Current: Isolated open collector output; 5V, 20mA Drive: Pulse + direction output Output frequency: 2000 KHZ (2MHz) Isolation Voltage: 3.5KV |
| Axis Type | MK3-V: 3 axis MK4-V: 4 axis MK6-V: 6 axis |
Spindle inverter output | Analog voltage output: 0-10V PWM output: 5V, 1KHZ, Duty; 0-100% Pulse + direction output: 5V, 15HZ to 4 KHZ |
Spindle speed input | Input: Isolated input: 5V pulse signal Isolation Voltage: 3.5KV |
8 IO output | Drive Current:Isolation: 50mA, 25V Isolation Voltage: 3.5KV |
16 IO input | Input Current: Isolated inputs, 5 mA, maximum voltage 25V Isolation Voltage: 3.5KV Mach3 Port Position: P1 Port USB interface: Complies with USB2.0 standard |
| Size | 184*127*30mm |
| Color | Silver |
Applications | Work with Mach3 CNC system under all windows platform |
| Quantity | 1 Set ?? Macha3 USB 3 Axis Motion Control Card |
| Manual(click to check) | Manual 1 Manual 2 |
More to search:
MACH3 Ethernet Port ID: 1742681
MACH4 USB ID: 1742682
Features:
- Fully support all Mach3 version.
- Support save data when power off.
- Support spindle speed feedback.
- Support 3 meter USB cable.
- Maximum step-pulse frequency is 2000KHz. Status indicator LED can be useful to show the USB.
- Connection and working status by flashing.
- 16 general-purpose input,8 output has speed function,the spindle actural speed Mach3.
- Interface in real-time display.
- All IO-port isolation,interference,stable performance.
- Ful support for USB hot-swappable,the card is Monitoring USB connection status at any time.
Key feature:
1.Standard usb device and work at all windows with usb hot plug.
2.The card state is monitored.
3.Support 6 axis to motion at the same time.
4.Step Pulse frequncy Up to 2000khz???support servo and step motor driver.
5.The usb state indication with led
6.All io is isolated,anti-noise and stable performance
7.Spindle control with PWM and step/pulse
8.Aluminum shell,shield the interference.
9.Speed index function.
10.Power off and continue function
Software installation:
- First,install Mach3 software to your PC.
- Second,copy your driver into Mach3.Check readme file in the CD.
- Check our wiring for reference,connect our card to your machine correctly.
- Connect your PC to our card by using network cable.
- After these steps,you can open your Mach3 software for operating.
Package Included:

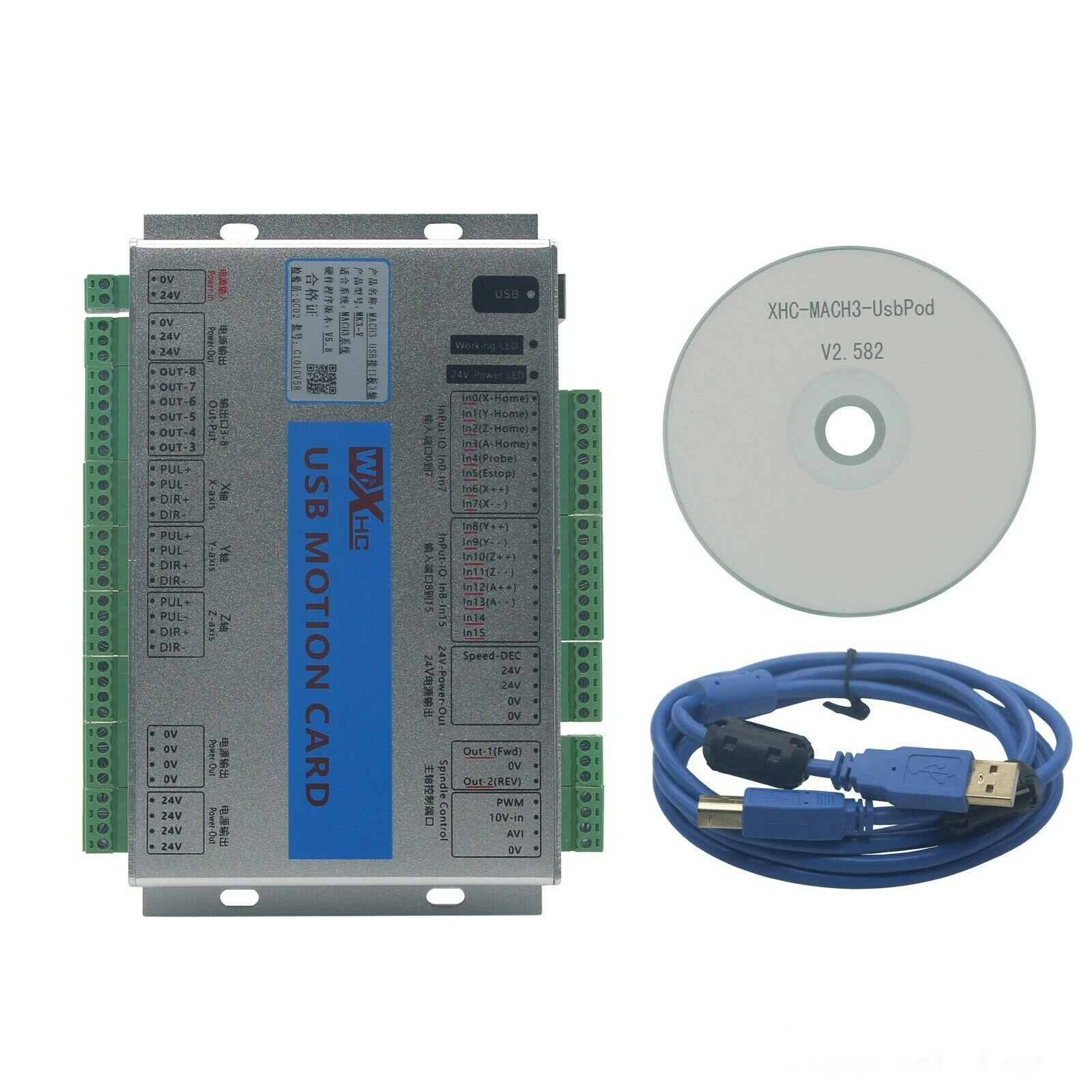

1 x | MKX-V motion card |
1 x | Use wire |
1 x | Driver disk |
1 x | MACH3-USB trouble shooting |
1 x | MACH3 config and driver installation |
1 x | MKX ?CV user Manual |
