GS320 Vector Network Analyzer | 23MHz-6200MHz Handheld RF Analyzer & VSWR Tool

Product Description

Specifications:

Frequency Range: 23MHz ?C 6200MHz

Frequency Resolution: 10kHz

Maximum Scan Points: 1000 points

Scan Rate: 1000 points per second

Effective Directivity: > 50 dB (single-port calibration)

VSWR at Input: > 2

Phase Measurement Accuracy: More than 1.5 degrees

Measurement Accuracy: > 0.25 dB

Maximum Cable Test Length: > 3000m

Maximum DC Input Voltage: 25V

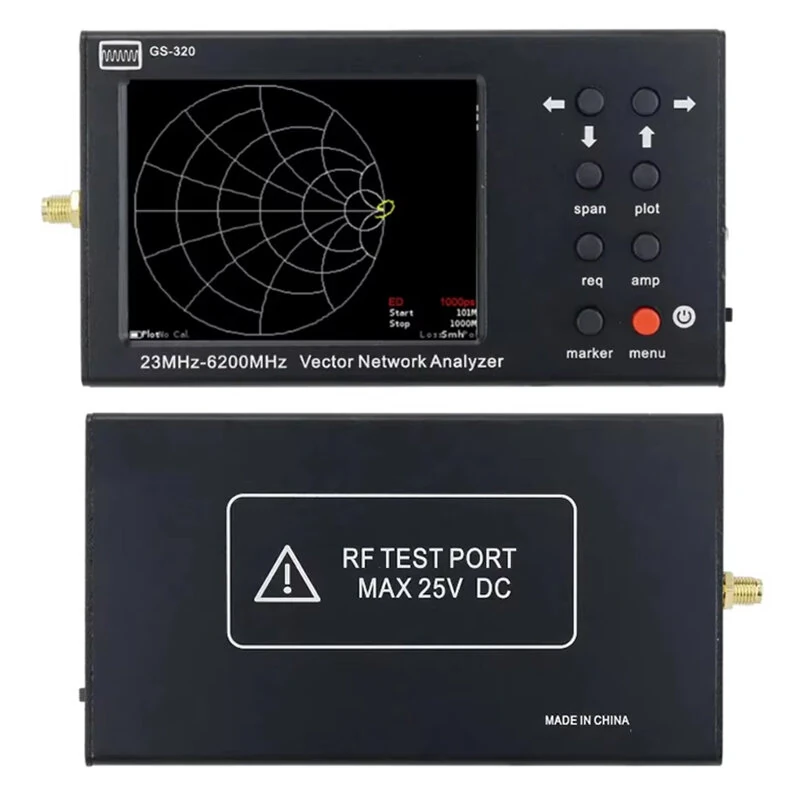

Display Diagram Types: Smith Chart, Polar Diagram, Amplitude, Logarithmic Amplitude, Reflection Phase, VSWR, Distance, Cable Loss

User Settings Saved: Up to 8 profiles

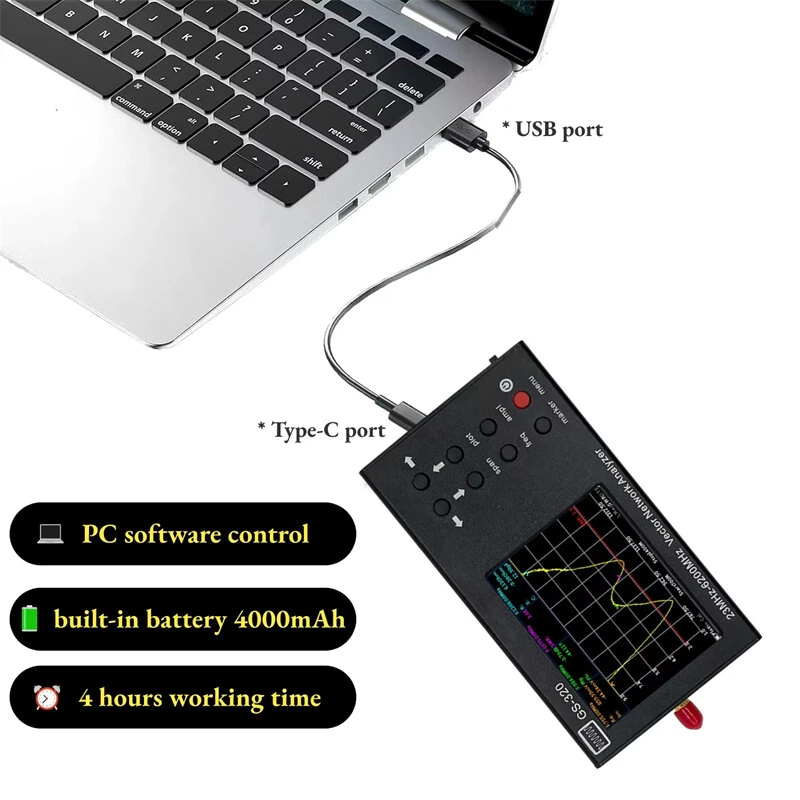

Computer Support: Compatible with Windows 7 or later

Operating Temperature: 0??C ?C 40??C

Screen Size: 3.2 inches

Screen Type: Resistive touch

Battery Capacity: 4000mAh

Dimensions: 145mm x 75mm x 24mm

Weight: 350g

Features:

1.Wide Frequency Range for Versatile Applications

Covering 23MHz to 6200MHz, the GS320 meets requirements for various RF circuit debugging tasks, including antennas, filters, and amplifiers across different frequency bands.

2.Precise Measurement Capabilities

With an accuracy better than 0.25 dB and phase measurement within 1.5 degrees, the GS320 ensures highly reliable analysis results for RF network and VSWR testing.

3.Portable Design with Extended Battery Life

Lightweight at 350g with a compact build and 4000mAh rechargeable battery, the device is optimized for on-the-go testing without interruptions.

4.User-Friendly Interface with Resistive Touch Screen

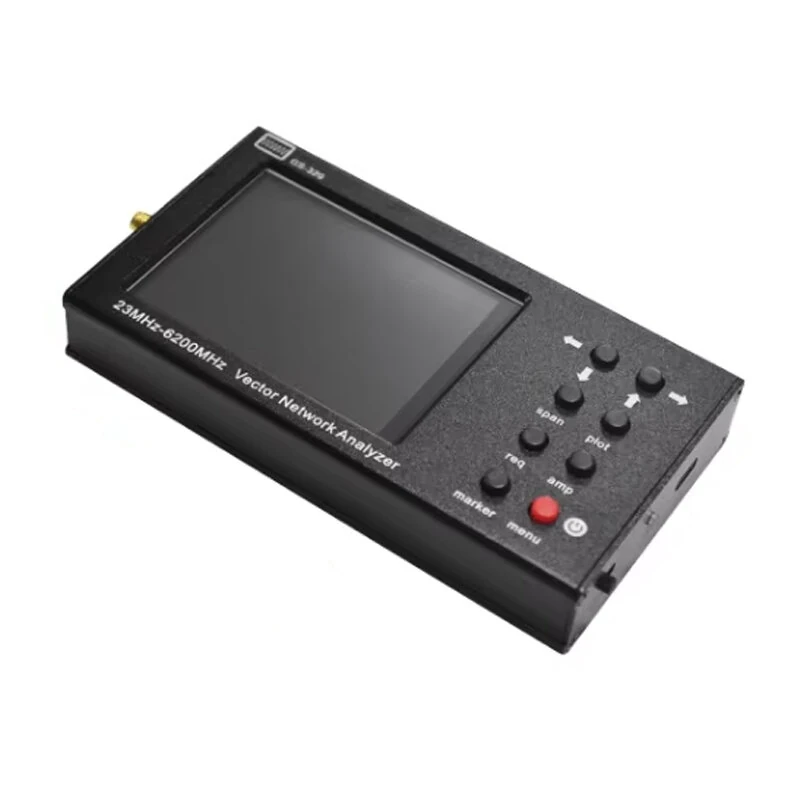

Featuring a 3.2-inch resistive touch screen and partitioned function buttons, the GS320 offers seamless navigation for quick and efficient operation.

5.DurableMetal Housing
