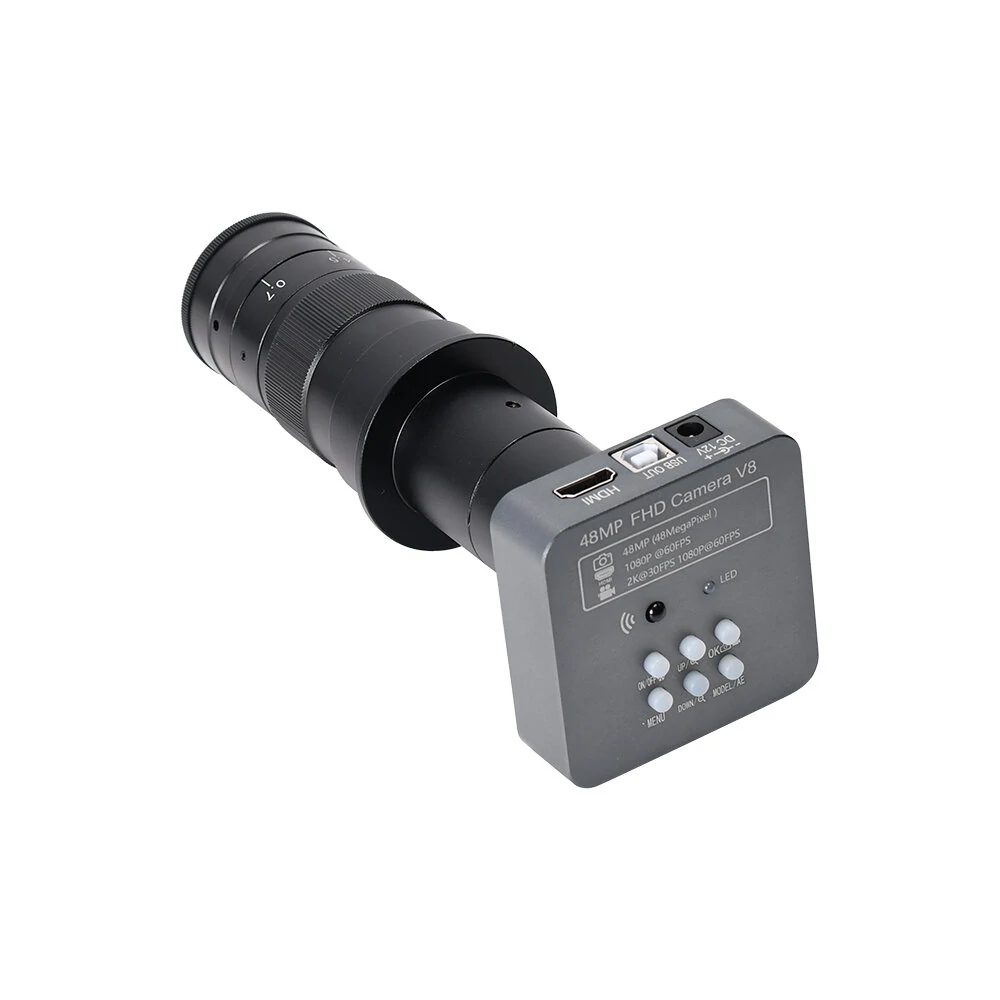

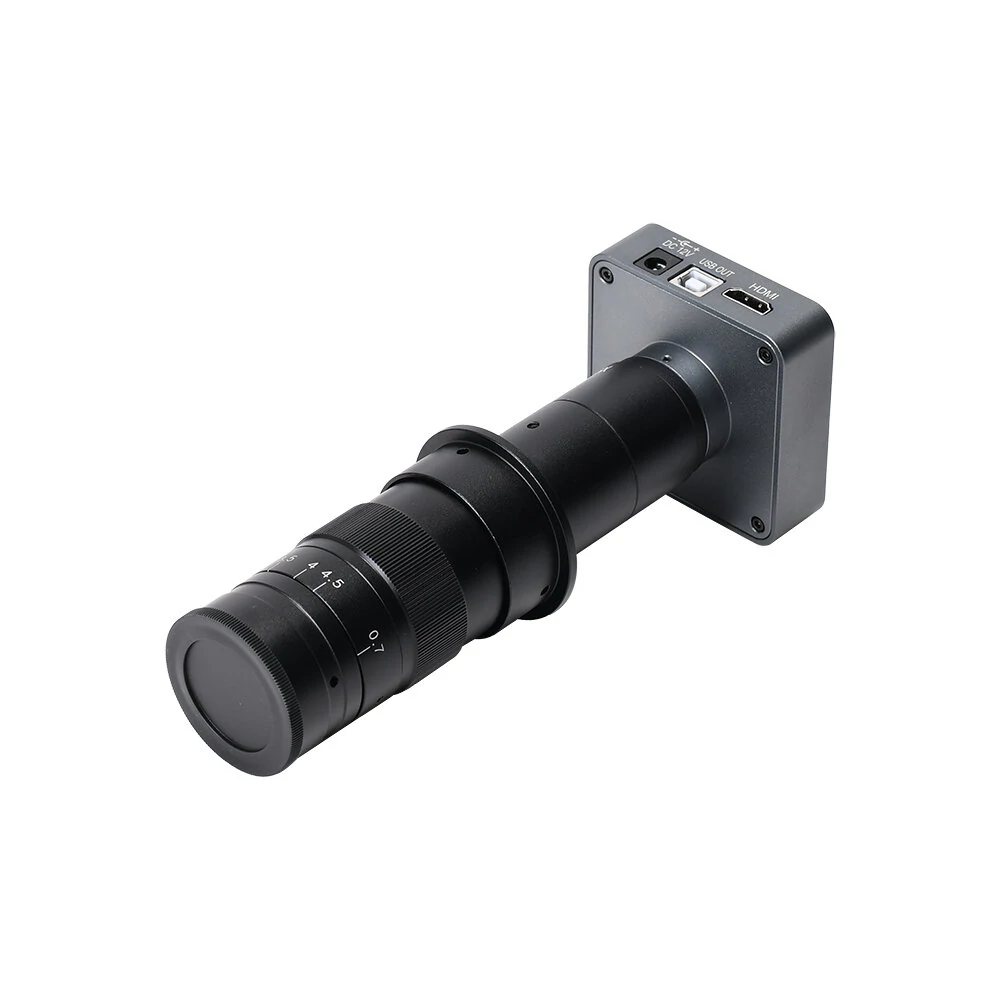

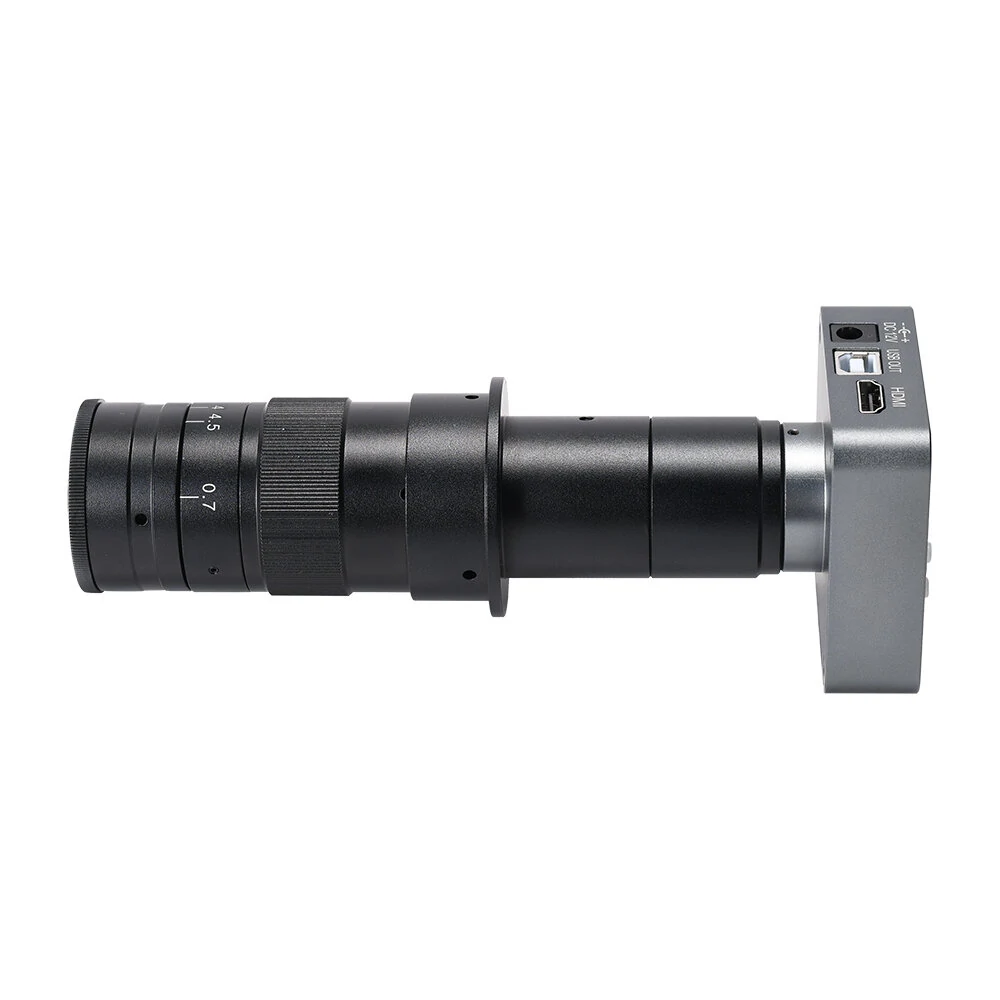

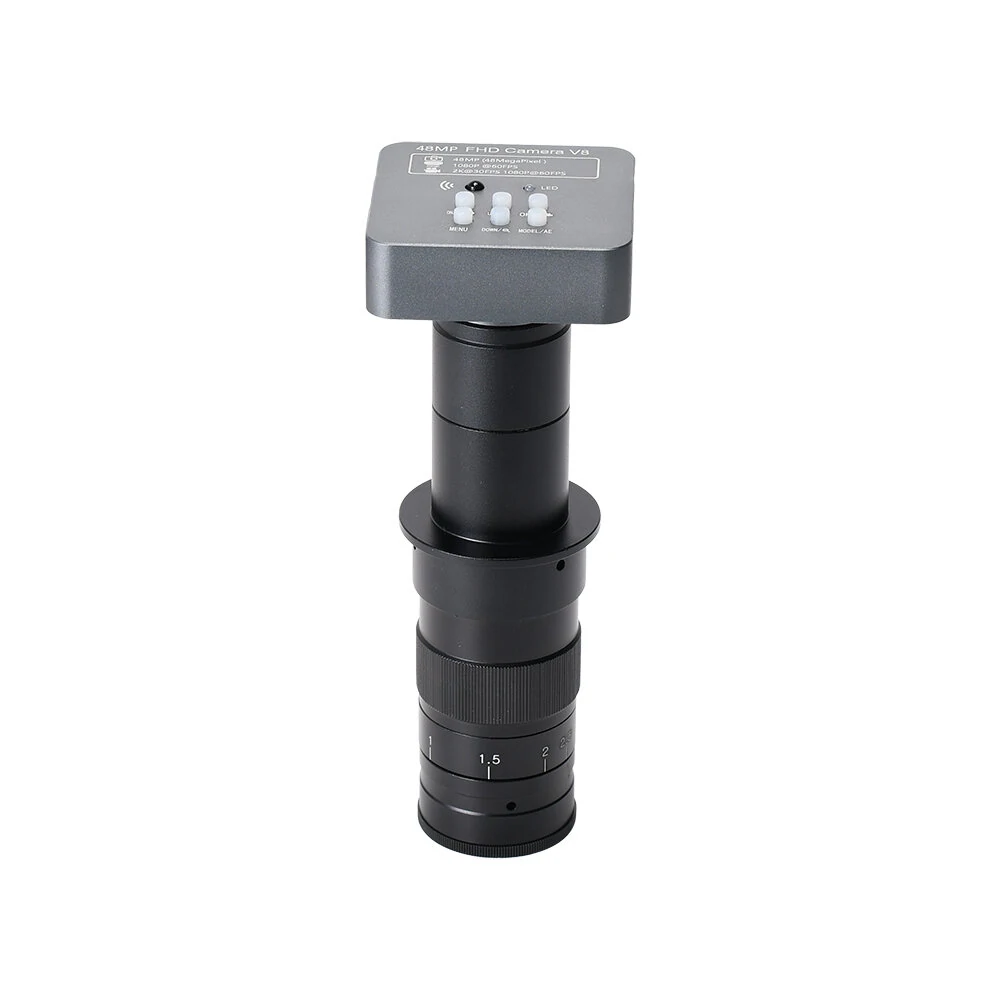

HAYEAR 48MP 1080P 2K USB Microscope Camera - 10X-180X Zoom | C-Mount for Welding Repair
Product Description
Features:1. Very suitable for observing the surface microstructure of large objects.2. Made of high-quality materials, sturdy and durable, and long service life.3. Equipped with HDMI USB port, charging is easy and convenient.4. Strict quality control and good quality assurance, high safety factor, can be used with confidence.5. Provides a 1/2.3-inch high-definition camera with a 48-megapixel CMOS sensor to view clear and sharp images.6. A wide range of applications, such as microelectronics, molds, jewelry, printing, mobile phone repair schools and other fields.
Specifications:
Item Type | Microscope Camera |
Module | 1135 |
Image sensor | Panason original 48 million pixel CMOS sensor |
Optical format | 1/2.3 inch |
Pixel size | 1.335??mx1.335??m |
Interface | HDMI (Type A). USB (Type B). TF card |
HDMI image resolution | 48 MP |
Video resolution | 2K at 30FPS 1080p at 60FPS |
HDMI resolution | 1920 x 1080p 60FPS |
HDMI Scale | support 4:3, 16:9, 16:10 screen |
USB2.0 (drive free) | 1920 x 1080 @ 30FPS 1280 x 720 @ 30FPS 640 x 480 @ 30FPS |
Small memory card | up to 128GB (not included) |
AWB | AWB color correction/automatic/manual |
RGB | RGB value setting is irrelevant |
Exposure | automatic/manual. AE value can be set |
Cross line | 8 lines, color, width, position can be set |
Scale lines | 2 lines |
Dotted line | 2 lines, color, width and position can be set |
Sharpness, contrast, color gain | support |
Monochrome negative film | support |
Mirrors | horizontal and vertical mirrors |
Language | English/Simplified Chinese/French/Spanish/Japanese/German and other languages |
Digital zoom | support |
Infrared remote control | support |
Voltage input | DC 12V |
Power supply voltage | Input: AC100-240V Output: DC12V |
Power consumption | maximum 0.15W 12V, 0.12A |
Lens interface | C/CS port |
Remote control battery | 1 x 2302 button battery (delivered without battery) |
180X C lens:
Working Distance: Approx.95mm / 3.7in
Zoom C mount lens
0.5X Type C adapter
Scaling Ratio: 6.5: 1
Objective lens magnification 0.7-4.5X (approximately 10-180X on the screen)
Size: L X DIA: Approxc.180 x 50mm / 7.1 x 2in
(180x maximum working distance approx.11.5cm / 4.5in)
Package included:
1 x Microscope Camera
1 x Power Supply
1 x Remote Control
1 x USB Cable
1 x C-mount Lens
