WINTACT WT2100 Digital Coating Thickness Gauge | Handheld Paint Meter with Data Logger
$117.00
$143.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

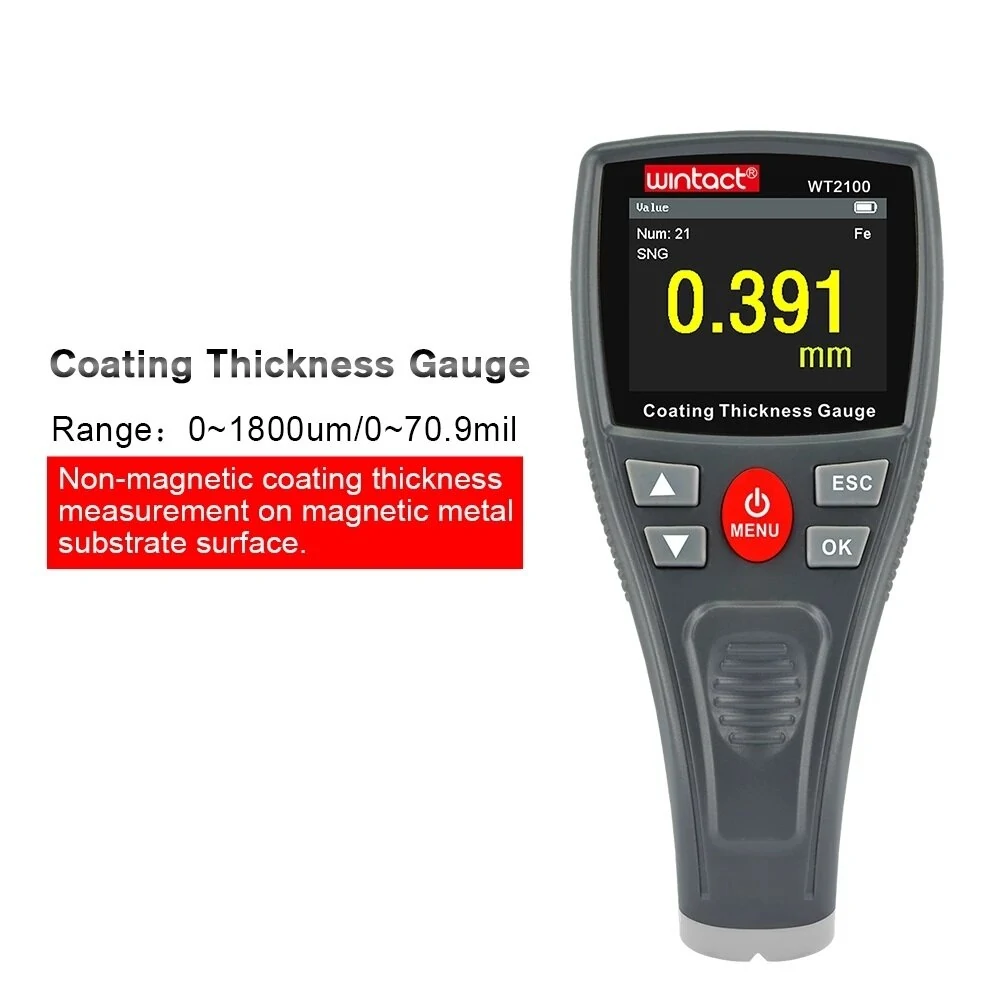

Description:This product is a color-screen portable coating thickness gauge with high-definition display. It can quickly, non-destructively and accurately measure the thickness of non-magnetic coating (such as paint, electroplate, thin film, etc.) on magnetic metal substrates. It is widely used in manufacturing, metal processing,chemical industry, commodity inspection and other testing areas.
Functions:

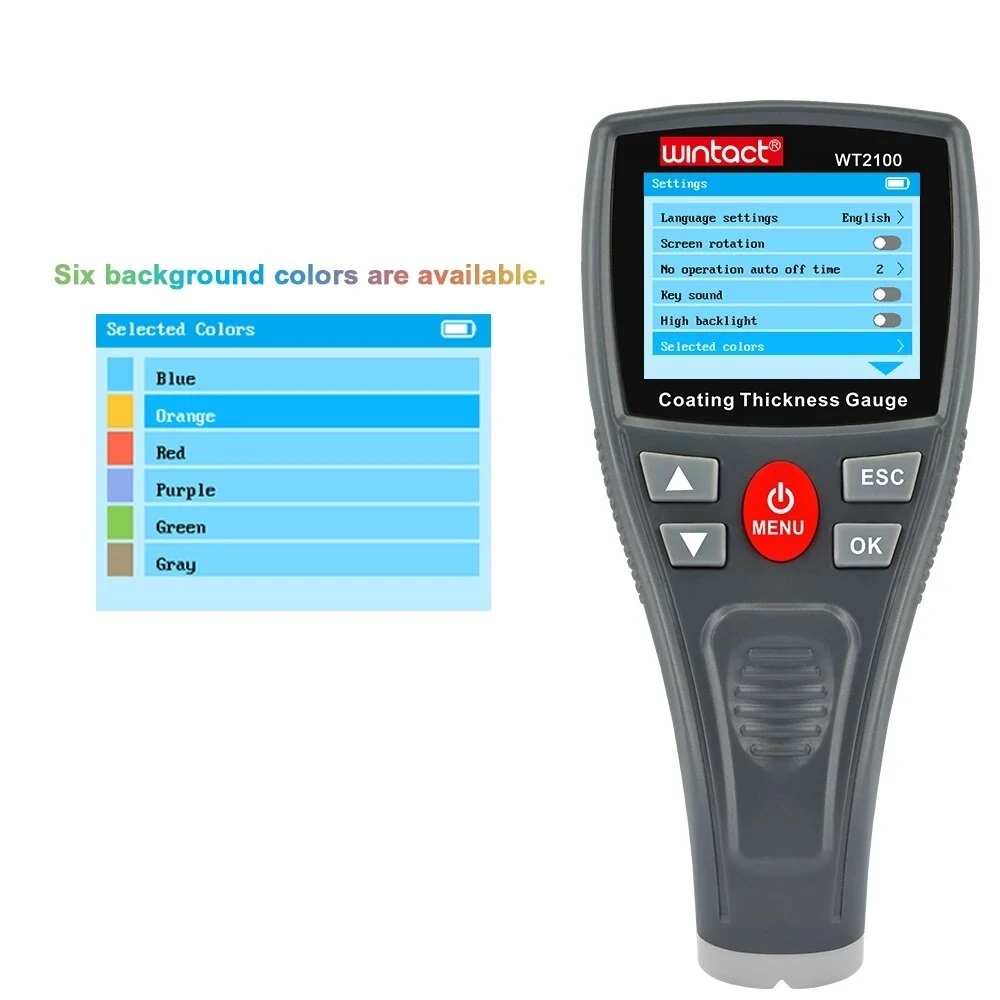

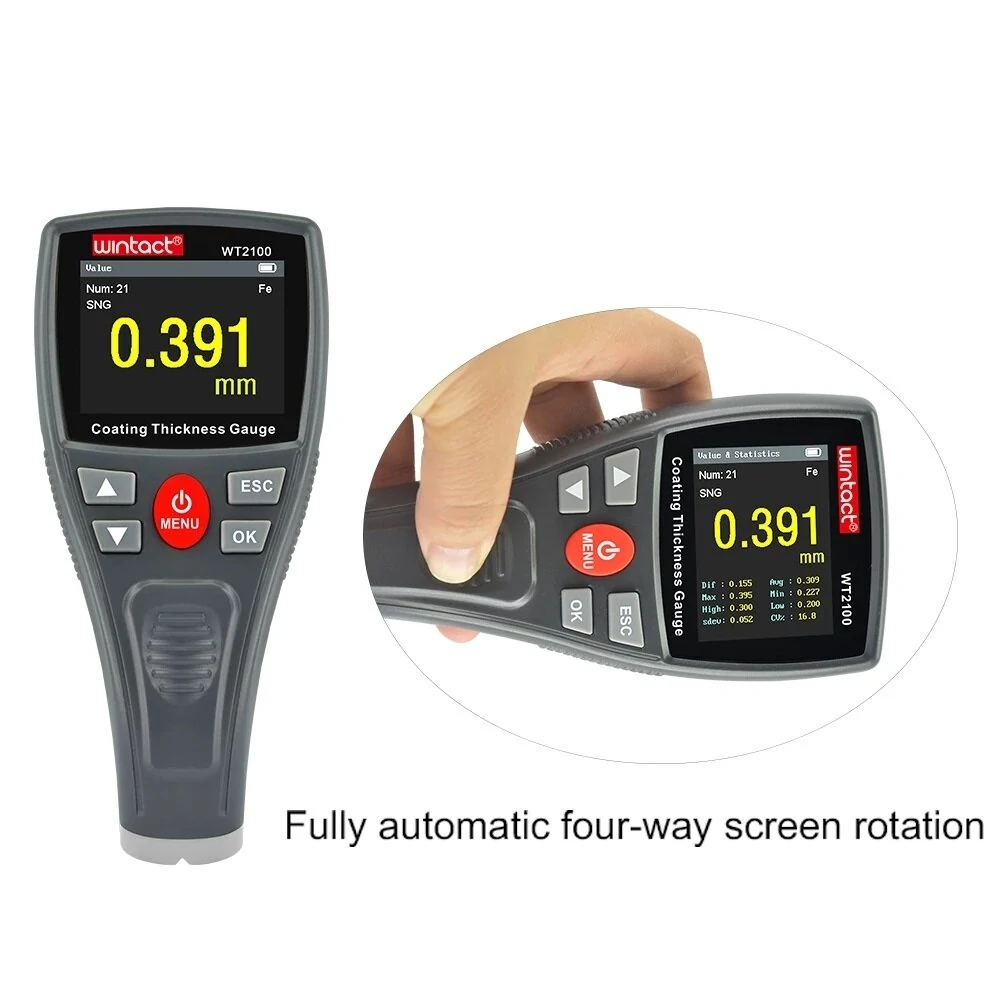

Menu operate and color-screen HD display.Non-magnetic coating thickness measurement on magnetic metal substrate surface.Two measurement methods: single measurement, continuous measurement.Three calibration modes: basic, offset, zero calibration.Metric/imperial unit and storage function.Screen rotation, charge protection, multi-interface displays,screen brightness selection.Automatic shutdown
Specifications:
Model: WT2100Material: ABS PlasticSensor Probe Type: FeWorking Principle: Magnetic Induction(Fe)Range: 0??1800um, 0??70.9mil, 0??1.8mmUnits: ??m, mil, mmAccuracy: ??5um(??150um), ??(3%H+1um)(>150um)Resolution: 0.1um(??100um), 1um(??100um), 0.1mil/0.001mmMinimum Diameter of Magnetic Metal Substrate: 12mmMinimum Thickness of Magnetic Metal Substrate: 0.5mmMinimum Radiu of Curvature for Magnetic Convex Substrate: 2mmMinimum Radiu of Curvature for Magnetic Concave Substrate: 11mmData Storage: 15 Groups, total 1500 data storageOperate Temperature: 0??50??Power 3x1.2V Ni-MH battery (weight 36.5g) or 5V1A power adapterSize 70.30*38.6*149.59mmWeight 136.9 with battery
Package included:
1 x Coating Thickness Gauge1 x USB Charging Cable1 x Iron Substrate1 x Storage Box6 x Thickness Calibration Foil1 x User Manual

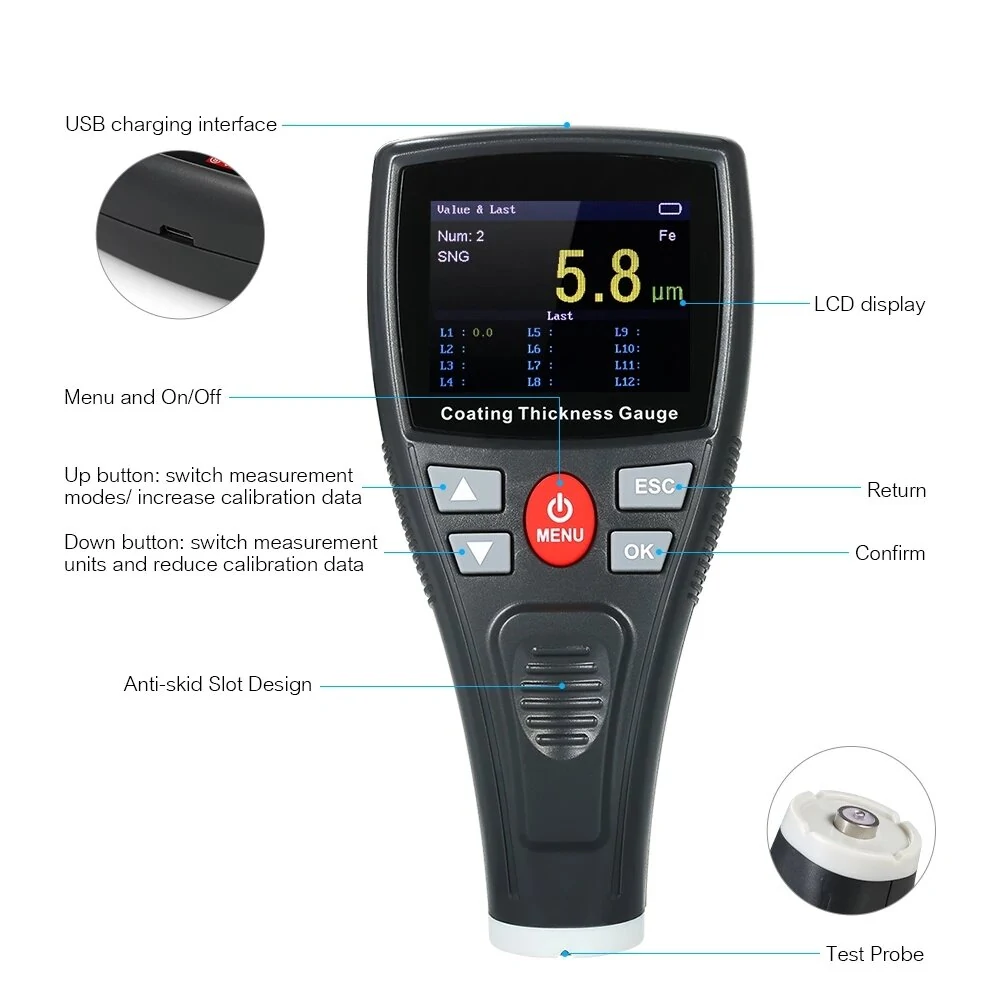

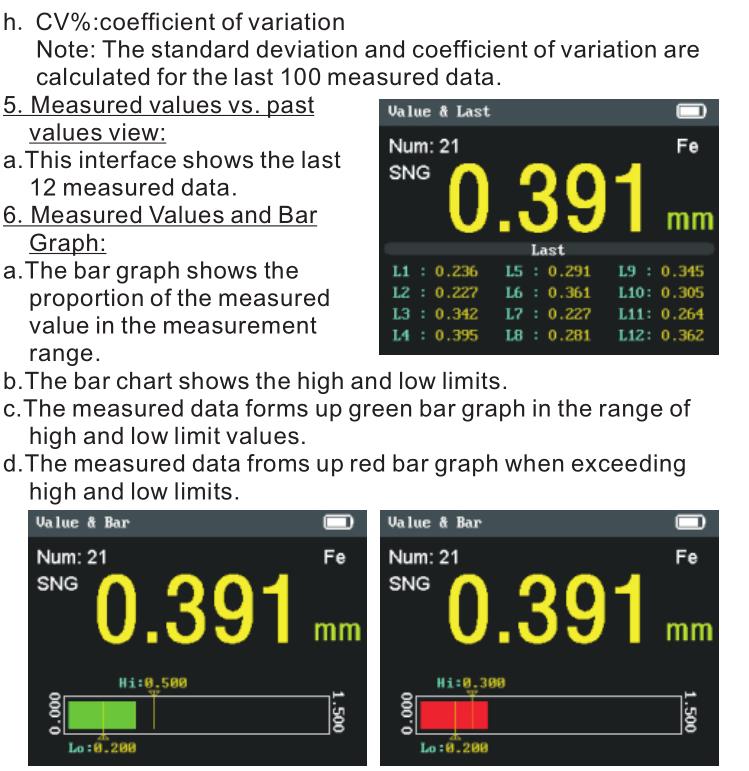

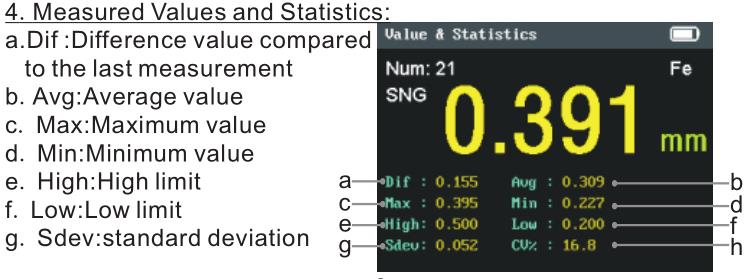

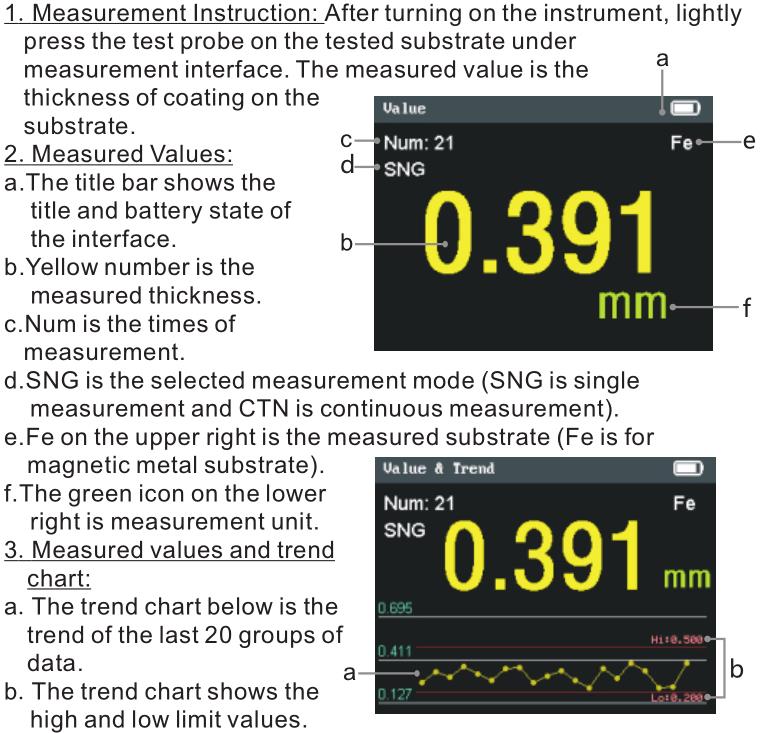

Measurement Interface Instruction:
