KAIWEETS KOTC02 Paint Thickness Gauge | 0-2999µm High Accuracy | Magnetic/Non-Magnetic Metal Tester

Product Description

Specifications:

- Measuring Range: Magnetic material 0-2999??m; Non-magnetic material 0-2999??m

- Resolution: 0.1??m @ (0-99.9??m); 1??m @ (100-2999??m)

- Accuracy: ??(2+2%)??m @ (0-500??m); ??2.5%??m @ (500-2999??m)

- Minimum Measuring Area: Magnetic material 25x25mm; Non-magnetic material 25x25mm

- Minimum Curvature: Convex 5mm; Concave 30mm

- Minimum Substrate Thickness: Magnetic material 0.2mm; Non-magnetic material 0.05mm

- Screen: Segment screen

- Number of Data Storage: 30 sets

- Battery Specification: 2 x 1.5V AAA

- Working Temperature and Humidity: 0??C-50??C, 10%-80%RH

- Storage Temperature and Humidity: -10??C-60??C, 10%-70%RH

- Dimension: 120x52x26mm

Features:

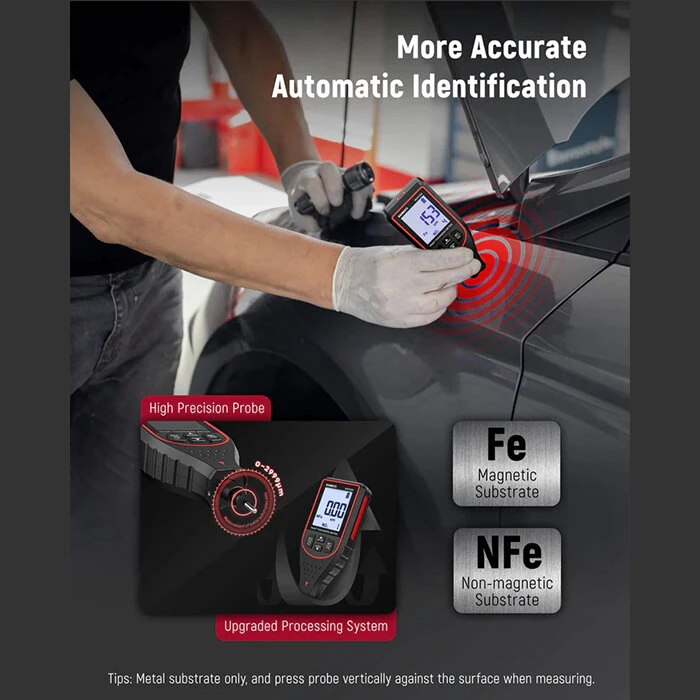

1. Fast and Efficient Measurement: This device delivers paint thickness readings in seconds, automatically identifying ferrous and non-ferrous materials for seamless performance.

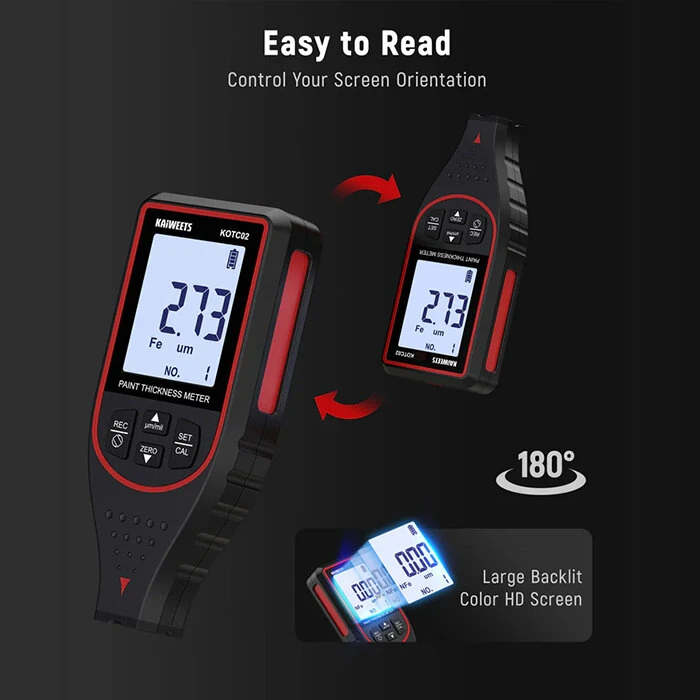

2. Rotatable Backlit Display: Equipped with a high-definition screen that rotates for easy reading, it provides details like metal type, measurement mode, battery status, and stored records in micrometers or mils.

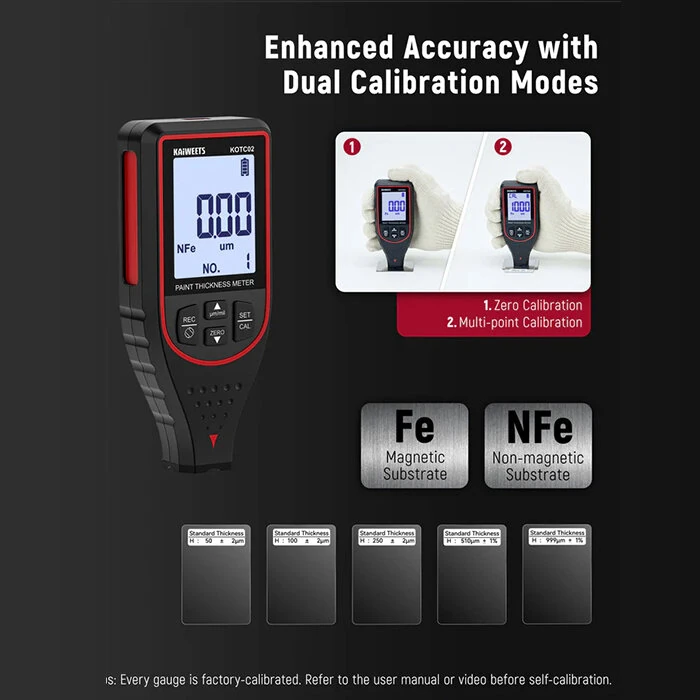

3. Multiple Calibration Modes: Factory-calibrated with both zero-point and multi-point calibration options, ensuring accurate results across varied scenarios and applications.

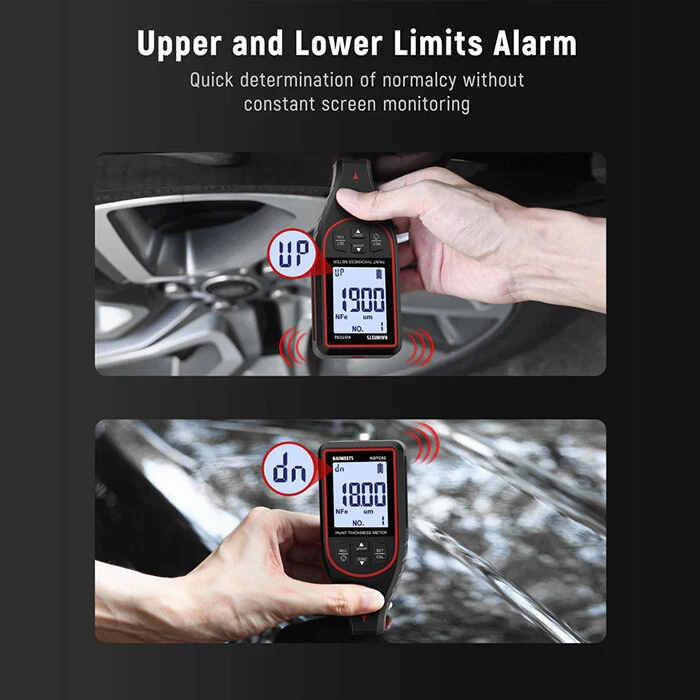

4. Data Storage and Alarm Limits: The ability to store up to 30 sets of data, combined with upper and lower alarm limits, simplifies the analysis of coating integrity.

5. Portable and User-Friendly Design: Compact size with large buttons suitable for use with gloves, along with a storage bag for convenient carrying during outdoor or industrial tasks.

Package Included:

1 x KOTC02 Paint Thickness Gauge

2 x 1.5V AAA Battery

1 x Cloth Bag Box

1 x Instruction Manual

1 x Lanyard

2 x Substrate
