Multifunctional PWM Signal Generator | 0-20mA 4-20mA Current Source | USB Rechargeable

Product Description

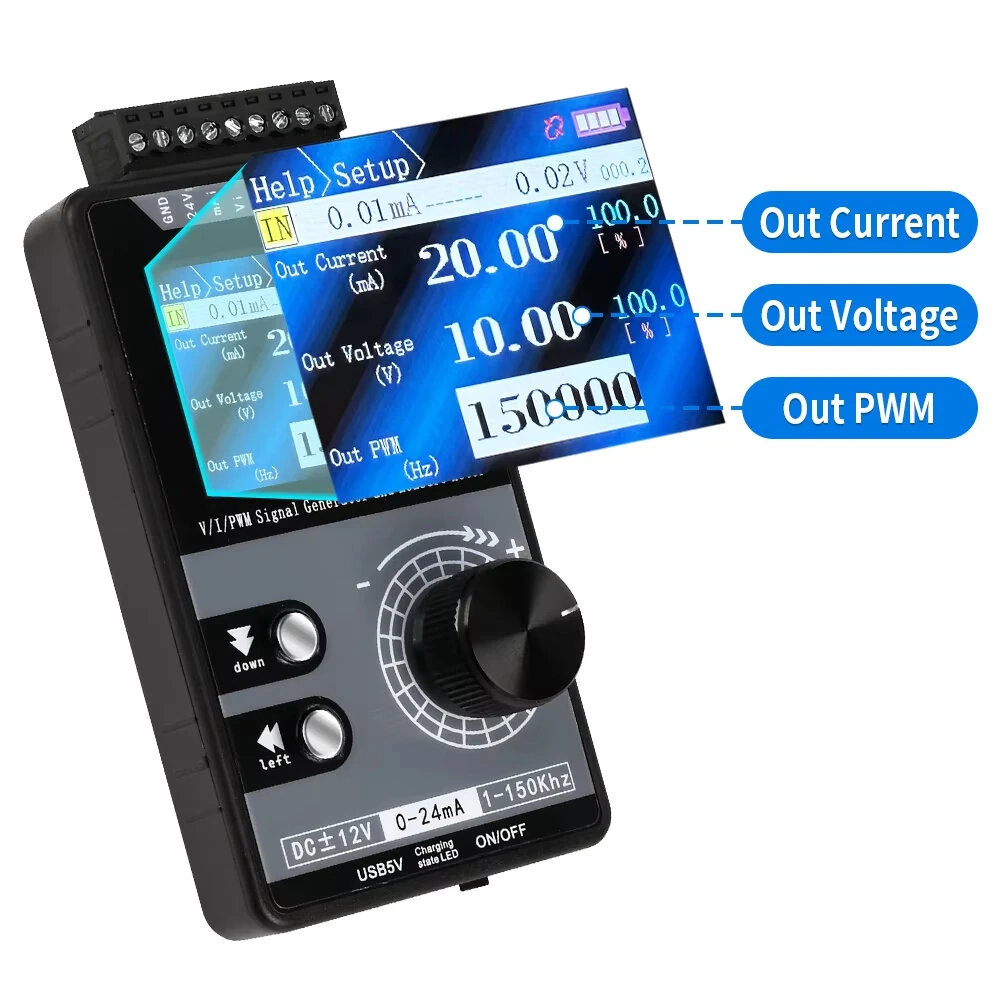

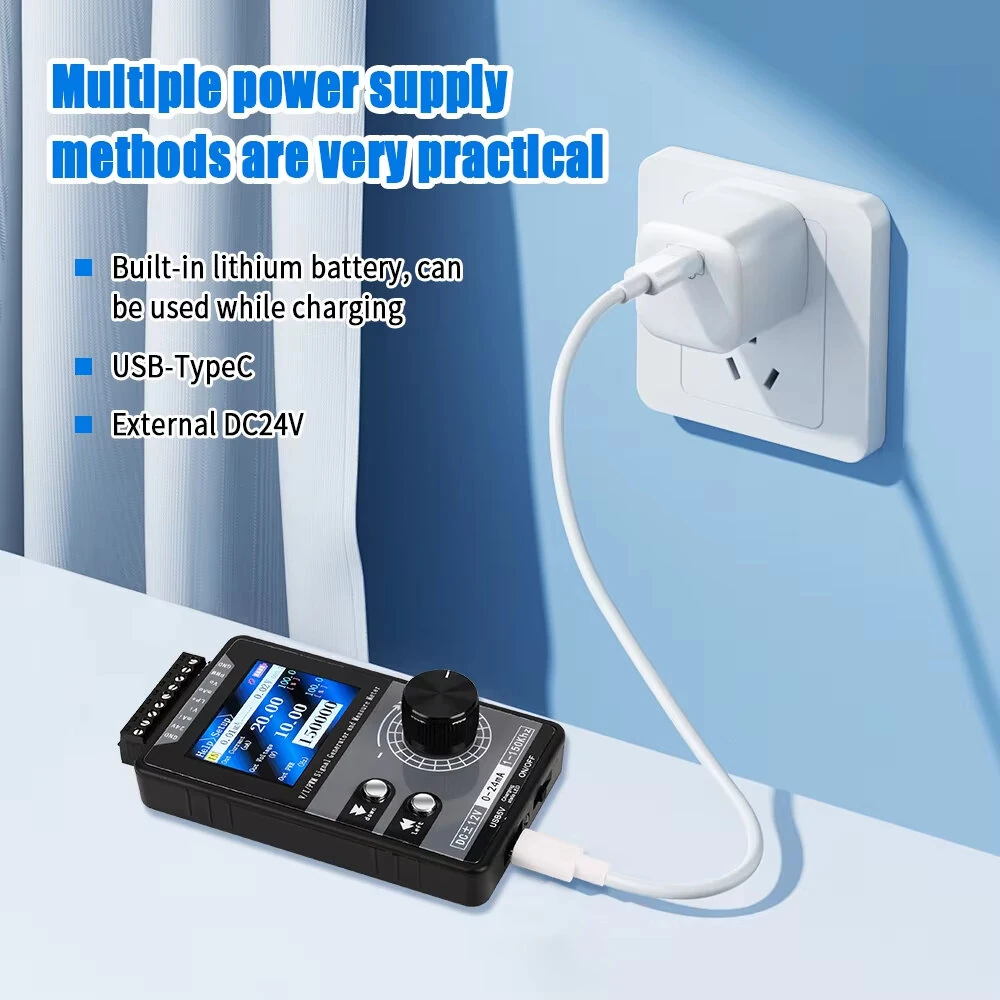

Specifications:Voltage Measurement Range: ??50VDC Voltage Analog Output Range: ??12V (with short circuit protection)DC Current Analog Output Range: 0-24mA (can be short-circuited)Current Measurement Range: ??50mAPWM Pulse Output: Frequency adjustable 1-150kHz, amplitude 5V, current <20mADisplay Screen: 2.0-inch TFT color screen (320*240 pixels)Power Supply Options: External 24VDC terminal/USB Type-C/Built-in lithium batteryMaterial: ABSColor: Gray

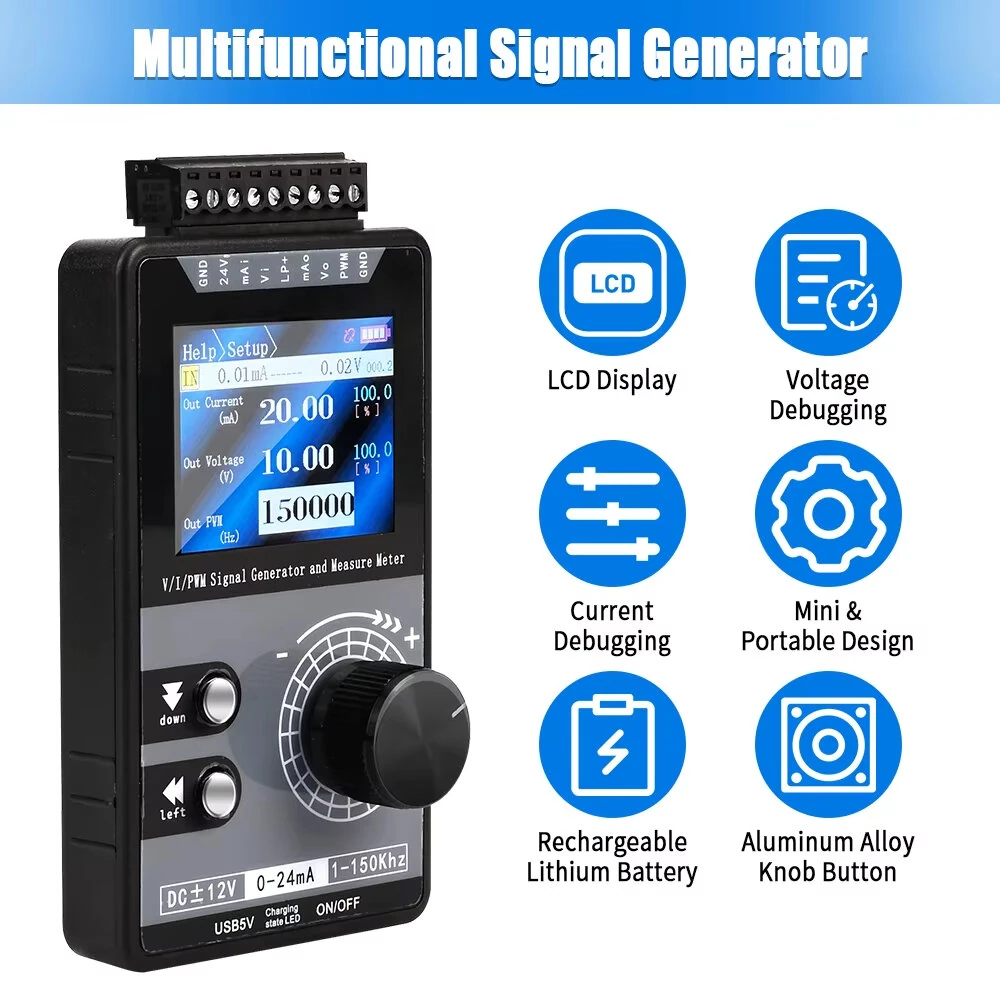

Features:1.Wide Adjustment Range: Configurable output adjustment options including 0-20mA, 4-20mA, 0-10V, and 0-5V with user-defined engineering display values.2.Efficient PWM Output: Provides precisesquare wave PWM pulse output with adjustable frequency range from 1-150kHz at 5V amplitude.3.High-Precision Screen: Equipped with a 2.0-inch TFT color display with 320x240 resolution for clear and concise parameter visibility.4.Three Power Supply Methods: Offers flexibility with external 24VDC terminal, USB Type-C connection, or built-in lithium battery for versatile usage.5.User-Friendly Design: Features a large digital encoder knob for easy adjustment and interfaces available in both English and Chinese.
Package Included:1 x PWM Pulse Signal Generator1 x USB Cable1 x Test Cable
