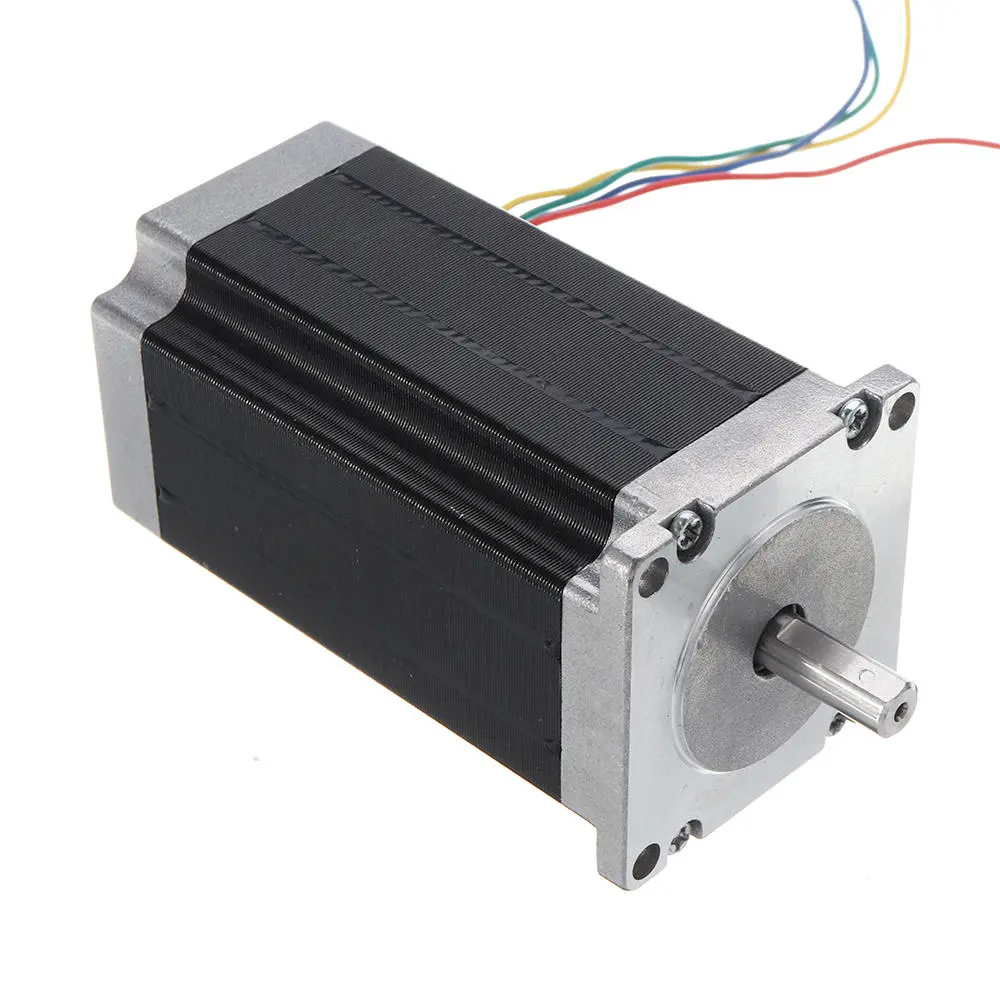

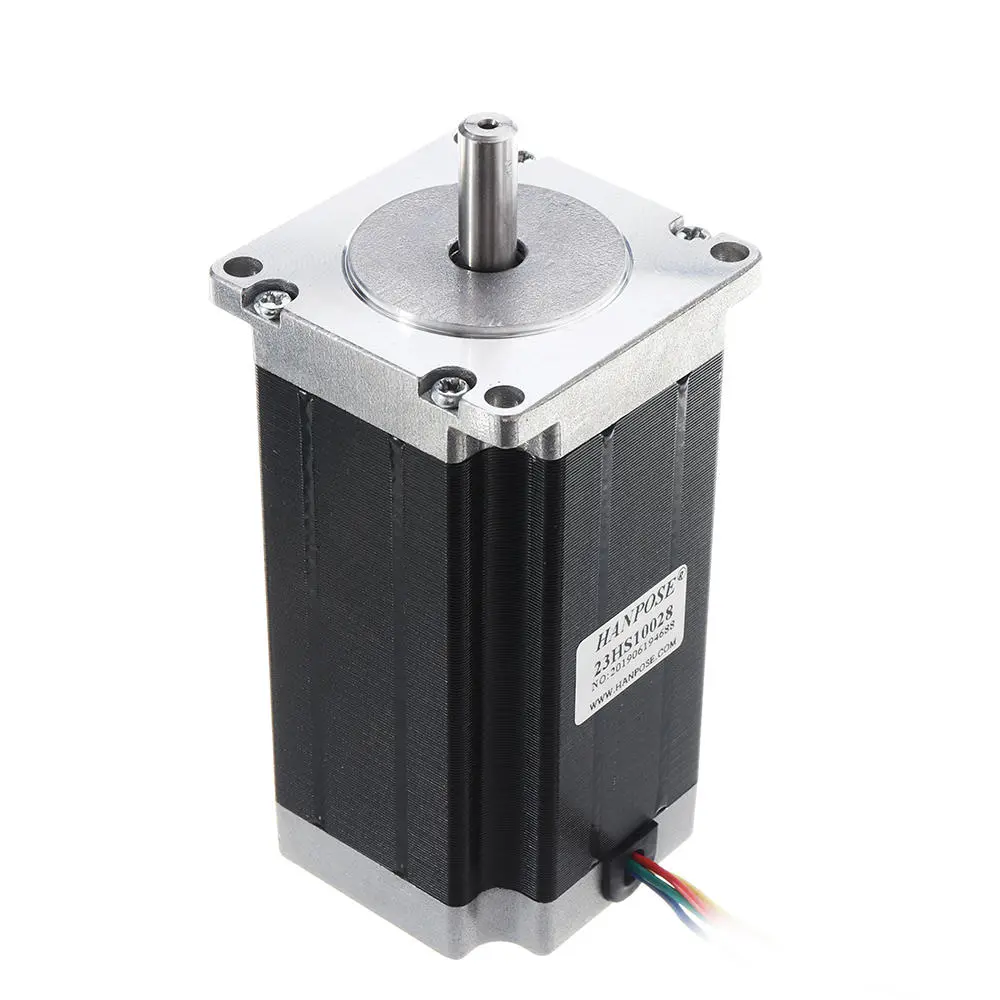

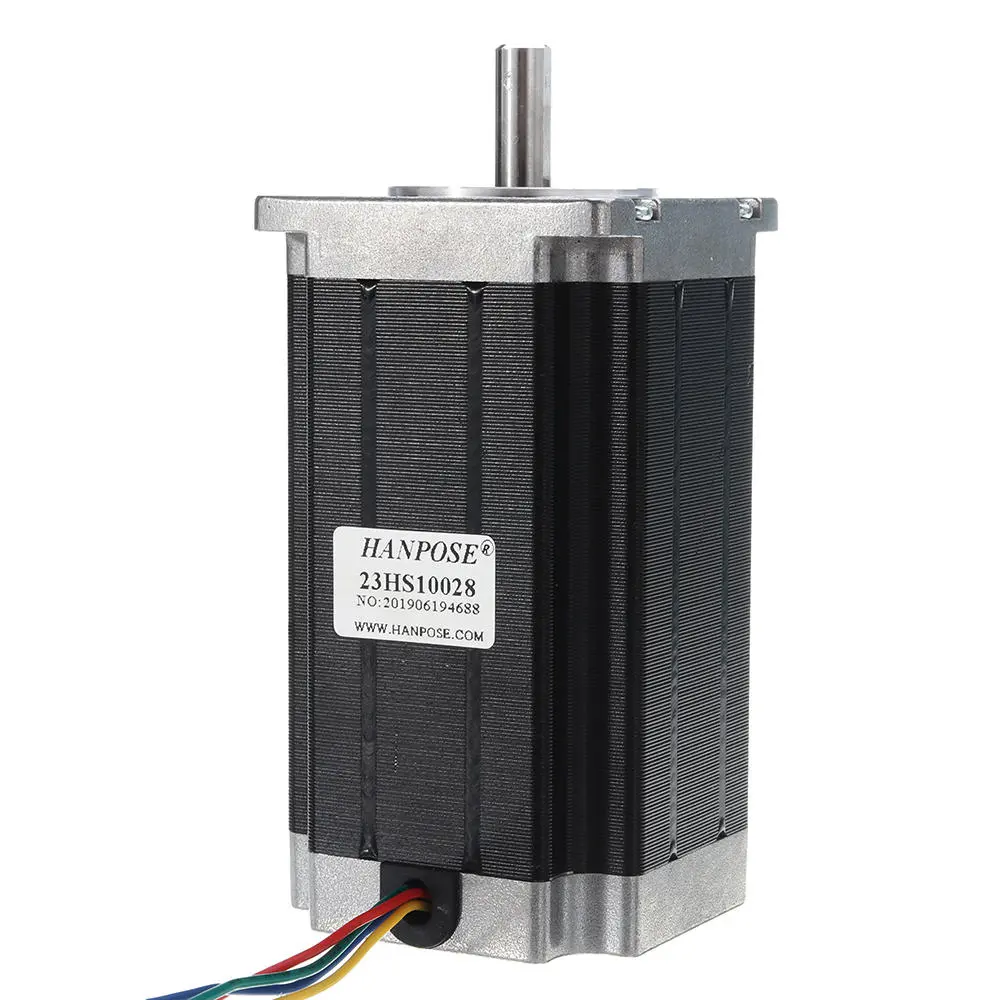

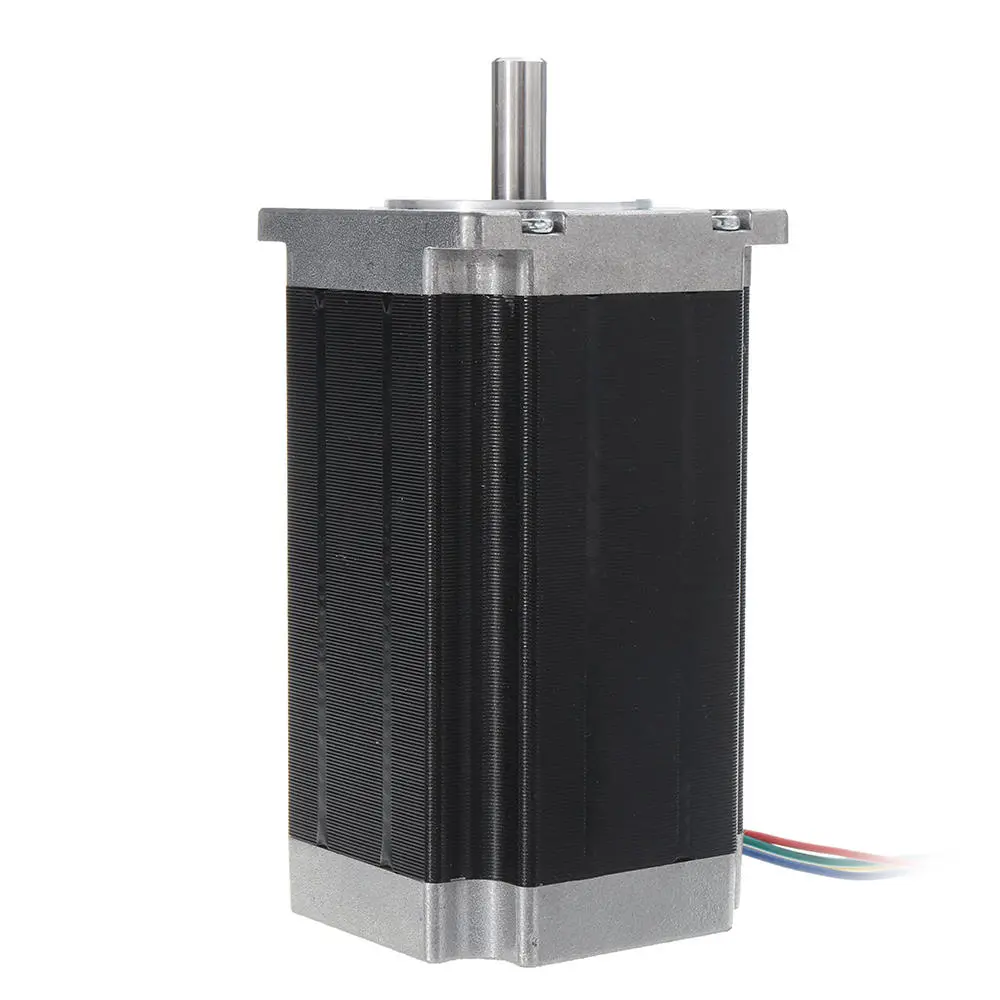

HANPOSE Nema 23 Stepper Motor - 100mm 2.8A 260N.cm for CNC Laser Engraving
$81.00
$99.18
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:HANPOSE 23HS10028 100mm Nema 23 Stepper Motor 57 Motor 2.8A 260N.cm 4-lead CNC Laser Grind Foam Plasma Cut Engraving Machine
Certification: CE, ROSH, ISO, FCC
Shaft Diamter: 8mm "D" Shaft
Specification:
| Model | 23HS10028 |
| Phase | 2 |
| Step Angle | 1.8?? |
| Motor Size | 57 x 100mm |
| Shaft | "D" shaft 22x??8mm |
| Outlet way | "4" line |
| Motor leads | 30cm Wire |
| Adapter drive | Two-phase step drive |
| Scope | 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. |
Electrical Specifications:
| Model No. | Step Angle | Motor Length | Rated Current | Resistance /Phase | Inductance /Phase | Holding Torque | Inertia Of Rotor | Lead |
| ( ??) | (L)mm | (A) | (Ohm) | (mH) | (N.cm) | (G. cm2) | (No.) | |
| 23HS7628 | 1.8 | 100 | 2.8 | 2.1 | 10 | 260 | 650 | 4 |
General Specification:
| Precision angle step | ??5% (full step, no charge) |
| Resistance accuracy | ??10% |
| Precision inductance | ??20% |
| Temperature rise | 80deg Max (rated current, 2 phase on) |
| Ambient temperature | ( - 20??)-(+ 50??) |
| Insulation resistance | 100M?? Min, 500VDC |
| Insultion Force | 500VAC for a minute |
Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance. Package Included:
1 X 23HS10028 Stepper Motor
More Details:
