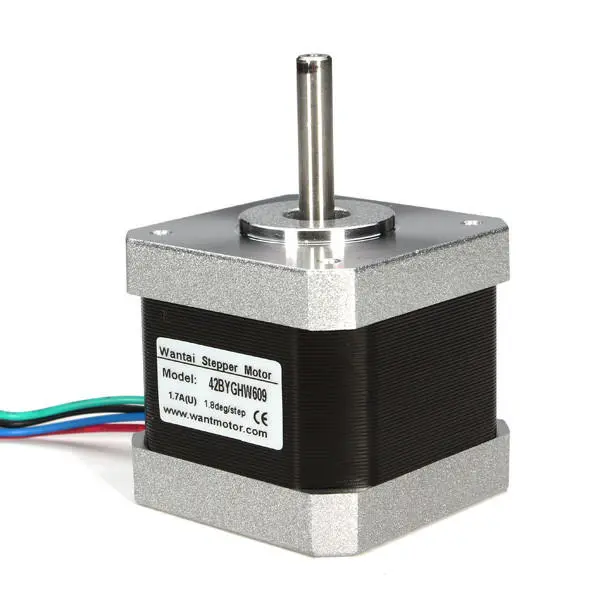

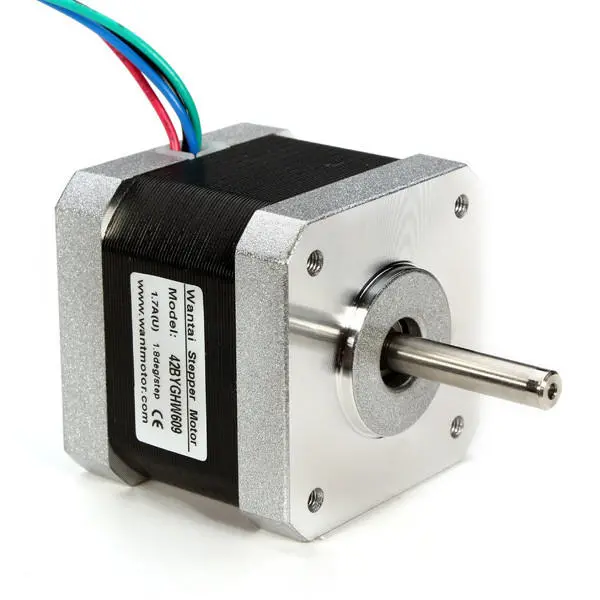

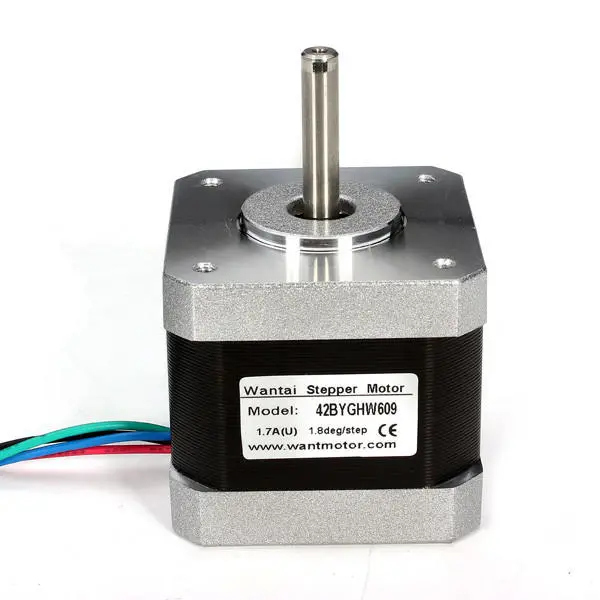

JKM NEMA17 Stepper Motor 42BYGHW609 - 5pcs | 40mm 3.6kg.cm 1.7A 2-Phase
Product Description
Description:

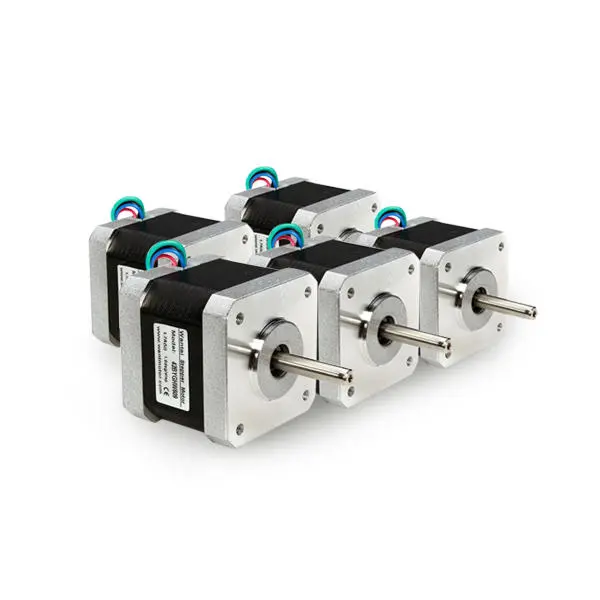

5pcs JKM NEMA17 Two Phase Stepper Motor 42BYGHW609 40mm 3.6kg.cm 1.7A
Specification:
Model: 42BYGHW609
Motor length: 40mm
Diameter of axle: 5mm
The front shaft length: 24mm
Outgoing line: 300mm (Plug is not included)
Electrical Specifications:
| Model | Step Angle ( ?? ) | Motor Length (mm) | Rate Voltage (V) | Rate Current (A) | Phase Resistance (??) | Phase Inductance (mH) | Holding Torque (kg.cm) | Lead Wire (NO.) | Detent Torque (g.cm) | Motor Weight (KG) |
| 42BYGHW609 | 1.8 | 40 | 3.4 | 1.7 | 1.65 | 3.2 | 3.6 | 4 | 150 | 0.28 |
General Specifications:
| Step Accurency | Temperature RIse | Ambient Temperature Range | Insulation Resistance | Dielectric Strength |
| ??5% | 80?? Max. | 20 ?? ~+50?? | 100M?? Min.50V DC | 500V AC 1minute |
Features:
High Start Speed.
Offline command input terminal.
High holding torque at high speed.
Average current control, 2-phase sinusoidal output current drive.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, precision telescope, pick and place machines, linear actuators,etc.
Package Included:
5 x Stepper Motor
More Details:
