Machifit 100-500mm Stroke Linear Actuator | Lead Screw Slide Stage with Stepper Motor

Product Description

Description:

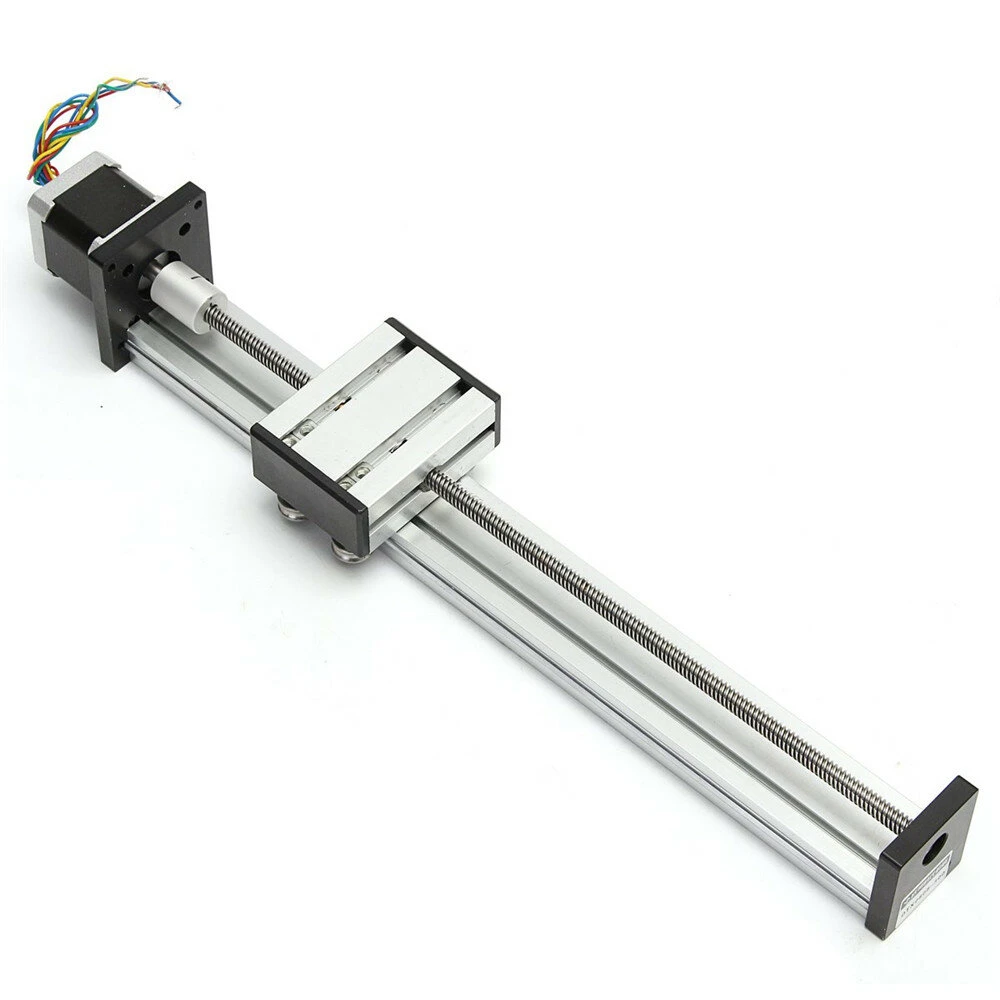

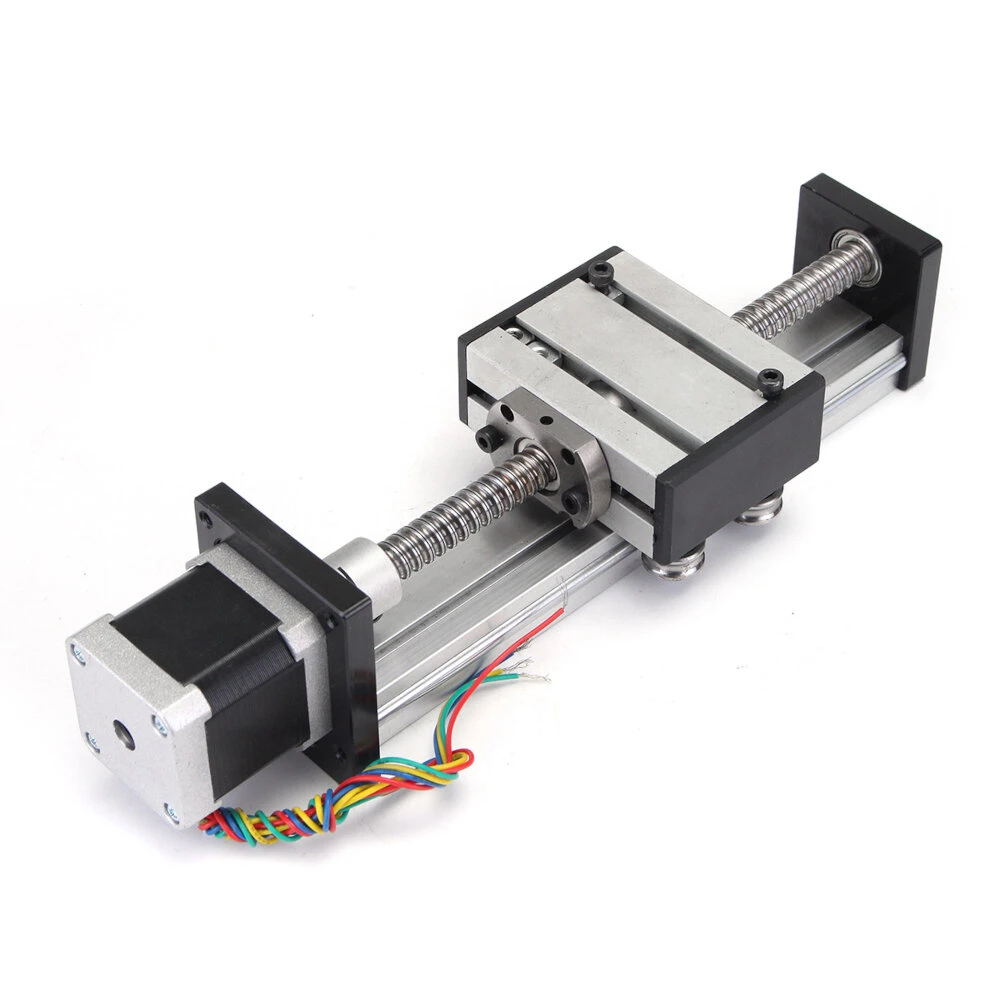

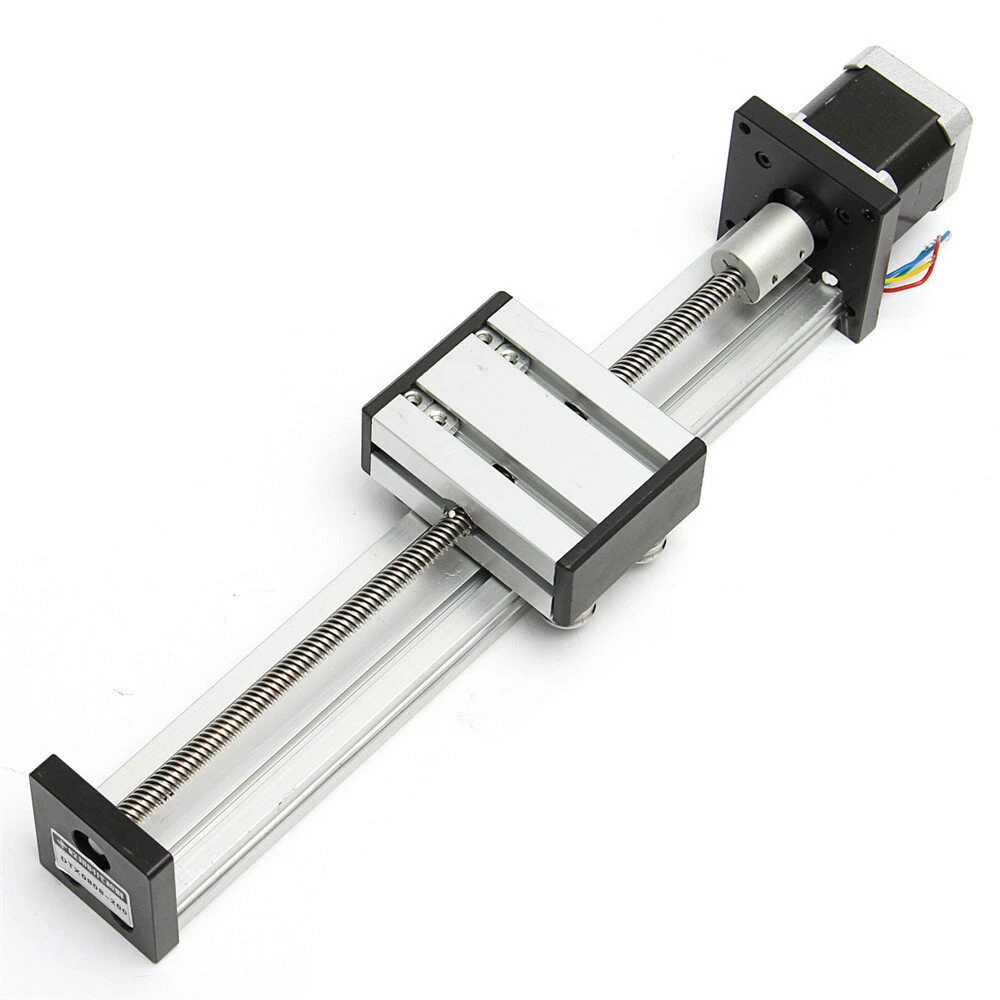

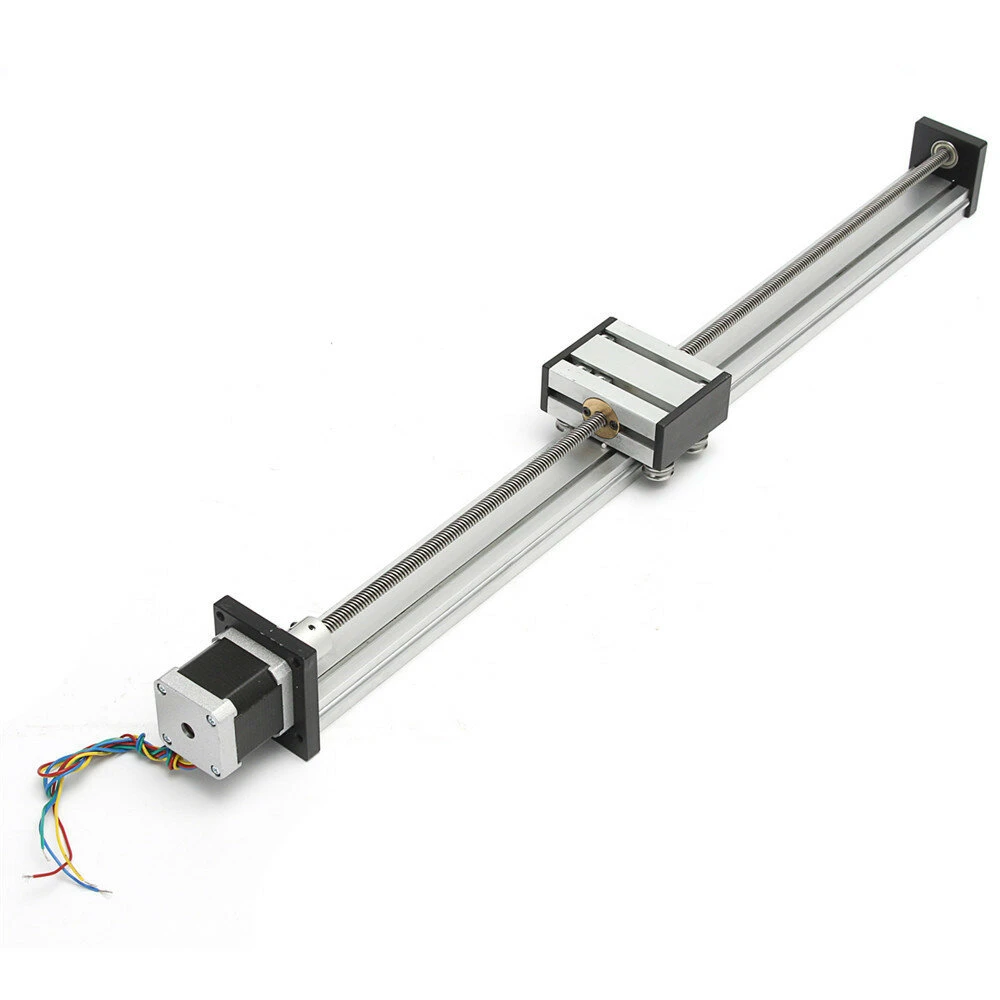

100-500mm Stroke Linear Actuator CNC Linear Motion Lead Screw Slide Stage with Stepper Motor

Specifications:

Product Name: Stroke Actuator
Material: Aluminum Alloy
Size	270*50mm	350*64*50mm	450*64*50mm	550*64*50mm	650*64*50mm
Slide Width	40mm	78mm	78mm	78mm	78mm
The Number of Slider	1
Horizontal Load	20kg	56kg	56kg	56kg	56kg
Vertical Load	8kg	15kg	15kg	15kg	15kg
Current	1.2A
Voltage	12V
Resistance	3.2ohms
Step Angle	1.8??
Torque	45N.cm
Accuracy	0.01mm
Round Trip Accuracy	0.05-0.08mm	0.1-0.5mm	0.1-0.5mm	0.1-0.5mm	0.1-0.5mm
Ambient Temperature	-10-50??
Slide Stroke	0-100mm	0-200mm	0-300mm	0-400mm	0-500mm
Quantity	1 Pc ?? Stroke Actuator

Features:

-Horizontal load 56KG, vertical (pull) load 15KG.
-High precision, heavy load resistance.-Long life, low coefficient of friction, versatility.-The ball screw consists of a screw, nut and ball. The rotation movement into a linear motion, with a small frictional resistance.

Package Included:

1 Pc ??

Stroke Actuator (100/200/300/400/500mm Optional)
