48V 500W ER11 Spindle Motor & Driver | CNC Machine Brushless Speed Controller

Product Description

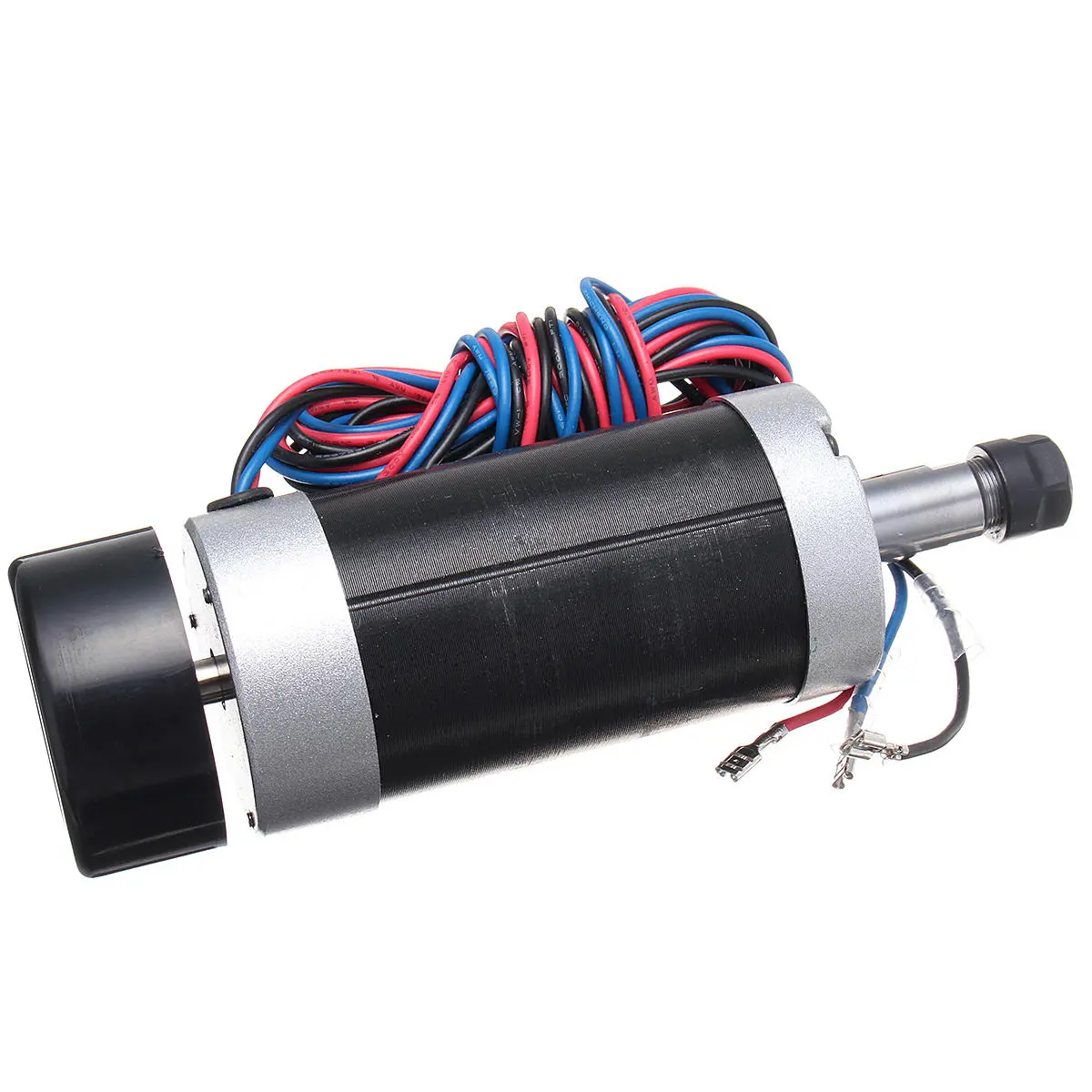

Description: DC 48V 500W ER11 Brushless Spindle Motor Driver Speed Controller For CNC Engraving Machine WS55-220 is a high performance,cost-effective 3 phase BLDC motor controller. Voltage range is from 20V DC to 50V DC. The controller can drive the DLDC motor with HALL or without HALL. Specification: Motor Material: Metal Brushless motor parameters:

Working voltage	48 V DC
Power	500 W
Speed	12000 r/min
Torque	0.45 (N.m)
Insulation resistance	> 2 ohms
Insulation dielectric strength	400 V

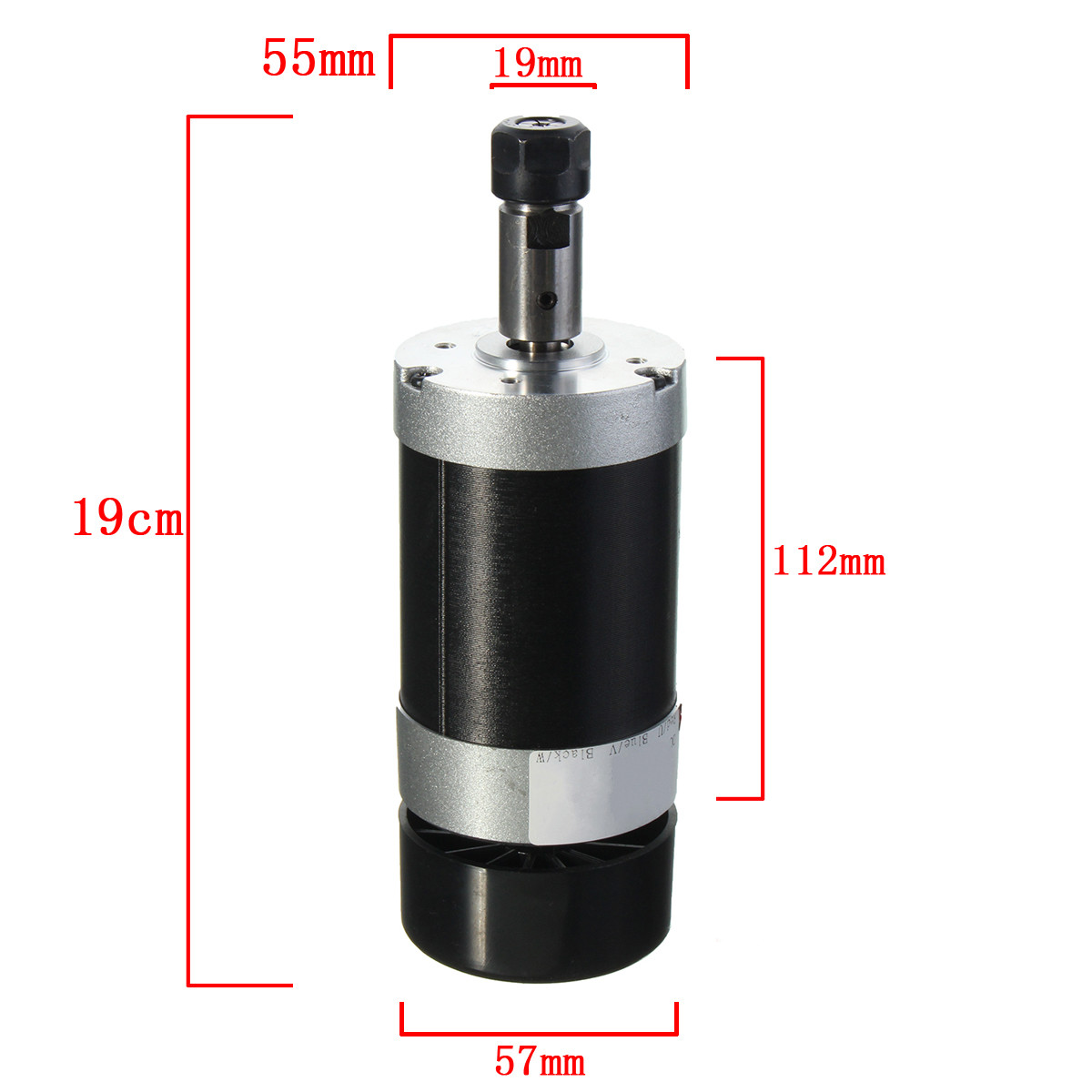

Diameter	55 mm
Distance	0.6 (N.m)
Insulation resistance	> 2 ohms
Insulation dielectric strength	400 V
diameter	55 mm
The spindle radial runout about	0.01 to 0.03
Spindle net weight	about 1.4KG
Application	Can be used for metal or non-metal materials such as carving. The spindle with forced air cooling, can work long hours.

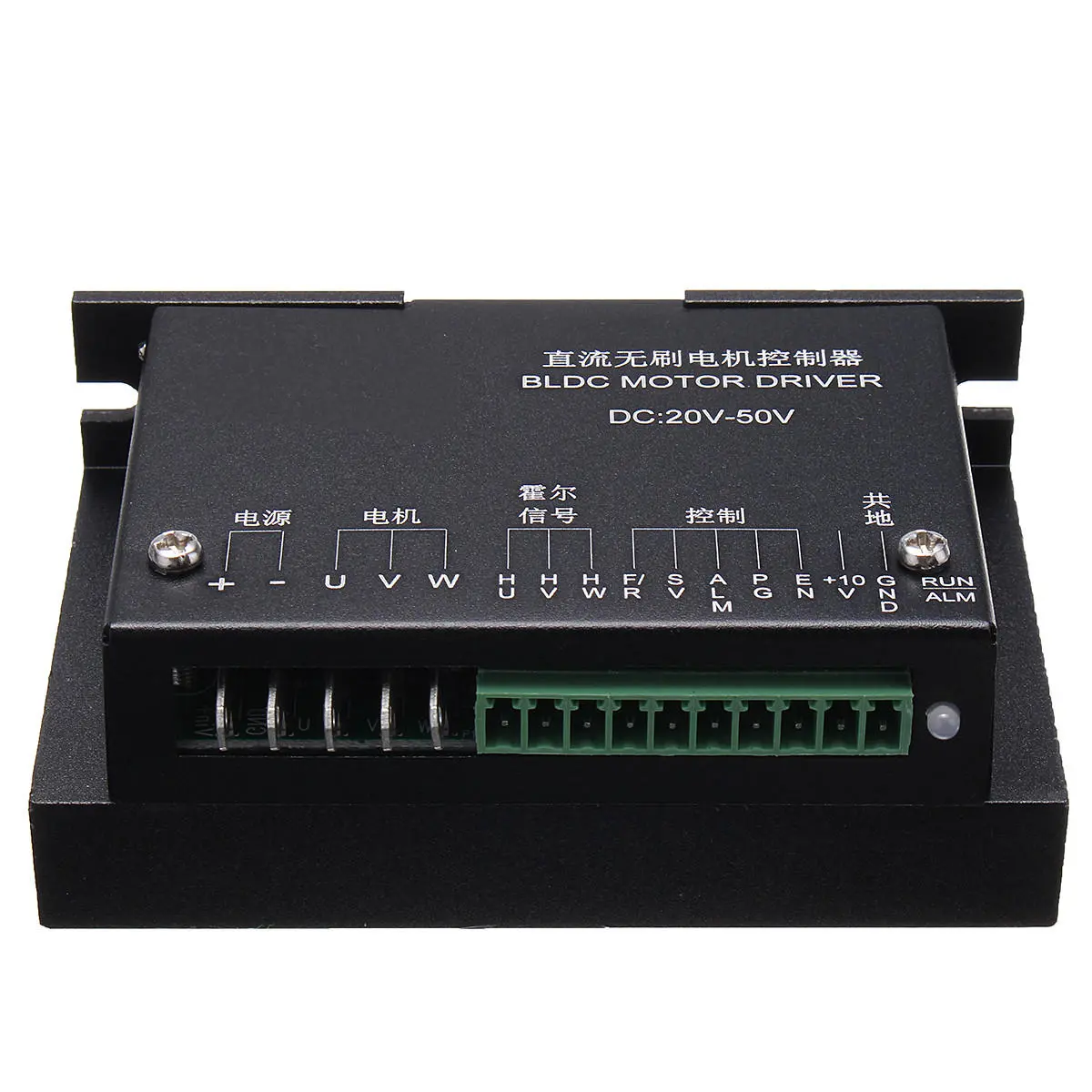

Brushless DC speed driver controller parameters:

Model	WS55-220
Rated voltage	20-50V DC
Rated current	8A
Limited current	10A
Maximum speed	Over 20000RPM

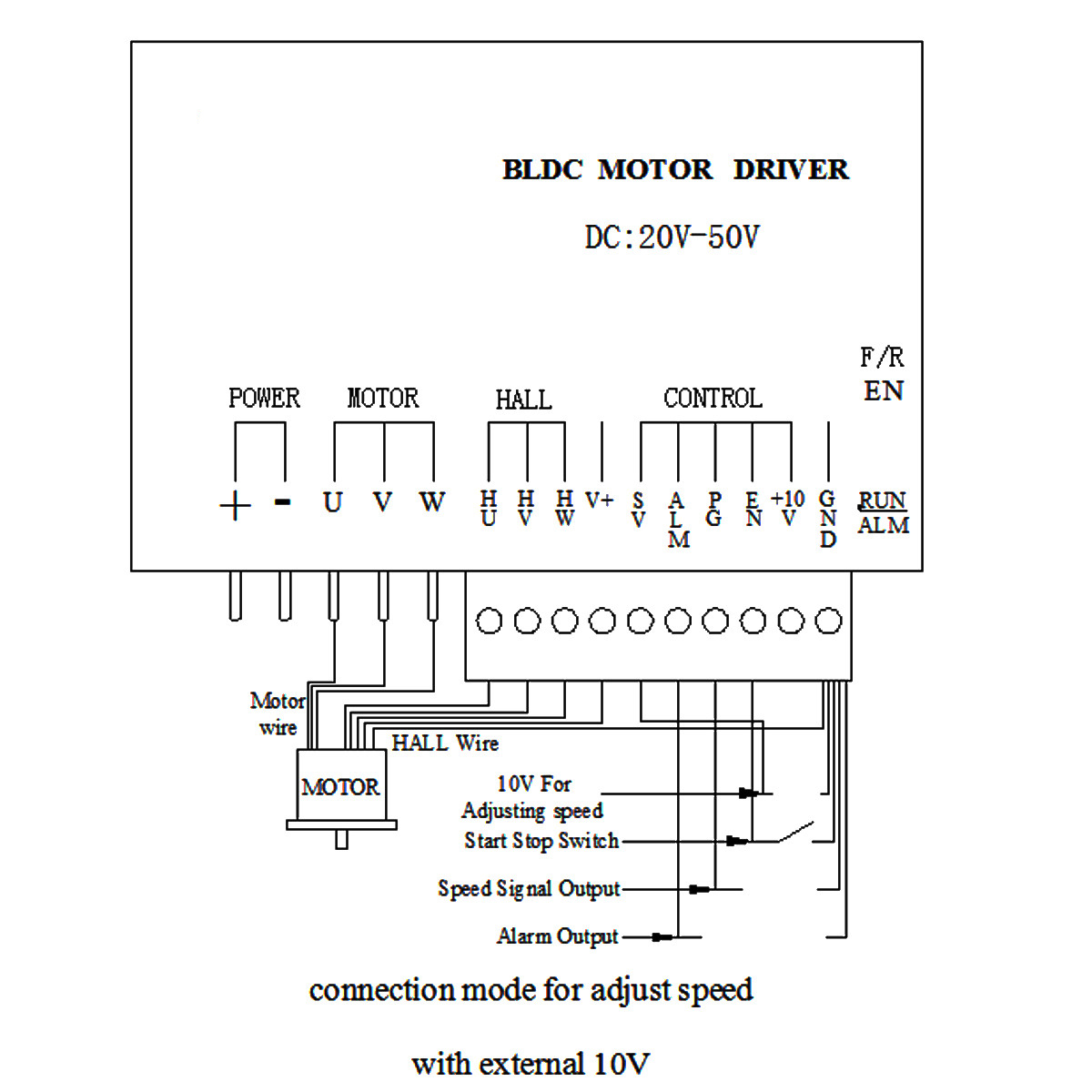

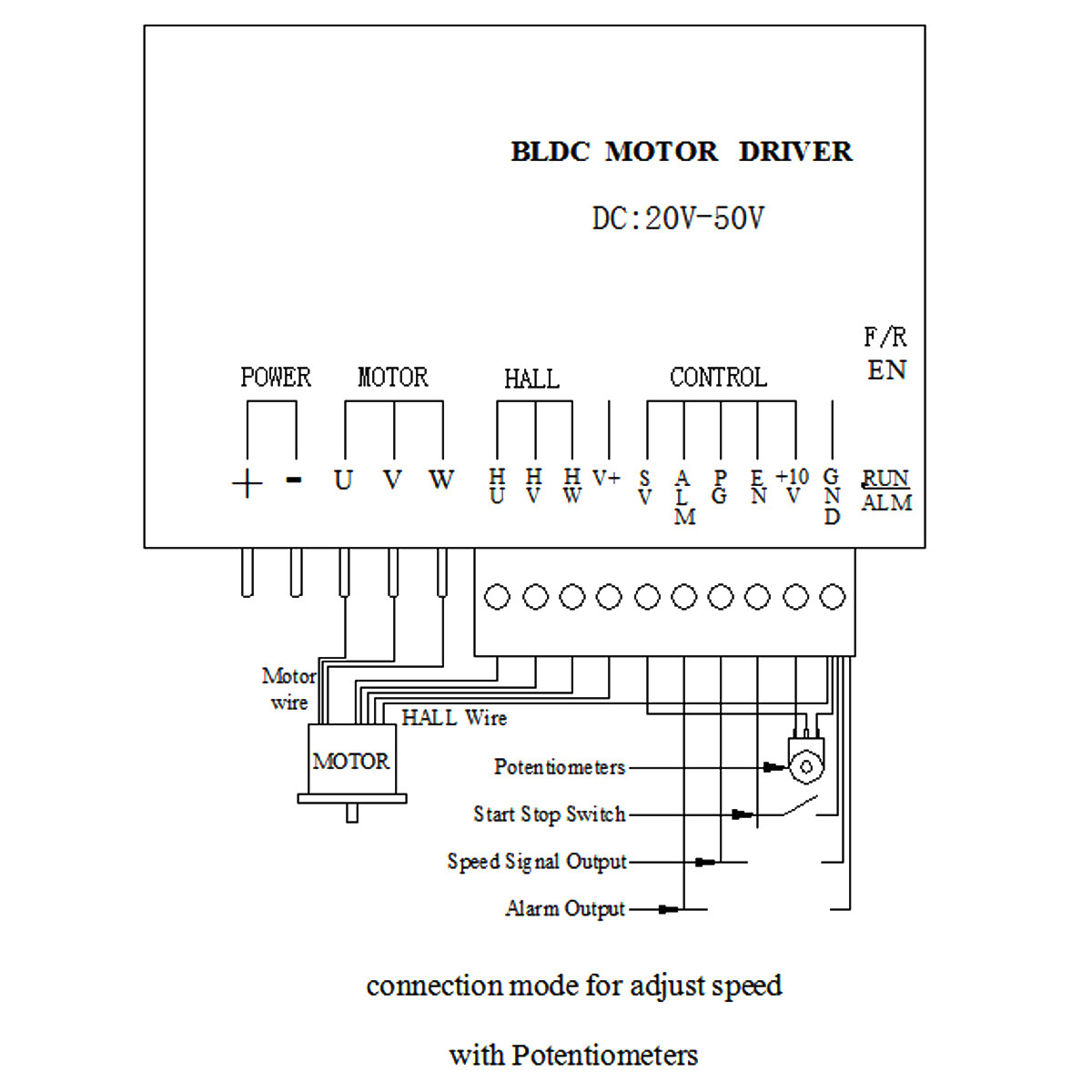

Speed control	1.Regulation resistance,
	2.External voltage:10VDC
Alarm output	AL signal:This port and the ground have a 5V alarm output output
Power light	Green LED(The led is on once power on)
Operation condition light	Red LED(The led flash one times continuas When the device is suspended)
Insulation resistance	>100M?? at normal temperature and pressure
Insulation strength	0.5KV, 1 minute at normal temperature and pressure
Storage temperature	-20?? ~ +65??
Storage humidity	0~95%RH
Working temperature	0-45??
Working humidity	< 80%,No frost, frost free
Working Vibrating	5.9m/S2 MAX

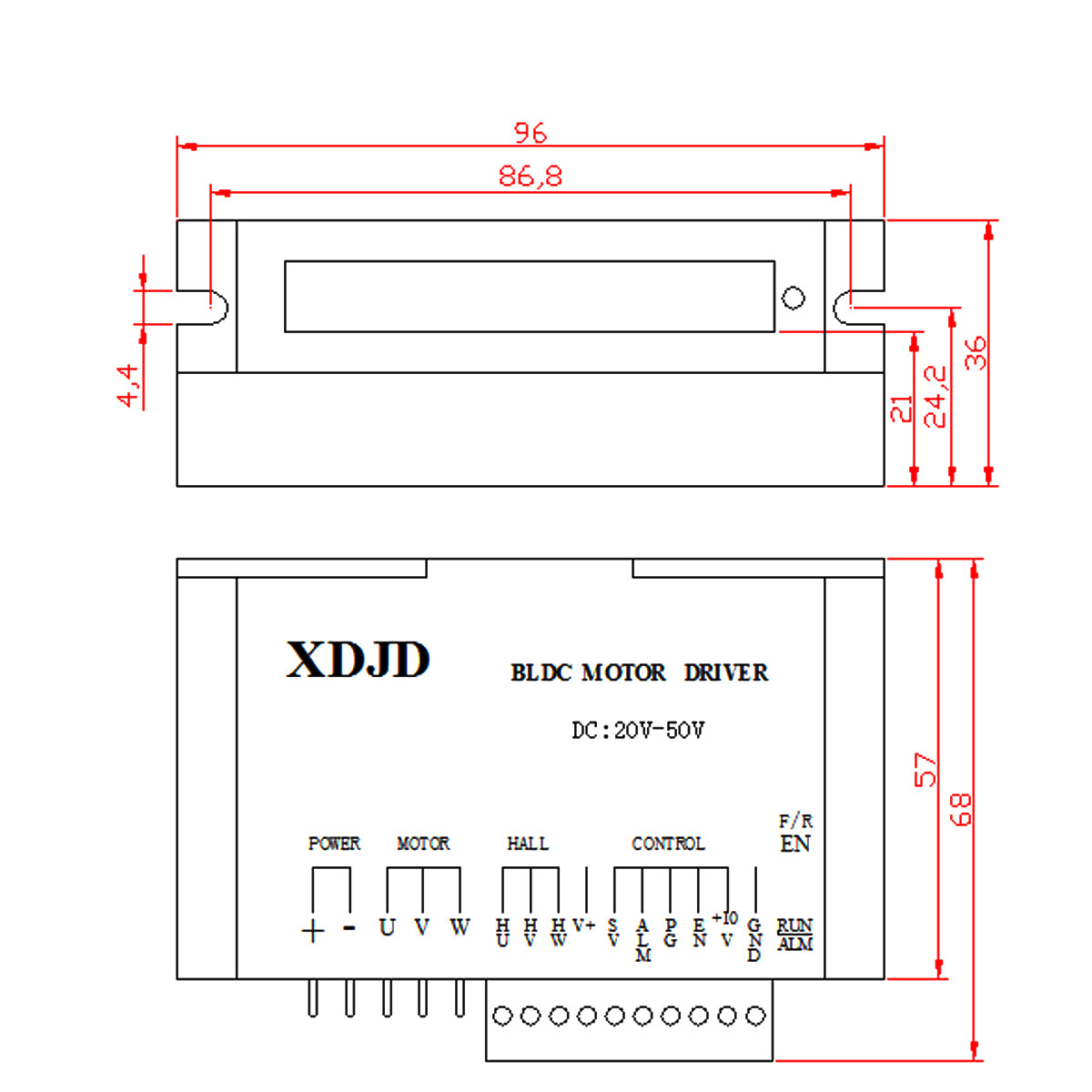

Dimension	96x57x36mm

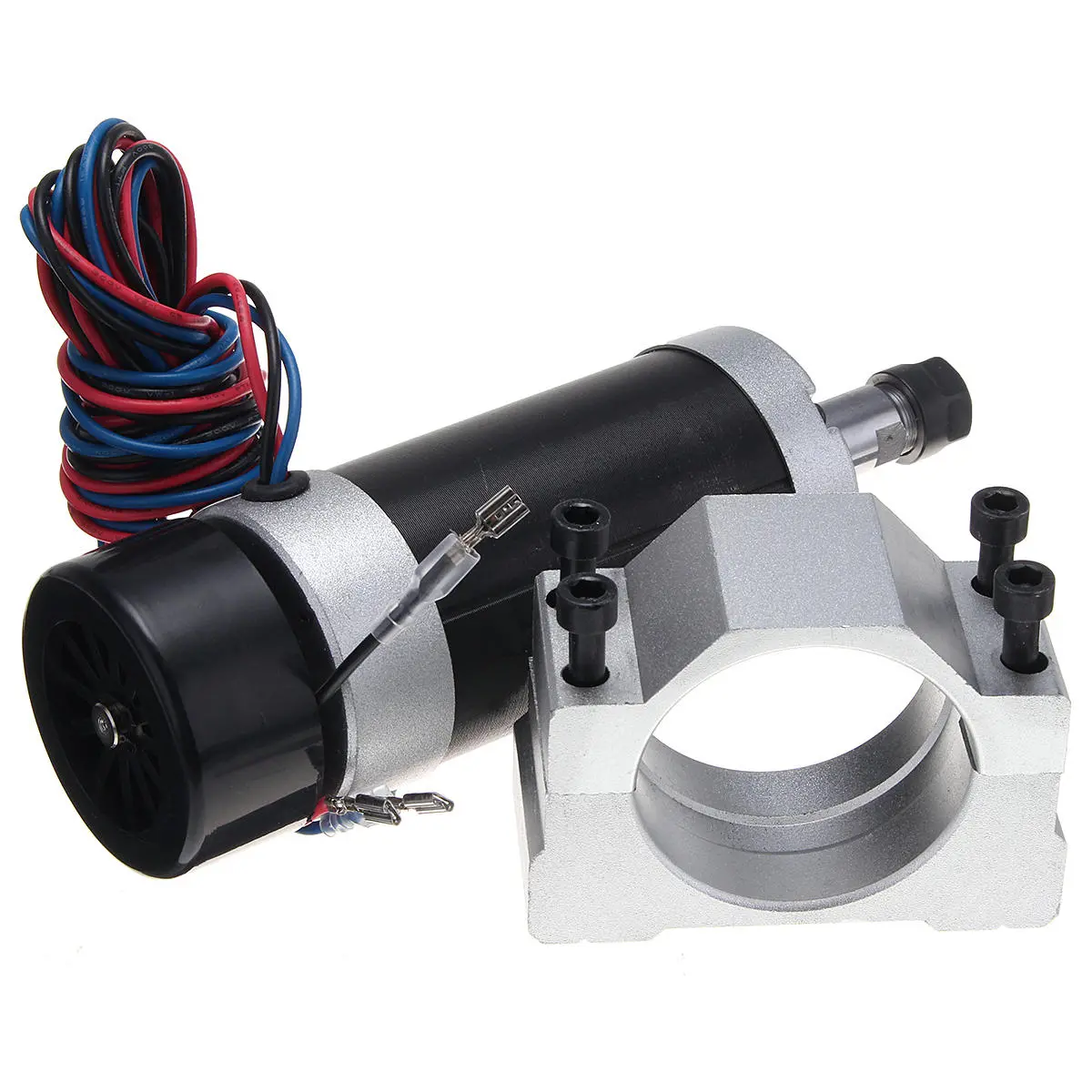

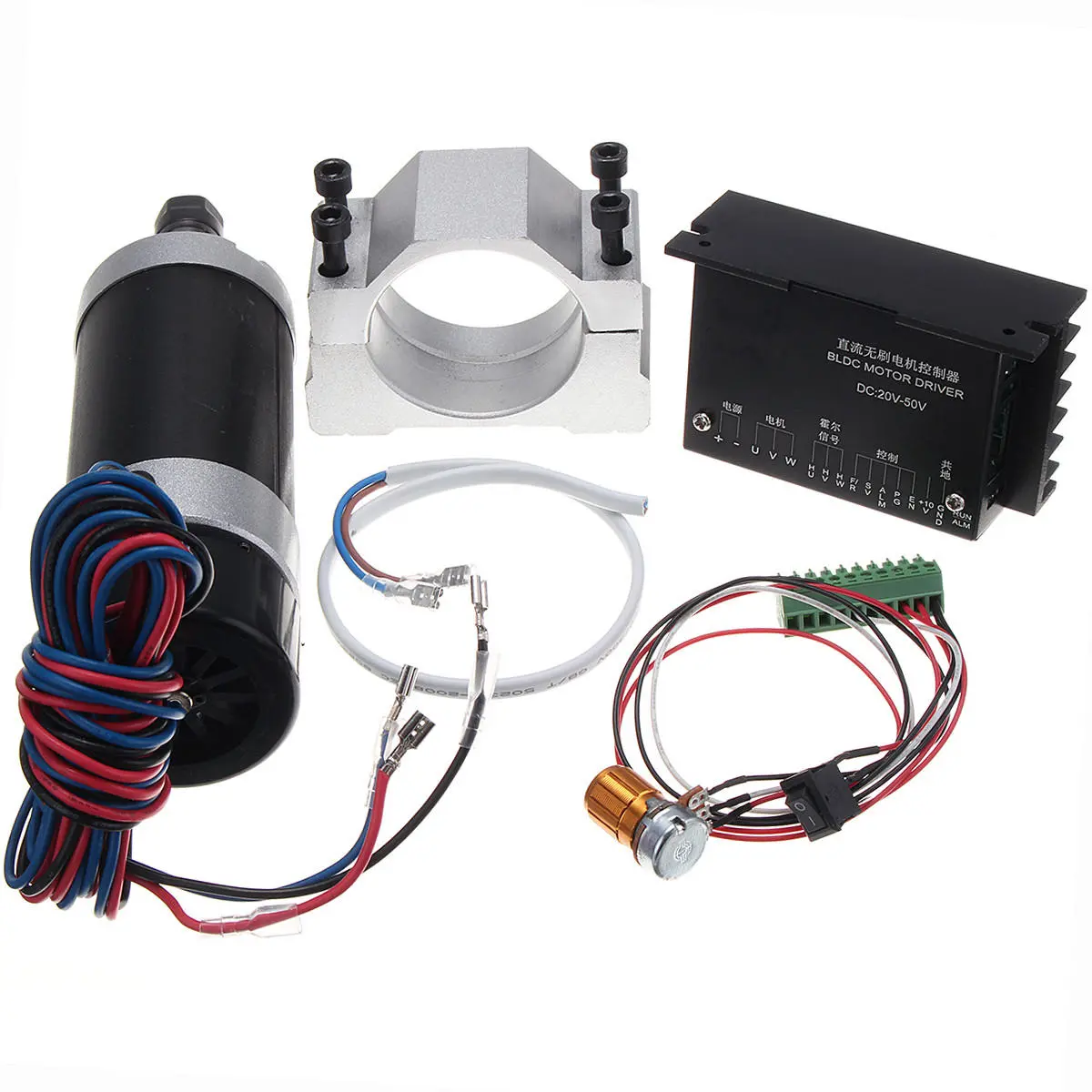

Main Features: Brushless motor: 1. brushless, low interference, in addition to the brushless motor brush, the most immediate change is no brush spark generated when the motor running, thus greatly reduce the electric spark interference of remote radio equipment. 2. low noise, smooth operation, brushless motor without brush, less friction force during operation, smooth operation, low noise will be many. 3. long life and low maintenance costs, less brush, brushless motor wear is mainly on the bearing, from the mechanical point of view, brushless motor is almost a free maintenance of the motor Speed driver controller: 1. Speed/Current alike close loop technology, smooth rotation. 2. Pure hardware design, high-speed, high noise immunity. 3. F/R(forward / reverse control) Rotation, soft shift function. 4. Over current, short circuit protection (red LED indicator). Package Included: 1 x Engraving machine principal axis 1 x Stationary fixture 1 x Drive Controller 2 x line(as picture) Notice: 1.Please allow a bit error due to manual measurement. please make sure you do not mind before you bid. 2.The color may have different as the difference display, pls understand.
3. There are no instructions included in this kit.Professional Installation Is Highly Recommended! More Details:
