Product Description

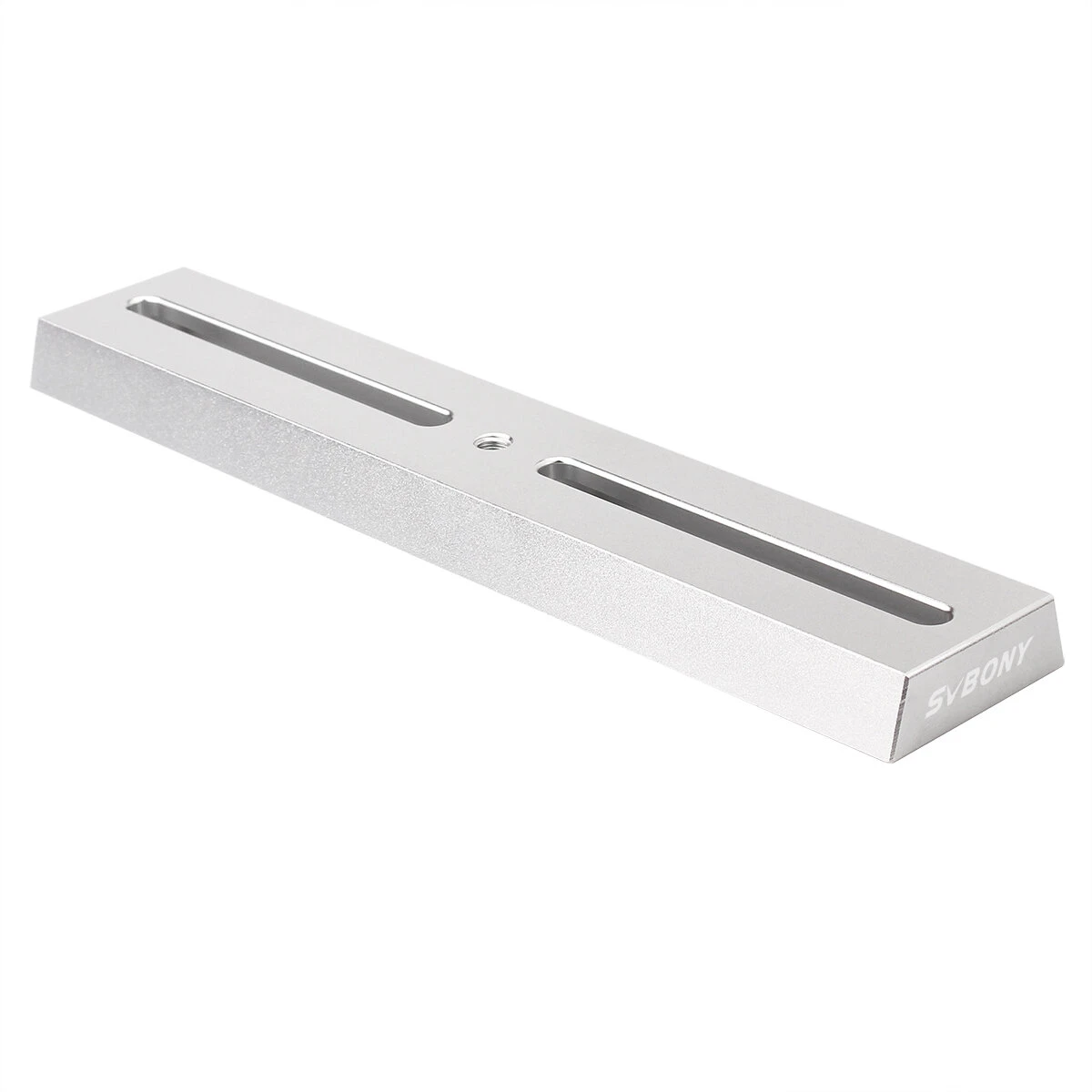

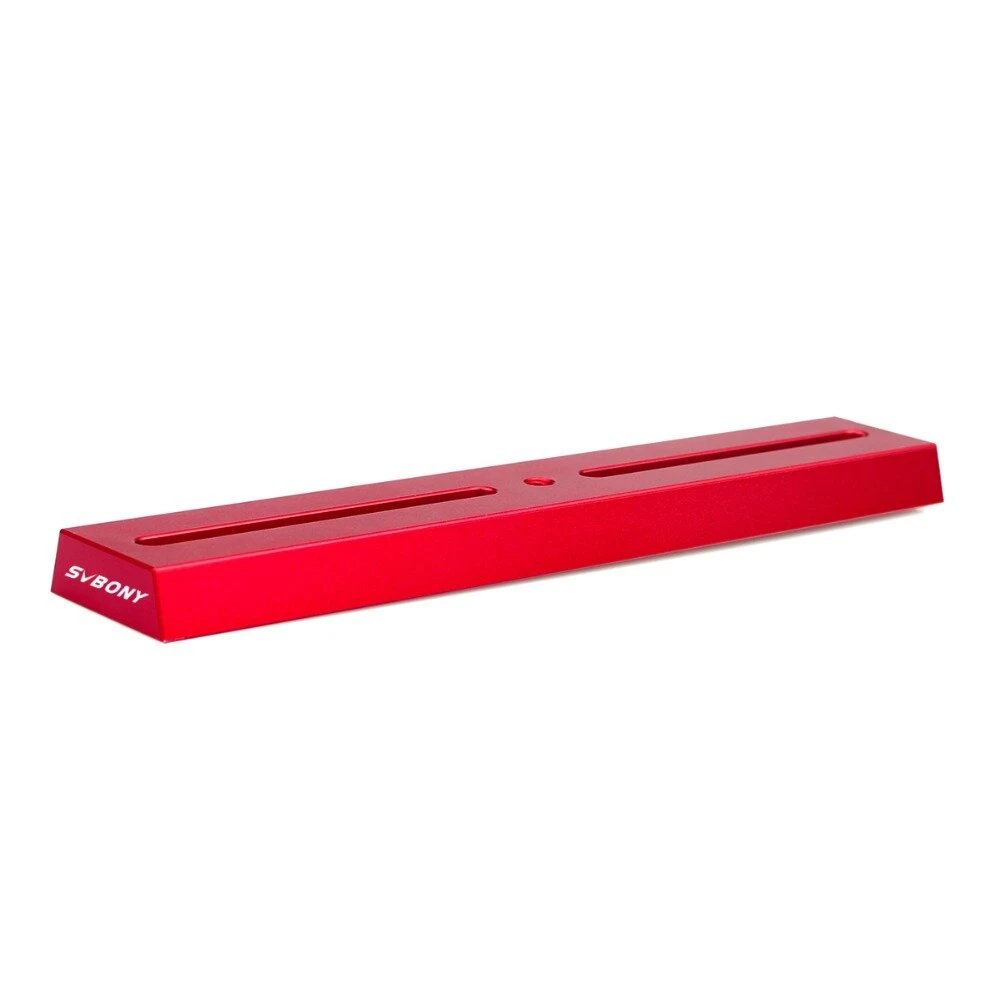

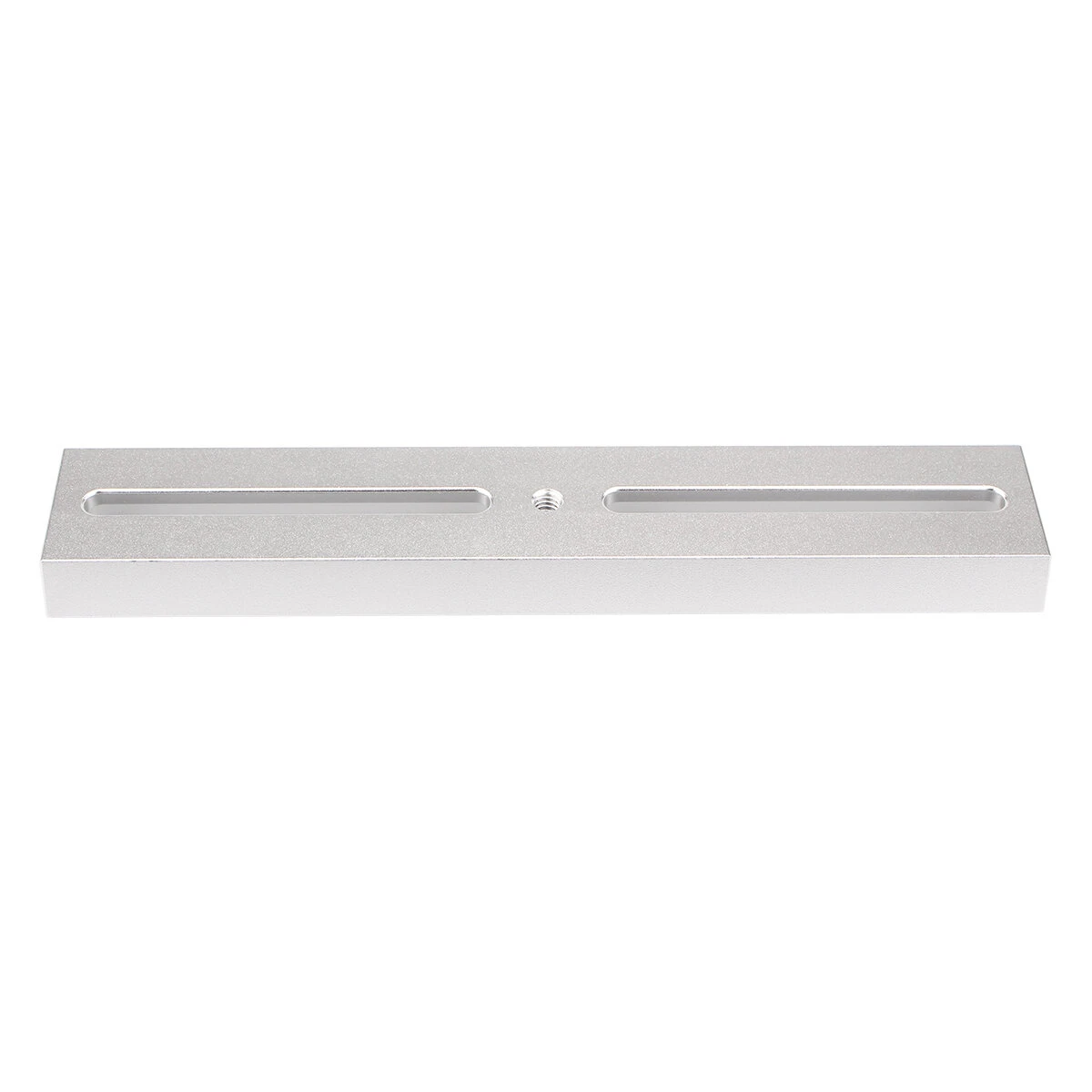

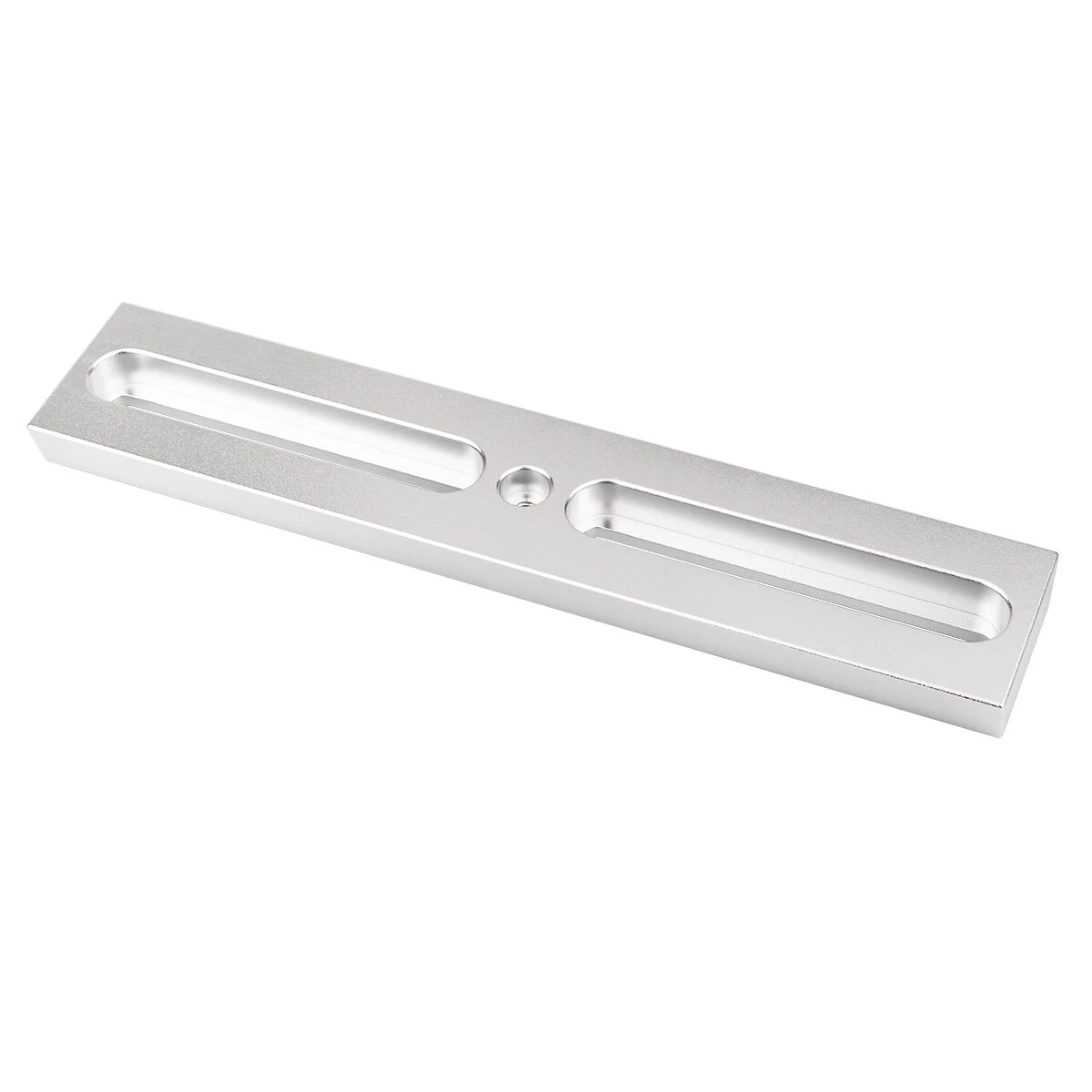

Description:This dovetail mounting plates provide a platform for coupling telescope optical tubes to equatorial mounts. Tube rings (sold separately) bolted on to the dovetail plate, which then fits into the dovetail slot (sold separately) on the equatorial head. Dovetail plates are made of extruded, anodized aluminum.
Specification:
1. Brand: SVBONY2. Length: 210mm3. Width (bottom): 42mm4. Width (top): 35mm5. Height: 14mm6. Degree: 75-Degree7. Screw interface: 1/4 standard screw thread8. Maximum Distance of the Two Holes: 25mm9. Maximum Distance of the Two Holes: 196mm10. Material: Anodized Aluminum11. Color: Silver, red12. Net Weight: 219g13. Dimension: 210x42x14mm
Package Includes:
1 x 210mm Dovetail Mounting Plate
Details Picture:
