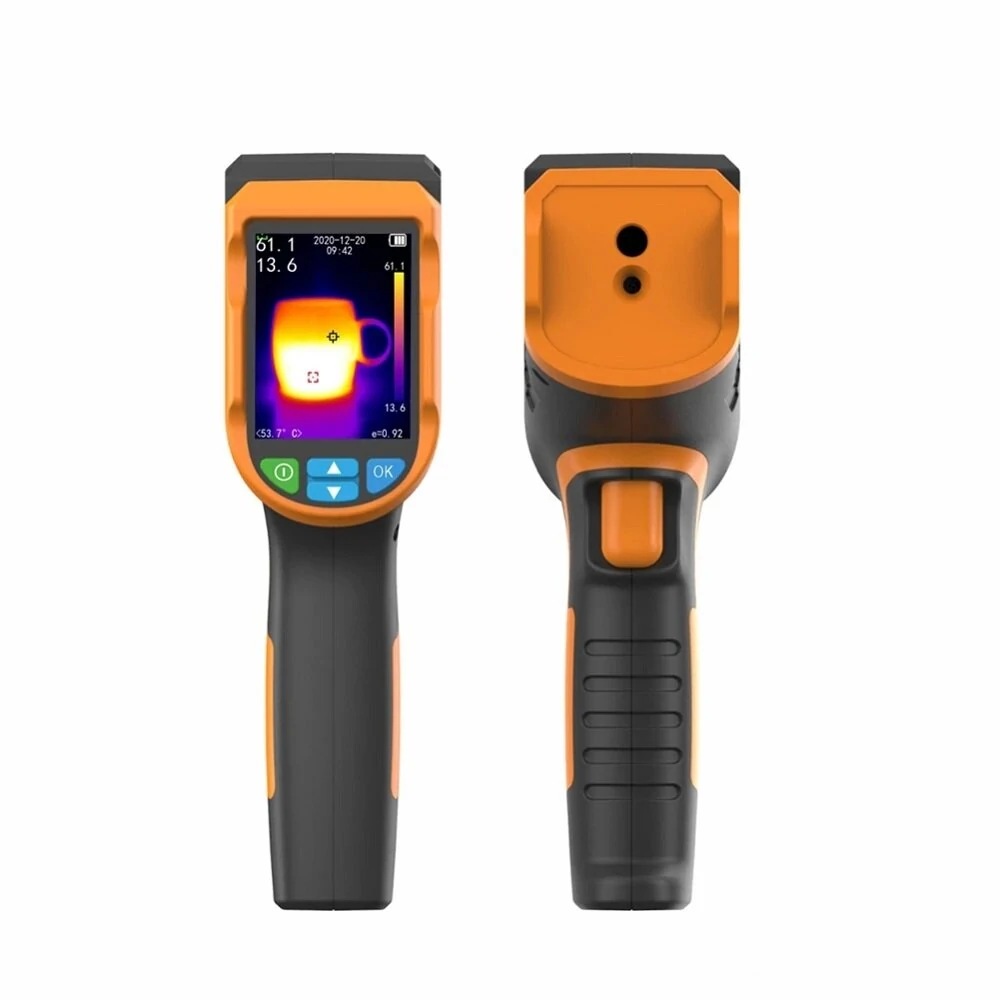

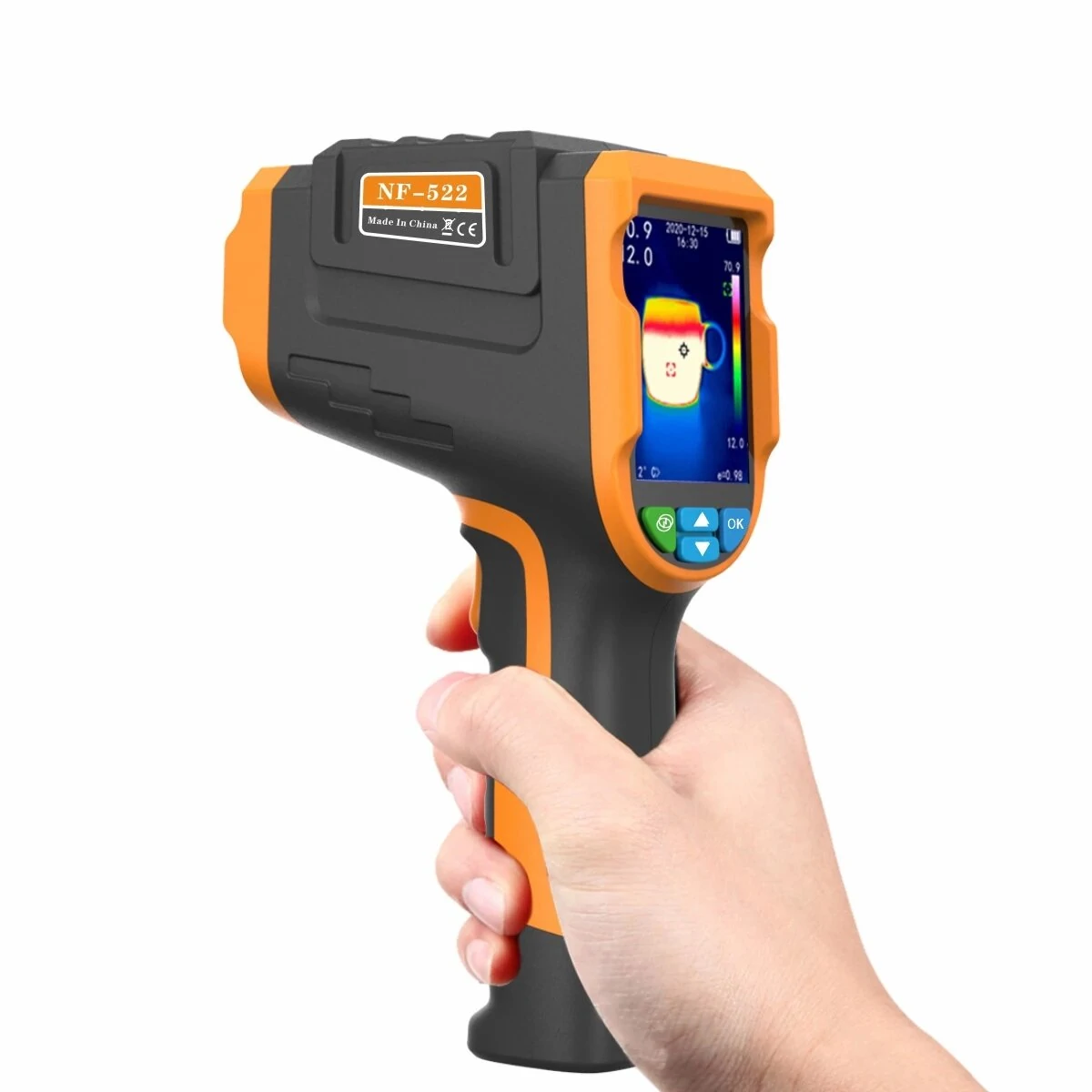

NOYAFA NF-522 Thermal Imaging Camera | 200x150 IR Resolution -40°F to 330°F | LCD Digital Display
$585.00
$719.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:This is a kind of device which uses thermal imaging technology to take the temperature and observe the heat distribution on the surface of natural objects.Any natural object will radiate infrared radiation to its surroundings. Thermal imaging technology refers to the use of optical imaging objective lens and infrared detector to receive the infrared radiation energy of the measured target and reflect it to the photosensitive element of the infrared detector, so as to obtain a circular figure of the thermal distribution on the surface of the object.This thermal imager corresponds to the thermal distribution field on the object. Generally speaking, infrared thermal imaging is to transform the invisible infrared energy emitted by an object into a visible thermal i-mage, that is, the image of temperature distribution on the target surface.

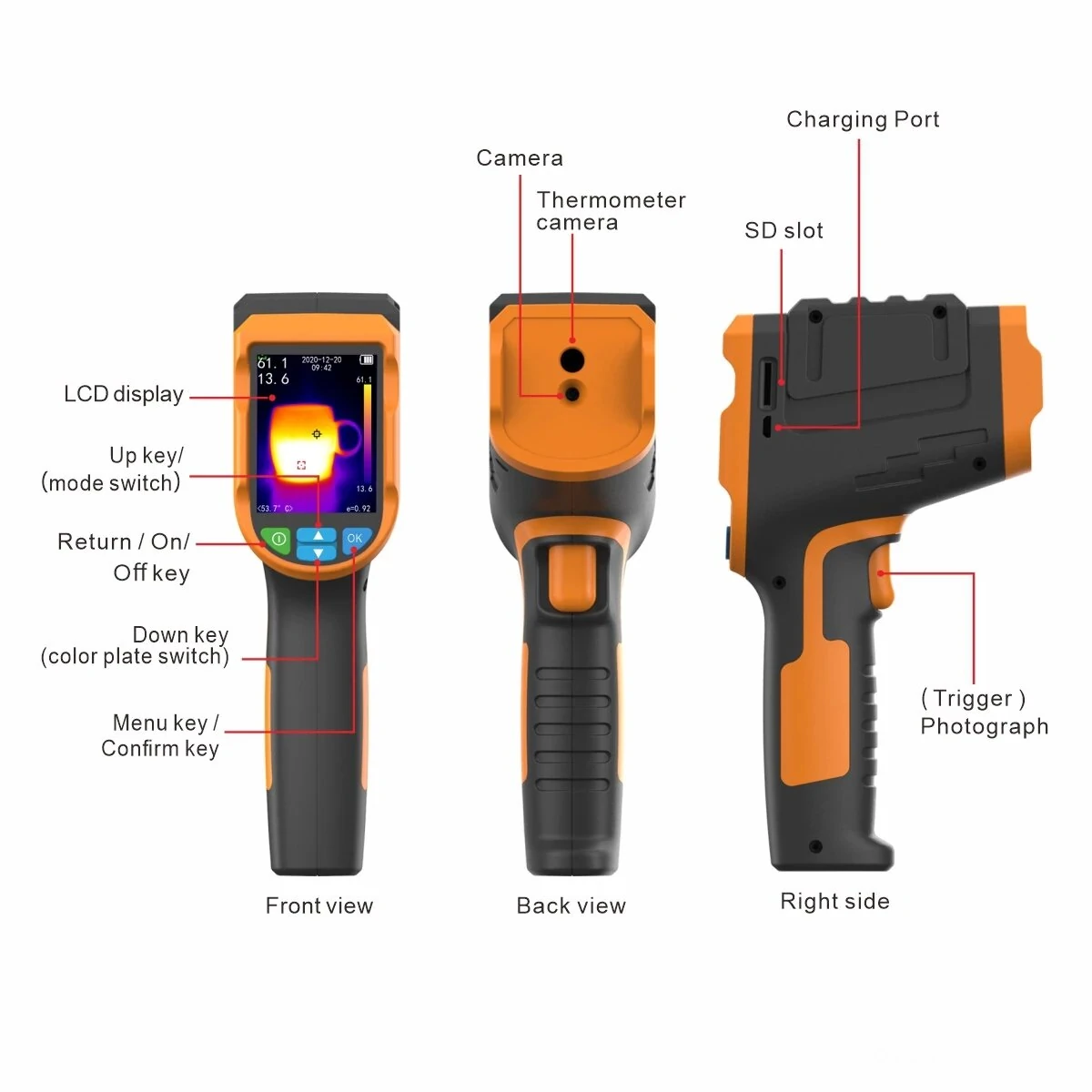

Features:
The thermal imaging sensor can capture the infrared resolution of 220-150, which makes it easy to judge the exact exit point.7 color imaging modes.Built-in rechargeable battery, USB charging design, you don't need to worry its battery.Large capacity storage. Standard 16GB mini memory card with large capacity can store various measurement images.USB to read i-mages quickly. The captured pictures saved in the instrument can be viewed and exported by connecting to a computer, which is convenient and quick.
Product parameters
Model: NF-522Thermal imaging resolution: 200 x 150Angle of view: 35??x 26??Temperature Range: -40??- 330??Thermal sensitivity: 65mKlmage frame rate: 9HzColor plate: White heat /Black heat/ Rainbow1 /Rainbow2/Purple/Orange /lron gray/ High temperature high contrast /Highand low temperature high contrast.Accuracy: Ambient temperature 25??.Distance 0.3MEmissivity: 0.1 -1.0 (can be adjusted)Spectral response: 8~14umVisible resolution: 300,000 pixels (640x480)Display mode: Infrared mode linfrared edge detection mode dual light fusion modeFocus Mode: FixedStorage medium: Built in 2G
General parameters:

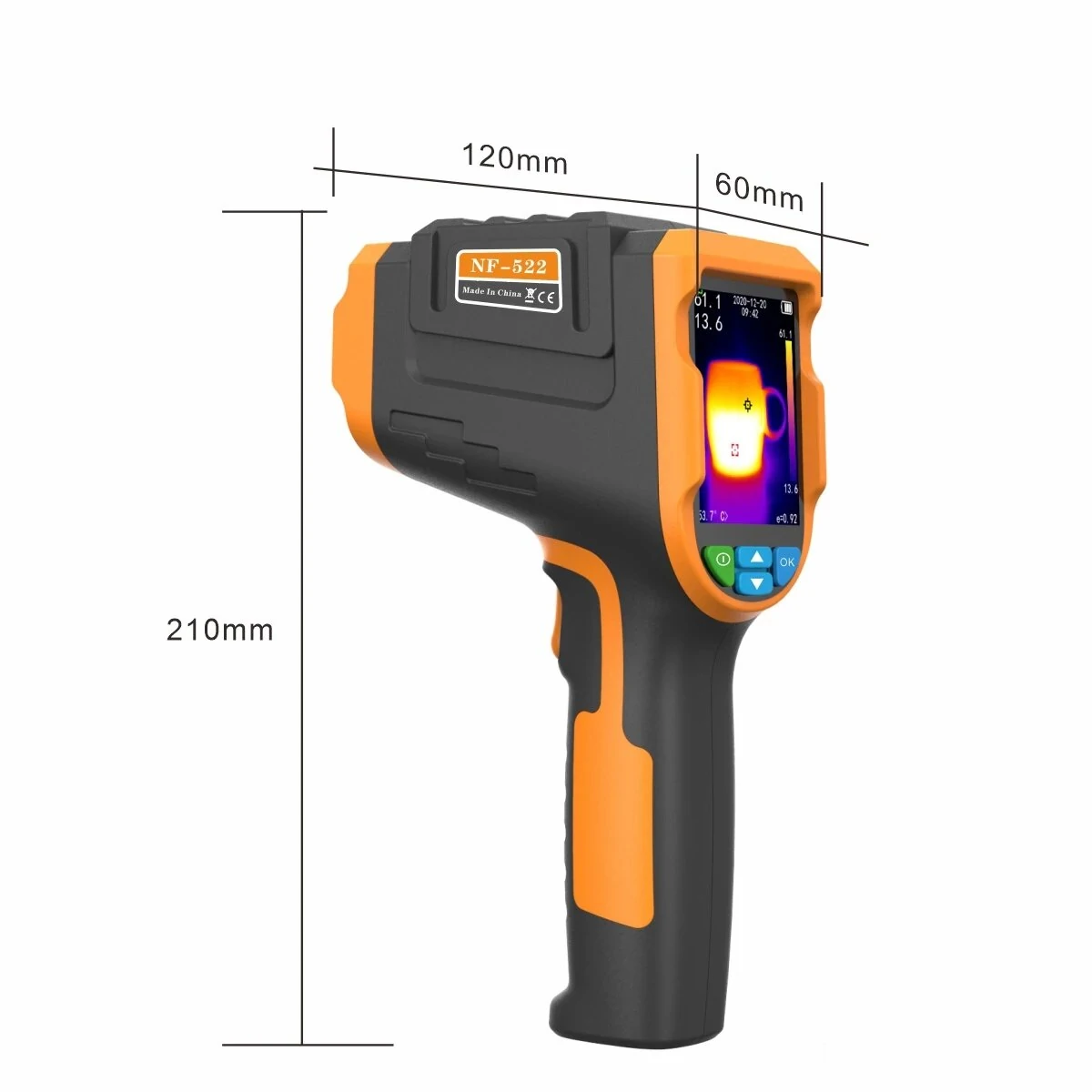

Language: Chinese / English (can be selected)lmage saving format: Bitmap (BMP) imageDisplay type: 2.8 inch TFTLCDScreen resolution: 240 x 320Automatic shutdown features: 15seconds / 30 seconds/ 1 minute (can be selected)Temperature unit: ?? / ??F /K (can be selected)Working temperature: -10??- 45??Memory card: 16GB Mini TF CardBattery: 3.7V/5000mAhDrop test: 2 meters, (6.5 inches)Shutter interval: 15 seconds / 30 seconds / 1 minuteProduct size: 60mm x 120mm x 210mm
Package included:
1 x Thermal Imager1 x USB Cable1 x Memory Card1 x User Manual
