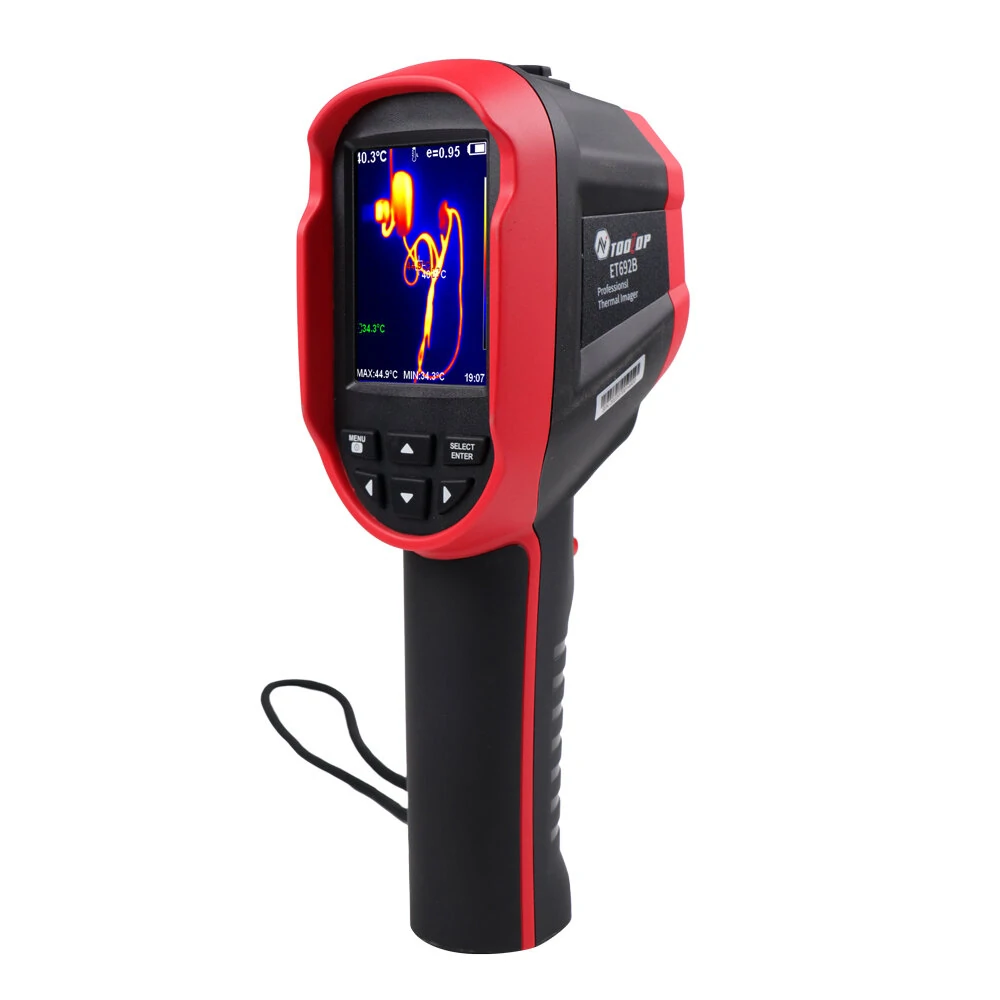

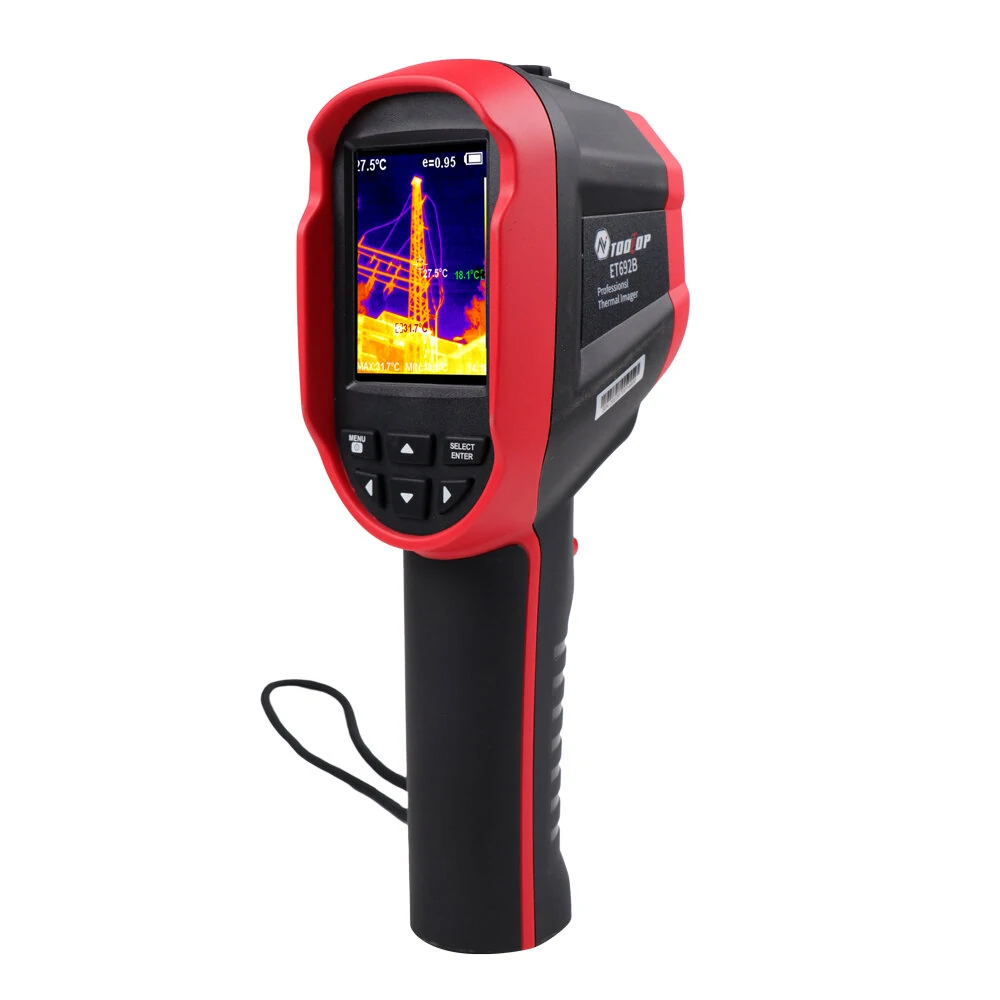

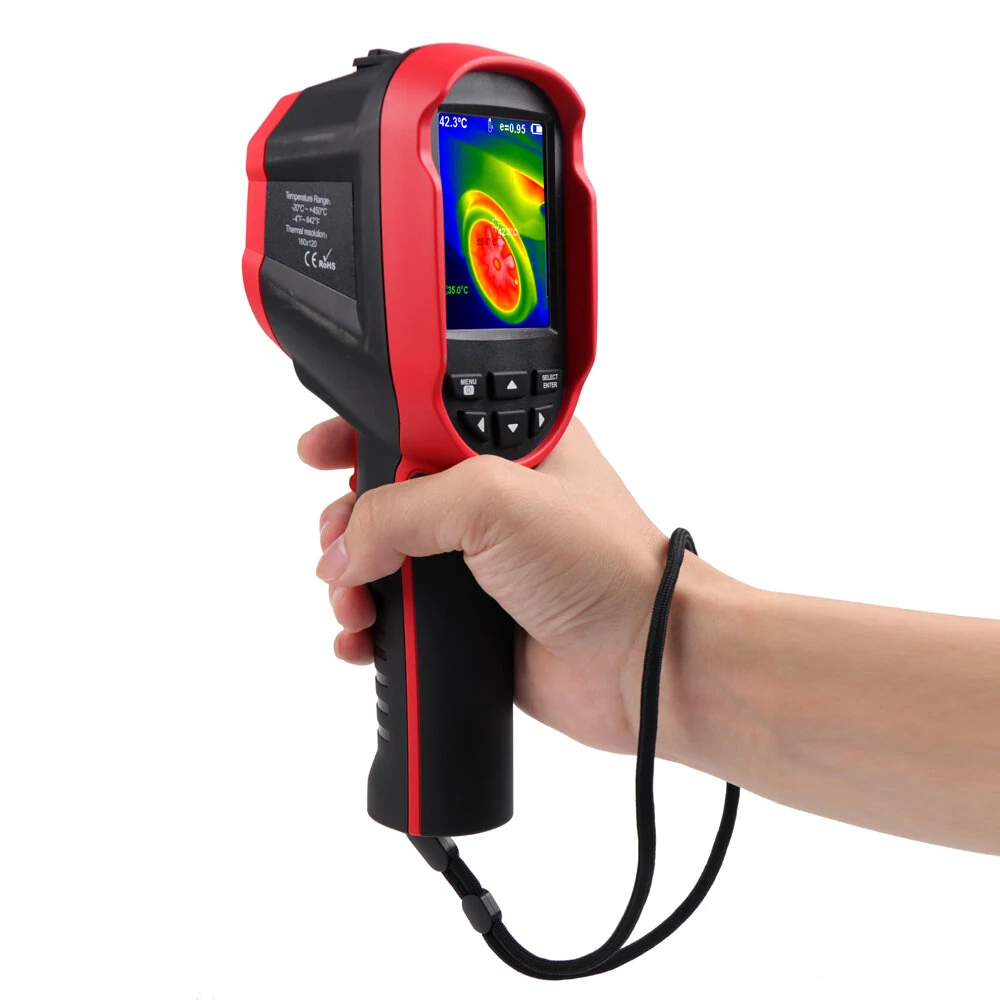

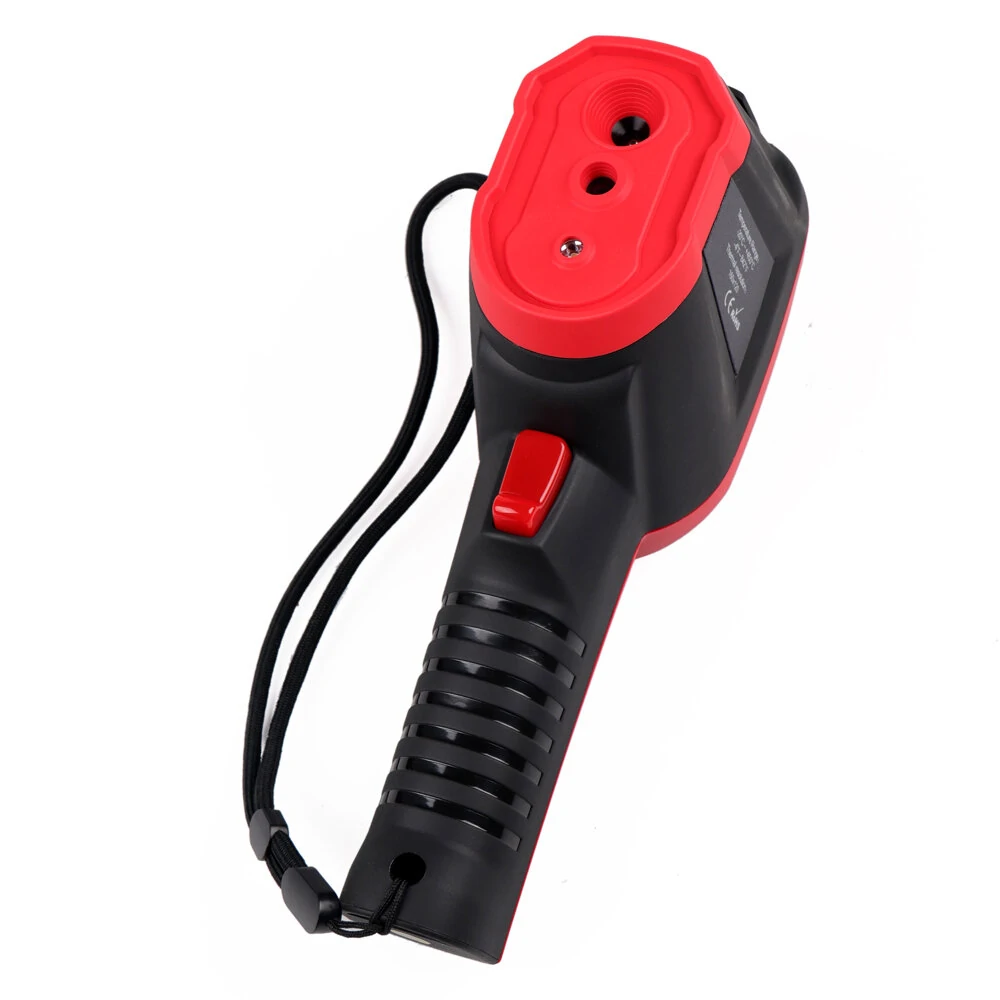

TOOLTOP ET692B Thermal Imager -20°C to 550°C | 160x120 IR Camera with PC Software
Product Description
Features:160 x 120 (19200) thermal imaging pixels-20?? ~ 550?? / (-4?H~1022?H) temperature measurement range640 x 480 visible light lens??25HZ thermal imaging frame rateSupport PC software analysisEnglish, Italian, German, Chinese 4 languages switchable
Specification:
Infrared detector type | Vanadium Oxide Uncooled Infrared Focal Plane |
Infrared resolution | 160x120 |
Infrared response band | 8 to14??m |
Cell size | 12??m |
NETD | ??50mK @25??C,@F/1.1 |
Lens focal length | 3.2mm |
IFOV | 3.75mrad |
Field angle | 35???27?? |
Focus mode | Free focus |
Temperature measurement range | -20??C to +550??C (-4??F to 1022??F) |
Measurement accuracy | ??2??C (35.6??F) or ??2% |
Measurement resolution | 0.1??C |
Temperature measurement mode | Center point/hot and cold spot tracking |
Color palette | Rainbow, iron oxide red, cold color, black & white, white & black |
Emissivity setting | Adjustable from 0.01 to 1.00 |
Thermal imaging frame rate | ??25Hz |
Visible light resolution | 640??480 |
Display size | 2.8-inch(240??320) |
Image display mode | Infrared/visible light/dual light fusion |
Lighting system | LED fill light |
Device storage | Built-in 4G eMMC (user available storage space is about 3G) |
Storage Image/Video Format | JPG/MP4 |
Image/video export method | USB connection to computer export |

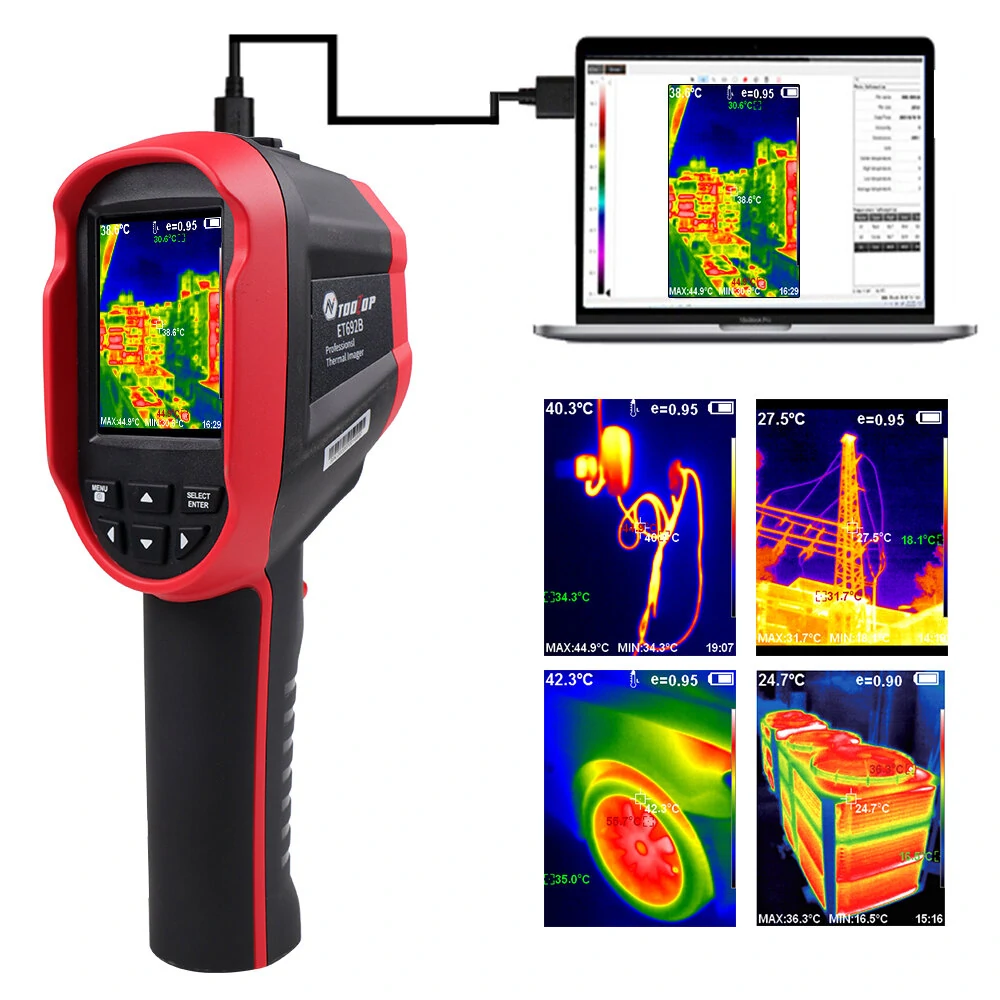

Image analysis function | Support offline analysis on PC |
Menu language | English??Chinese??Italian??German |
Battery Type | Removable Rechargeable Lithium Battery (18650) |
Battery capacity | 2200mAh |
Power interface | Micro USB |
Power configuration | 5 minutes / 20 minutes / no automatic shutdown |
Work temperature | -10??C to +50??C |
Storage temperature | -20??C to +60??C |
Relative humidity | 10% to 85%RH (non-condensing) |
Product weight | 389g |
Product size | 96mm??72mm??226mm |
Package Includes:
1 x ET692B Thermal Imager1 x USB Cable1 x English Manual1 x Packing Box
Note: We will send the appropriate adapter according to your country.
>>Please click here to download the English manual<<
>>Please click here to download the software<<
