BSIDE SH9A Visual Thermal Imager Multimeter | 320x428 IR Camera | 3.98 Touchscreen

Product Description

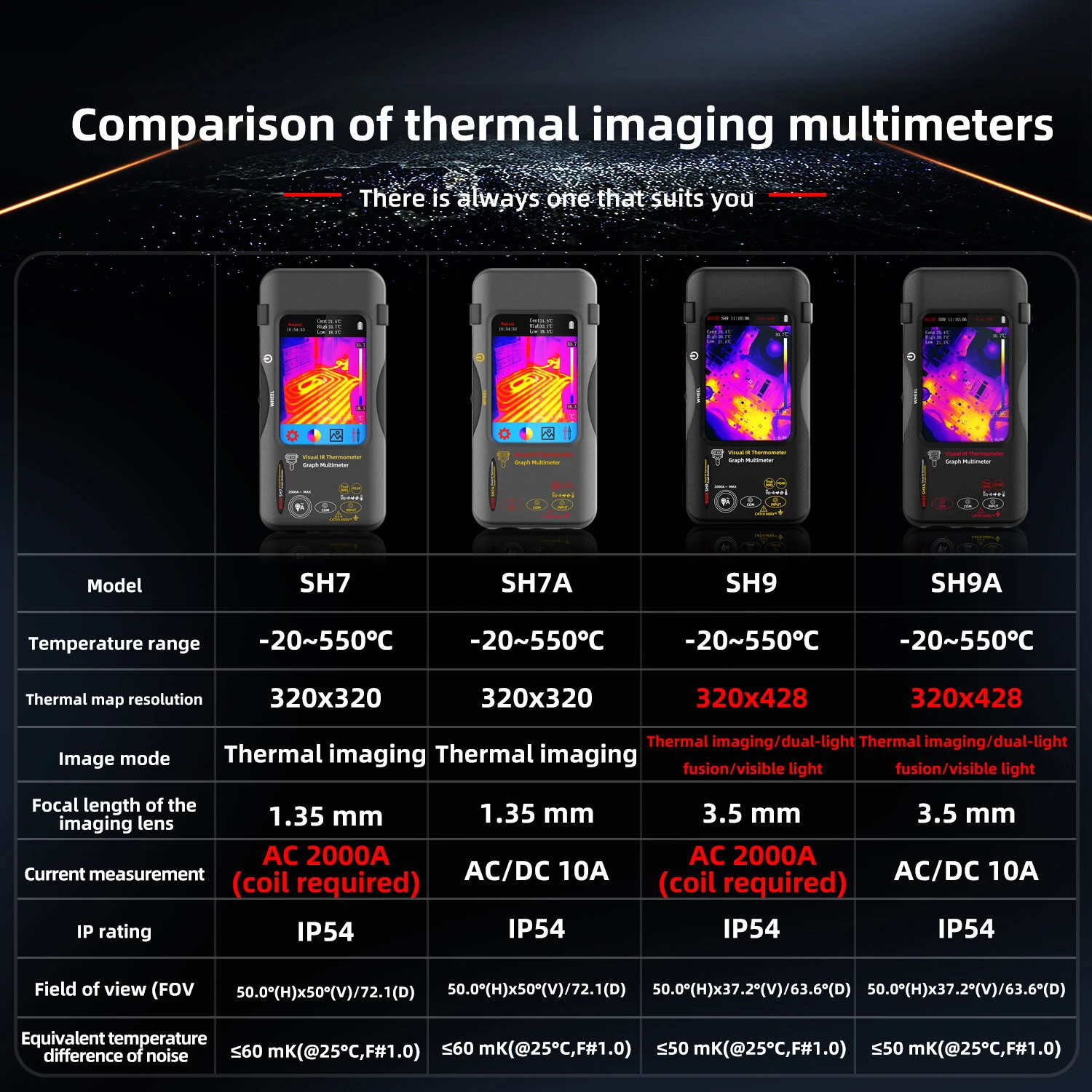

The SH9A measures currents up to 10A without a flexible coil.

SH9A is suitable for low current measurement. The SH9 can measure currents up to 2000A. Smaller currents require the use of a flexible coil.

Specifications:

Sensor Type: Vanadium oxide (VOx) microcalorimeter

Response Band: 8?C14 ??m

Thermal Image Resolution: 320 ?? 428 Pixels

Noise Equivalent Temperature Difference (NETD): ??50 mK (@25??C, F#1.0)

Field of View (FOV): 50.0?? (H) ?? 37.2?? (V) / 63.6?? (D)

Spatial Resolution (IFOV): 8.89 mrad

Lens Focal Length: 3.5 mm

Temperature Measuring Focal Length: 0.3m?C3m Adjustable

Temperature Range: -20??C?C550??C

Temperature Measurement Accuracy: ??2??C or ??2% of the reading

Temperature Units: Celsius, Fahrenheit, Kelvin

Temperature Resolution: 0.1??C

Emissivity: 0.01?C1.00 Adjustable

Display: 3.98-inch TFT Capacitive Touchscreen

Display Resolution: 320 ?? 480

Temperature Alarm: Screen font color alarm

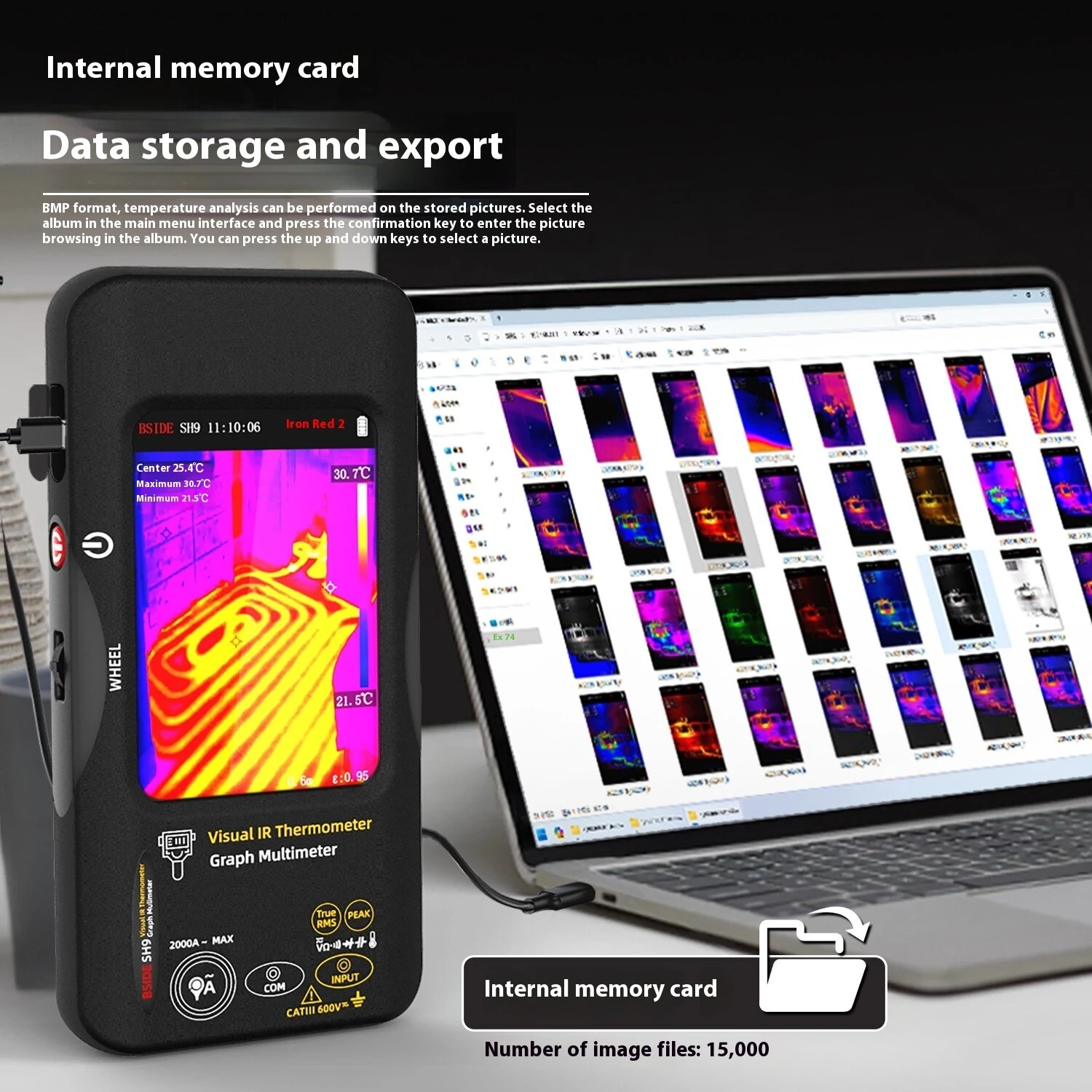

Image Storage: Built-in memory card

Image File Capacity: 15,000 files

Image Format: BMP

Focus Mode: Autofocus

Battery Type: Rechargeable lithium battery (3.7V / 2500mAh)

Operating Hours: Over 5 hours (@25??C)

Charging Time: Less than 3 hours (@25??C)

Charging Voltage/Current: 5V / 2A

Boot Speed: Approximately 3 seconds

Automatic Shutdown: Customizable (default disabled or between 10?C60 minutes)

Operating Temperature: -20??C?C50??C

Storage Temperature: -40??C?C70??C

Storage Humidity: 25?C40%RH (Non-condensing)

Working Humidity: ??85%RH (Non-condensing)

Product Dimensions: 169 ?? 81 ?? 26.8 mm

Product Weight: 274.3 g

Features:

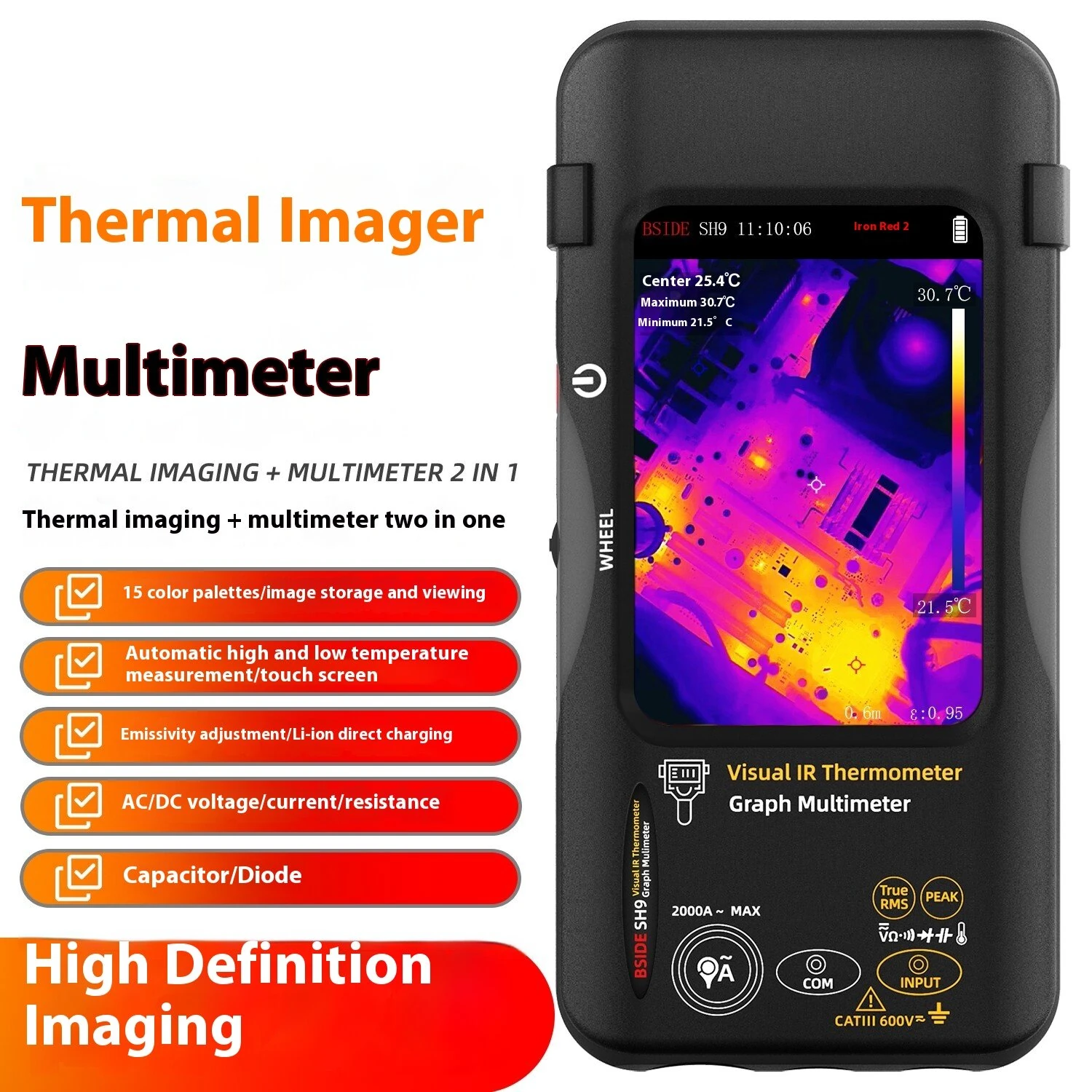

1.Enhanced Dual-Functionality: This device brilliantly combines a thermal imaging camera with a graph multimeter, delivering both accurate temperature measurement and comprehensive electrical diagnostics for field work.

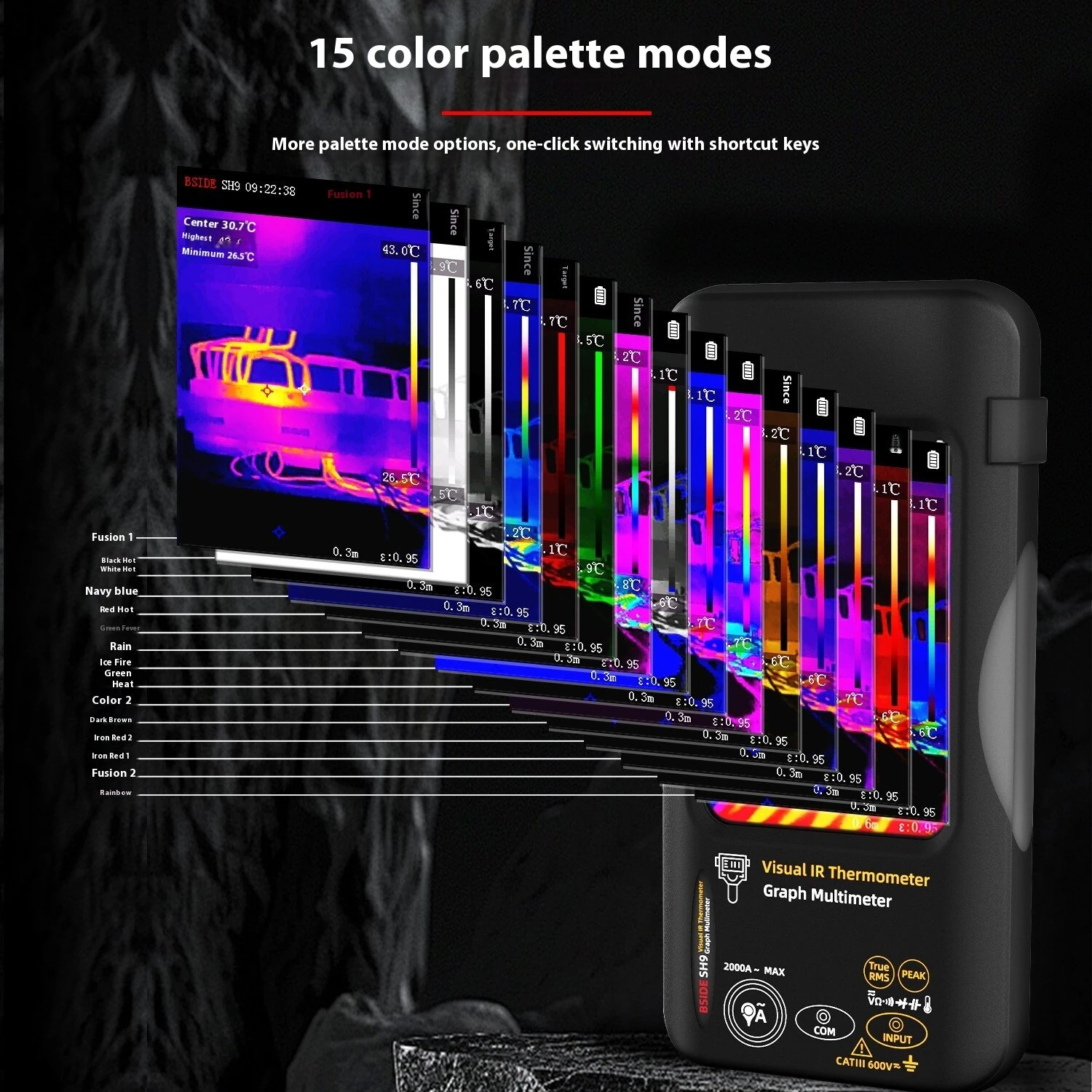

2.Advanced Display Customization: Equipped with 15 adjustable color palettes, the 3.98-inch touchscreen ensures precise visualization of thermal data, as well as real-time selection and optimization for various scenarios.

3.High-Defined Imaging: The thermal resolution of 320 ?? 428 pixels and NETD ??50 mK provide crystal-clear thermal visuals, enabling detailed observations from a distance of up to 3 meters.

4.Extended Operating Power: The integrated 2500mAh rechargeable lithium battery delivers up to 5 hours of continuous usage, with fast charging of less than 3 hours??ideal for prolonged field applications.

5.Multi-Measurement Modes: Precise tracking of minimum, maximum, and center temperatures, exacting emissivity adjustments, and alarms for temperature thresholds ensure comprehensive monitoring in dynamic environments.

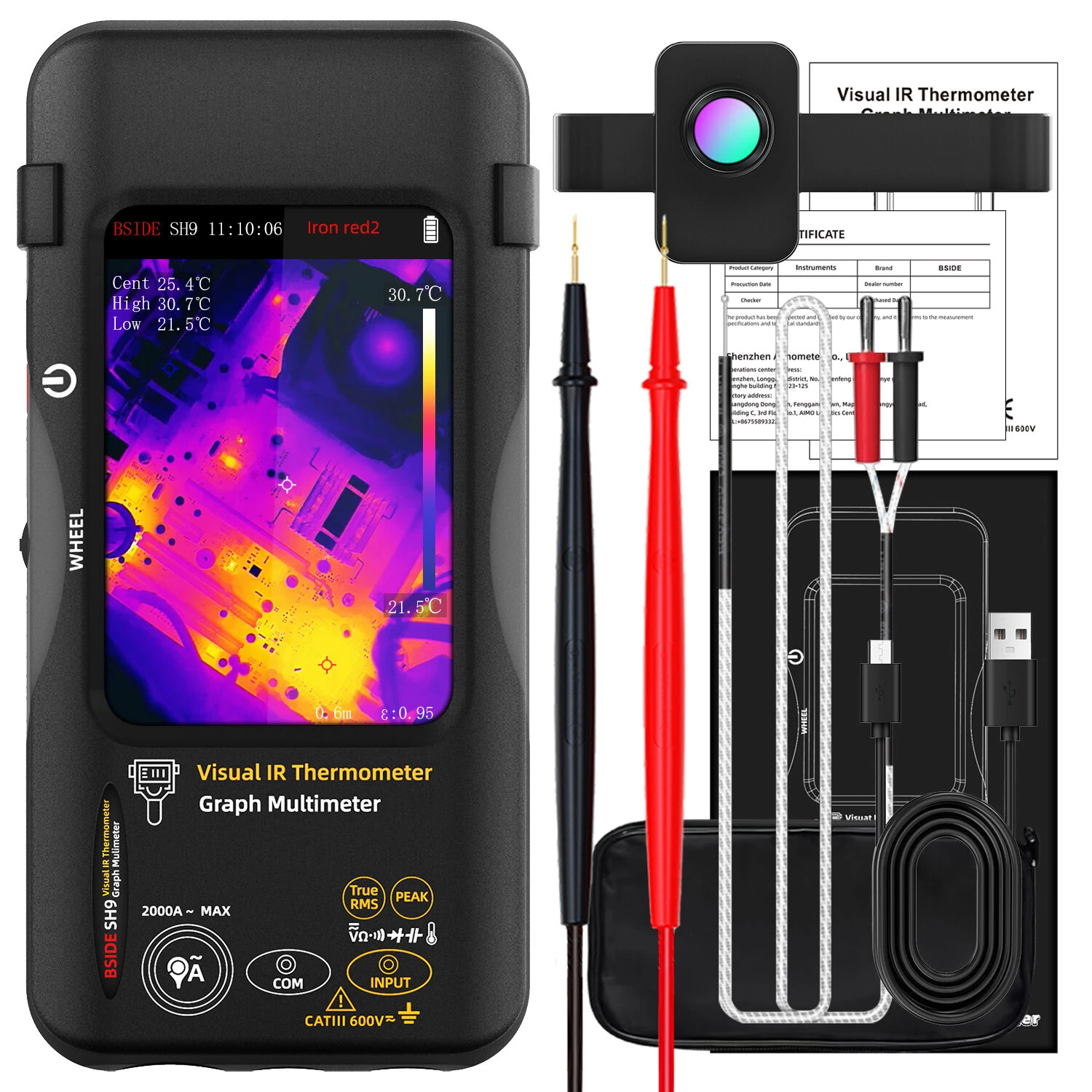

Package Included:

1 x Visual IR Thermometer Graph Multimeter

1 x USB Data Cable

1 x User Manual

1 x Temperature Probe

1 x Storage Bag

1 x Test Pen

1 x Macro Lens
