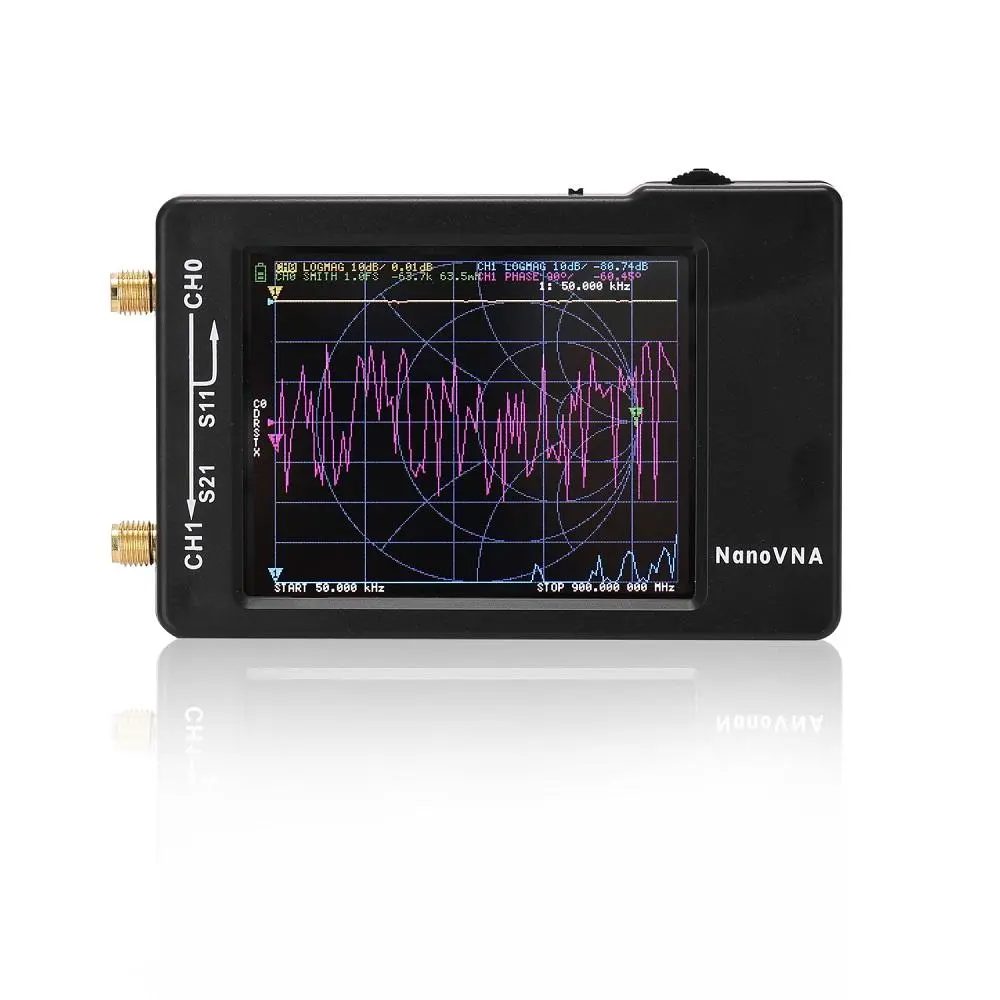

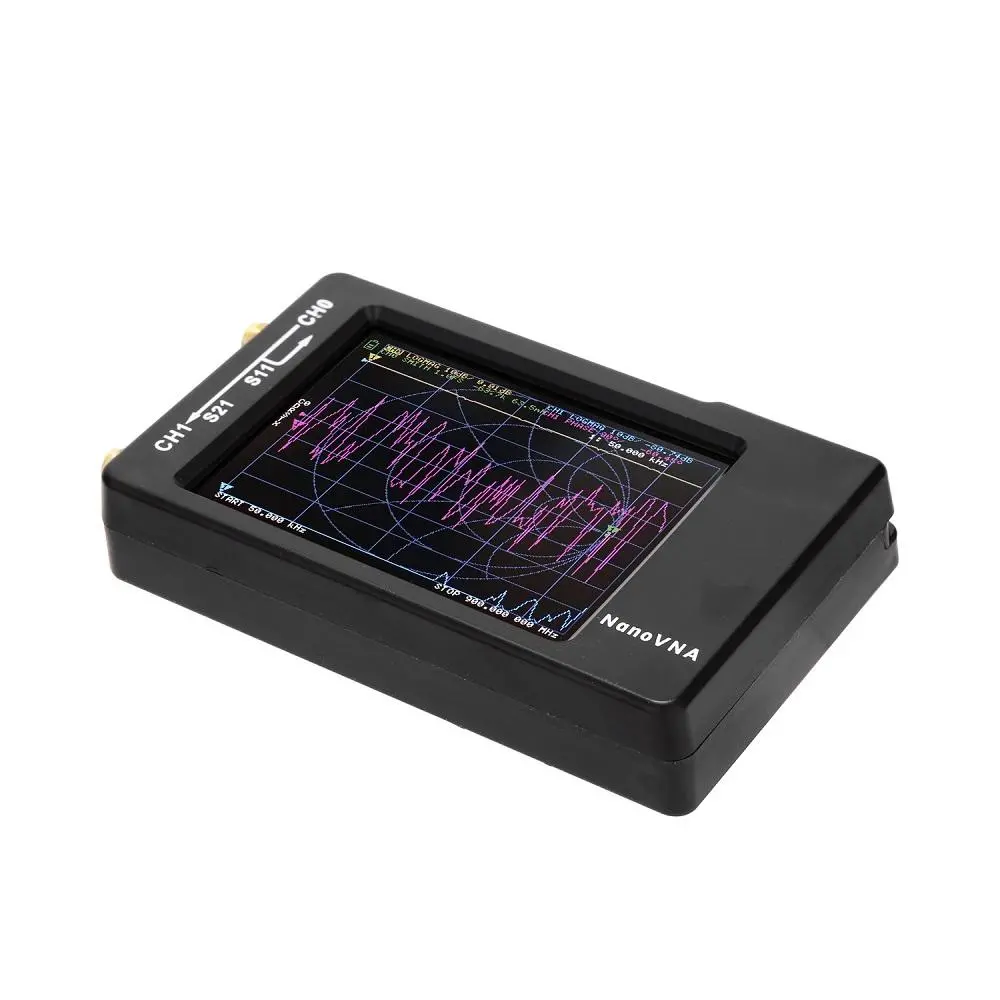

NanoVNA Vector Network Analyzer 50KHz-1.5GHz | Digital Touch Screen | HF VHF UHF Antenna Analyzer
$86.00
$105.58
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

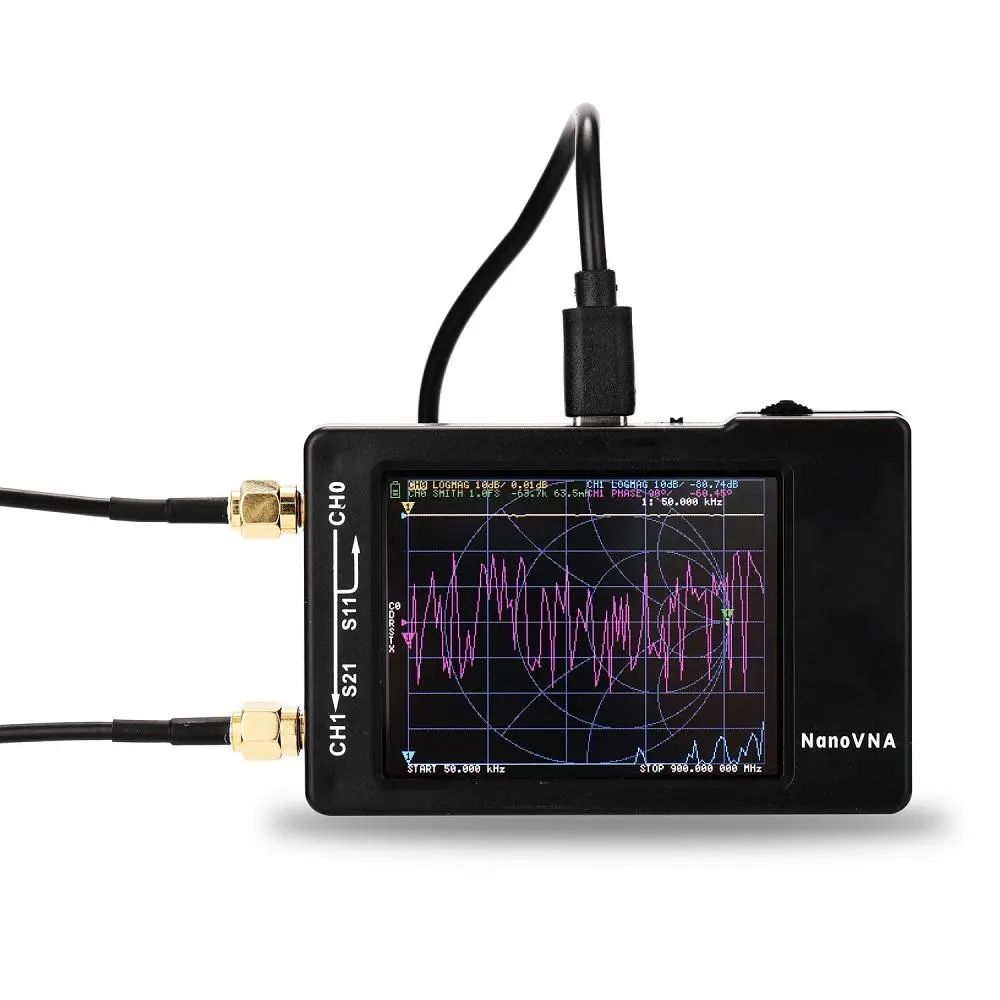

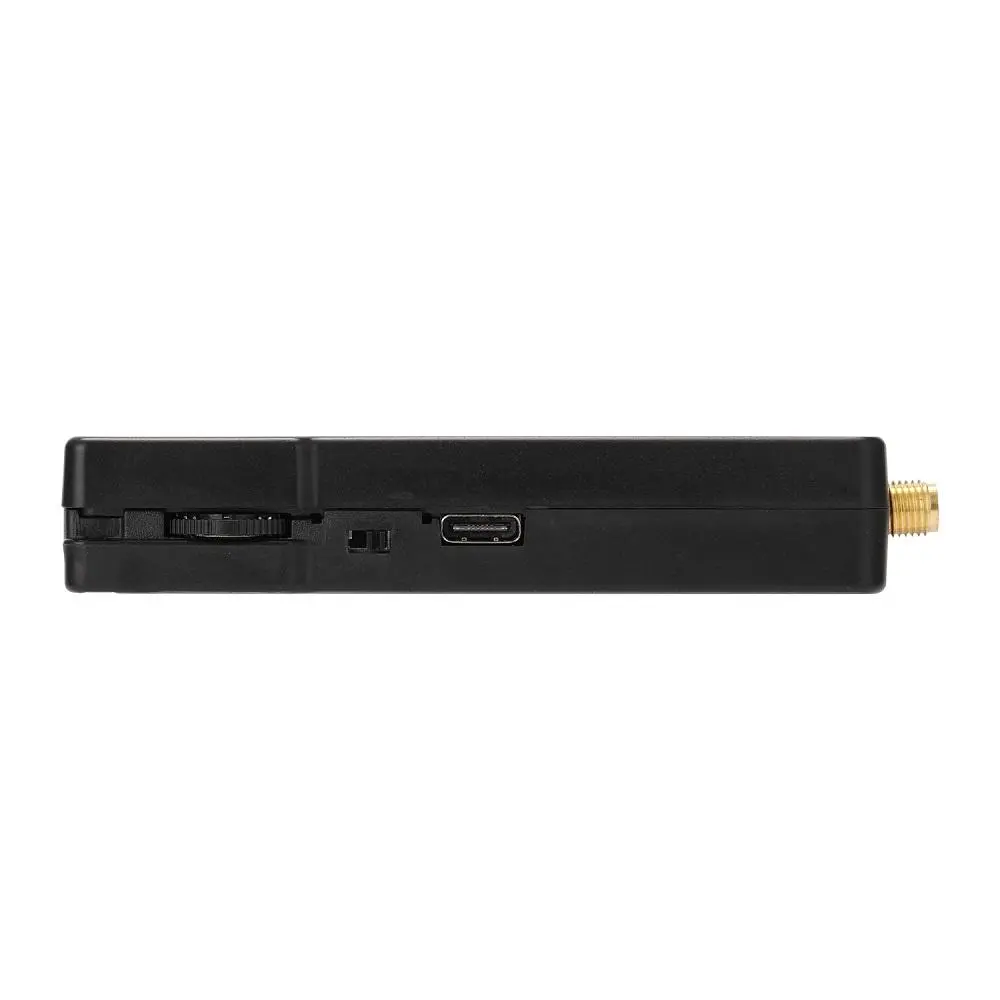

Features: -The PC control software can export files, which can be used for various radio design and simulation software. -The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz. -The metal shield is designed to reduce the external interference and improve the measurement accuracy. -The 50k-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic. -The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics. -Small and portable, easy to use, this project aims to provide an RF gadget but useful instrument for enthusiast. -Metal housing for easier and safer use and more beautiful. -With a touching screen pick, you can easily perform a variety of operations. -Support for connecting mobile phones using Type C-Type C data cable (included). -Built-in rechargeable lithium battery for easier use. Specifications: Material: metal Color: black Measurement frequency: 50KHz~1.5GHz(note: The frequency range has been upgraded to 1.5GHz) (2020/06/30) RF output: -13dbm (maximum -9dbm) Frequency accuracy: <0.5ppm Measurement range: Measurement Range: 70dB (50kHz-300 MHz), (60dB (300M-900MHz), 40dB (0.9G-1.5GHz) enable expansion firmware) Port SWR: <1.1 Display: 2.8 inch TFT (320x240) USB interface: USB type-C Communication mode: CDC (serial) Power: USB 5V (1A Max.) Battery: 1 *xlithium battery, 400mAh (included) Number of calibration points: 101 (fixed) Number of scanning points: 101 (fixed) Display tracking: 4, Marking: 4, Setting save: 5 Item size: 92x 60 x 18mm / 3.6 x 2.4 x 0.7in (without connectors and switches) Item weight: 80g / 2.8ounce Package size: 195 x 127 x 27mm / 7.7 x 5.0 x 1.1in Package weight: 250g / 8.8ounce Package Included: 1 x Host 1 x USB Type-C Data Cable 1 x 250mm USB Type C-Type C Data Cable 2 x 200mm SMA Male to Male RG174 RF Cable 1 x Set of SMA Calibration Parts (O/S/L) 1 x SMA Female to Female Connector 1 x Touching Screen Pick 1 x Lanyard Details Pictures:Customer Reviews
