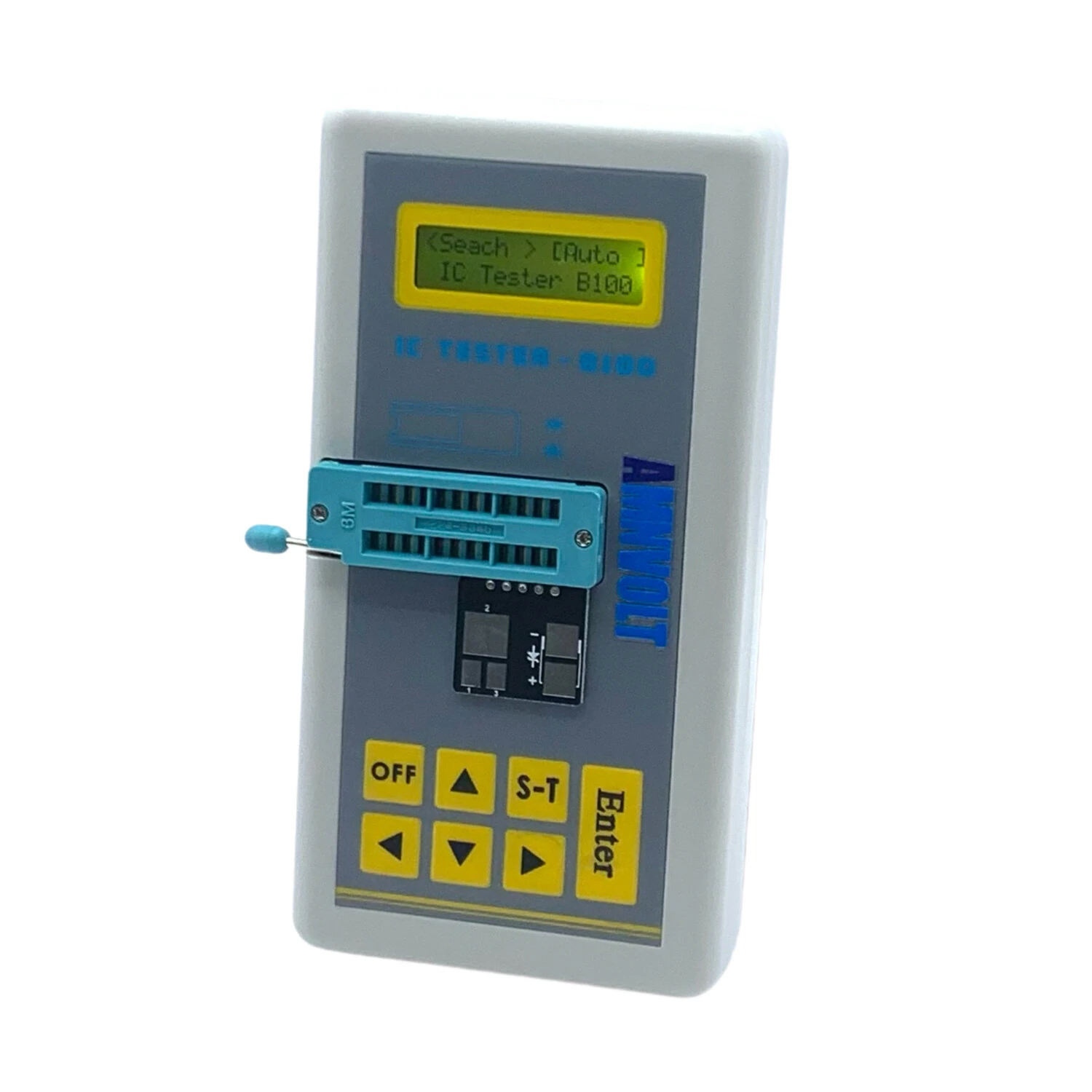

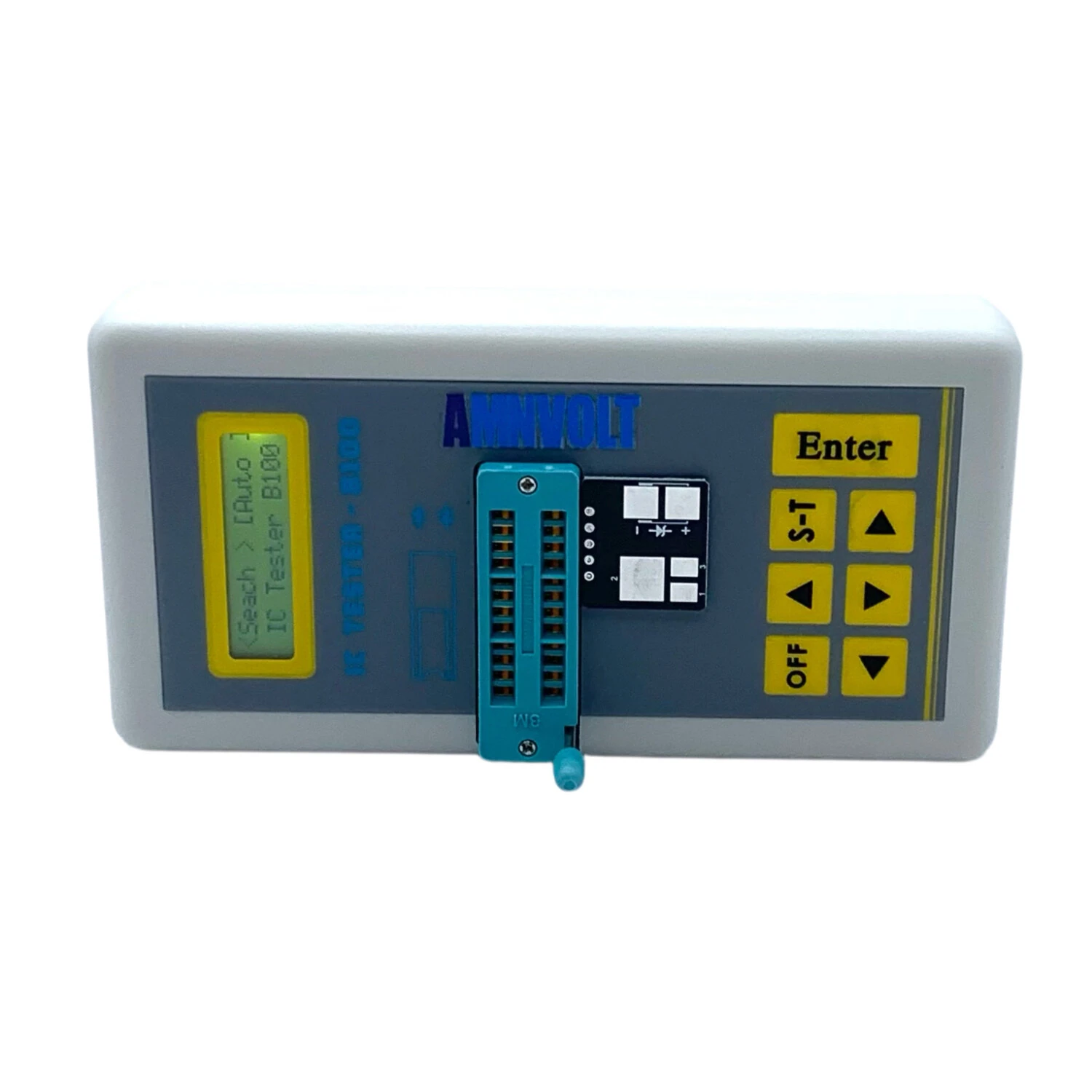

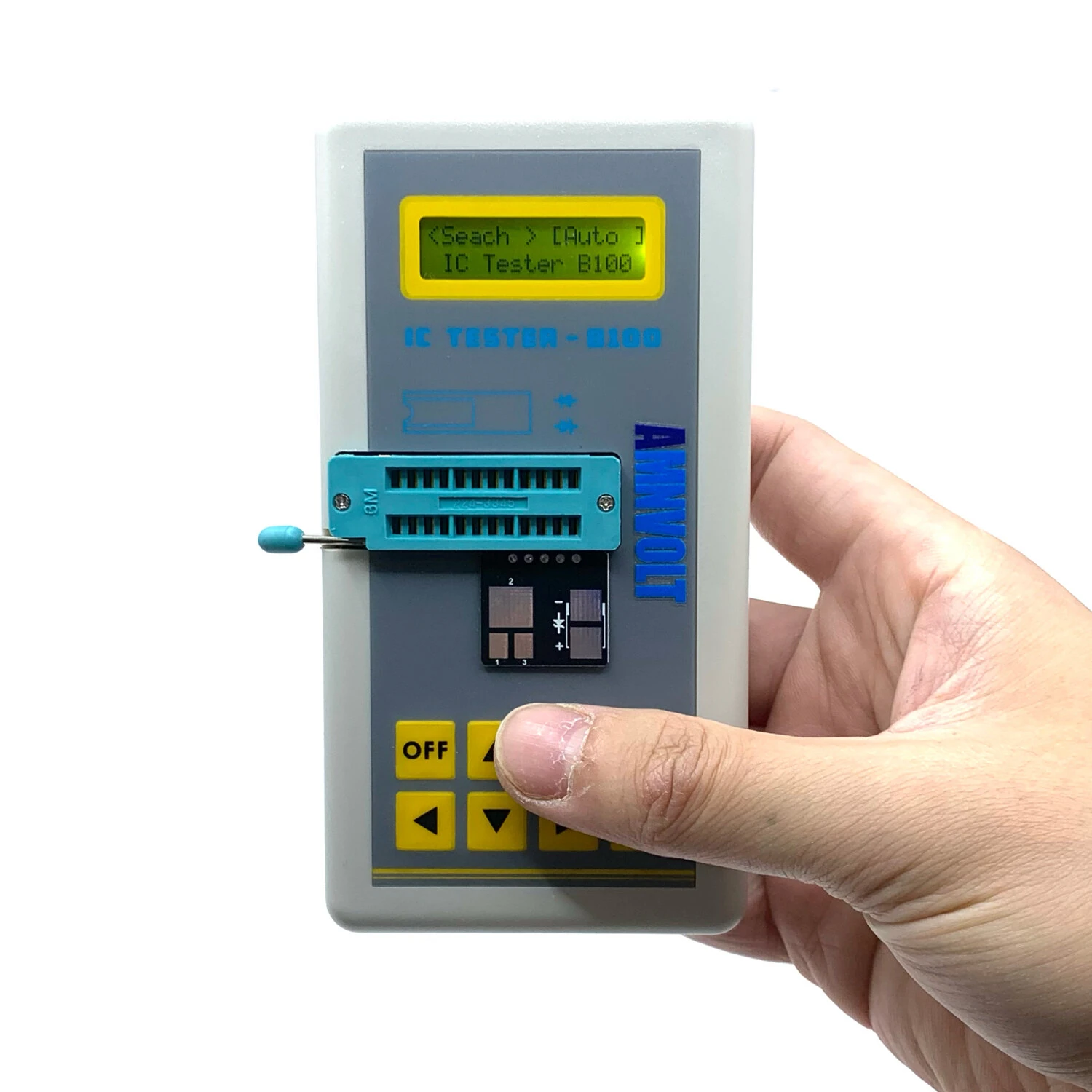

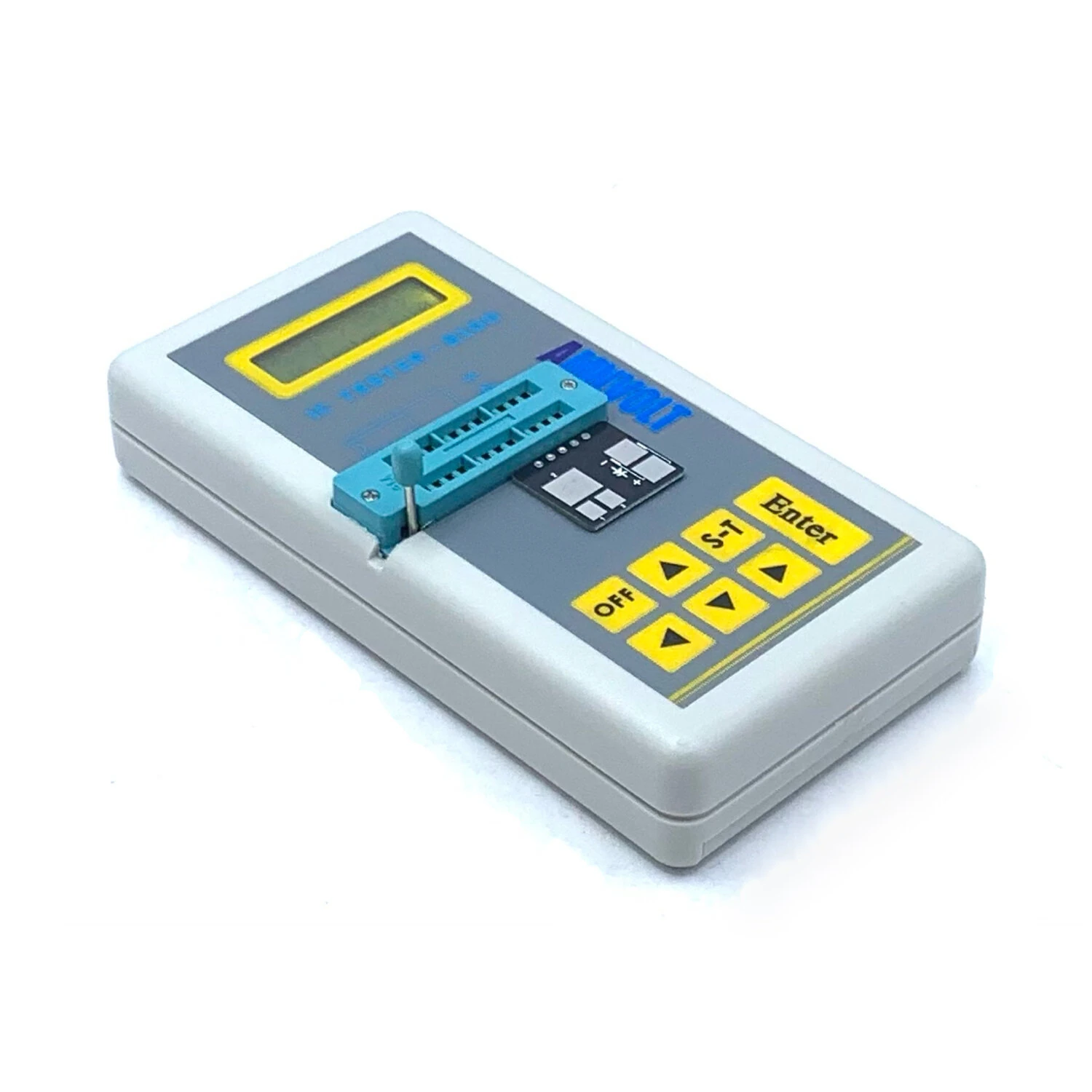

B100 IC Transistor Capacitor Tester | Auto Mode 1300 Chip Models | 5V/3.3V

Product Description

Specifications:Test Modes: Supports 5V mode, 3.3V mode, and auto modeChip Compatibility: Up to 1,300 built-in chip data models, covering 74CH, 74LS, CD4000, HEF400, and 4500 series chips, as well as operational amplifiers, interface chips, and optocouplersTransistor Compatibility: Covers more than 420 transistor models within 24 pinsTesting Functions: Chip testing, transistor automatic identification, diode testing, voltage regulator identificationPhysical Interface Design: Multi-function test socket with dedicated positions for chips, transistors, and diodes
Features:1.Multifunctional Testing Modes: This tester effectively performs chip, transistor, and diode testing with an intuitive user interface, offering flexibility in selecting test modes such as 5V, 3.3V, and automatic.2.Extensive Model Coverage: Features over 1,300 chip data models and 420 transistor types for versatile testing, supporting most common devices with up to 24 pins for efficient troubleshooting.3.Compact Design with Dedicated Test Slots: An organized layout ensures effortless placement of components, including specific slots for chips, transistors, and diodes, enhancing ease of operation.4.Accurate Voltage Identification: Capable of identifying voltage values for regulator tubes with high precision, making it a reliable tool for maintenance professionals.5.User-Friendly Operation: Designed with a simple navigation system controlled via up/down directional buttons and an Enter key, enabling seamless switching between various testing functionalities.
How to Use:1. For chip test, please press the direction shown to put the chip on the left and press the Enter key to test.2. For transistor test, put the transistor in the lower right corner of the test socket (10-11-12), use the up and down keys to adjust the menu to TR, and press the Enter key to test.3. For diode testing, put the diode into the upper right corner of the test socket (13-14), use the up and down keys to adjust the menu to DIODE, and press the Enter key to test.
Package Included:1 x Integrated Circuit Tester (Batteries not included)
