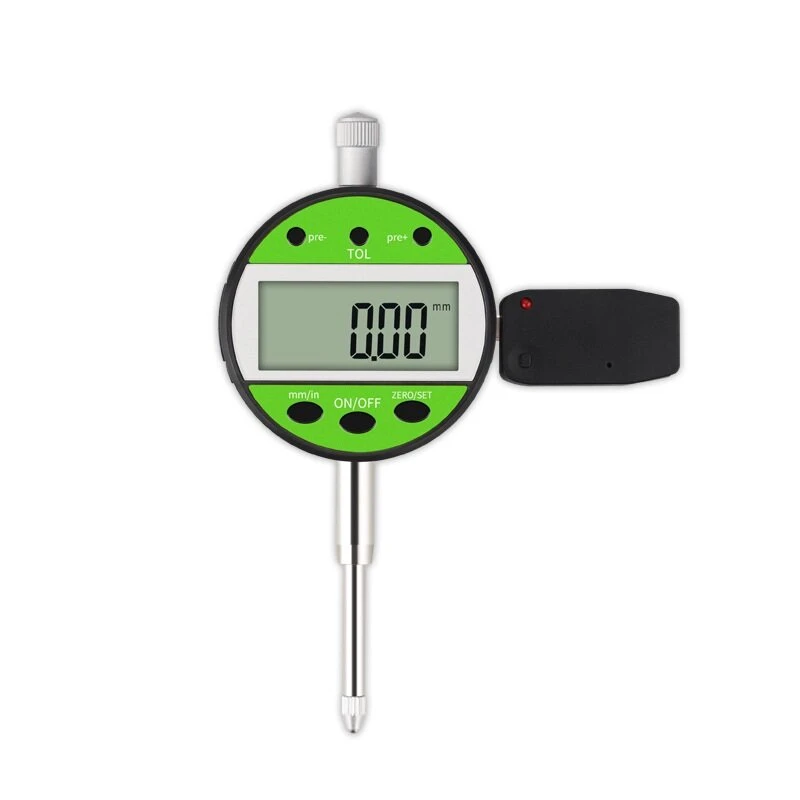

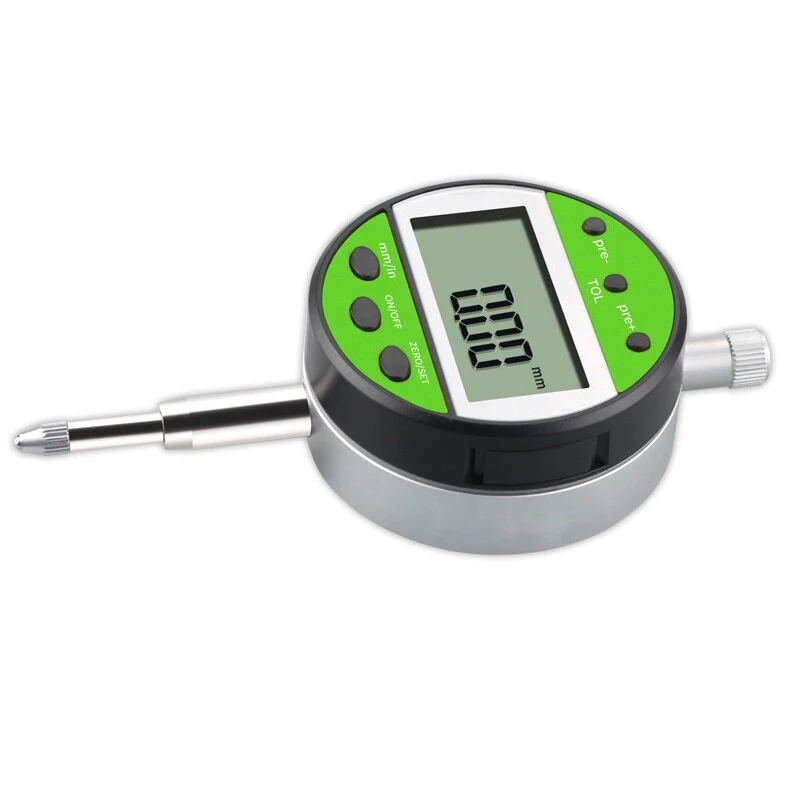

Mitutoyo 0-12.7/25.4mm Dial Indicator | Bluetooth Digital Display | Data to Cell Phone

Product Description

Features:

• Detachable and replaceable probe
• Cell phone connection bluetooth test

Specifications:

• Measuring range: 0-12.7mm, 0-25. 4mm
• Resolution: 0.01mm/0.0005inch
• Measurement accuracy: ?? 0.03mm
• Measuring force: <2.2N
• Probe material: hard alloy stainless steel
• Working environment temperature: 0??C-40??C
• Humidity requirements: < 80% RH
• Power supply: 3V CR2032 lithium battery
• Product features: switch, clear, metric conversion, preset values, tolerance settings, etc.

bluetooth receiver use:

1. Long press the transmitter button for 3s, the transmitter is turned on and enters the pairing state: the indicator light flashes at an interval of 1.5s.

2. Open the "Length Tool" APP on the mobile phone, turn on the Bluetooth of the mobile phone, and click the "not connected" icon in the upper right corner, enter the Bluetooth connection interface and start searching for pairing.

3. Pairing is successful: the transmitter indicator light starts to flash at an interval of 2s off 5s.

4. APP shows that the connection is successful, click "use now" to return to the main interface.

5. After the first pairing is successful, after exiting the APP, the transmitter will automatically re-pair after disconnecting from the APP.

Package included:

1 x dial indicator

1 x bluetooth receiver

Details pictures:
