VC4091A/C Digital LCR Meter - High Precision Capacitance Resistance Inductance Tester
Product Description
Features:?? Measurement frequency up to 100kHz?? Test level 100 ~ 2000mV??Support the measurement of DCresistance and electrolytic capacitor??Internal bias voltage output (1mV-1500mV)??Automatic identification ofcomponent measurement??3.5-inch TFT display, 5 and a half bits display??USB, RS232 communication interface,Handle sorting?? Data recording function (maximum andminimum values, average value)?? Support SCPI communication protocol?? Provide system settings, which can configurelanguage, buzzer, screen brightness,etc accordingto the needs of users.?? Basic accuracy 0.2%?? Manual and automatic range?? Be equipped with open circuit andshort circuit correction?? Comparator has sorting and alarm function?? Provide a variety of test ports
Specification:
Model | VC4091A | VC4091C |
Digits | Main parameter: 5 digits; secondary parameter: 5 digits | |
Measurement Parameter | Main parameter: L/C/R/Z; secondary parameter: X/D/Q/??/ESR | |
Measurement Range(L) | 0.001??H - 9999H | |
Measurement Range(C) | 0.001pF - 9999??F | |
Measurement Range(R) | 0.0001?? - 99.99M?? | |
Basic Accuracy | 0.10% | |
Test Frequency (Hz) | 10~10kHz | 10~100kHz |
Continuously adjustable(1Hz) | Continuously adjustable(1Hz) | |
Measurement | 2 times/second (slow), 5 times/second(medium speed), 10 times/second (fast) | |
Internal Bias | 0-1500mV adjustable, 1mV stepping | |
Test Level | 0.1V~2V | |
Continuously adjustable (1mV) | ||
Correction Function | Open circuit correction, short circuit correction | |
Screening function | The screening limit can be set from -100% to +100% | |
with fixed points of 10%, 25%, 50% | ||
Selection of comparator | Five gear sorting, third gear qualified, one gear failed, one ancillary gear | |
Communication Interface | Standard configuration: USB, RS232 (or 485),Handle interface; | |
Optional: GPIB, USB Host | ||
Others | Support DCR, electrolytic capacitor measurement mode,adjustable backlight brightness, optional in English and Chinese | |

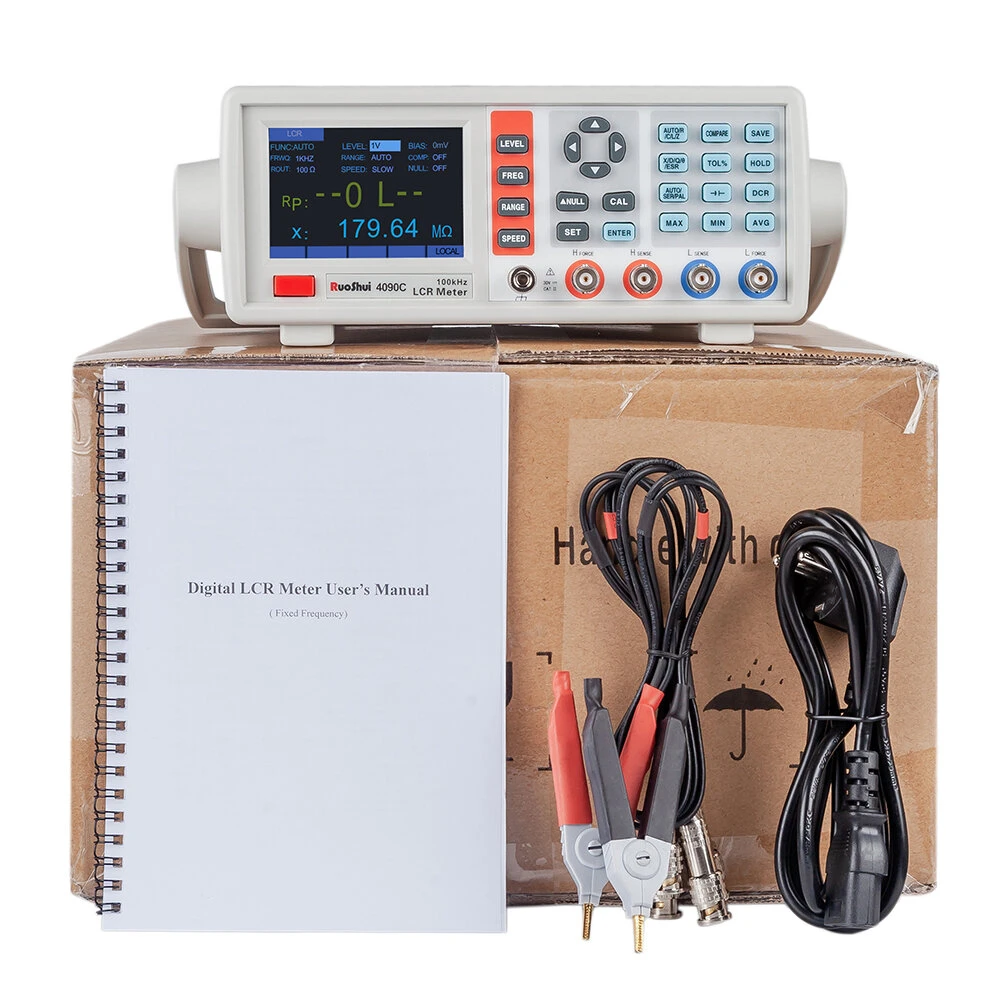

Package included:
1 x LCR meter1 set x Clip1 x Power cable1 x User manul

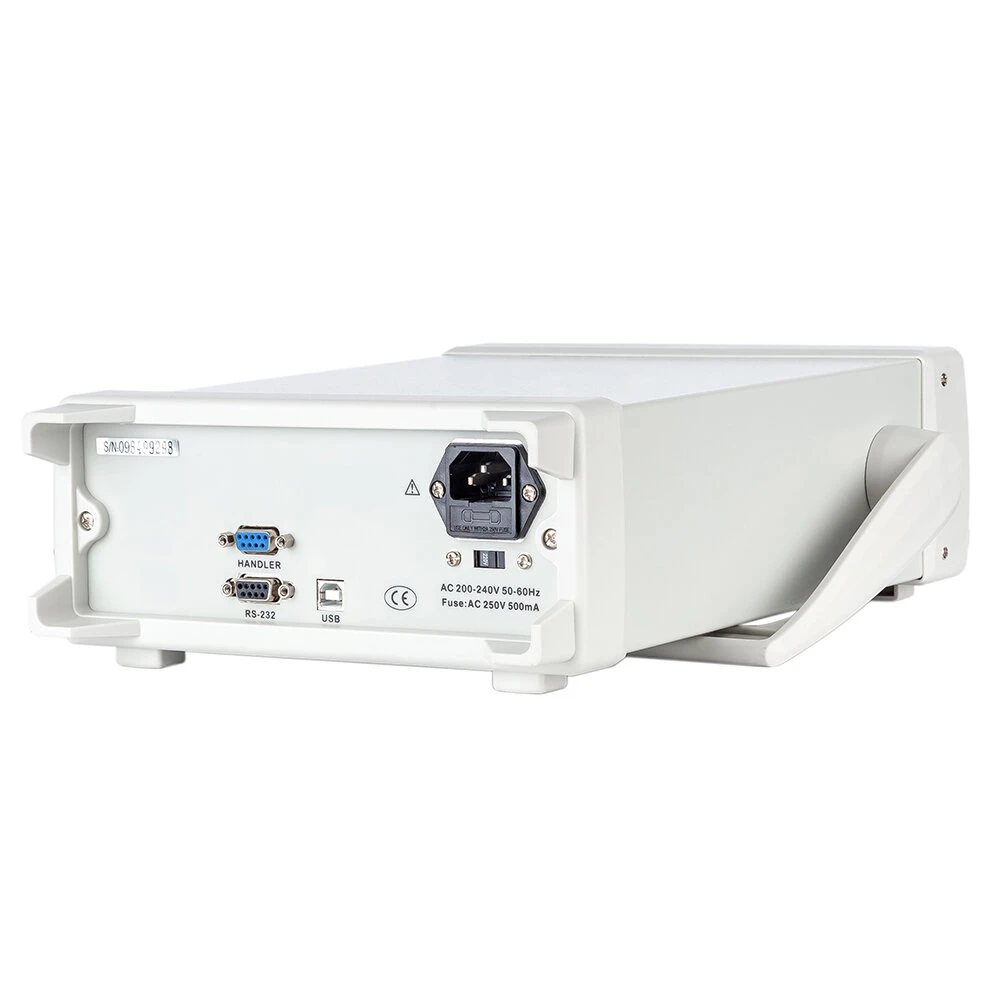

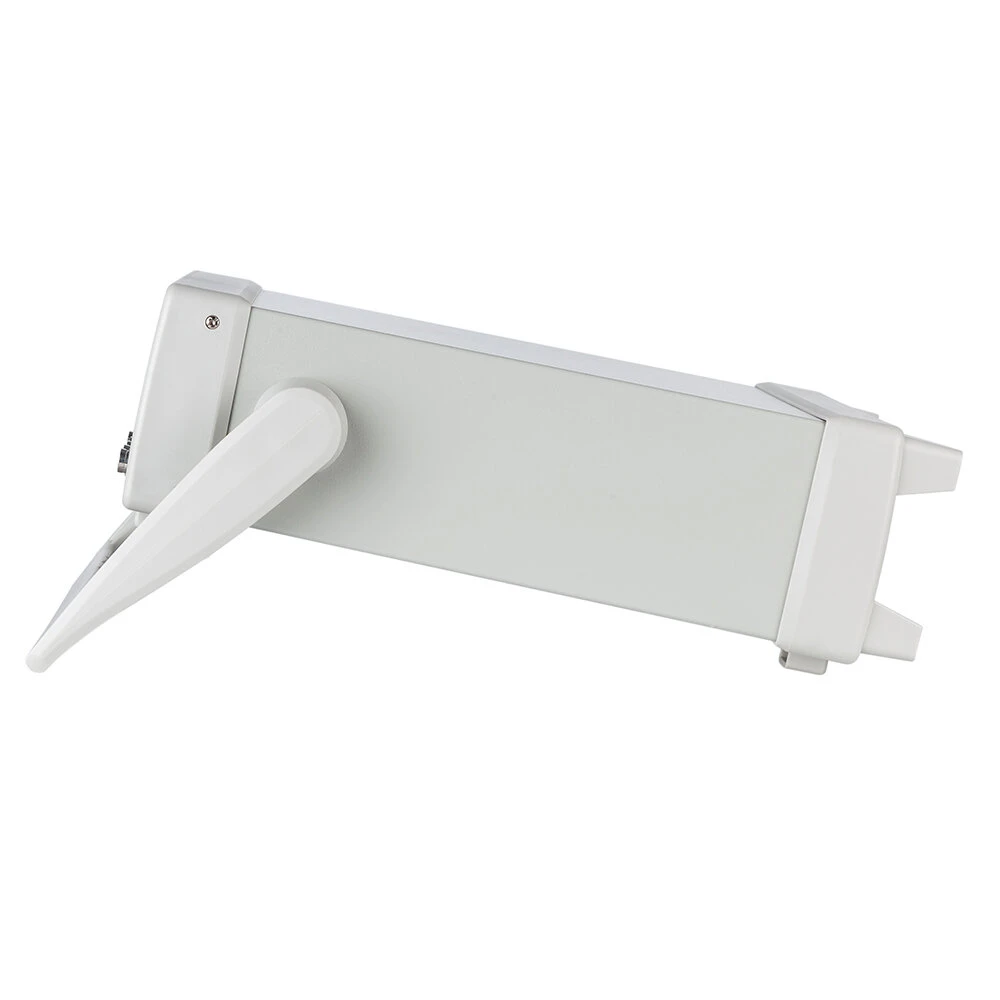

Details pictures:
