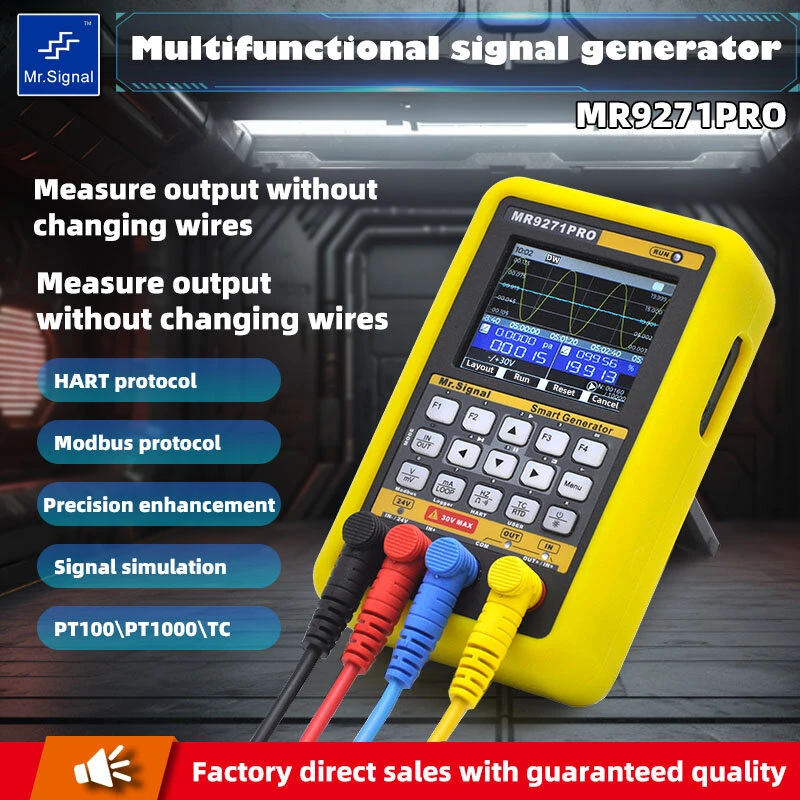

Hart MR9271PRO Signal Generator - 4-20mA Thermocouple Calibrator & Paperless Recorder

Product Description

Specifications:

Input Signal Parameters:

- Current Signal (mA):

- Range: -24~24mA

- Accuracy: 0.03%

- SR: 0.001mA

- IR: 10??

- Voltage Signal (V):

- Range: -30~30V

- Accuracy: 0.03%

- SR: 0.001V

- IR: 2M??

- ??5(V):

- Range: -5~5V

- Accuracy: 0.03%

- SR: 0.0001V

- IR: 2M??

- Frequency (Hz):

- Range: 0~50000Hz

- Accuracy: 0.03%

- SR: Auto Range

- IR: 100K

- Millivolt (mV):

- Range: -110~110mV

- Accuracy: 0.03%

- SR: 0.01mV

- IR: 20M??

- Thermocouple Types (TC):

- TC-S Range: 0~1760??C, Accuracy: 0.10%, SR: 1??C, IR: 20M??

- TC-B Range: 0~1810??C, Accuracy: 0.20%, SR: 1??C, IR: 20M??

- TC-E Range: 0~990??C, Accuracy: 0.10%, SR: 1??C, IR: 20M??

- TC-K Range: 0~1320??C, Accuracy: 0.10%, SR: 1??C, IR: 20M??

- TC-R Range: 0~1760??C, Accuracy: 0.10%, SR: 1??C, IR: 20M??

- TC-J Range: 0~1190??C, Accuracy: 0.10%, SR: 1??C, IR: 20M??

- TC-T Range: 0~390??C, Accuracy: 0.10%, SR: 1??C, IR: 20M??

- TC-N Range: 0~1290??C, Accuracy: 0.10%, SR: 1??C, IR: 20M??

- Resistance Input:

- Range: 0~400K??

- Accuracy: 0.10%

- SR: Auto Range

Output Signal Parameters:

- Current Signal (mA):

- Range: 0~23mA

- Accuracy: 0.03%

- SR: 0.001mA

- IR: 100??

- Voltage Signal (V):

- Range: 0~23V

- Accuracy: 0.03%

- SR: 0.001V

- IR: 2K??

- Low Voltage (V):

- Range: -0.22~2.4V

- Accuracy: 0.03%

- SR: 0.1mV

- IR: 2K??

- Millivolt (mV):

- Range: -10~110mV

- Accuracy: 0.03%

- SR: 0.01mV

- IR: 2K??

- Passive Signal (XMT):

- Range: 0~24mA

- Accuracy: 0.03%

- SR: 0.001mA

- IR: 100??

- 24V Circuit Detection:

- Range: 0~24mA

- Accuracy: 0.05%

- SR: 0.001mA

- IR: 100??

- Frequency (Hz):

- Range: 0~100KHz

- Accuracy: 0.03%

- SR: 0.001Hz~1Hz

- IR: 100K

- Thermocouple Types (TC):

- TC-S Range: 0~1760??C, Accuracy: 0.10%, SR: 1??C, IR: 2K

- TC-B Range: 0~1810??C, Accuracy: 0.10%, SR: 1??C, IR: 2K

- TC-R Range: 0~1760??C, Accuracy: 0.10%, SR: 1??C, IR: 2K

- TC-E Range: 0~990??C, Accuracy: 0.10%, SR: 0.1??C, IR: 2K

- TC-K Range: 0~1320??C, Accuracy: 0.10%, SR: 0.1??C, IR: 2K

- TC-J Range: 0~1190??C, Accuracy: 0.10%, SR: 0.1??C, IR: 2K

- TC-T Range: 0~390??C, Accuracy: 0.10%, SR: 0.1??C, IR: 2K

- TC-N Range: 0~1290??C, Accuracy: 0.10%, SR: 0.1??C, IR: 2K

- Resistance Output:

- Range: 0~4000??

- Accuracy: 0.10%

- SR: 0.1??

Features:

1. Versatile Signal Types:

This multifunctional device supports a wide variety of signal types including voltage, current, frequency, resistance, and thermocouples, making it a one-stop solution for numerous applications.

2. High Accuracy:

With an impressive accuracy of 0.03% for most signal types, this device ensures precise measurements and outputs, which is critical for high-stakes environments.

3. Easy Simultaneous Measurement and Output:

Offering both simplex and duplex modes, it allows for simultaneous measurement and output, enhancing workflow efficiency and simplifying complex tasks.

4. Wide Temperature Range:

Supports an extensive temperature range across various thermocouple types, accommodating industries that require strict thermal regulation and monitoring.

5. User-Friendly Interface:

The intuitive user interface makes this device straightforward to operate, reducing training time and improving operational productivity.

Package Included:

1 x MR9271PRO Signal Generator

4 x Test Cable Set

1 x Power Adapter

1 x USB Cable

4 x Alligator Clips (Yellow, Blue, Black, Red)

1 x Alligator Clip Cable

1 x 3.5mm to Terminal Connector

1 x Carrying Case
