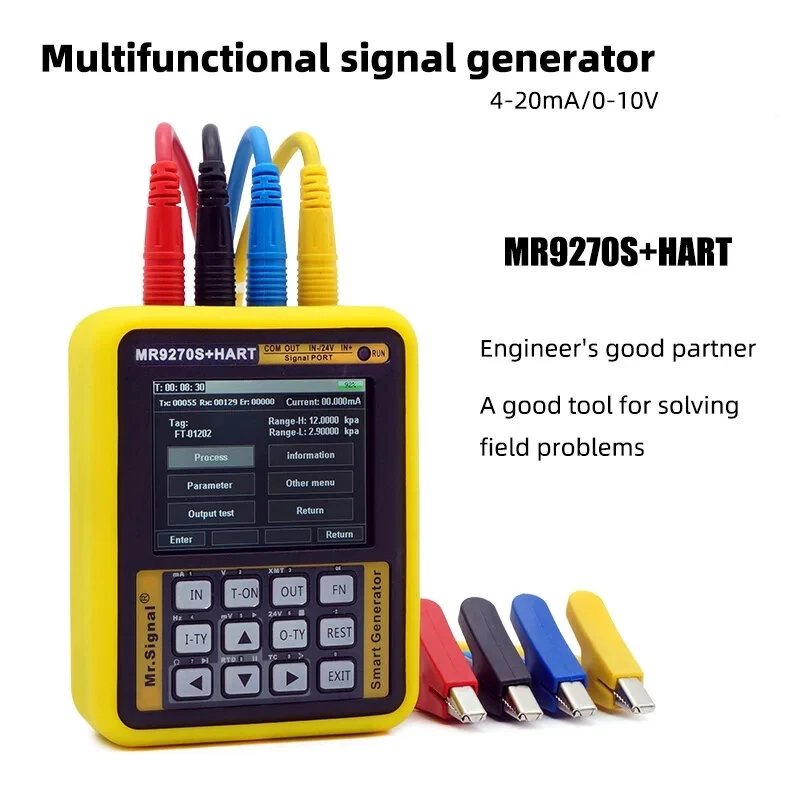

HART 4-20mA Signal Generator - MR9270S+ Thermocouple Transmitter & Paperless Recorder

Product Description

Specifications:

- Output Signal Parameters:

- Electric Current (mA): Range 0~23mA, Accuracy 0.03%, Resolving Power 0.001mA, Internal Resistance 100??

- Voltage (V): Range 0~23V, Accuracy 0.03%, Resolving Power 0.001V, Internal Resistance 500??

- Passive Signal (XMT): Range 0~24mA, Accuracy 0.03%, Resolving Power 0.001mA, Internal Resistance 100??

- 24V Loop Detection: Range 0~24mA, Accuracy 0.03%, Resolving Power 0.01mA, Internal Resistance 100??

- Frequency (Hz): Range 0~9999Hz, Accuracy 0.03%, Resolving Power 5 digits, Internal Resistance 1M??

- Millivolt (mV): Range -10~110mV, Accuracy 0.05%, Resolving Power 0.01mV, Internal Resistance 2K??

- Thermocouple (TC-S): Range 0~1760??C, Accuracy 0.10%, Resolving Power 1??C, Internal Resistance 2K??

- Thermocouple (TC-B): Range 0~1810??C, Accuracy 0.20%, Resolving Power 1??C, Internal Resistance 2K??

- Thermocouple (TC-E): Range 0~990??C, Accuracy 0.10%, Resolving Power 1??C, Internal Resistance 2K??

- Thermocouple (TC-K): Range 0~1320??C, Accuracy 0.10%, Resolving Power 1??C, Internal Resistance 2K??

- Thermocouple (TC-R): Range 0~1760??C, Accuracy 0.20%, Resolving Power 1??C, Internal Resistance 2K??

- Thermocouple (TC-J): Range 0~1190??C, Accuracy 0.10%, Resolving Power 1??C, Internal Resistance 2K??

- Thermocouple (TC-T): Range 0~390??C, Accuracy 0.20%, Resolving Power 1??C, Internal Resistance 2K??

- Thermocouple (TC-N): Range 0~1290??C, Accuracy 0.20%, Resolving Power 1??C, Internal Resistance 2K??

- Pt100: Range -200~650??C, Accuracy 0.30%, Resolving Power 0.1??C, Internal Resistance 10K??

- Cu50: Range -20~150??C, Accuracy 0.30%, Resolving Power 0.1??C

- Resistance Output: Range 0~390??, Accuracy 0.10%, Resolving Power 0.3??

- Input Signal Parameters:

- Electric Current (mA): Range -24~24mA, Accuracy 0.03%, Resolving Power 0.001mA, Internal Resistance 10??

- Voltage (V): Range -30~30V, Accuracy 0.03%, Resolving Power 0.001V, Internal Resistance 3M??

- Frequency (Hz): Range 0~9999Hz, Accuracy 0.03%, Resolving Power 5 digits, Internal Resistance 100K??

- Millivolt (mV): Range -110~110mV, Accuracy 0.03%, Resolving Power 0.01mV, Internal Resistance 20M??

- Thermocouple (TC-S): Range 0~1760??C, Accuracy 0.10%, Resolving Power 1??C, Internal Resistance 20M??

- Thermocouple (TC-B): Range 0~1810??C, Accuracy 0.20%, Resolving Power 1??C, Internal Resistance 20M??

- Thermocouple (TC-E): Range 0~990??C, Accuracy 0.10%, Resolving Power 1??C, Internal Resistance 20M??

- Thermocouple (TC-K): Range 0~1320??C, Accuracy 0.10%, Resolving Power 1??C, Internal Resistance 20M??

- Thermocouple (TC-R): Range 0~1760??C, Accuracy 0.20%, Resolving Power 1??C, Internal Resistance 20M??

- Thermocouple (TC-J): Range 0~1190??C, Accuracy 0.10%, Resolving Power 1??C, Internal Resistance 20M??

- Thermocouple (TC-T): Range 0~390??C, Accuracy 0.10%, Resolving Power 1??C, Internal Resistance 20M??

- Thermocouple (TC-N): Range 0~1290??C, Accuracy 0.20%, Resolving Power 1??C, Internal Resistance 20M??

- Pt100: Range -200~650??C, Accuracy 0.30%, Resolving Power 0.1??C, Internal Resistance 10K??

- Cu50: Range -20~150??C, Accuracy 0.30%, Resolving Power 0.1??C

- Resistance Input: Range 0~390??, Accuracy 0.10%, Resolving Power 0.02??, Internal Resistance 10K??

Features:

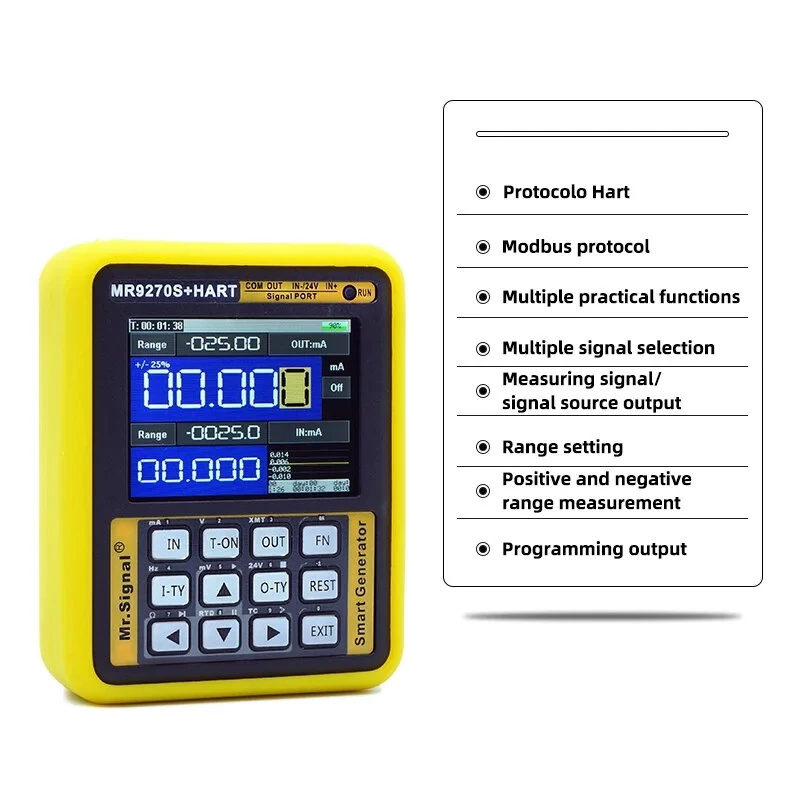

1. Versatile Compatibility: Seamlessly supports multiple input and output signal types including mA, V, Hz, mV, and various thermocouples, ensuring applicability across diverse environments.

2. High Precision: Achieve precise measurements and outputs with an accuracy of up to 0.03%, providing reliable data for critical applications and minimizing errors.

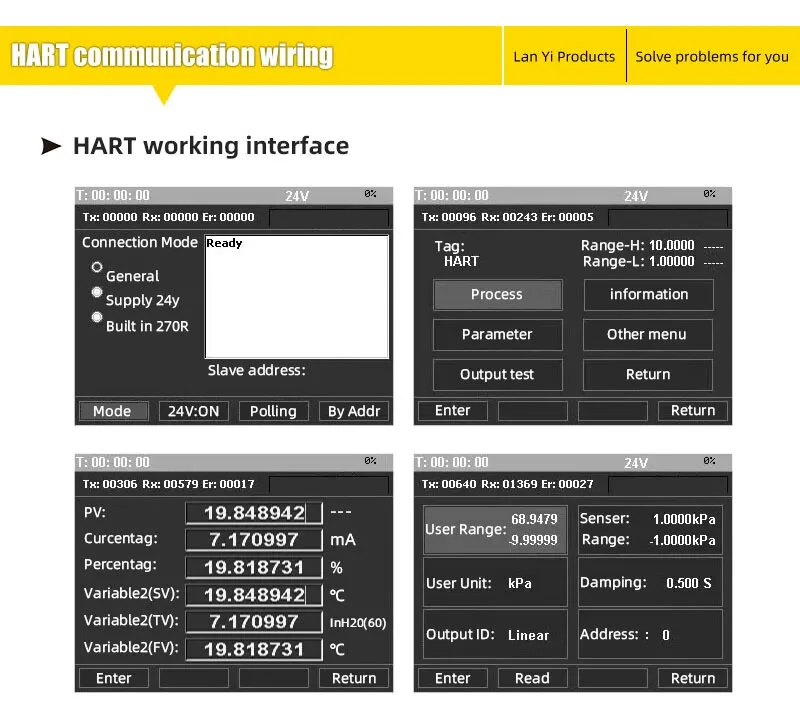

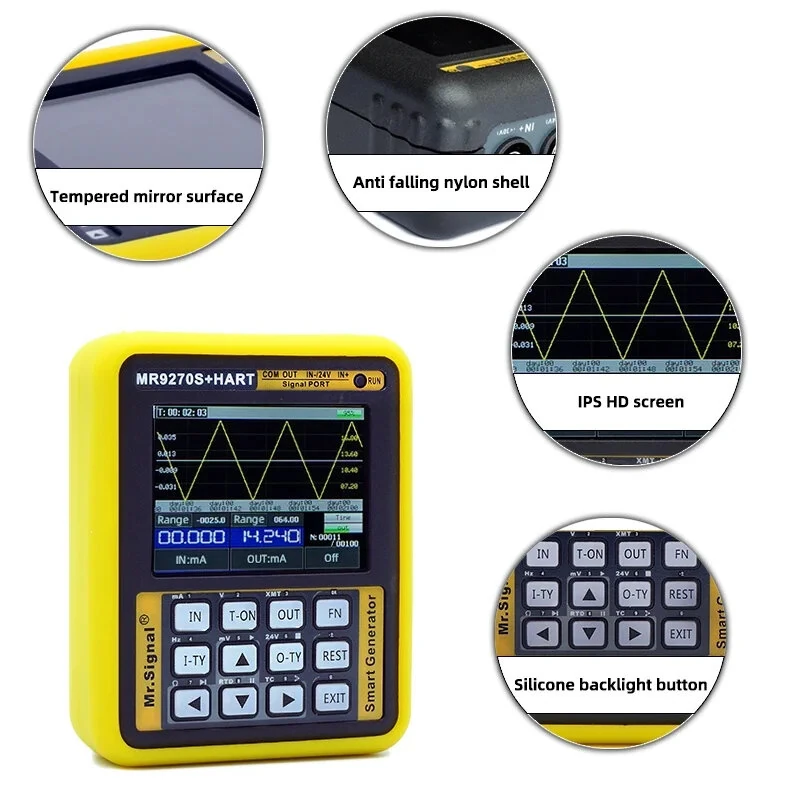

3. Comprehensive Display: Interactive LCD screen offers clear display of data and settings, facilitating easier navigation and configuration, improving user interface.

4. Enhanced Connectivity: Equipped with advanced communication ports such as 485 connectors, it ensures stable and fast data interchange, great for integrating into larger systems.

5. Portable Design: Compact and lightweight, complemented by a robust carrying case, allowing easy transportation and protection for fieldwork and mobile applications.

Package Included:

1 x MR9270S+HART Signal Generator

1 x Black Tool Kit

1 x Test Line Set

1 x 485 Connector

1 x 485 Communication Line

1 x Instructions Manual

1 x Certificate

1 x Warranty Card

1 x Charger

1 x Charging Line
