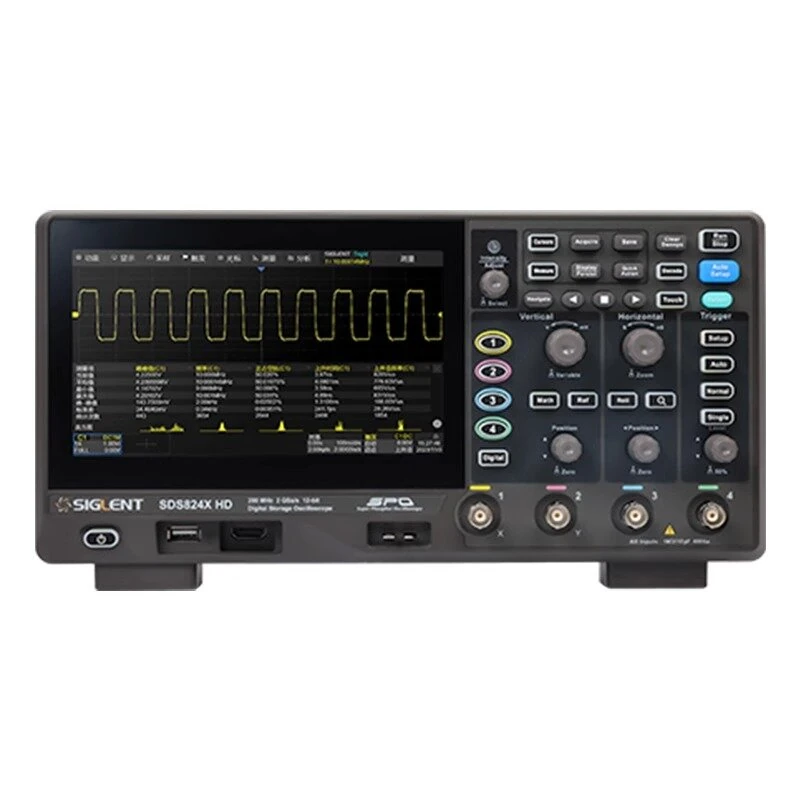

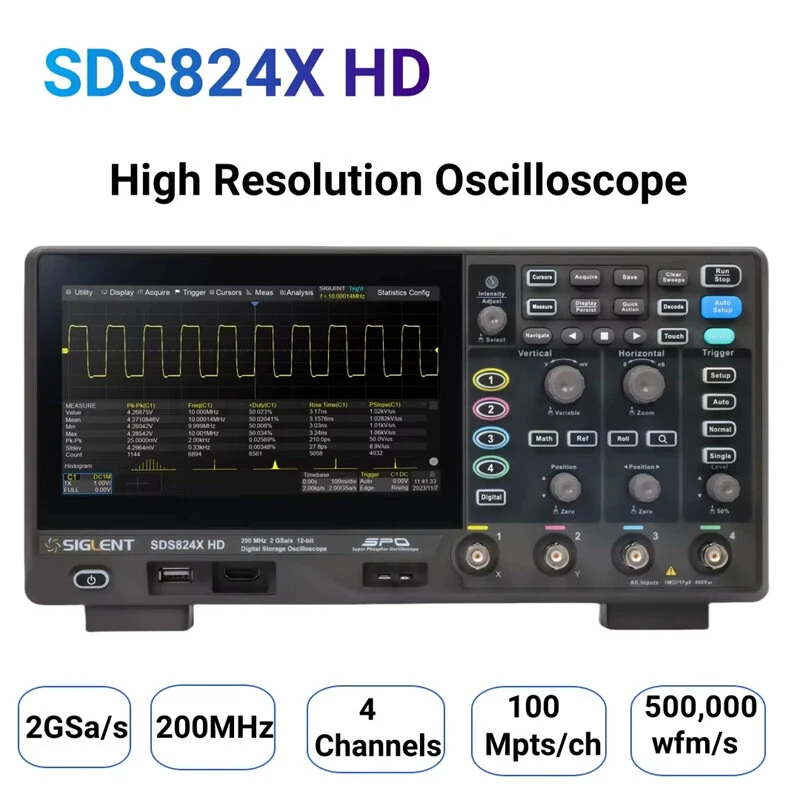

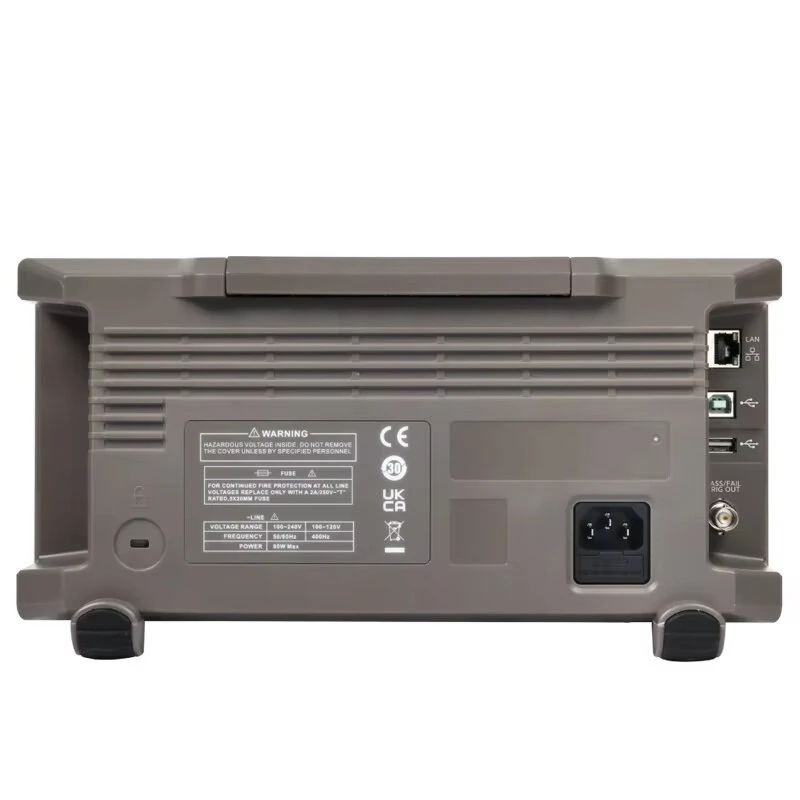

Siglent SDS824X-HD Oscilloscope | 4 Channel 200MHz 12-bit | 7 Display 2GSa/s

Product Description

Specifications:

Model: SDS824X HD

Bandwidth: 200 MHz

Analog Channels: 4

Vertical Resolution: 12-bit

Max Sample Rate: 2 GSa/s (1 channel), 1 GSa/s (2 channels), 500 MSa/s (4 channels)

Memory Depth: Up to 100 Mpts/ch (1 channel), 50 Mpts/ch (2 channels), 25 Mpts/ch (4 channels)

Waveform Capture Rate: 120,000 wfm/s (Normal), 500,000 wfm/s

Trigger Types: 14 types including Edge, Pulse, Video, Serial, and Setup/Hold

Serial Protocol Support: I2C, SPI, UART, CAN, LIN (Standard)

Display: 7-inch TFT-LCD capacitive touchscreen (1024??600 resolution)

Features:

?? High-Resolution Touchscreen Display

The 7-inch capacitive touchscreen (1024??600) offers intuitive navigation and crisp waveform visualization. The 12-bit vertical resolution ensures precise signal detail, ideal for analyzing low-amplitude or high-frequency signals in lab environments.

?? Advanced Triggering and Protocol Analysis

With 14 trigger types and built-in support for decoding I2C, SPI, UART, CAN, and LIN protocols, this oscilloscope simplifies debugging complex systems. The serial trigger feature accelerates fault detection in embedded designs.

?? Ultra-Fast Waveform Capture

Achieve up to 500,000 waveforms per second in Sequencemode, capturing elusive signal anomalies with unmatched efficiency. The deep memory (100 Mpts/ch) retains long-duration signals without compromising detail.

?? Expandable Functionality

Add 16 digital channels (optional) for mixed-signal analysis or integrate the USB AWG module to generate custom waveforms (25 MHz, 125 MSa/s). This flexibility adapts to diverse testing needs, from power electronics to communications.

?? Professional Measurement Tools

Over 50 automated parameters, FFT analysis, and math operations (+, -, ??, ??, filters) enable thorough signal characterization. The Bode plot and mask testing further enhance validation of circuit performance.

Package Included:

1 x Host

1 x Power Cord

1 x USB Cable

1 x Outer Packing

1 x Guidelines & Certificate

4 x Passive Probe (1 set per channel)

1 x Adapter
