OWON XDS3202E Oscilloscope - 200MHz Bandwidth, 1GS/s Sampling, 8-bit

Product Description

Features:
1. High Performance: The OWON Oscilloscope XDS3202E boasts an impressive bandwidth of 200MHz with a sample rate of 1GS/s, ensuring reliable and accurate data analysis. The vertical resolution of 8 bits and a record length of 40M magnifies the efficiency of this digital oscilloscope.
2. Comprehensive Display: Furnished with an 8-inch color LCD, with an optional 1024 x 768 pixels IPS display, the XDS3202E offers an expressive representation of waveform for accurate readings to ease decision-making processes.
3. Multiple Trigger Types: This oscilloscope is constructed with different trigger types including edge, video, pulse, slope, runt, windows, timeout, Nth edge, I2C, SPI, RS232, and CAN (optional) which provides flexibility and efficient debugging.
4. Advanced Measurement Functions: The XDS3202E oscilloscope is packed with multiple automated measurement functions such as frequency, period, week RMS, cursor RMS, rise time, fall time, and more, assuring concise results and improved productivity.

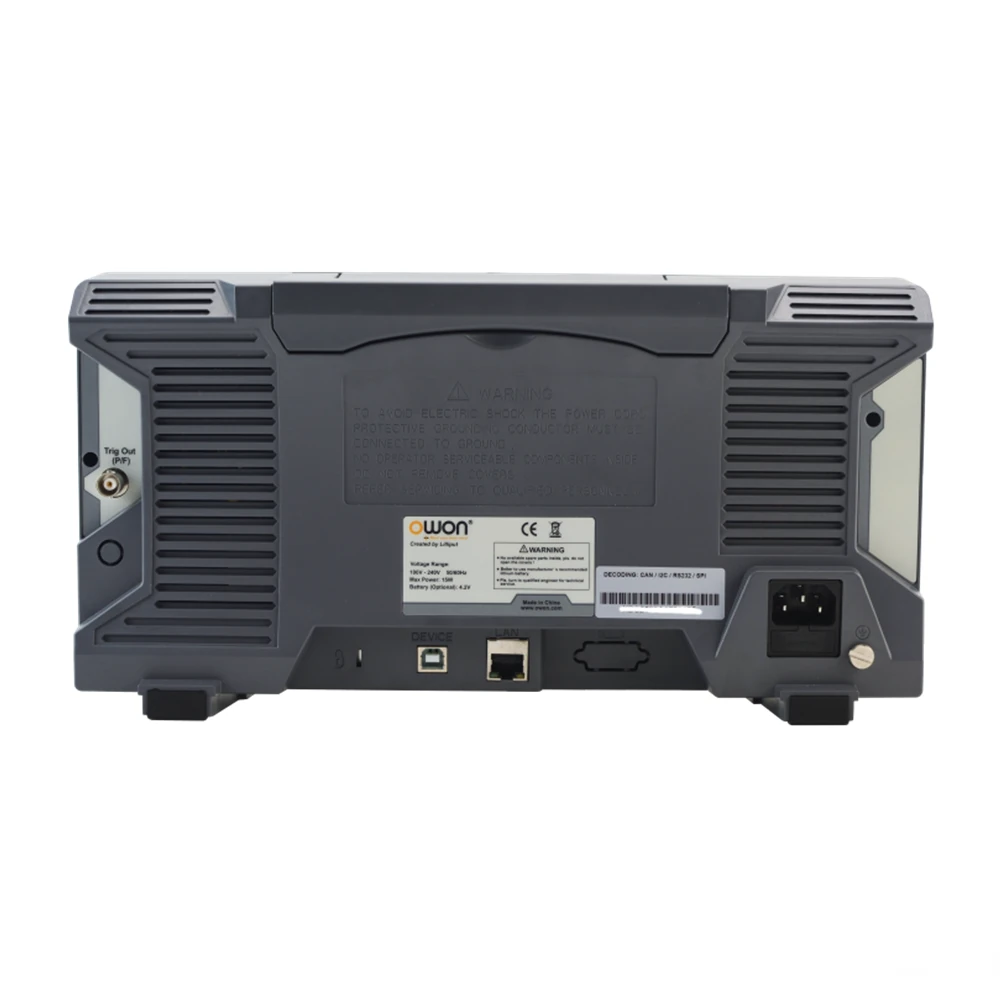

5. User-friendly Interface: The built-in communication interface includes USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VG, for superior connectivity for data transfer and device interaction.

Specifications:
- Brand: OWON
- Model: XDS3202E
- Bandwidth: 200MHz
- Sample Rate: 1GS/s
- Vertical Resolution (A/D): 8 bits
- Record length: 40M
- Waveform Refresh Rate:75,000 wfms/s
- Rise Time: ??1.7ns
- Channels: 2 + 1 (external)
- Display: 8" color LCD
- Probe Attenuation Factor: 0.001X - 1000X, step by 1 - 2 - 5
- Input Impedance: 1MQ
- Max Input Voltage: DC Gain Accuracy??3%
- DC Accuracy average: 216: ??3%
- Optional Plug Type: EU/US Plug

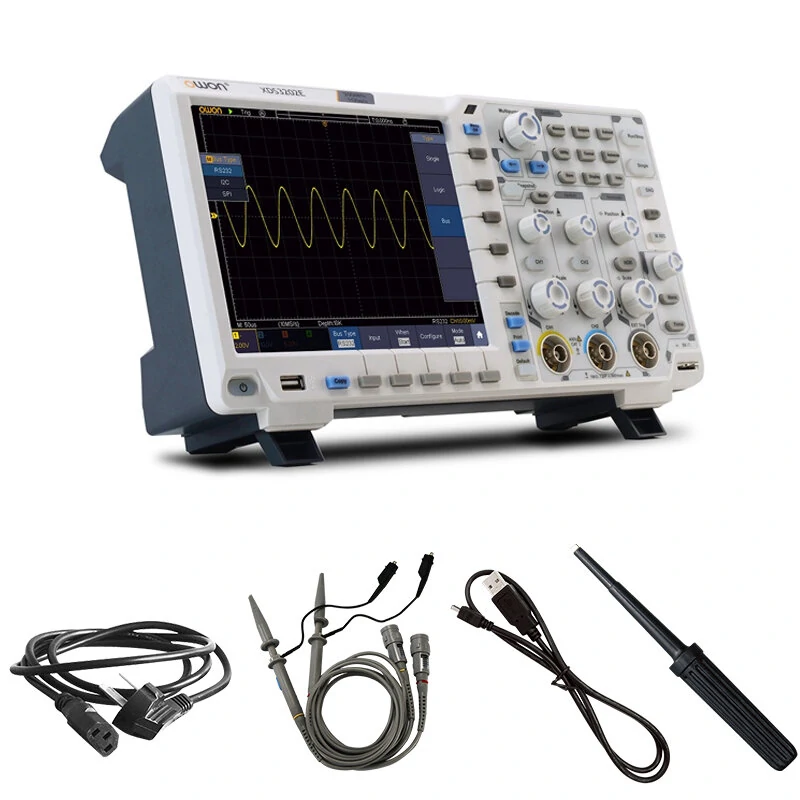

Package included:
1 x OWON Oscilloscope XDS3202E (Plug Type As Your Choice)
1 x Power Cord
1 x Probe Adjust
1 x CD Rom Manual
1 x Probe
