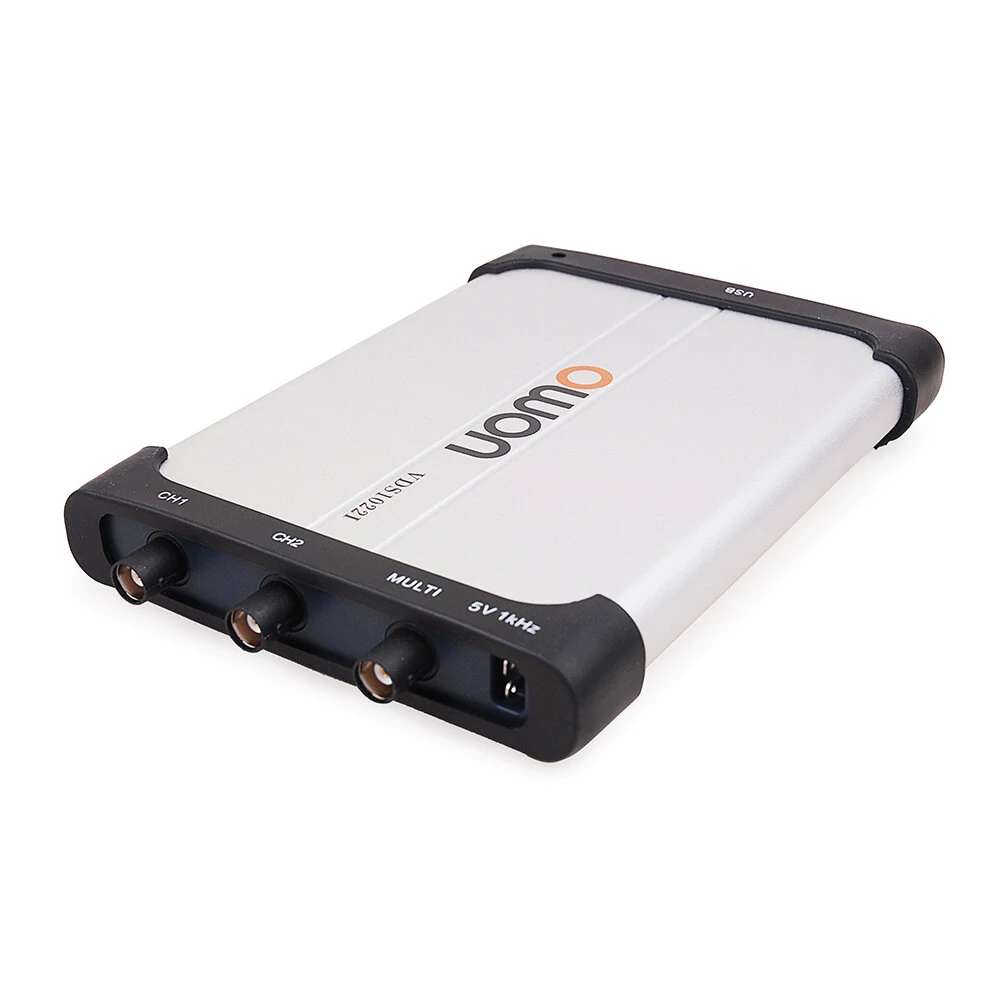

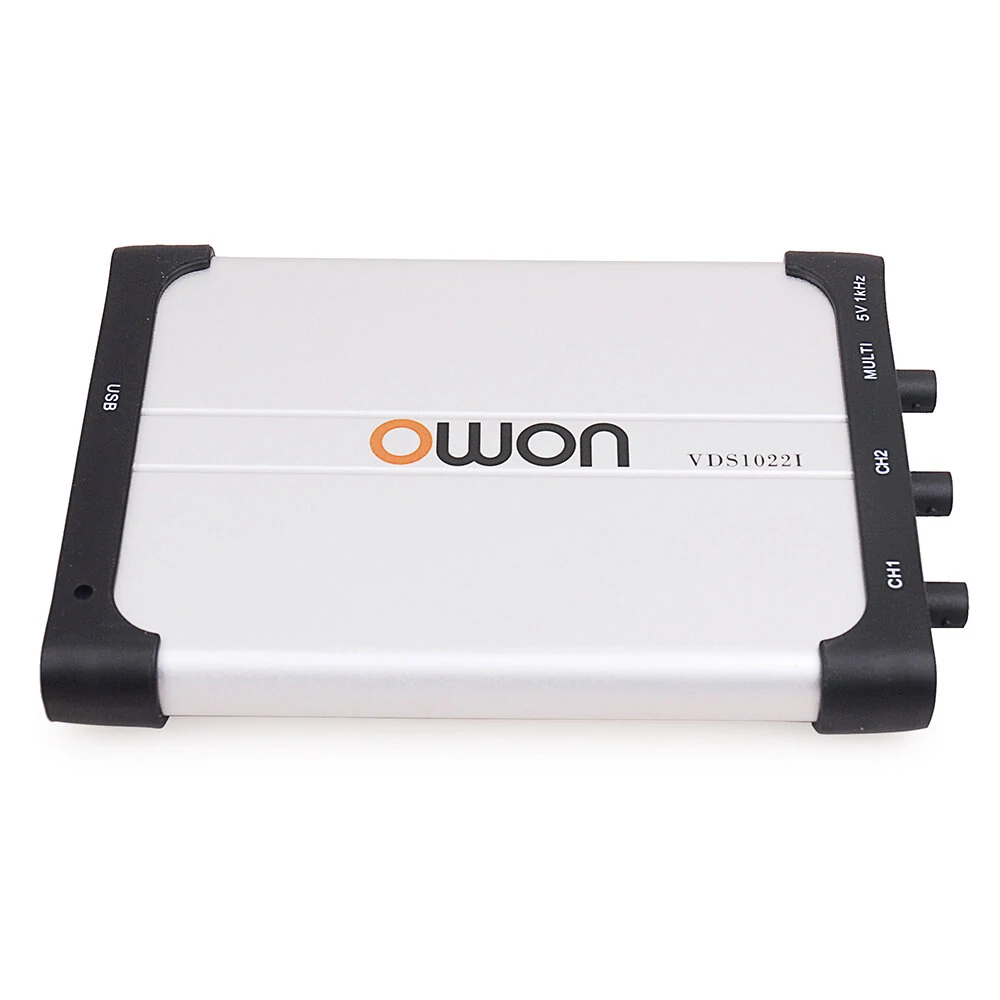

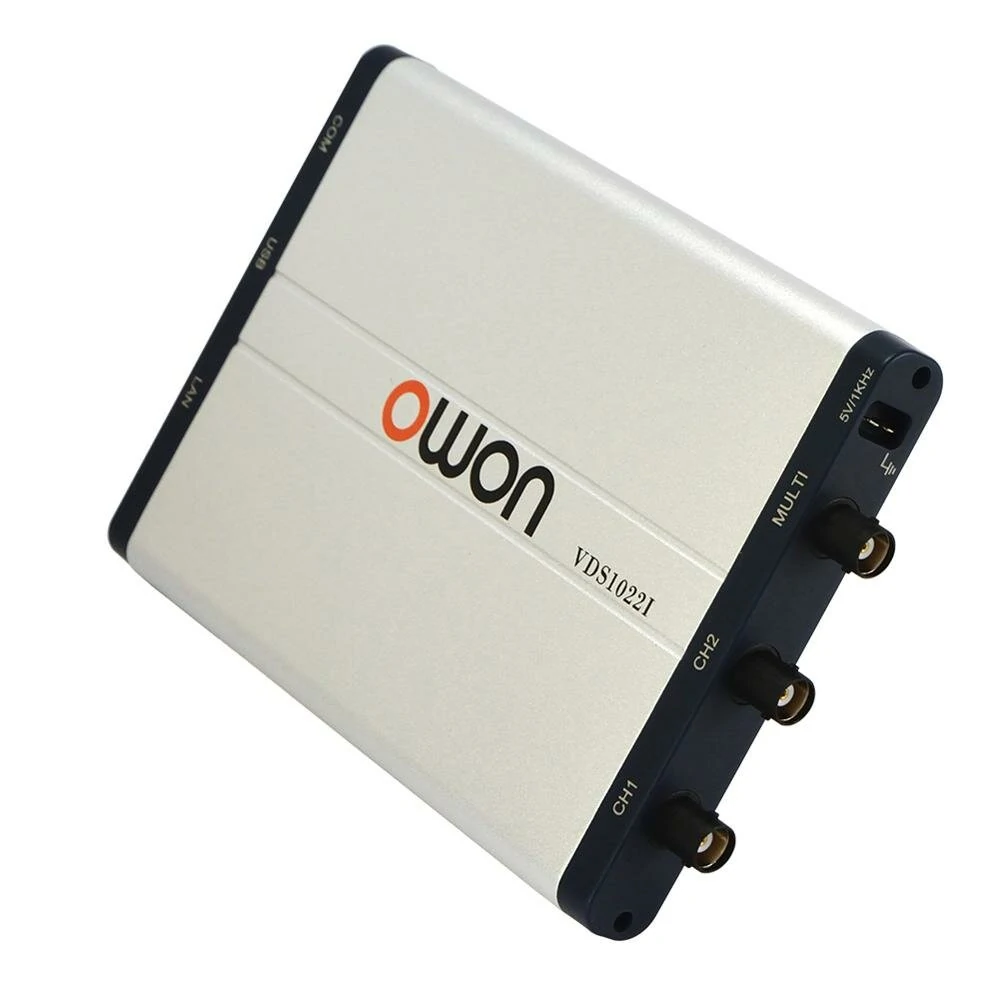

OWON VDS1022I USB Oscilloscope | 25MHz Bandwidth 100MSa/s | Portable PC-Based Scope
Product Description
OWON VDS1022I VDS1022 Digital Storage Oscilloscope 100Msa/S 25Mhz Bandwidth Handheld Portable PC USB Oscilloscopes with Probes
OWON VDS Series PC Oscilloscope
Features:
- Up to 100MHz bandwidth, and max 1GS/s real-time sample rate
- 10M record length
- Friendly UI : FFT, or X-Y, and waveform 2 views displayed
on the same screen
- Multi-trigger option : edge, video, slope, pulse, and alternate
- USB isolation - less signal inference, more PC protection
- USB bus powering, and LAN remote control (optional)
- Ultra-thin body design, easy portability
Notice:The difference between VDS1022 and VDS1022I is VDS1022I isolate power for the computer and the oscilloscope to protect the computer from being burned by mistake
Specifications:
Model | VDS1022I | VDS1022I |
Bandwidth | 25MHZ | |
Channel | 2+1 (multi) | |
Sample Rate | 100MSa/s | |
Horizontal Scale (s/div) | 5ns/div~~100s/div, step by 1~2~~5 | |
Record Length | 5K | |
Max Input Voltage | 40V (PK - PK) (DC+AC, PK - PK) | 40V (PK - PK) (DC+AC, PK - PK) |
Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | |
Vertical Sensitivity | 5mV/div~5V/div | |
Trigger Type | Edge, Pulse, Video, Slope, and Alternate | |
Trigger Mode | Auto, Normal, and Single | |
Acquisition Mode | Sample, Peak Detect, and Average | |
Waveform Math | +,-,??,+,invert,FFT | |
Communication Interface | USB 2.0 (isolation) | USB 2.0 |
Signal Type | synchronized input / output, Pass / Fail, external trigger input |
|
Level Standard | TTL |
|
Power Supply | 5.0V/1A |
|
Power Consumption | ??2.5W | ??6.5W |

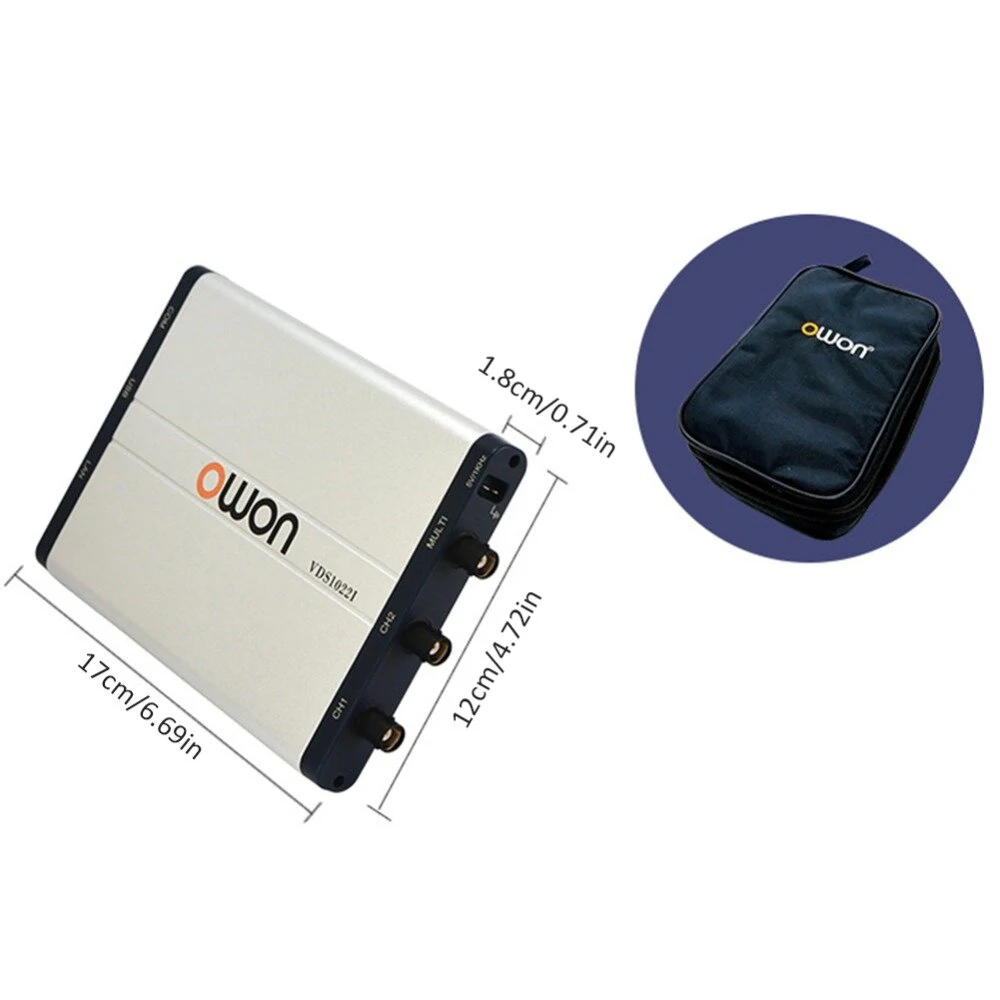

Dimensions(W x H x D) | 170??120??18(mm) | 190??120?? 18(mm) |
Package included:
1 x PC Oscilloscope
2 x Probe
1 x USB cable
1 x CD
1 x Manual
1 x Adjust tool
2 x Tip locating sleeve
8 x Color circle
2 x Ground spring
