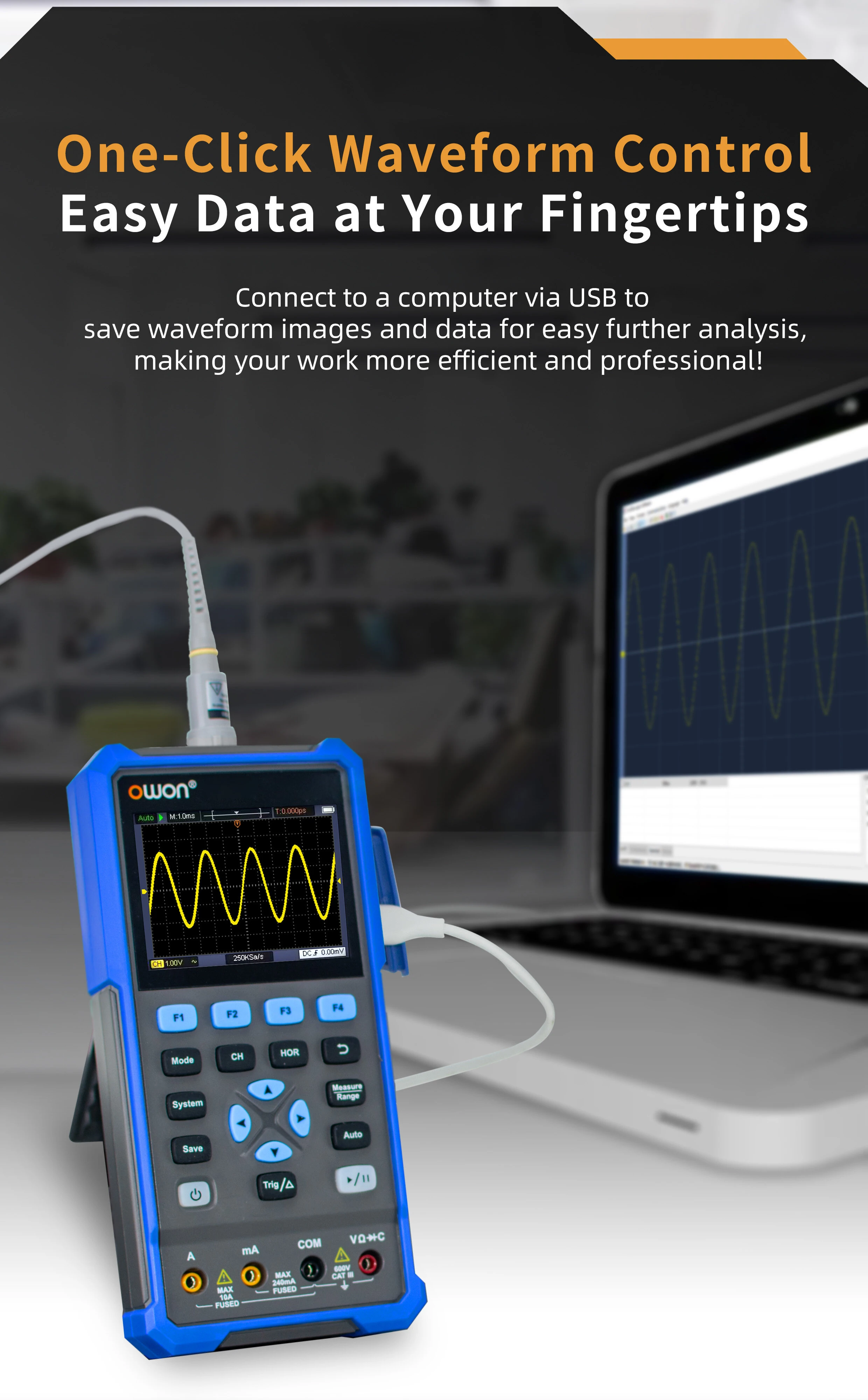

OWON HDS241 Handheld Oscilloscope 40MHz 250MSa/s | 3-in-1 with Multimeter & Waveform Generator

Product Description

Specifications:

Oscilloscope:

Model: HDS241 / HDS271

Bandwidth: 40MHz / 70MHz

Channel: 1

Real-time Sampling Rate: 250MSa/s

Vertical Resolution: 8bit

Sampling Method: Sampling, Peak, Detection

Record Length: 4K or 8K

Waveform Refresh Rate: 10000wfms/s

Input Coupling: DC, AC, GND

Input Impedance: 1M????2%, in parallel with 16pF??10pF

Probe Attenuation: 1X, 10X, 100X, 1000X, 10000X

Maximum Input Voltage: 400V (DC+AC, PK-PK)

Horizontal Sampling Rate Range: 0.25Sa/s??250MSa/s

Waveform Interpolation: (Sin x)/x

Sweep Speed Range: 5ns/div~1000s/div, Step by 1-2-5

Time Base Accuracy: ??100ppm

Vertical Sensitivity Range: 10mV/div~10V/div

Position Range: ??2V(10mV/div?C200mV/div), ??100V(500mV/div?C10V/div)

Analog Bandwidth: HDS241: 40MHz, HDS271: 70MHz

Low Frequency Response: ??10Hz (AC coupling, -3dB)

Rise Time: HDS241: ??8ns, HDS271: ??5ns

DC Gain Accuracy: ??3%

Triggering Type: Edge

Trigger Coupling: DC, AC

Trigger Type: Auto, normal, single

Trigger Level Range: ??4 div from the center of the screen

Trigger Level Accuracy: ??0.3 div

Trigger Position: According to Record length and time base

Edge Triggering: Rising edge; falling edge

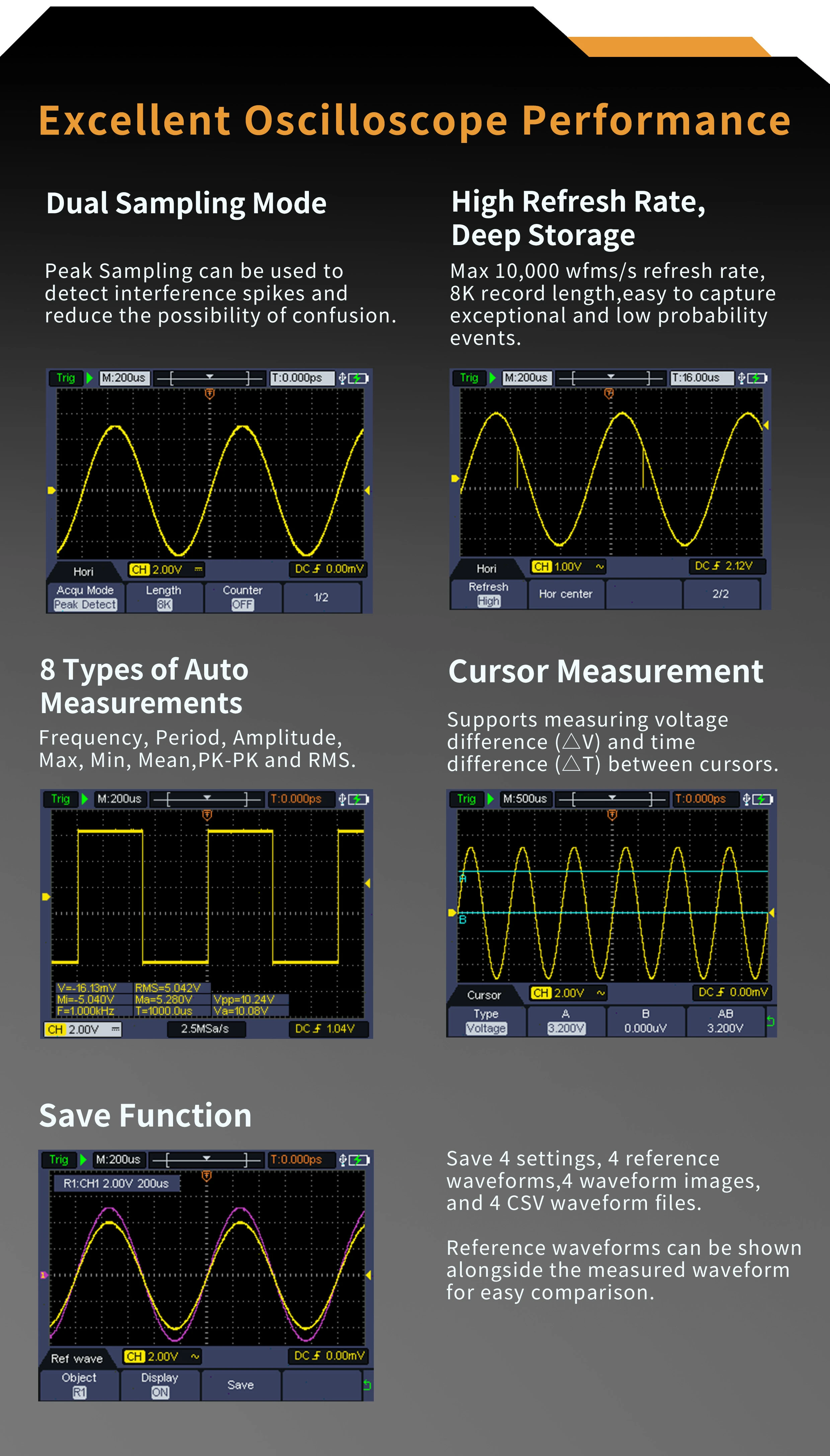

Automatic Measurement: Period, Frequency, Mean, PK-PK, Max, Min, Amplitude, RMS

Cursor Measurement: ??V, ??T

Multimeter:

Display: 24,000 readings

Measurement Type: Voltage, current, resistance, capacitance, continuity, diode

Diode Test: 0-2V

Maximum Input Voltage: AC: 750V, DC: 1000V

Auto Range: Yes

Maximum Input Current: AC: 10A, DC: 10A

Continuity: <50??

True RMS: Yes

Arbitrary Waveform Generator:

Output Frequency:

Sine: 10Hz~100kHz, Step by 1-2-5

Square: 10Hz~100kHz, Step by 1-2-5

Ramp: 10Hz~100kHz, Step by 1-2-5

Pulse: 10Hz~10kHz, Step by 1-2-5

Amplitude: 1Vpp or 2.5Vpp

Other Specifications:

Display: 3.5 inch (320*240) LCD

Power Consumption: <5W

Height:

Operating: 3,000 meters

Non-operating: 15,000 meters

Battery: 2000mAh (3.7V, 103450)

Temperature:

Working: 0??-40??

Storage: -20??-+60??

Power Supply: DC INPUT: 5VDC, 2A

Relative Humidity: ??90%

Cooling Method: Natural cooling

Dimensions: 198 (L)*96 (H)*38 (W) mm

Weight: About 0.6kg (without battery)

Features:

1.Comprehensive Measurement Capabilities: The device integrates an oscilloscope, multimeter, and waveform generator, making it a versatile tool for various testing and diagnostic applications.

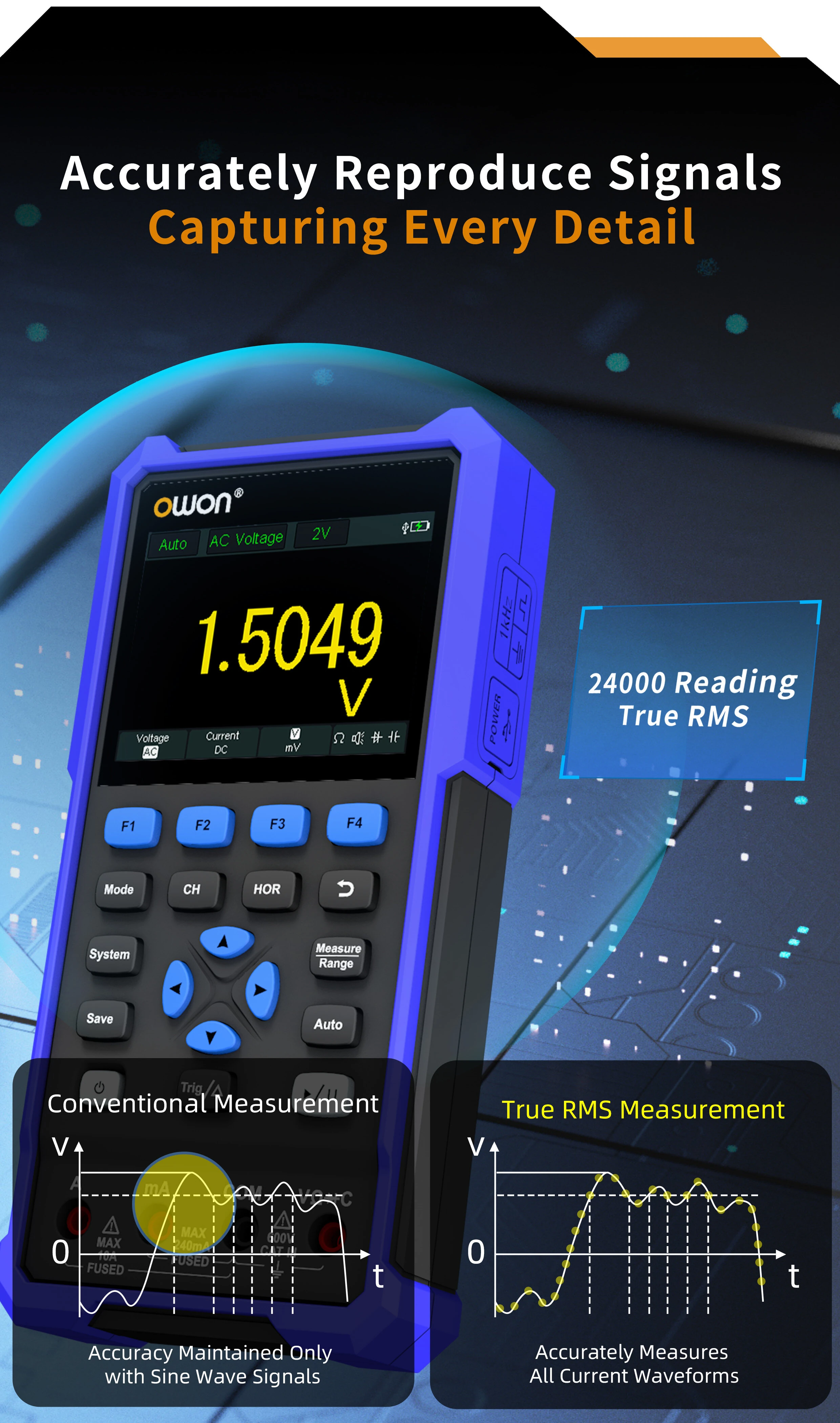

2.High Precision and Accuracy: With a 24,000 reading display, high sampling rates, and an extensive range of measurement capabilities, you can trust the precision and accuracy of your measurements every time.

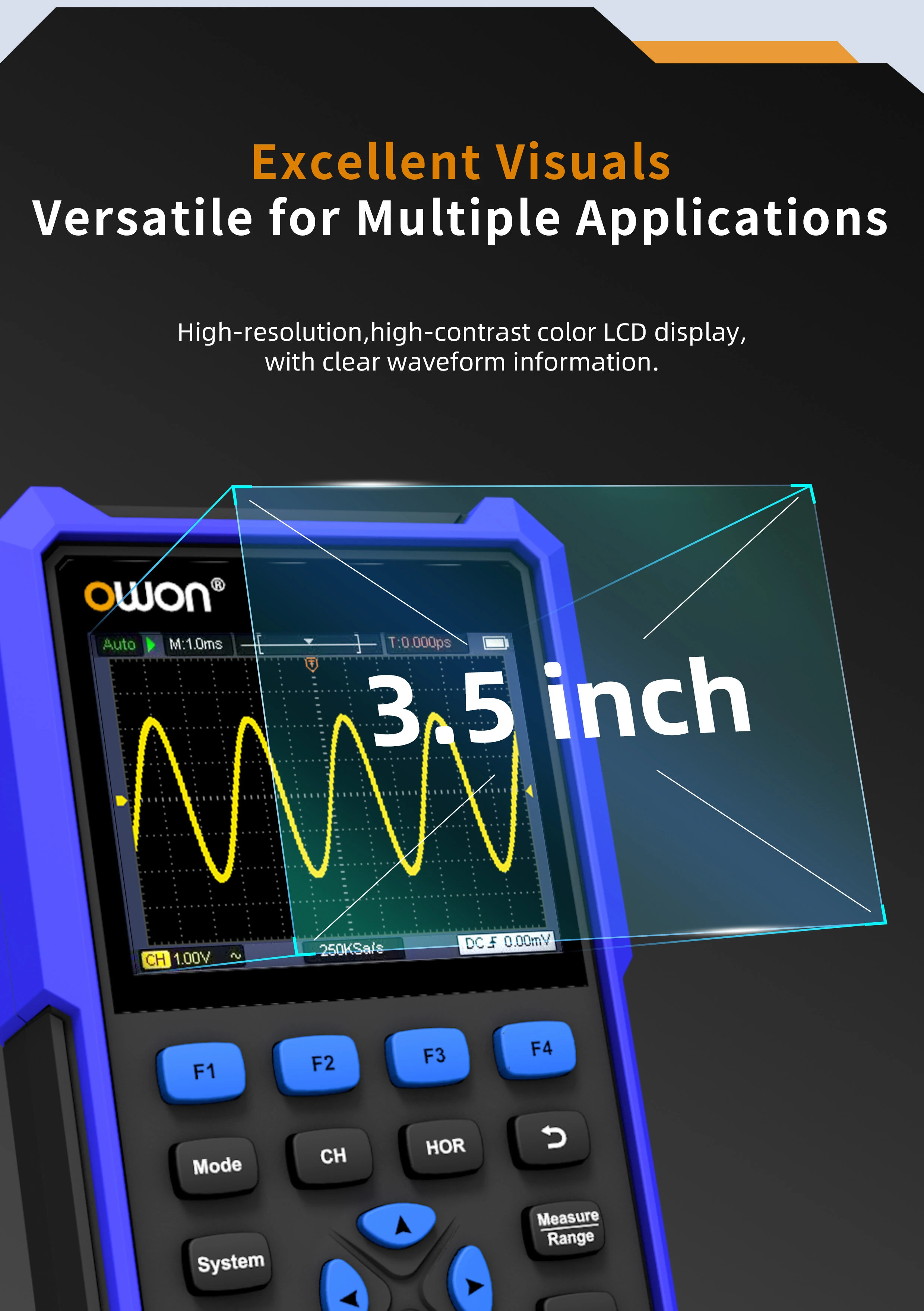

3.Portable and User-friendly Design: Lightweight, compact, and equipped with a 3.5-inch LCD screen, the device is designed for both field and bench use, providing convenience without sacrificing performance.

4.Advanced Triggering Options: The edge triggering capabilities, including rising and falling edges, along with multiple triggering types ensure you capture the exact signals you're interested in.

5.Superior Input Protection: The oscilloscope and multimeter come with robust input protection, ensuring safety and reliability even under challenging conditions, with input voltage ratings up to 1000V.

Package Included:

1 x Host

1 x USB Cable

1 x Probe

1 x Multimeter Lead

1 x Manual
