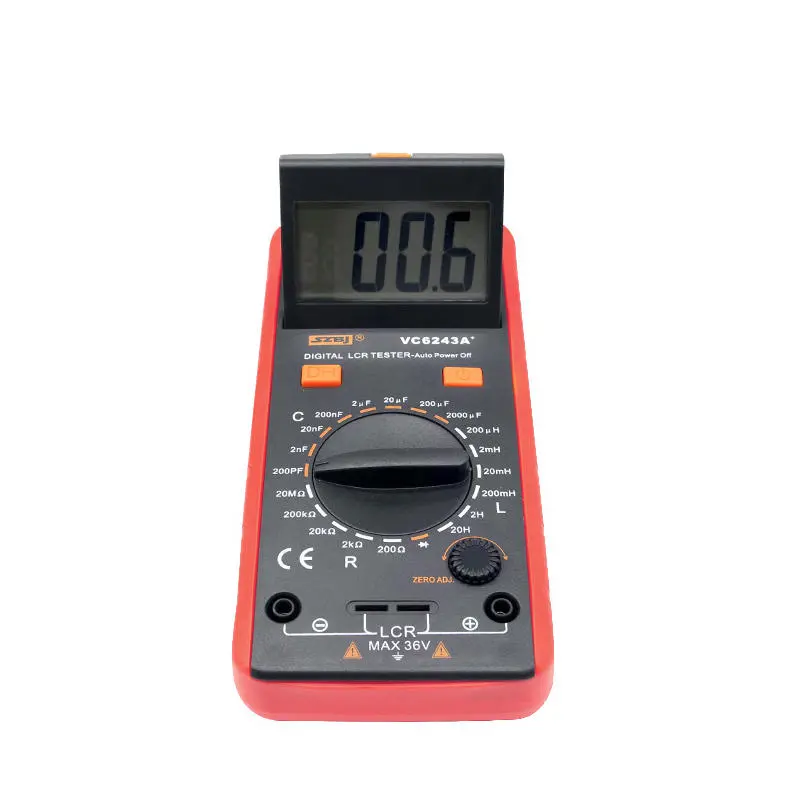

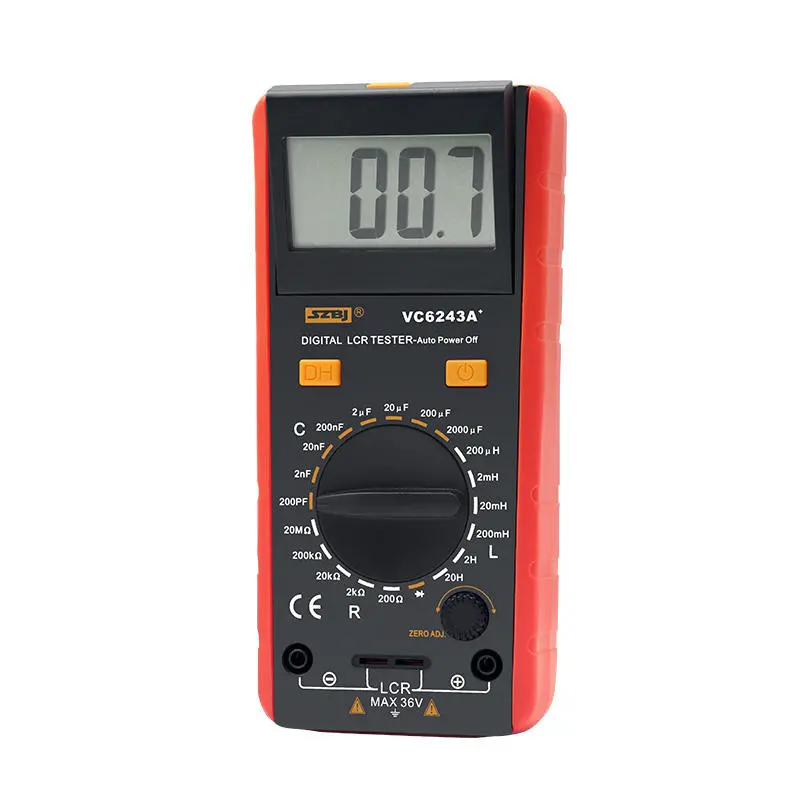

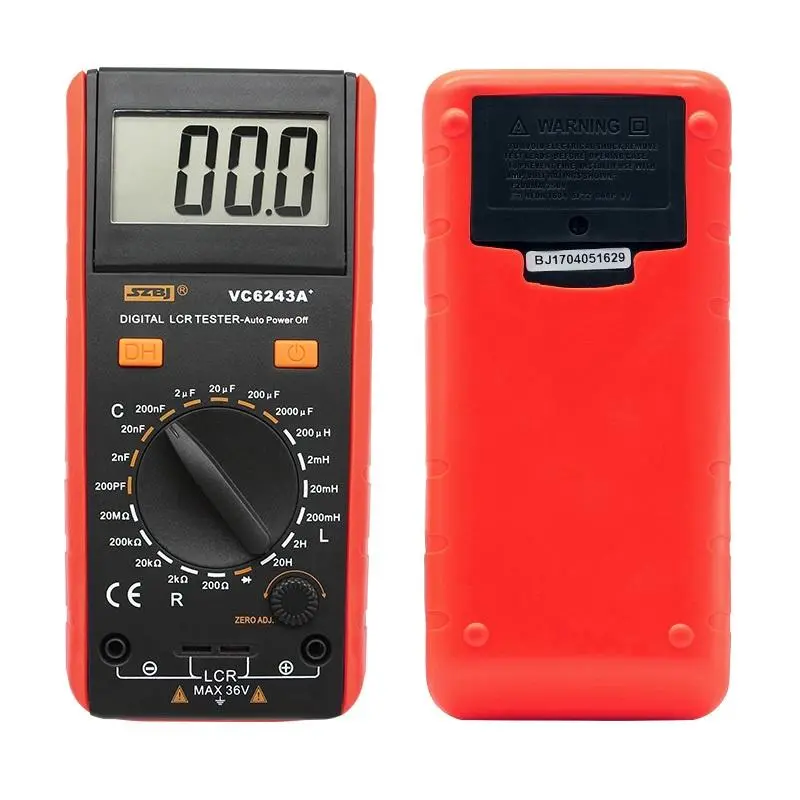

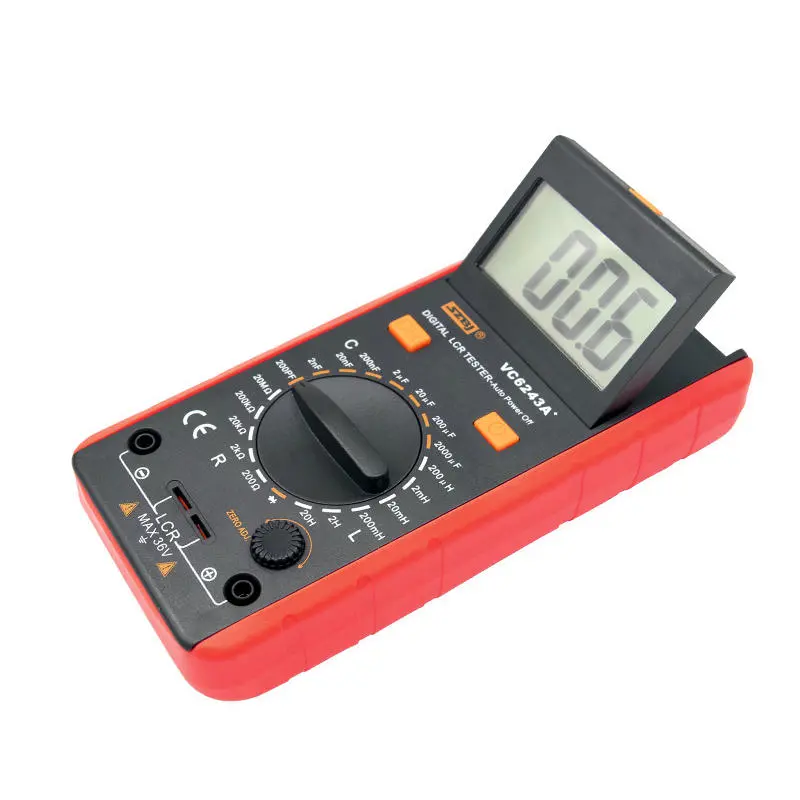

VC6243A Digital LCR Meter - Capacitance Inductance Resistance Tester with Clips & Bag
$42.00
$51.18
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features: VC6243A is inductance, capacitance and resistance measuring meter. It is a special digital instrument which is easy to be operated, and the reading accuracydegree is higher with liquid crystal display 3 1/2. It is employed double integral A/D converter core and a large-scale integrated circuits, which makes the meter anexcellent performance instrument for the users. Specification: Display: LCD Biggest display value: 1999 (31/2) Measuring method: Double integral A/D conversion. Sampling rate: 3 times per second D Overrange display: "1" at the higgest digit Instruction for low voltage of battery: showing ??- + ?? Auto power off and Data Hold function Capacitance: 200p/2n/20n/200n/2u/20u/200uF??2.5%??5, 2000uF: ??5%??5 Inductance: 200uH??3.0%??5, 2m/20m/200m/2H??2.5%??5, 20H??5%??5 Resistance: 200/2k/20k/200k????0.8%??5, 20M????2%??5 Working temperature: 0?? to 40??, Storage temperature: -10?? to 50?? Power supply: a 9V laminated battery(6F22)(not included) Shell material: ABS Dimensions: 190x91x40mm/7.48x3.58x1.57inch Color: Black & red Quantity: 1 Set Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid. 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!3.The housing is only red, the picture is for reference only Package includes: 1 x Multimeter 1 x Pair of Crocodile Clip 1 x User Manual 1 x Portable Bag Details pictures:
Customer Reviews
No reviews yet. Be the first to review this product!
