UIGAO UA92 Digital Multimeter - AC/DC 2000V Voltage Current Resistance Capacitance

Product Description

?Feature:

1. Complete functions, can measure capacitance, battery, resistance, DC current, AC current, AC voltage, DC voltage.
2. Digital display multimeter, equipped with large screen display, visually display the measurement results.
3. It adopts full protection function, intelligent anti?burning, strong anti?interference ability and convenient operation.
4. The portable multimeter can be used for high voltage test with high measurement accuracy and is suitable for circuit testing.
5. Widely used in computer maintenance, various electrical appliances, electronic factories, mobile phone inspection, various circuit board, and household inspection.

Specification:

Item Type: Multimeter
Material: Plastic
Measurement Function: Battery, Resistance, DC Current, AC Current, AC Voltage, DC Voltage
DC Voltage Range: 2000V
AC Voltage Range: 2000V
DC Current Range: 200mA
AC Current Range: 200mA
Capacitance Range: 200uF
Resistance Range: 200M??
Battery Type: 9V (Battery Not Included)
Size: Approx. 190x90x35mm / 7.5x3.5x1.4in

Basic Function	Range	Basic accuracy
		UA92
DC Voltage	200mV/20V/200V/2000V	??(0.5%+3)
AC Voltage	200V/20V/200/750V/2000V	??(0.89%+3)
DC Current	2mA/20mA/200mA	??(0.8%+3)
AC Current	2mA/20mA/200mA	??(1.0%+3)
Resistance	200??/2k??/20k??/200k??/20M??./200M??	??(0.8%+3)
Capacitance	2nF/20nF/200??F/2??F/200??F	??(2.5%6+20)
Special Function
Diode Test		Support
Triode Test		Support
On-Off Beep		Support
Low Voltage Indication		Support
Data Retention		Support
Automatic Shut-Down		Support
Protective Function		Support
Shock Protection		Support
Backlight		Support
Operation Method	Manual Range
Maximum Display	1999
Display Size	Approx. 63x32mm / 2.5x1.3in
Power Supply	9V Battery (6F22) (Battery Not Included)

Package included:

1 x Multimeter (Battery Not Included)

1 x Manual

2 x Test Lead

Note:

1. Please allow 0?1 inch error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

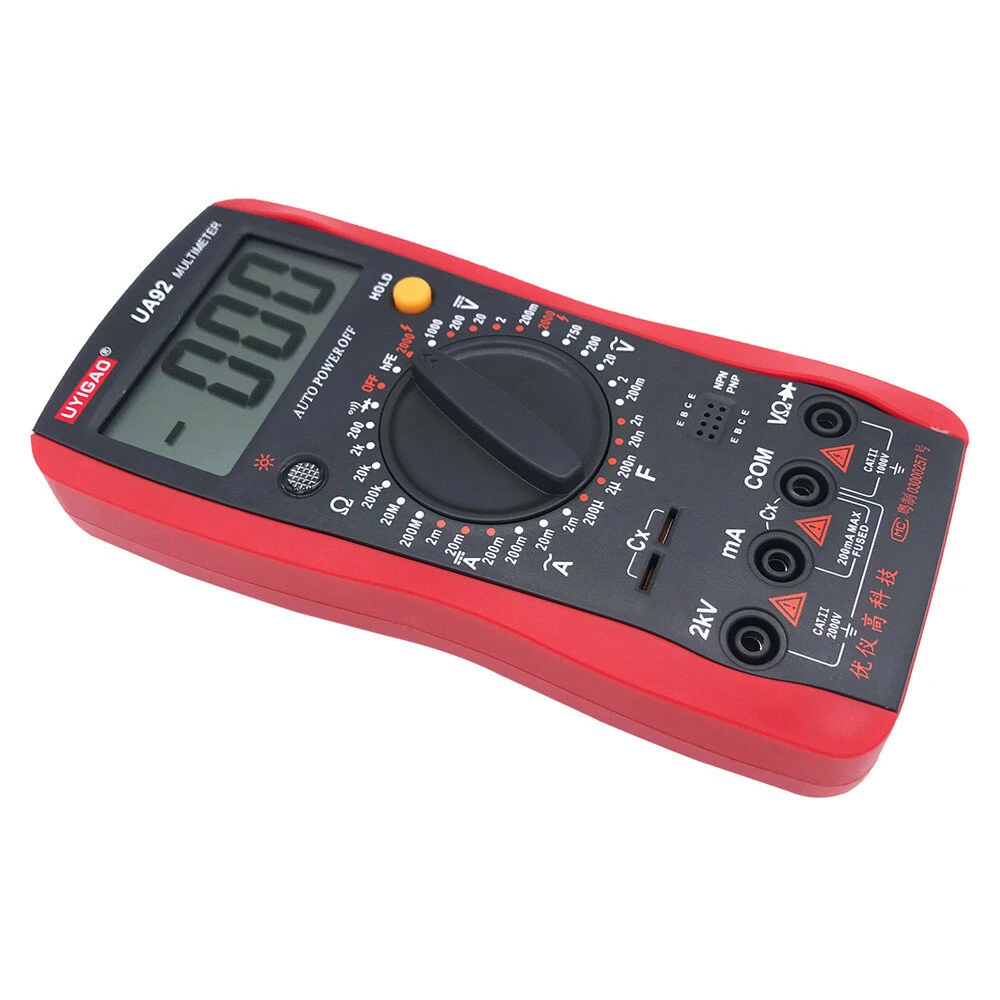

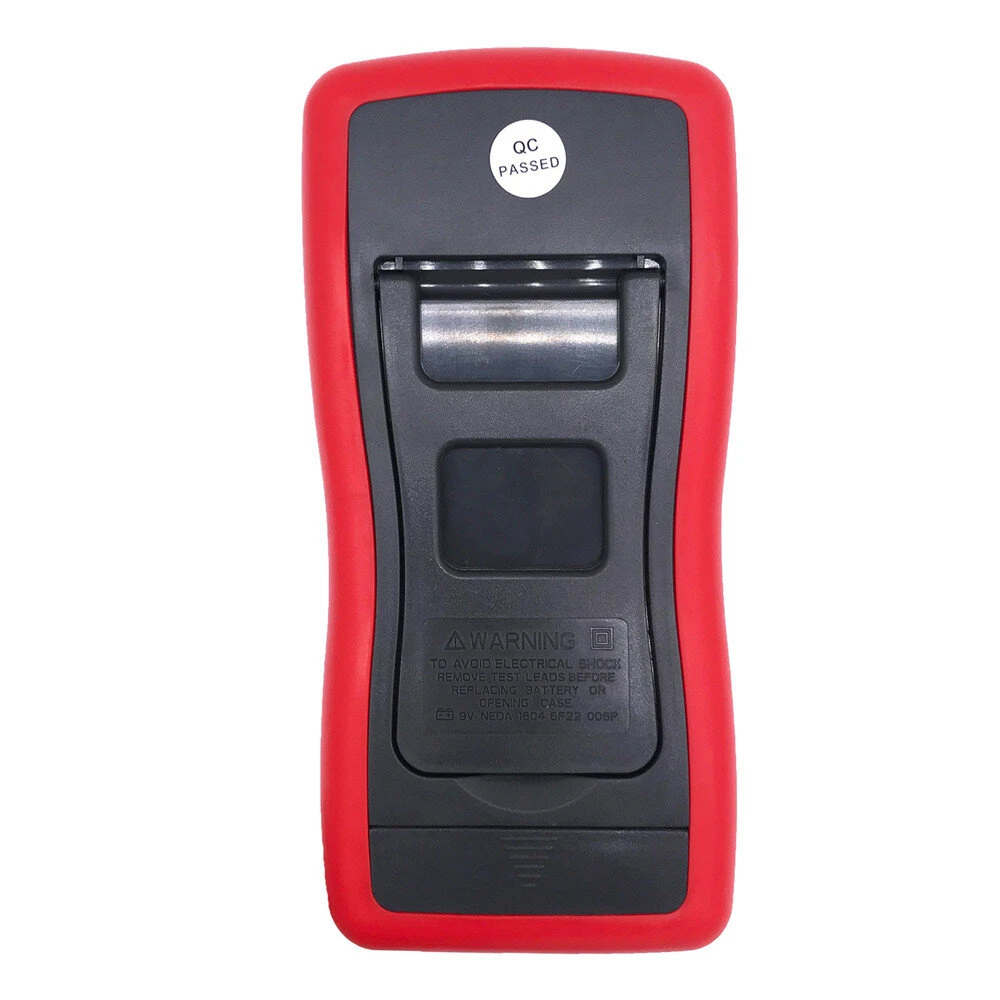

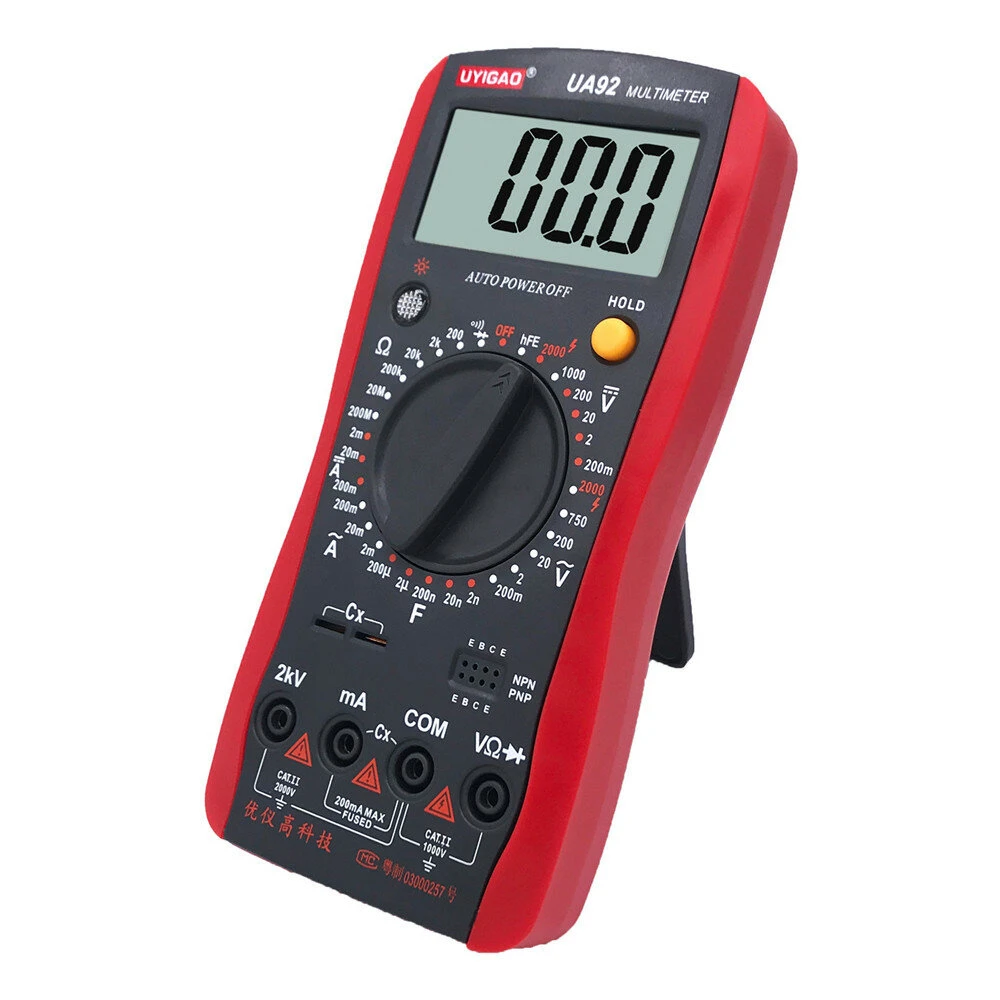

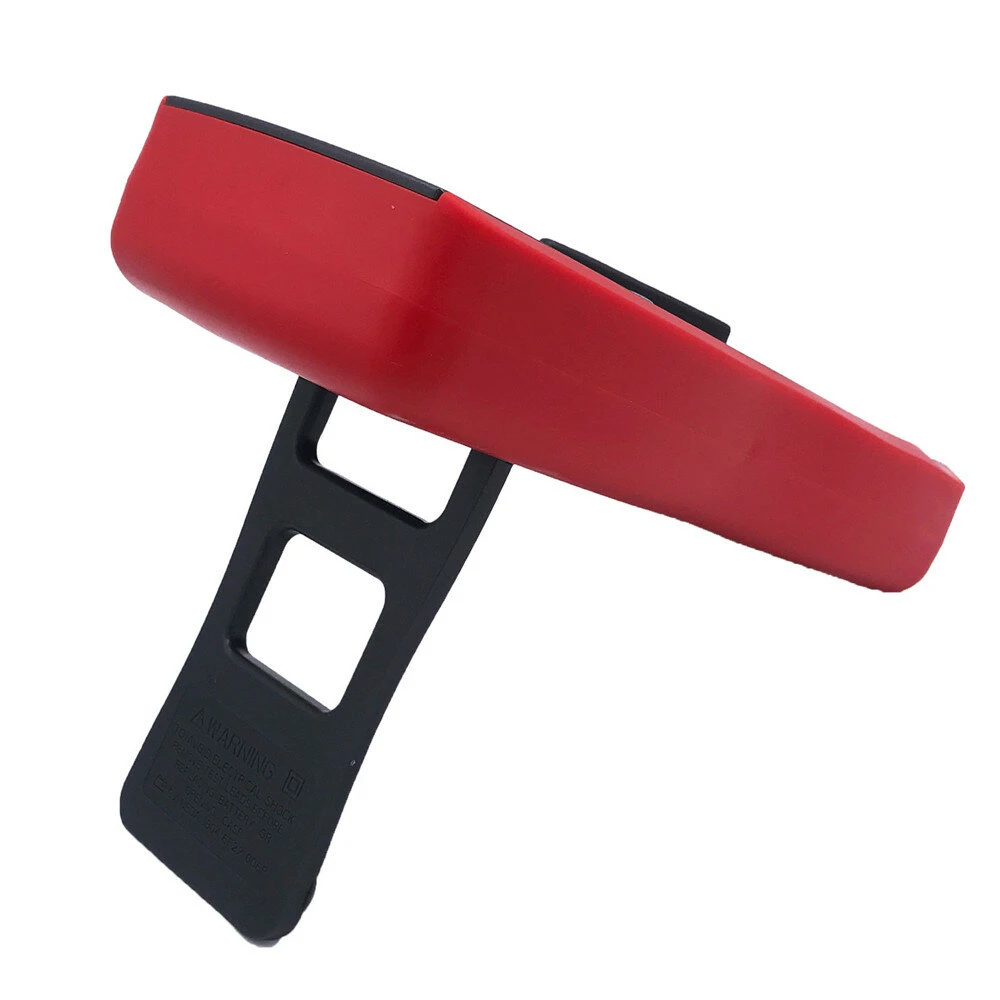

Details pictures:
