ANENG Smart Touch Digital Multimeter - Auto-Ranging Voltmeter Ammeter Ohmmeter

Product Description

Features :

- Display mode: triple display LCD; main display, sub display, analog bar
- Maximum display: 5999 (5 5/6) bit automatic polarity display
- Measurement method: double integral A/D conversion
- Sampling rate: about 3 times per second
- Over range display: The highest position shows "OL"
- Continuous power operation function
- Low voltage display
- Working environment:(0??40)??,relative humidity??80%

Specifications :

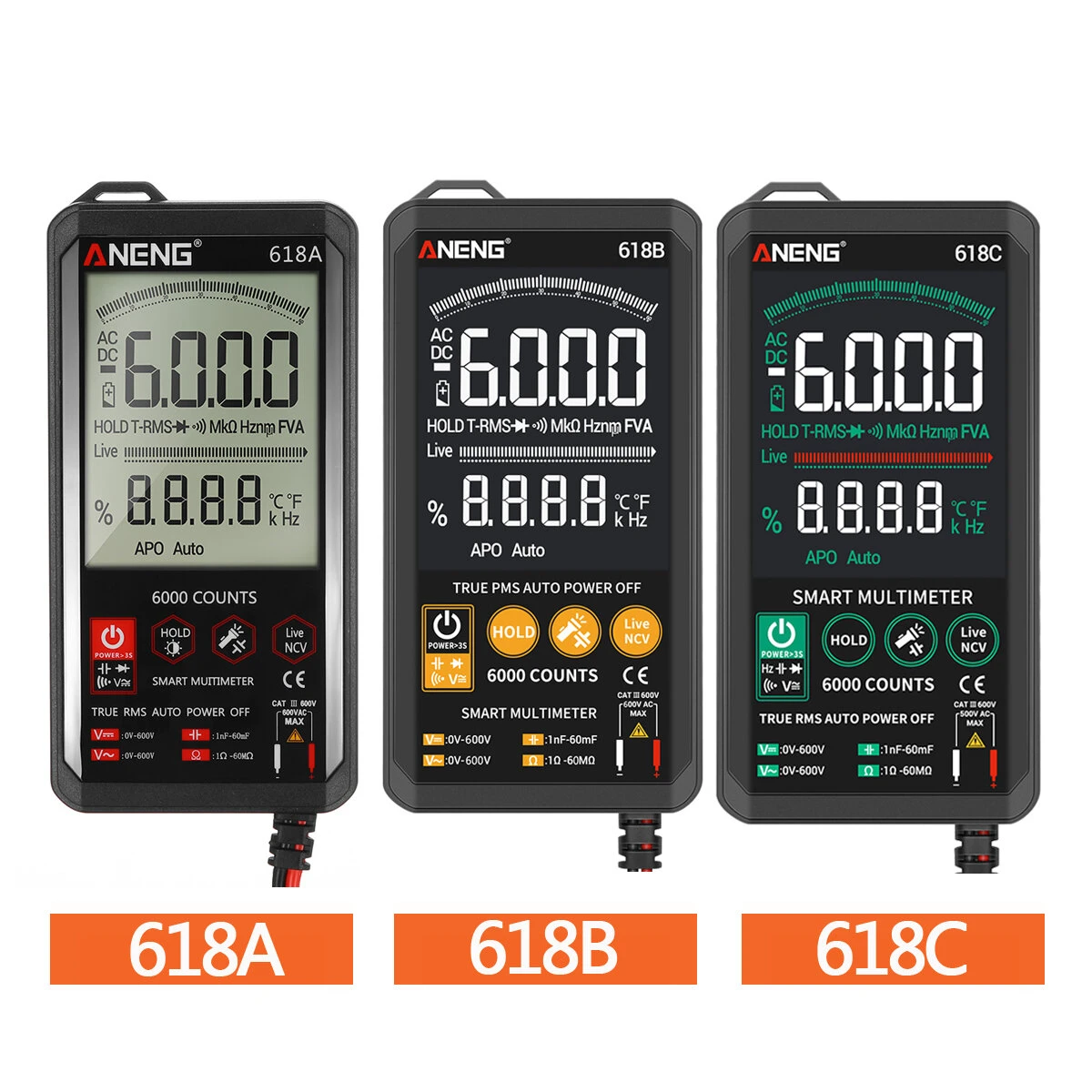

• Style(Option): 618A / 618B / 618C

• Accuracy: ??(a% of reading + least significant digit), to ensure accuracy Ambient Temperature: (23??5)??, relative humidity <75%
• DC Voltage DCV: Yes
• AC Voltage ACV: Yes
• Resistor: Yes
• Diode / On-Off Test / Capacitor: Yes
• Frequency F: Yes
• Touch Key: Yes
• Continuous Power Operation: Yes
• NCV: Yes
• Zero Line / Fire Line Test: Yes
• Full Unit Symbol: Yes
• Backlight Manual/Auto Off: Yes
• True RMS Measurement: Yes
• Temperature(??/?H): Yes
• Flashlight Lighting: Yes
• DCV / ACV Range: 6V/60V/600V,DC1000V/AC750V
• DCV / ACV Accuracy: ??(0.5%+3),??(0.8%+10)
• Resistance Range: 600??,6k??/60k??/600k??/6M??,60M??
• Resistance Accuracy: ??(0.8%+5),??(0.8%+3),??(2.5%+3)
• Capacitance Range: 10nF/100nF /1uF/10uF/100uF/1mF/10mF,60mF
• Capacitance Accuracy: ??(3.5%+20),??(5%+3)
• Frequency Range: 10Hz/100Hz/1kHz/10kHZ/100kHz/1MHz/10MHz(only 618C)
• Frequency Accuracy: ??(0.1%+3)
• Size: About 138.7 * 68MM / 5.46 * 2.67"

Package Includes :

• 1 x 618A/B/C Multimeter with Test Leads

• 1 x Lanyard
• 1 x User Manual

Note : Power: AAA 2* 1.5V battery(Not included)

Details pictures:
