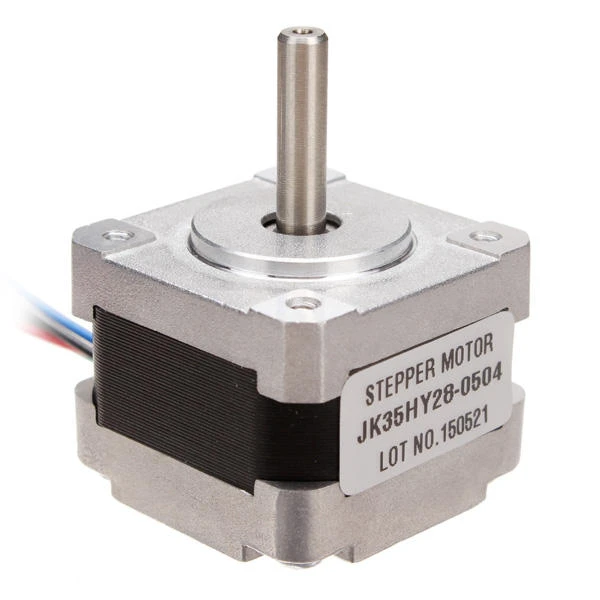

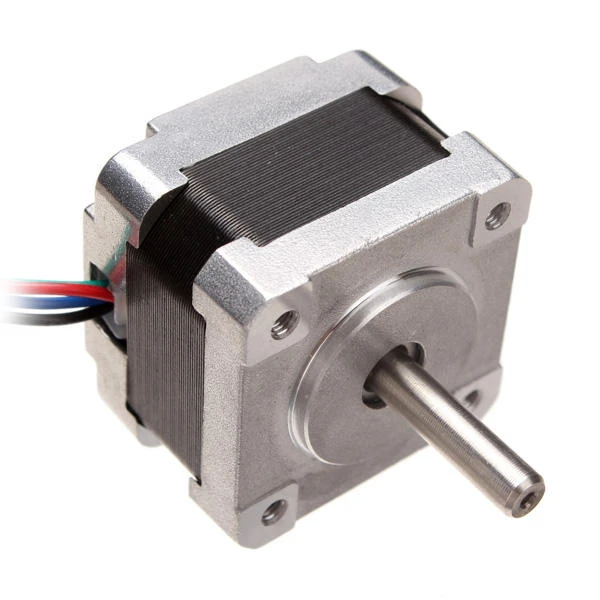

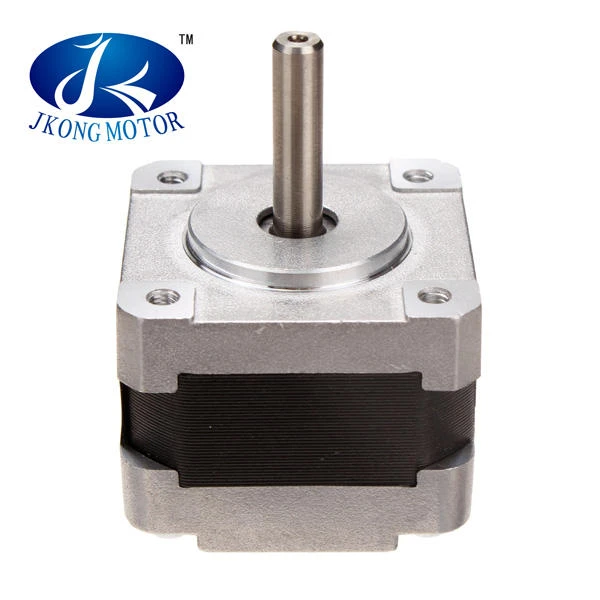

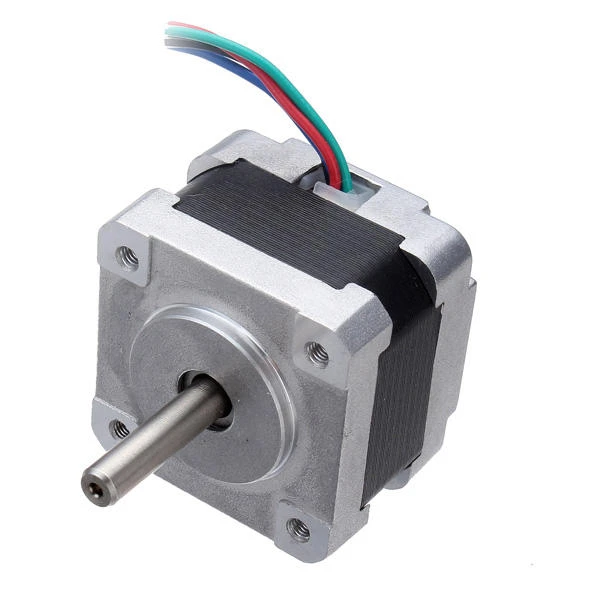

JKM NEMA14 1.8° 35 Hybrid Stepper Motor 28mm 1000g.cm 0.5A

Product Description

Description: JKM NEMA14 1.8??35 Hybrid Stepper Motor Two Phase 28mm Motor 1000g.cm 0.5A
Specification: Brand: JKM Model: JK35HY28-0504 Motor length: 28mm Diameter of axle: 5mm The front shaft length: 21mm Size: 35mm x 35mm x 28mm Outgoing line: 300mm (Plug is not included) Certification: CE Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.
Genaral Specification:

Item	Specifications
Step Angle	1.8??
Temperature Rise	80??max
Ambient Temperature	-20??~+50??
Insulation Resistance	100 M??Min., 500VDC
Dielectric Strength	500VAC for 1 minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( ??)	(L)mm	A	??	mH	g.cm	No.	g.cm	g.cm	Kg
JK35HY28-0504	1.8	28	0.5	20	18	1000	4	80	11	0.14

Features: High holding torque at high speed. A stepper motor is an electric motor that is able to create sharp movements. It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.
Wiring Diagram:

Package Included: 1x Hybrid Stepping Motor
