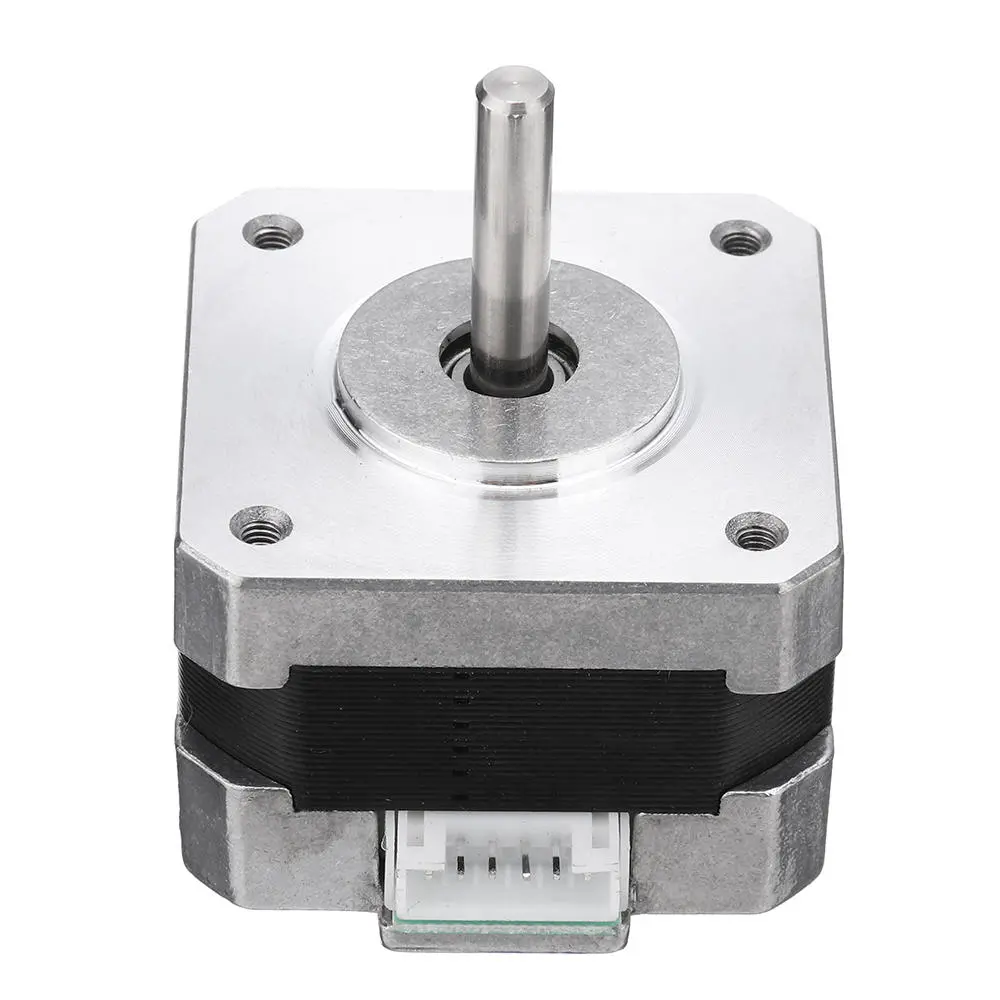

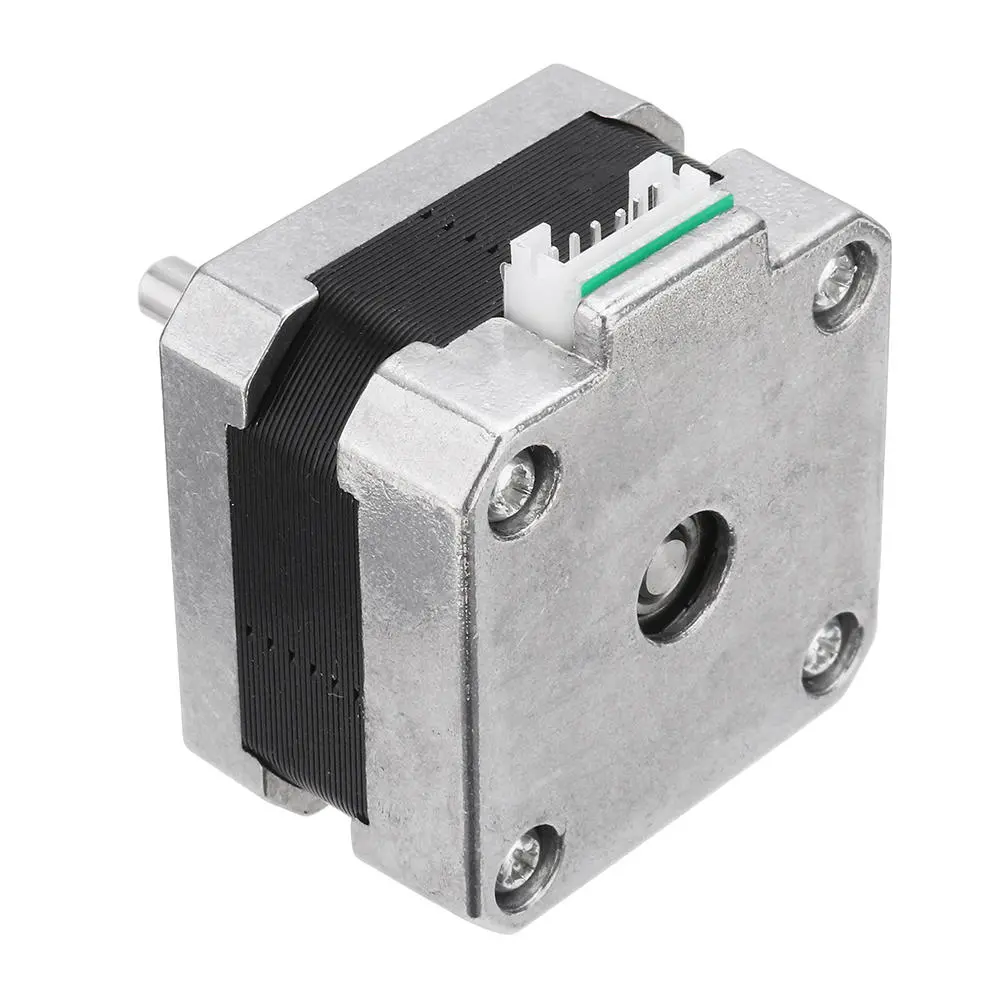

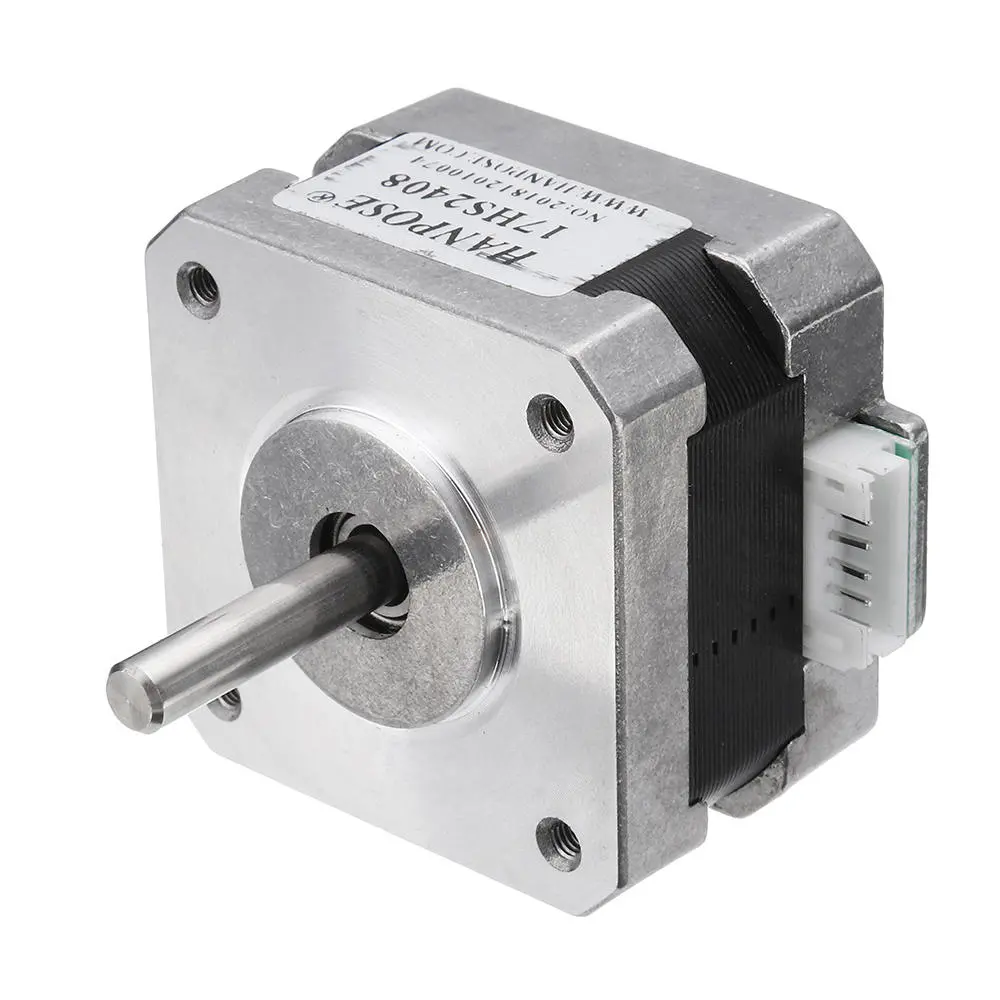

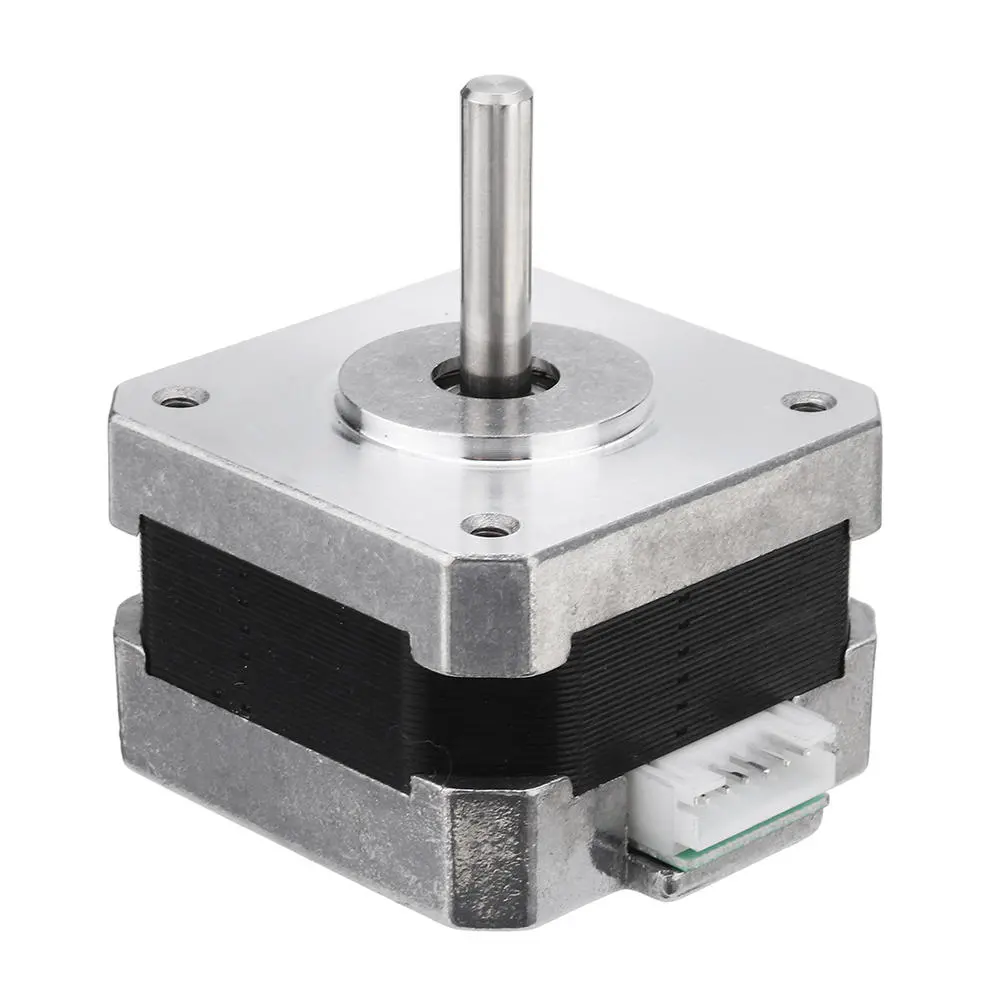

HANPOSE Nema 17 Stepper Motor 42BYGH | 0.6A 12N.cm 4-Lead for CNC Laser 3D Printer
$18.00
$22.38
-20% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:HANPOSE 17HS2408 28mm Nema 17 Stepper Motor 42 Motor 42BYGH 0.6A 12N.cm 4-lead For CNC Laser 3D Printer Motor
Certification: CE, ROSH, ISO, FCC
Specification:
| Model | 17HS2408 |
| Phase | 2 |
| Step Angle | 1.8?? |
| Motor Size | 42 x 28mm |
| Shaft | "Round" shaft 21x??5MM |
| Outlet way | "4" plug line |
| Adapter drive | Two-phase step drive |
| Scope | 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. |
Electrical Specifications:
| Model | Step Angle (Deg) | Motor Length (mm) | Rated Current (A) | Resistance Phase (Ohm) | Phase Inductance (mH) | Holding Torque (N. cm) | Couple Relaxing (N.cm) | Inertia Of Rotor (G. cm2) | Lead (No.) |
| 17HS2408 | 1.8 | 28 | 0.6 | 8 | 10 | 12 | 1.6 | 34 | 4 |
General Specification:
| Precision angle step | ??5% (full step, no charge) |
| Resistance accuracy | ??10% |
| Precision inductance | ??20% |
| Temperature rise | 80deg Max (rated current, 2 phase on) |
| Ambient temperature | ( - 20??)-(+ 50??) |
| Insulation resistance | 100M?? Min, 500VDC |
| Insultion Force | 500VAC for a minute |
1 X 17HS2408 Stepper Motor
(Will send you with 1m dupont line)
