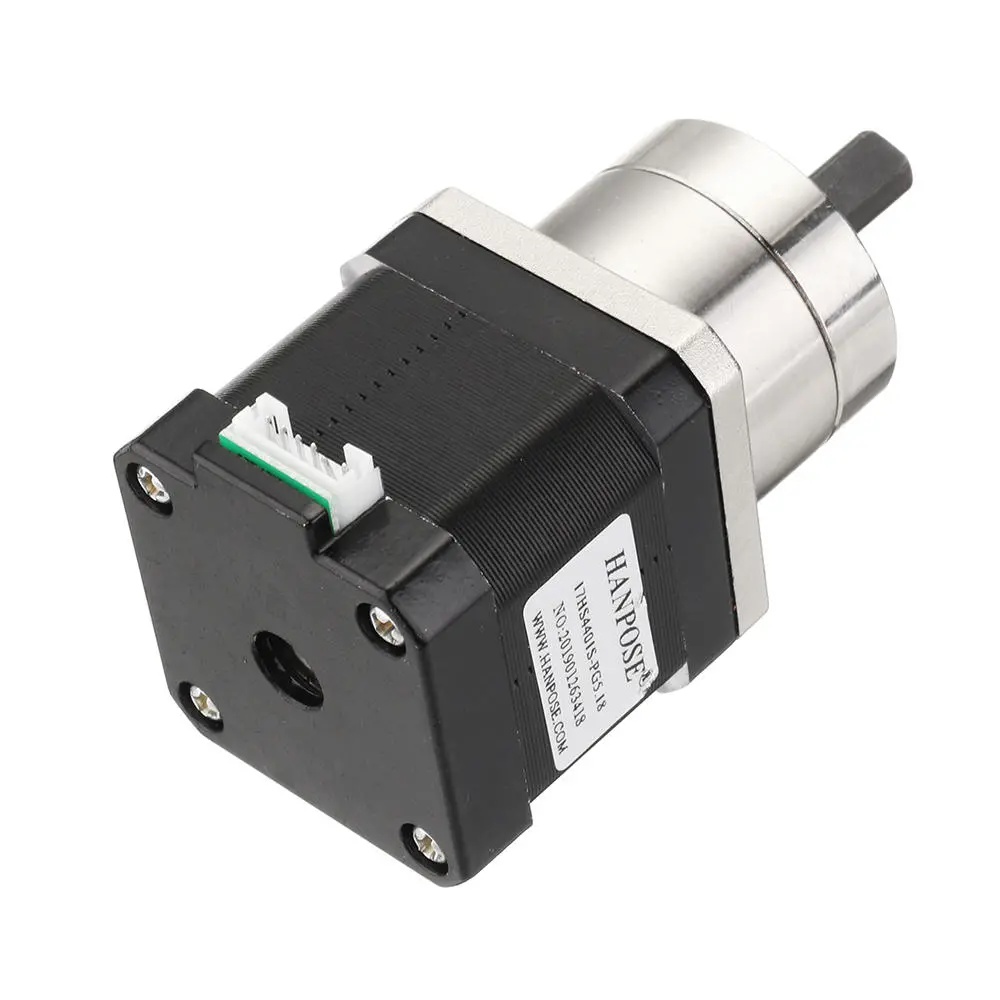

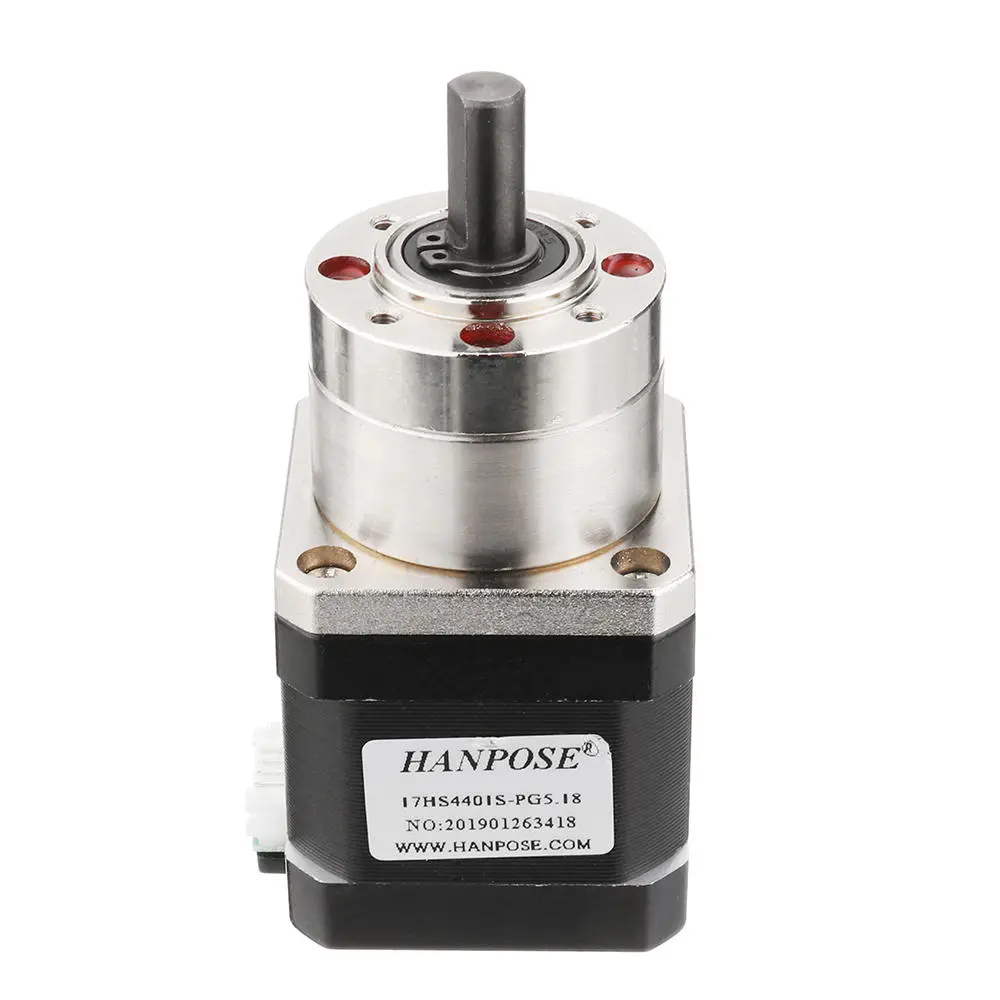

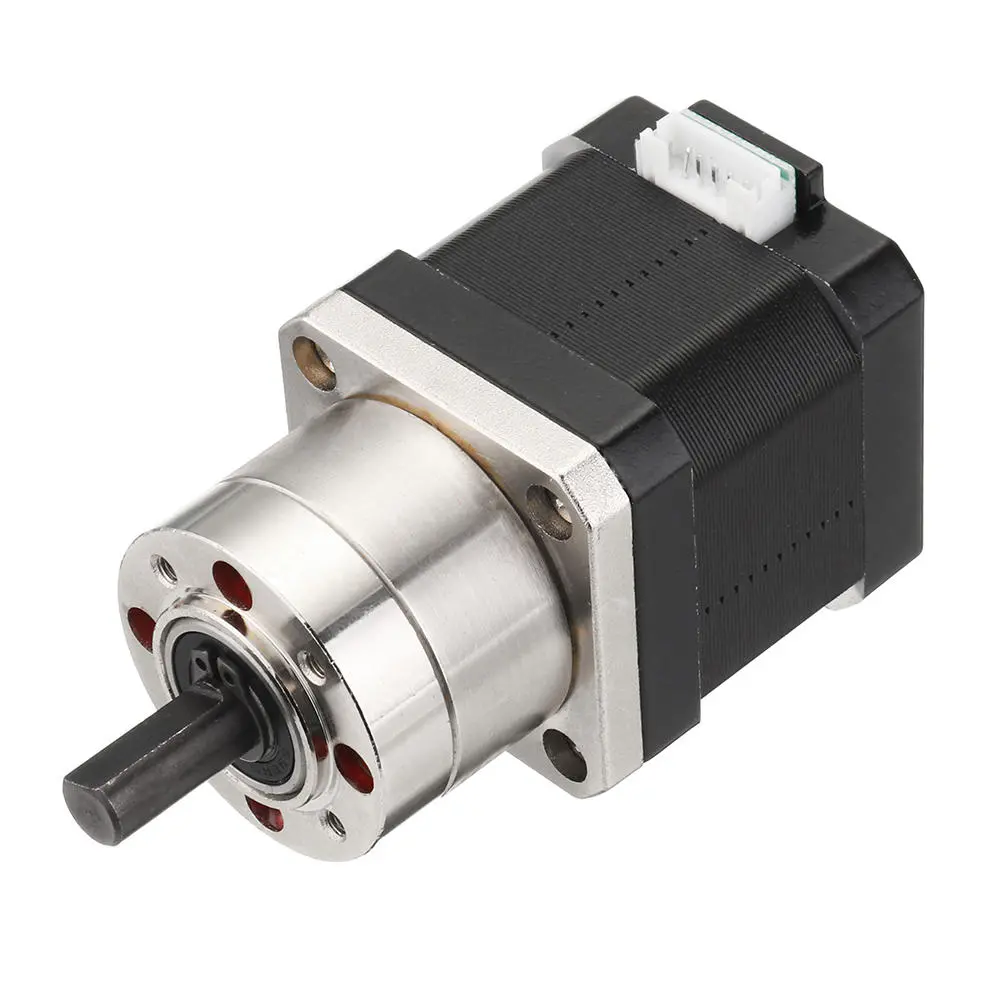

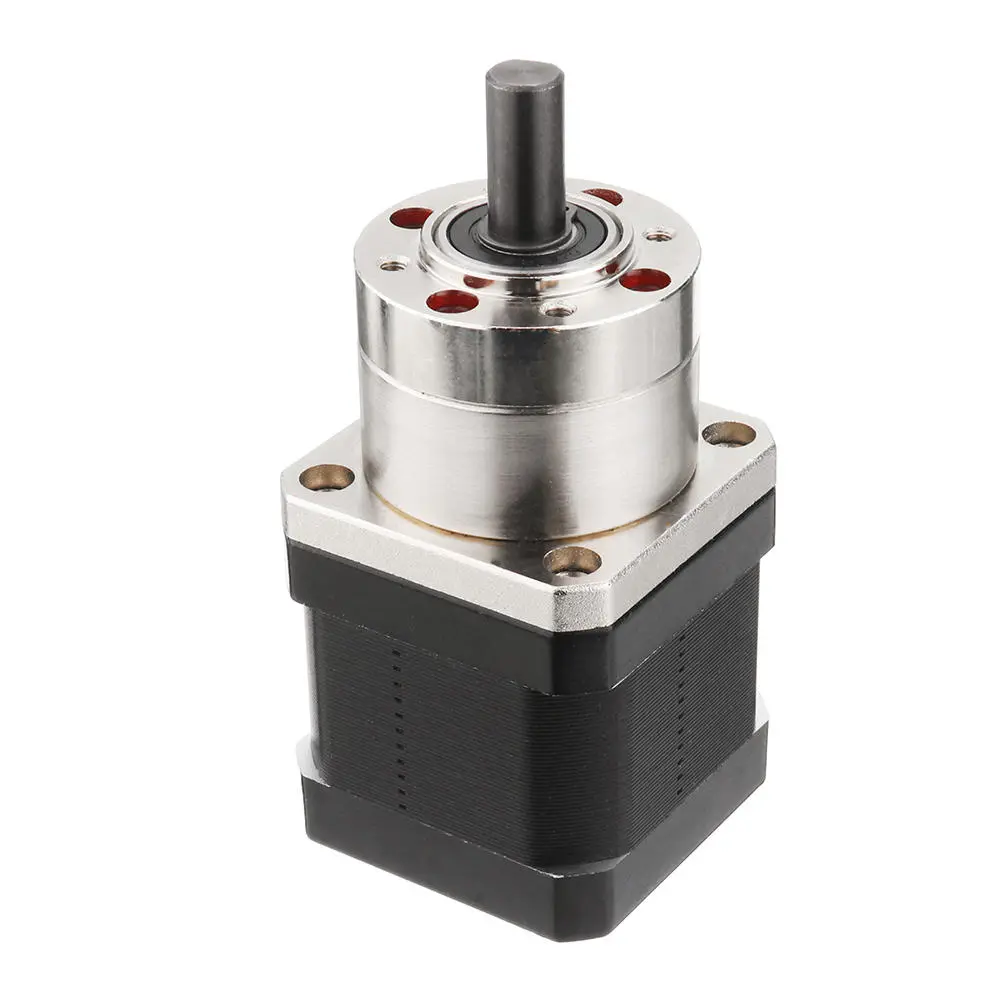

HANPOSE Nema 17 Stepper Motor | 42:1 Planetary Gearbox | 17HS4401S-PG
$56.00
$68.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:HANPOSE 17HS4401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor
Certification: CE, ROSH, ISO, FCC
Specification:
| Product Model | 17HS4401S-PGXXX |
| Stepper Motor Length | 40mm |
| Shaft Size | "D" Shaft 16x8mm |
| Motor Lead | Plug |
| Including Wire | 1M Dupoint Wire |
Gear Reducer Ratio
| Gearbox Model | 3.71-1 | 5.18-1 | 14-1 | 19-1 | 27-1 | 51-1 |
| Reduction | 3.71 | 5.18 | 14 | 19 | 27 | 51 |
| Gearbox Length | 29 | 29 | 37 | 37 | 37 | 45 |
Planetary Gear Reducer Technical Parameters
| Internal Gear Material | 45# Steel |
| Output Bearing Form | Ball Bearings |
| Radial Load | ??35N |
| Axial Load | ??25N |
| Radial Clearance | ??0.04mm |
| Axial Clearance | ??0.03mm |
| Backlash(No Load) | ??2?? |
Note: The Planetary Gearbox Stepper Motor Holding Torque= 17HS4401-S Stepper Motor Holding Torque * Reduction * 0.8
Warning: The Gear Box Can Bear Less Than 16 N.M Torque
17HS4401-S Stepper Motor Electrical Specifications:
| Model No. | Step Angle | Motor Length | Rated Current | Resistance /Phase | Inductance /Phase | Holding Torque | Detent Torque | Inertia Of Rotor | Lead |
| ( ??) | (L)mm | (A) | (??) | (mH) | (N.cm) | (N.cm) | (G. cm2) | (No.) | |
| 17HS4401-S | 1.8 | 40 | 1.7 | 1.5 | 2.8 | 40 | 2.2 | 54 | 4 |
Applications:
Used for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertising instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor, textile machinery stepper motor,
Cnc router stepper motor.
3D printer
1 x HANPOSE 17HS4401S-PGXXX Extruder Gear Stepper Motor
