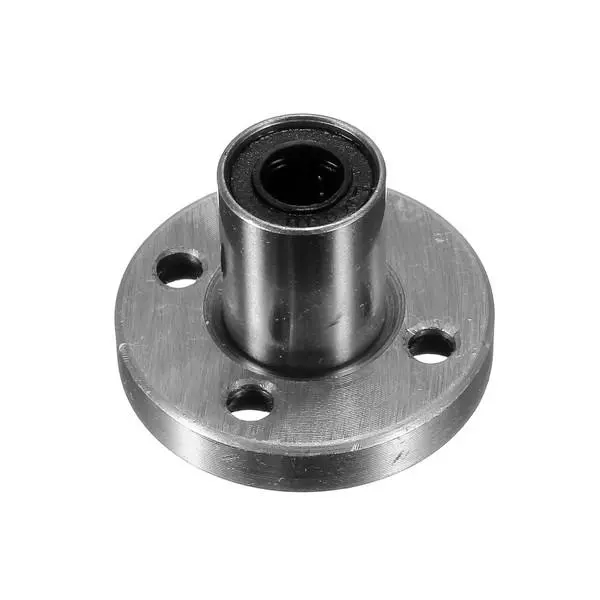

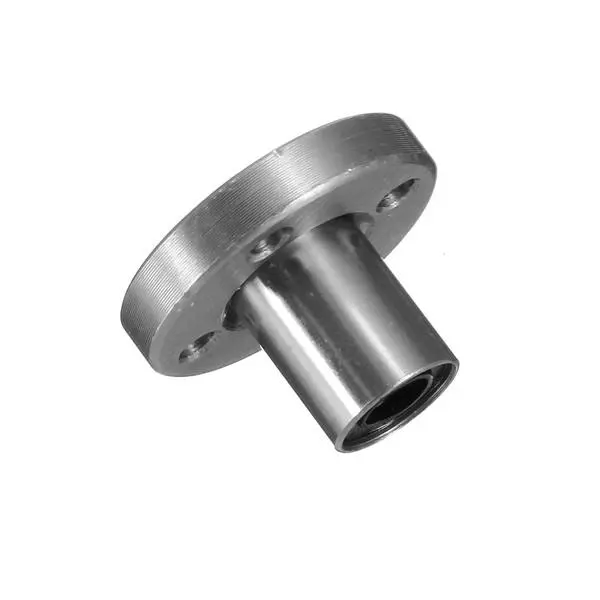

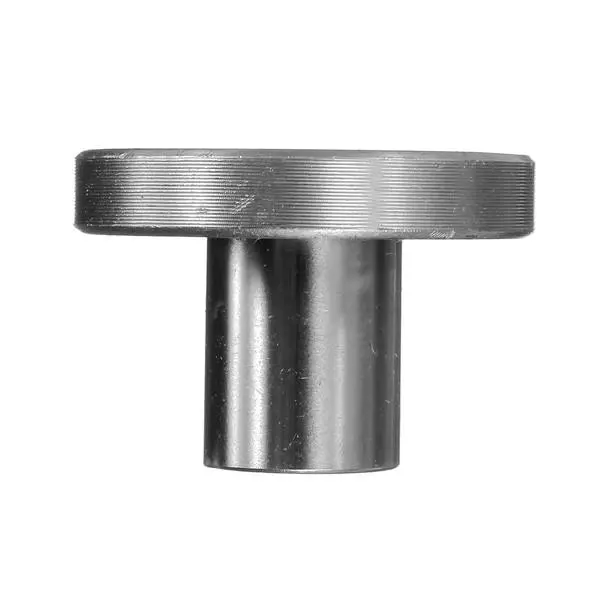

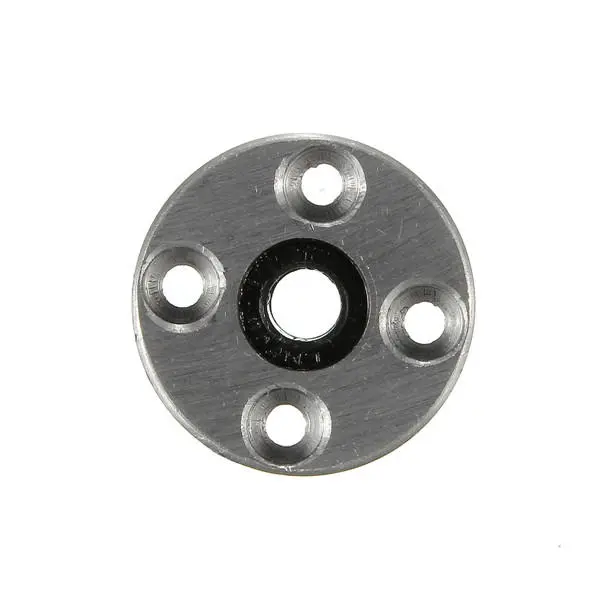

LMF6UU 6mm Flange Linear Ball Bearing | Round Flange | CNC Motion Part

Product Description

Description:
LMF6UU 6mm Round Flange Linear Ball Bearing Linear Motion Bearing CNC Part
Type: Linear Moder Number: LMF6UU Inner Diameter: 6 mm Material: Steel

Model No.	Number Of Ball Rows	Main Dimensions													Squareness	radial run-out	Basic Load Rating		Weight (g)
		Inscribed Circle Diameter		Outer Diameter		Length		Flange				Hole For Attachment
		dr (mm)	Tolerance	D (mm)	Tolerance	L (mm)	Tolerance	D1	K	H	??	d1	d2	h	0.012	0.012	Dynamic (C)	Static (Co)	0.022
LMF6	4	6	0-0.009	12	0-0.011	19	0-0.20	28	22	5	20	3.5	6	3.1			21	27

Features: These bearings are pre-lubricated with grease. Linear bearing ball cage, hardened coat of both ends ring. High strength, particularly suitable for automated devices. Products with high accuracy. Safe and reliable. Ball in the cage loop to run a smooth ball guide surface to ensure stability even if high-speed. Usage: Semiconductor manufacturing equipment, printed circuit board IC assembly equipment, robotic arm, precision measurement equipment, office automation equipment, and other large-scale linear slide devices. Package Included: 1x LMF6UU Linear Bearing More Details:
