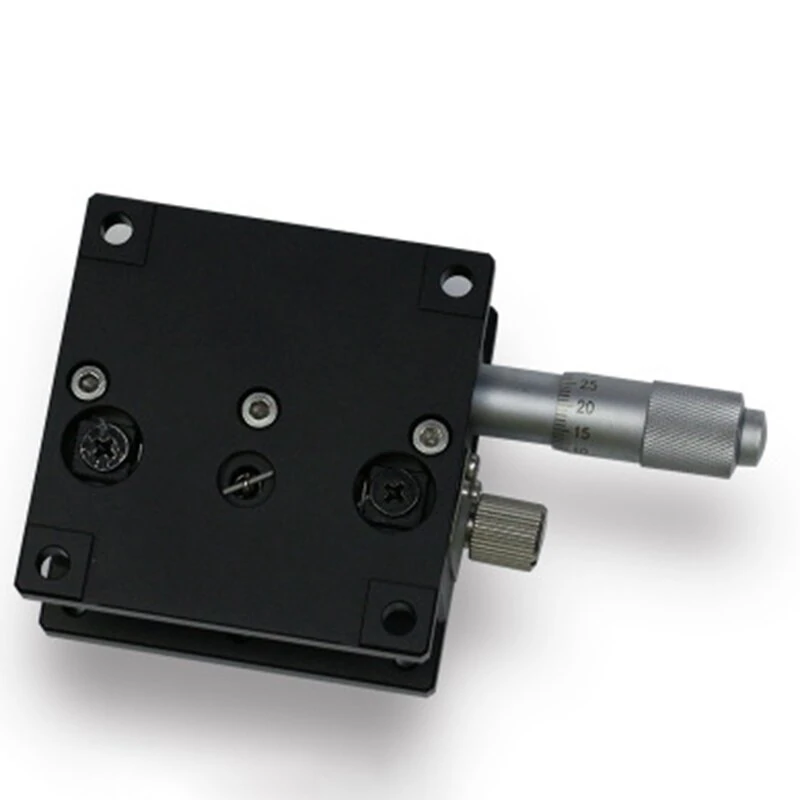

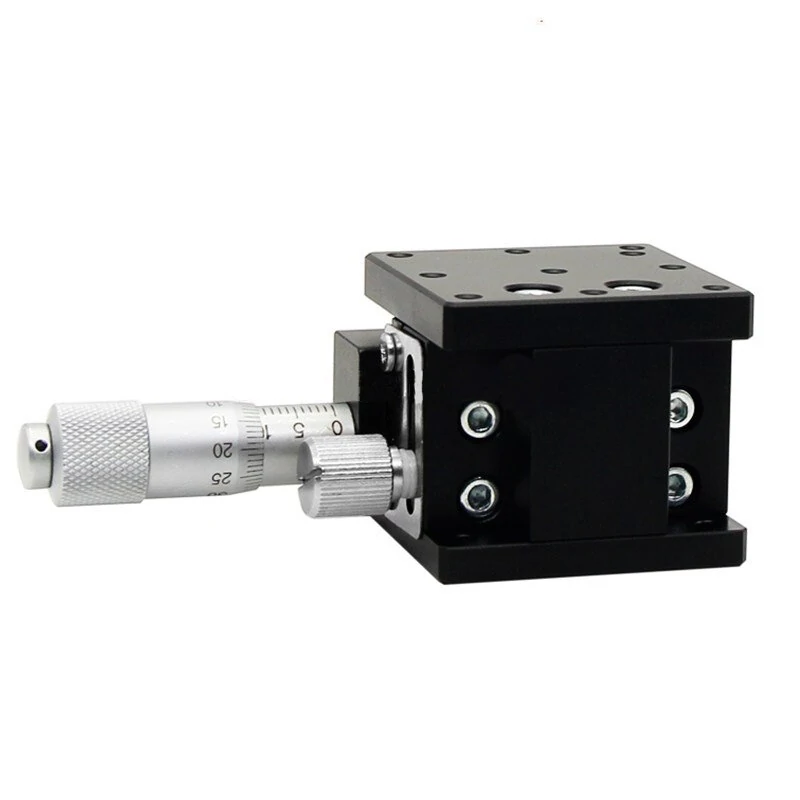

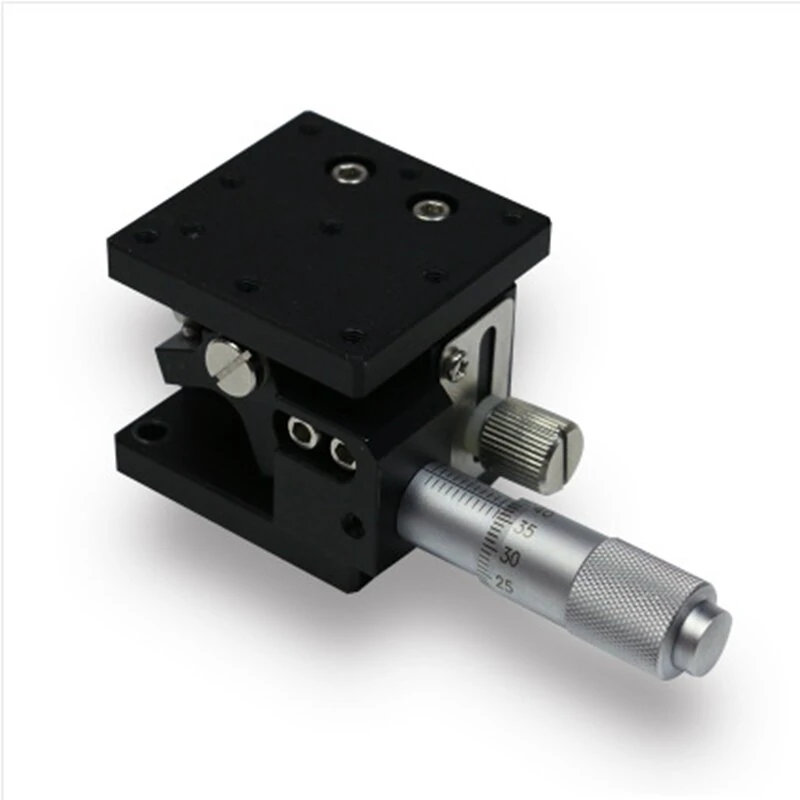

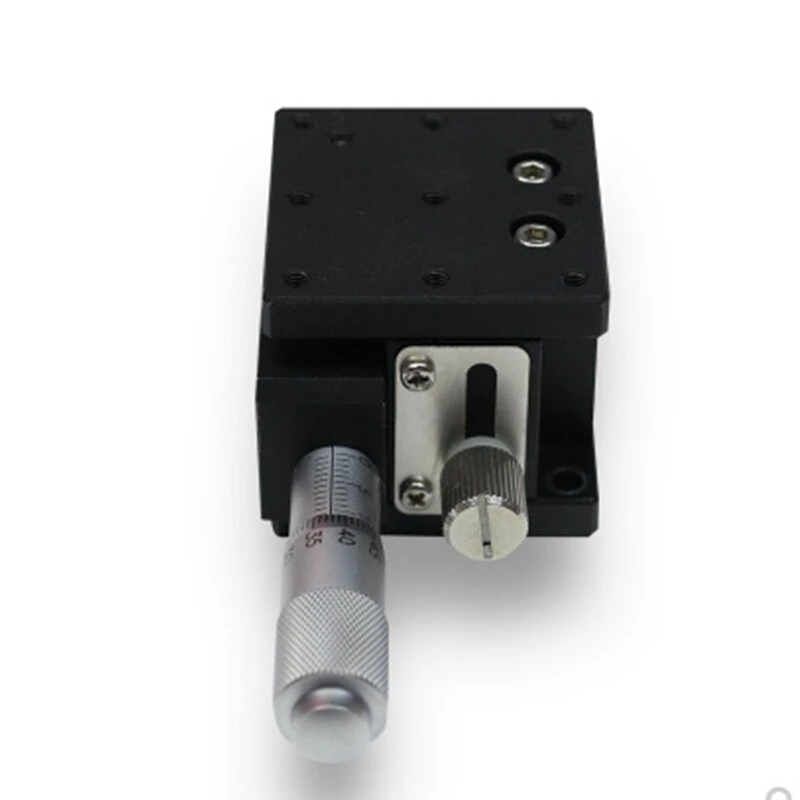

Machifit Z Axis Fine Tuning Platform - 40/60/90mm Lift Stage Sliding Table for CNC
$57.00
$70.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:
Machifit LZ40 LZ60 LZ90 Z Axis 40/60/90mm Displacement Lift Stage Fine Tuning Platform Adjustable Sliding Stage Sliding Table
Specifications:
| Product Name | Adjustable Sliding Stage |
| Material | Aluminum Alloy |
| Color | Black + Silver |
| Move Direction | Z axis in one direction |
| Drive Mode | Differential Head |
| Can Be Achieved | Lift |
| Rail Type | V-rail (Cross Roller Guide) |
| Size | 40*40/ 60*60/ 90*90mm |
| Quantity | 1 Pc ?? Adjustable Sliding Stage |
| Type | LZ40 | LZ60 | LZ90-2 |
| Table Size | 40??40 | 60??60 | 90??90 |
| Stroke | 10mm | ||
| Load | 19.6N (2kgf) | 20.4N (3kgf) | 49N (5kgf) |
| Minimum Scale | 0.01mm | ||
| Slot Degree | 0.02mm | ||
| Parallelism | 0.02mm | 0.03mm | |
| Weight | 0.17kg | 0.27kg | 0.45kg |
Features:
- Rotating platform enables fine adjustment of the angle of the platform to the approximate location, using the thickness adjusting switch screws, can be fine-tuned using a micrometer.
- Using mobile cross roller guides, enabling high-precision, smooth movenment.
- The main body made of aluminum alloy, light weight, suitable to be built for other devices.
Package Included:
| 1 ?? | Adjustable Sliding Stage |
