Machifit YH CNC Milling Digital Readout DRO | 2/3 Axis LCD Display & Optical Linear Ruler
$188.00
$231.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:

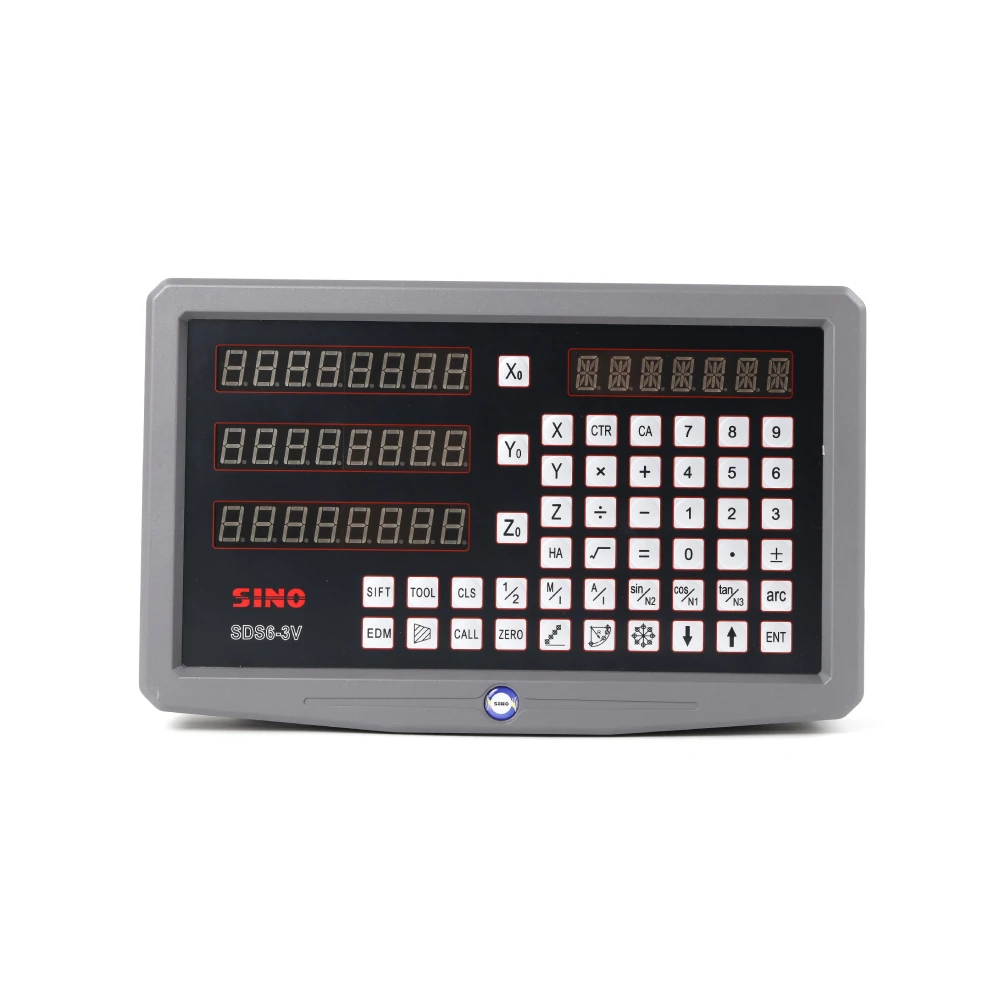

YIHAOGD YH SDS6-2/3V 2/3Axis LCD Digital Display Universal Linear Optical Ruler Display for Milling Machine Grinder
Features:
- Centering (1/2)
- Metric/ inches Display (mm/inch)
- Absolute/ incremental (ABS/ INC)
- Power off Memory
- 200 subdatum
- Reference Memory (REF)
- Build in Calculator
- Pitch Circle Diameter (PCD) (Milling)
- Line Hole Positioning (LHOLE) (Milling)
- Simple "R" Function (Milling)
- Smooth "R" Function (Milling)
- Linear Error Compensation
- EDM
- Tool Lib for Lathe
Specifications:
| Type | LCD Digital Display |
| Resolutions | 10-0.1um |
| Angle Resolutions | 0.001-1'' |
| Power Supply | 100VAC-230VAC |
| Axis Display/ LED | 7 Segment LED |
| Signal Input Per Axis | A/B Signals |
| Max. Input Frequency | 500KHz |
| Operating Temperature | 0-50 |
| Storage Temperature | -20-70 |
| Relative Humidity | 95% (not condensed) |
| Vibration Resistance | 25m/s (55-2000Hz) |
| Protection Class (EN60529) | IP42 |
| Weight | 2.5kg |
Package Included:(2/3Axis optional)
| 1 X | LCD Digital Display |
More Details:
