Machifit 4 Axis CNC Offline Controller Board | 50KHZ for Engraving & Milling

Product Description

Watching the Video and Learn More About This Product.
Manual of the controller.
Description:
50KHZ CNC 4 Axis Offline Controller Break out Board Engraving Machine Control System Card
WHY this controller is so appealing?
- Control machine by this controller without computer.
Specification:

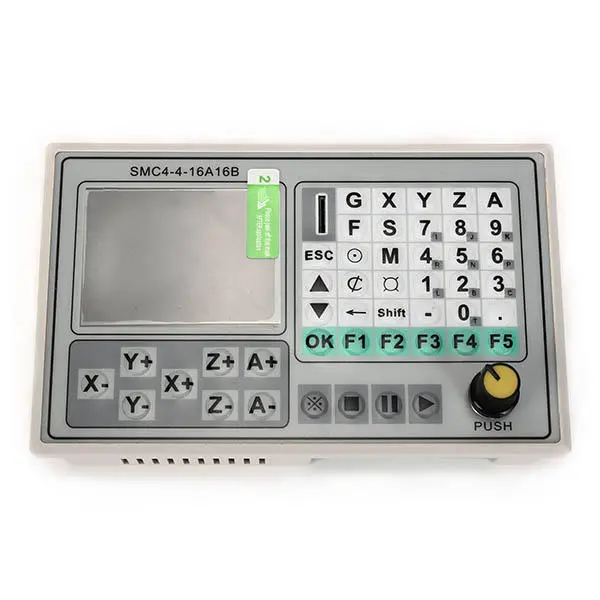

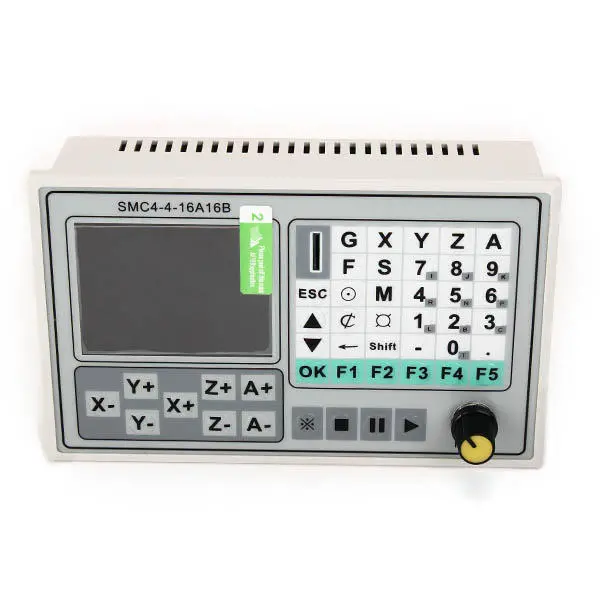

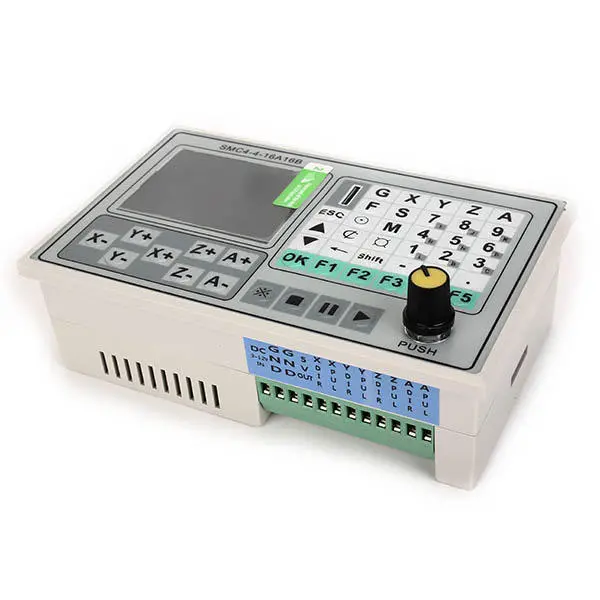

Model Number	SMC4-4-16A16B
HZ	50KHZ
Axis	4 Axis, X Y Z A
CPU	32
Memory	2GB
LCD	320*240
Size	165*101*50mm
Language	English
Application	CNC Engraving machine and CNC Milling machine

Technical Information:
1. The smallest date unite: 0.0001mm 2. The biggest date unite: ?? 99999.999mm 3. The highest frequency of pulse output: 50KHz (The three axises can reach 50KHZ at the same time) 4. Control axis: 4 axis (X, Y, Z, A axis)
Advantage:
Control machine by this controller without computer.
Parameter setting: Can set, process and operation various control parameters, to reach the optimal effect. Operate by Hand: Can control your systom by hand in this controller. Program managment: This controller can built, delete, modify, read, save, automatic processing, continuous, pause and
other functions.
Features:
Parameter settings:For processing, control parameters related to the operation Manual operation: can be achieved manually, jog back to the program zero, back to mechanical zero, cleared coordinate operations. Program management: program can create, delete, modify, read, save, save, automatic processing, continuous, and pause. External Manual: Manually define a variety of external functions to facilitate the use of Freedom to select the input function: the limited input port can achieve a variety of user needs
System components CNC system consists of the following components: High-performance, high-speed 32-bit ARM CPU Liquid crystal display (resolution: 320 ?? 240) Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down tank flow 500MA) Users machining program memory can be implemented in any storage TF card
Technical indicators The smallest unit of data 0.0001mm The maximum data size ?? 99999.999mm Maximum pulse output frequency 50KHz (-axis simultaneous 50KHZ) Control axes 4 axes (X, Y, Z, A) 4-axis linkage axis and has a micro-multi-multi-axis interpolation control line forward Appearance and Panel: Dimensions: length 165, width 101, height 50

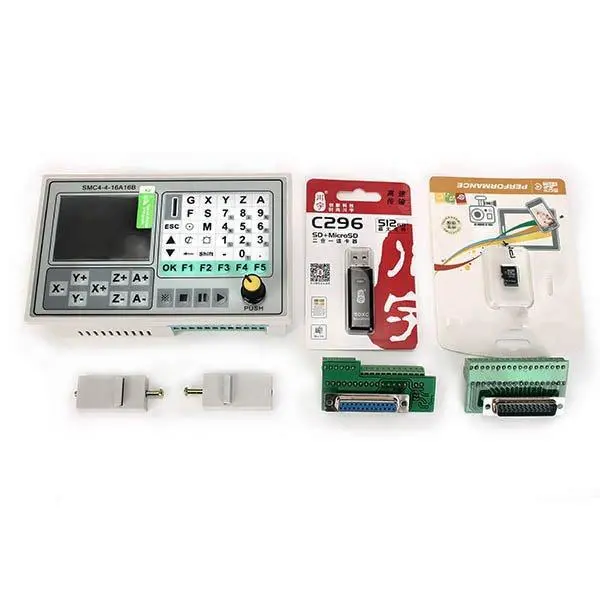

Package Included:
1 x Control break out board
1 x IO Output connector
1 x IO Input connector
1 x USB DISK
1 x Memory Card
